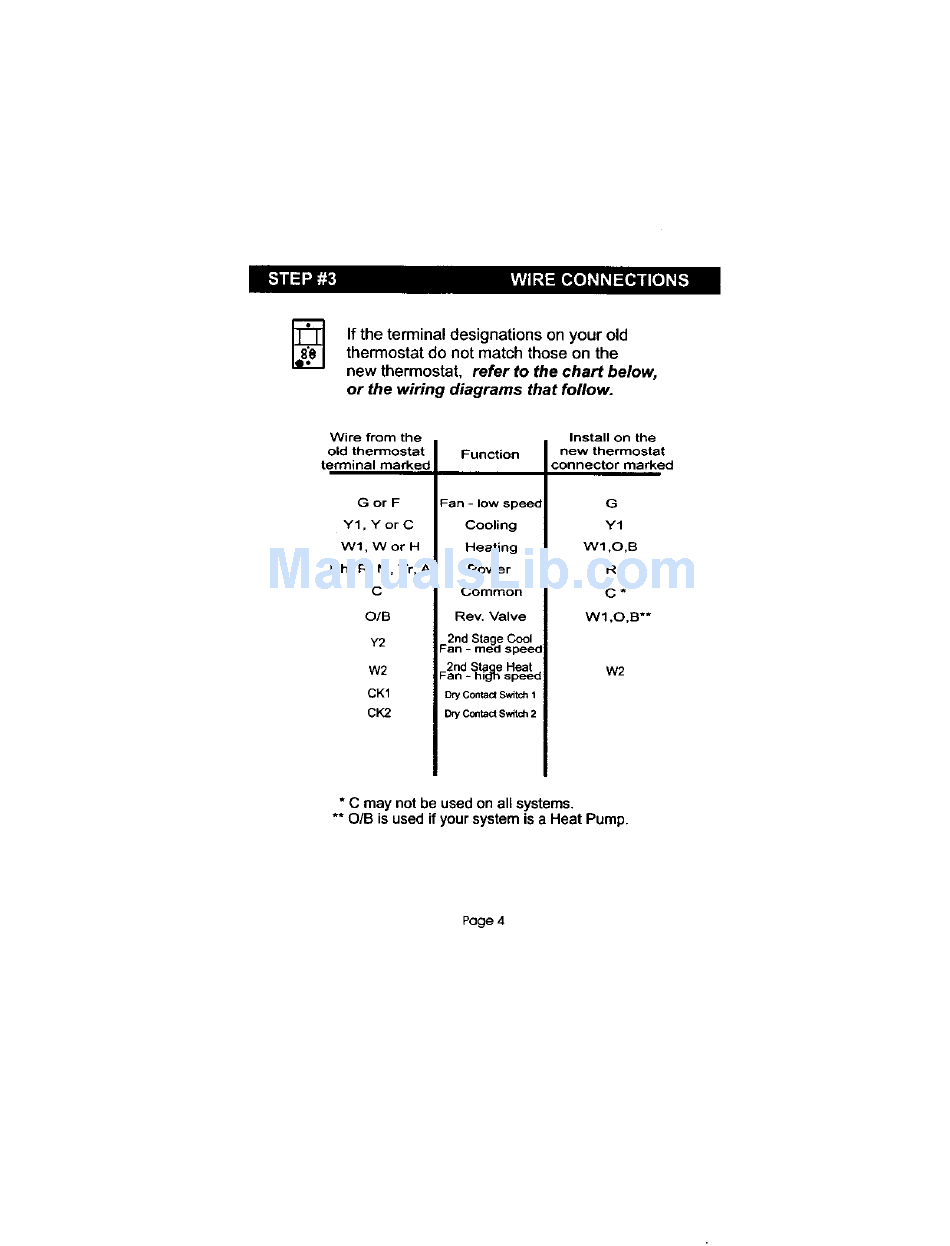

If the terminal designations on your old
thermostat do not match those on the
new thermostat, refer to the chart below,
or the wiring diagrams that follow.
Wire from the
old thermostat
terminal marked
GorF
Y1,YorC
W1,Wor H
Rh, R, M, Vr, A
C
O/B
Y2
W2
CK1
CK2
Function
Fan - low spee(_
Cooling
Heating
Power
Common
Rev. Valve
2nd Stage Cool
--an - med spee_
2nd _tage Heat
:an - rllgn speed
Dry ContactSwitch 1
Dry Co_tactSwitch2
Install on the
new thermostat
connector marked
G
Y1
Wl ,O,B
R
C*
Wl,O,B**
W2
* C may not be used on all systems,
** O/B is used if your system is a Heat Pump.
