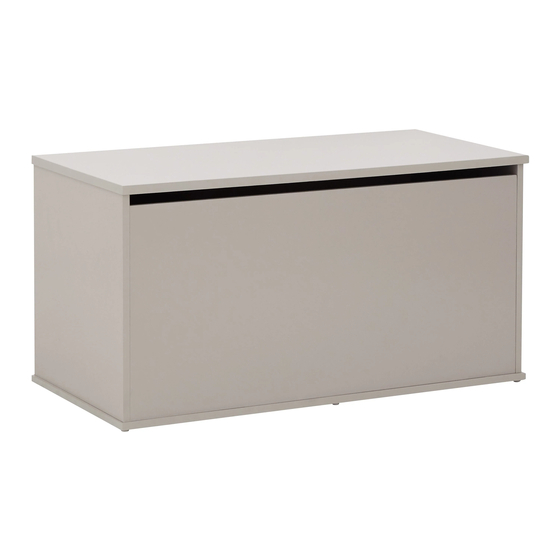

PANAMA - OTTOMAN STORAGE ASSEMBLY INSTRUCTIONS
Thank you for purchasing the OTTOMAN STORAGE.
Please read the instructions carefully to ensure safe operation of the product.
795
405
395
Size : (W)795 x (D)395 x (H)405 mm
Batch No : PO# 2970
Page 1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW PANAMA OTTOMAN STORAGE
Summary of Contents for GFW PANAMA OTTOMAN STORAGE

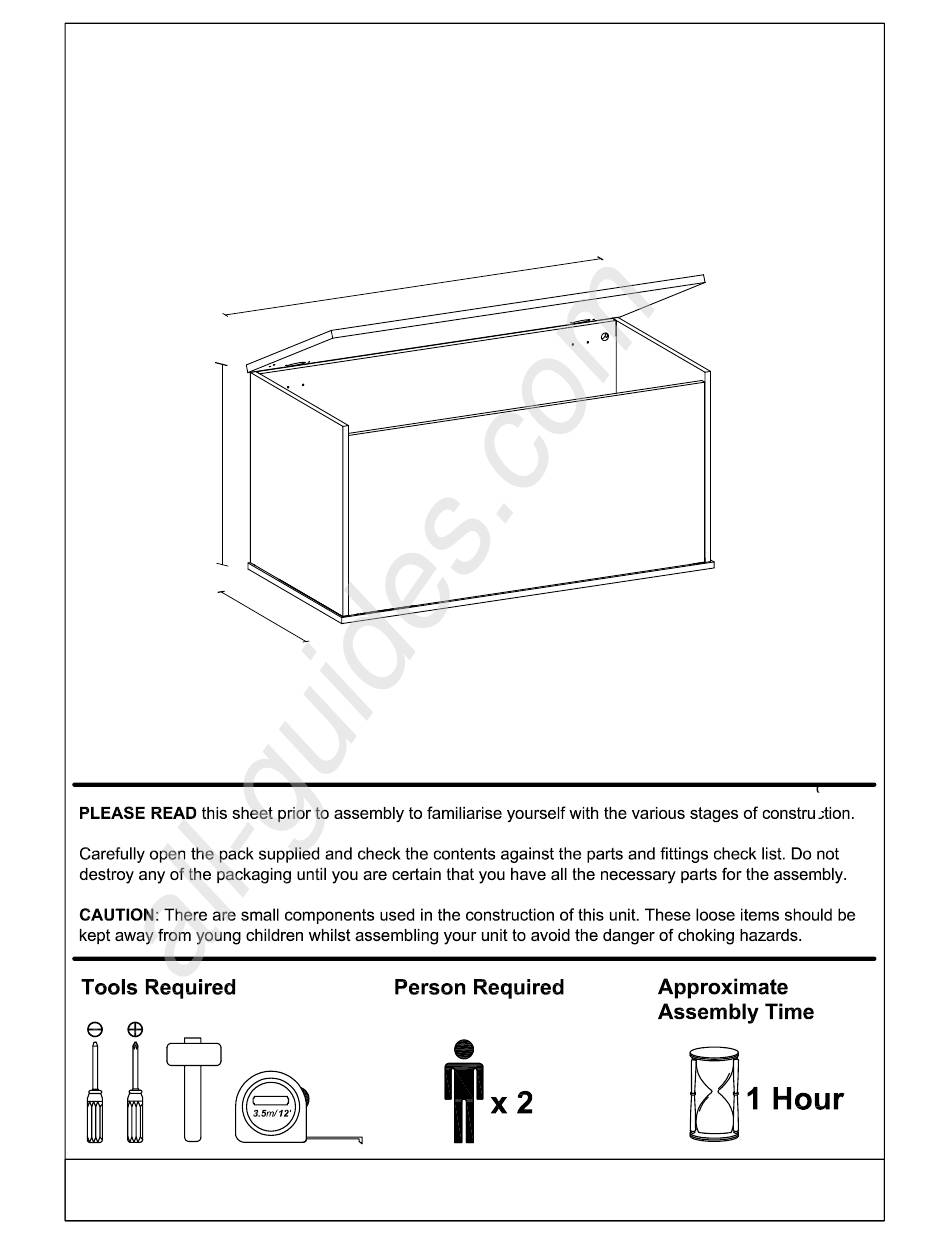

- Page 1 All manuals and user guides at all-guides.com PANAMA - OTTOMAN STORAGE ASSEMBLY INSTRUCTIONS Thank you for purchasing the OTTOMAN STORAGE. Please read the instructions carefully to ensure safe operation of the product. Size : (W)795 x (D)395 x (H)405 mm Batch No : PO# 2970 Page 1 of 10...
- Page 2 All manuals and user guides at all-guides.com This product is intended for maximum storage of capacity of 20 kg Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or not on a clean floor to...
- Page 3 All manuals and user guides at all-guides.com Side Panel (L) (12) x 390 x 378mm) Bottom Panel (12) x 395 x 795mm) Side Panel (R) (12) x 390 x 378mm) Back Panel (15 x 378 x 761mm) Front Panel (12 x 358 x 761mm) Top Panel (15 x 395 x 795mm) Page 3 of 10...
- Page 4 All manuals and user guides at all-guides.com M4.7 x 38mm M3.5 x 15mm M3.5 x 12mm D6 x 30mm M5 x 29mm CSK Screw Wooden Dowel Minifix Bolt Csk Screw Csk Screw 5 x 8 x 13.5mm D12 x 15mm D9 x 15mm Nail Leg Minifix Cam...
- Page 5 All manuals and user guides at all-guides.com STEP 1 10 x Parts Required Qty Panel (A) Panel (B) Panel (E ) Panel (F ) Page 5 of 10...
- Page 6 All manuals and user guides at all-guides.com STEP 2 Parts Required Qty Panel (A) Panel (B) STEP 3 Parts Required Qty Panel (C) Page 6 of 10...
- Page 7 All manuals and user guides at all-guides.com STEP 4 Parts Required Qty Parts Required Qt Panel (F) Panel (A) Panel (F) Panel (E) Panel (F) Panel (F) STEP 5 Parts Required Qty Parts Required Qt Panel (F) Panel (B) Page 7 of 10...
- Page 8 All manuals and user guides at all-guides.com STEP 6 10 x Parts Required Qty Parts Required Qt Panel (F) Panel (D) STEP 7 Parts Required Qty Parts Required Qt Panel (F) Panel (C) Page 8 of 10...
- Page 9 All manuals and user guides at all-guides.com STEP 8 STEP 9 Page 9 of 10...
- Page 10 All manuals and user guides at all-guides.com Your PANAMA OTTOMAN STORAGE is now completely assembled Page 10 of 10...
