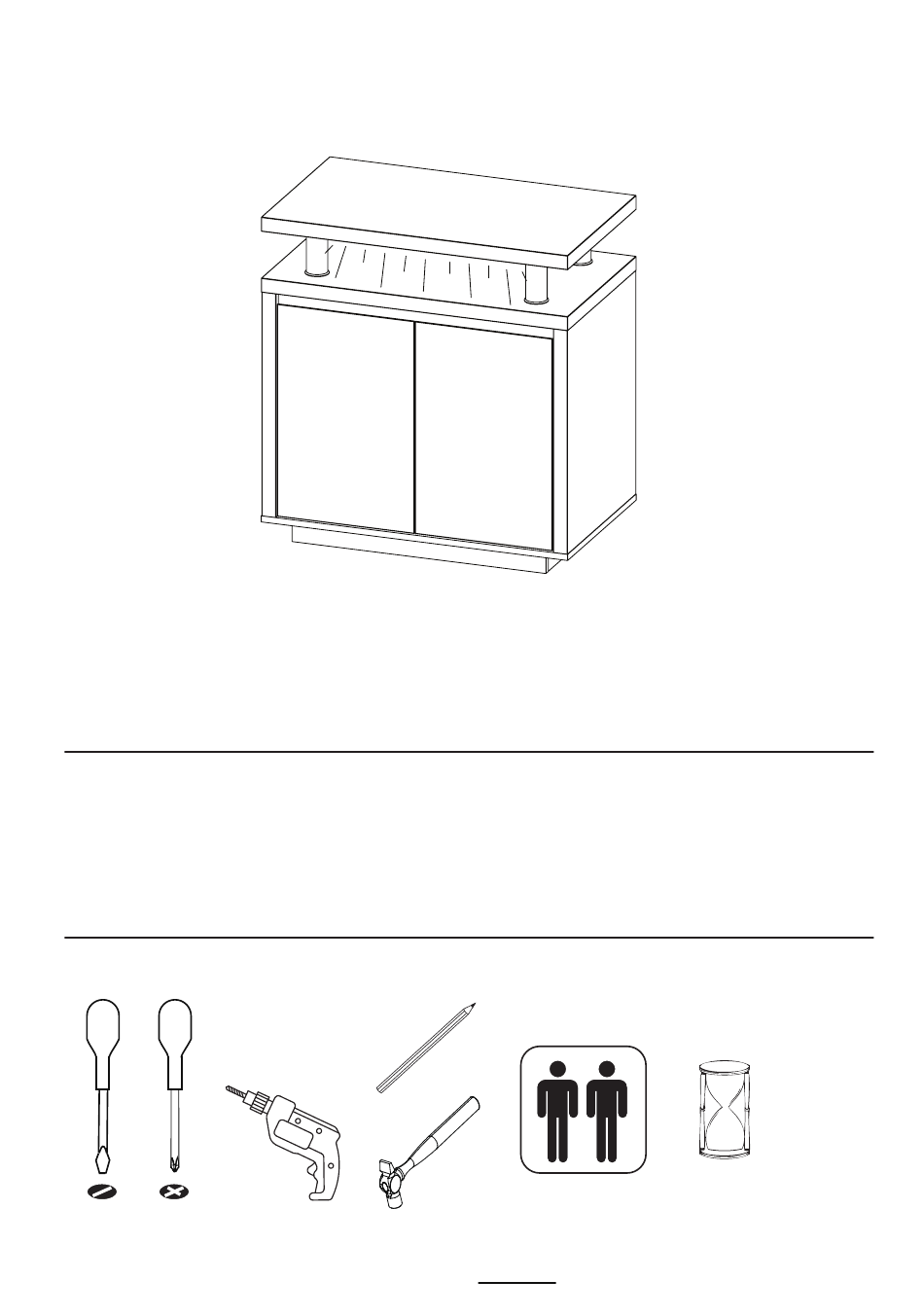

POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS
Thank you for purchasing the Polar 2 Door Sideboard.
Please read the instructions carefully to ensure safe operation of this product
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking.
Size:
76 x 45 x 80 cm (WDH)
Colour:
White or Grey
Finish:
High Gloss
Tools Required
Version 1 - 200707
PO No：
Page 1 of 16
1 Hr
Set Up

Advertisement

loading
Need help?

Need help?

Do you have a question about the POLAR HIGH GLOSS LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GFW POLAR HIGH GLOSS LED

Summary of Contents for GFW POLAR HIGH GLOSS LED

  • Page 1 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS Thank you for purchasing the Polar 2 Door Sideboard. Please read the instructions carefully to ensure safe operation of this product Size: 76 x 45 x 80 cm (WDH) Colour: White or Grey...

  • Page 2: Installation Warnings

    POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is designed to hold 20Kg in total, spread evenly over the whole unit. Do not exceed this weight.
  • Page 3 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS Parts and Fittings Checklist Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from children.
  • Page 4 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS All parts are packed in two carton Description: Floating Top Panel Description: Under Top Panel Description: Base Panel Qty: 1 Qty: 1 Qty: 1 Size: 760 x 450 x 35 mm...
  • Page 5 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS Fittings (to scale) Code Item Quantity Cam Bolt (38mm overall) Cam Lock Dowel 8x30mm M6 Nut Spring Washer For M6 Bolt Flat Washer For M6 Bolt Screw for Fixing Fascia Rail to Top Panel...
  • Page 6 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS Fittings (not to scale) Code Item Quantity M6 Box Spanner Metal Tubular Support Cover Cap for Tubular Support Short M6 Double Ended Bolt Hinge & Hinge Mounting Plate Allen Key (4mm)
  • Page 7 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 1 Place top (1) face down on a clean blanket or non-scratch surface For this step: Screw in the 4 rods (Q) until they stop - do not overtighten. Tools required...
  • Page 8 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 3 For this step: Tools required Fittings required D x4 E x4 F x4 STEP 4 For this step: Tools required Fittings required A x10 C x8 Version 1 - 200707...
  • Page 9 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 5 For this step: Be Careful when moving this Tools required sub-assembly into position. Assemble as close as you can to Top Panel (1&2) iii. Fittings required B x2 STEP 6 For this step: CAREFULLY PLACE (4) &...
  • Page 10 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 7 For this step: Tools required Fittings required B x8 STEP 8 For this step: Fit Base Panel using x4 Carcass Screws (U) then fix x6 Cam Bolts (A) Tools required...
  • Page 11 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 9 For this step: Tools required 7 x2 Fittings required A x4 B x4 STEP 10 For this step: Tools required Fittings required B x6 Version 1 - 200707 Page 11 of 16...
  • Page 12 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 11 Warning: For this step: Always ensure the area to be drilled is In the final position the cabinet is to be Tools required free from hidden electrical wires, used, place it flat against the wall.
  • Page 13 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 13 For this step: Tools required Fittings required X x4 STEP 14 For this step: Tools required Fittings required T x8 V x4 Version 1 - 200707 Page 13 of 16...
  • Page 14 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 15 Initially, fix 4 screws (T) through For this step: the centre of the elongated holes Tools required in both hinge plates, screwing into the side panel. Fittings required T x8...

  • Page 15: Changing The Batteries

    POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS STEP 16 For this step: Tools required Fittings required T x8 Once all the adjustments are complete and door is aligned, fix remaining 8 screws (T) into the other hinge plate holes then check all the other hinge screws are tight.
  • Page 16 POLAR HIGH GLOSS LED 2 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS Assembly Completed Your Polar 2 Door Sideboard is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.
