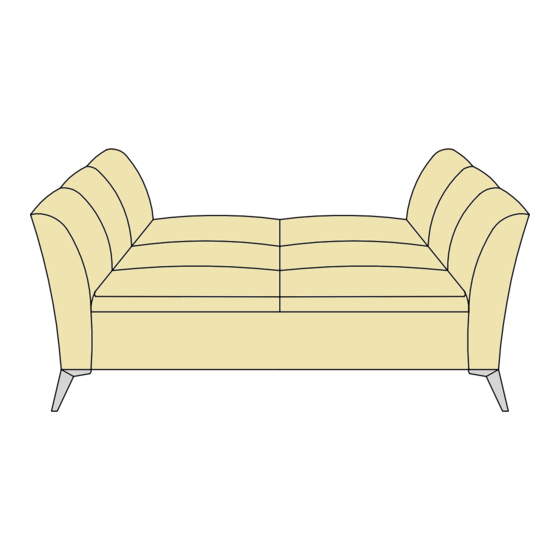

PETTINE OTTOMAN STORAGE BENCH
Thank you for purchasing the Pettine ottoman storage bench Please read the
instructions carefully to ensure safe use of the product.
Size : 1210MM X 455MM X 670MM
Colour : GREY / BLUSH PINK
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking hazards.
Tools Provided
Tools not Provided
V1 07/20
page 1 of 7
60 Minutes
Advertisement
Table of Contents
Related Manuals for GFW PETTINE
Summary of Contents for GFW PETTINE
- Page 1 PETTINE OTTOMAN STORAGE BENCH Thank you for purchasing the Pettine ottoman storage bench Please read the instructions carefully to ensure safe use of the product. Size : 1210MM X 455MM X 670MM Colour : GREY / BLUSH PINK PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
- Page 2 PETTINE OTTOMAN STORAGE BENCH IMPORTANT READ CAREFULLY RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is intended for a maximum weight of 110 kg. Do not exceed this weight Due to the size of this product we recommend that it is assembled in the room intended for use When you are ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly.
- Page 3 PETTINE OTTOMAN STORAGE BENCH Parts Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. RIGHT SIDE PANEL...
- Page 4 PETTINE OTTOMAN STORAGE BENCH Fixings(to scale) Dimensions Bolt-1/4*25mm Bolt-5/16*40mm Spring Washer*1/4 Washer*1/4 Spring Washer*5/16 Washer*5/16 SCREW-3*19MM (Not to scale) 4MM Allen Key 5MM Allen Key HINGE V1 07/20 page 4 of 7...
- Page 5 PETTINE OTTOMAN STORAGE BENCH Parts STEP 1 Required 1.LEFT SIDE PANEL 2.RIGHT SIDE PANEL 3.FRONT PANEL X 1 5.BACK PANEL X 1 B X 8 E X 8 F X 8 I X 1 STEP 2 7.BOTTOM PANEL G X 14...
- Page 6 PETTINE OTTOMAN STORAGE BENCH Parts STEP 3 Required 4.FEET X 4 A X 8 C X 8 D X 8 H X 1 STEP 4 6.TOP PANEL G X 6 V1 07/20 page 6 of 7...
- Page 7 PETTINE OTTOMAN STORAGE BENCH Parts STEP 5 Required J.HINGE X 2 G X 8 COMPLETE V1 07/20 page 7 of 7...
