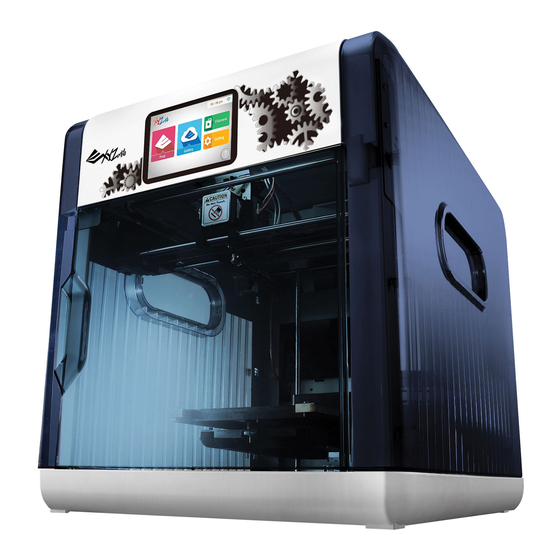

Summary of Contents for XYZ Printing da Vinci 1.1 Plus
- Page 1 Vinci 1.1 Plus Quick Guide Product Manual • 02-08 XYZware • Print Bed Leveling and Product Specification • 10-11 Support Details •...
- Page 2 Product Overview Cartridge Slot Display Panel Remove the packaging supports Extruder Module Z-Axis LAN Port Front Door USB Port Print Bed Power Switch USB Flash Disk Slot Power Connector Remove the print bed fi xing screws and printing module fi xers Accessory Checklist Maintenance Tools ．...
-
Page 3: Open The Box
Note: All packaging materials should be removed before powering up the printer. Open the box Open the box and remove Take out the printer by Remove plastic bag and the accessories and the the grip holds. all tapes. cushion. Cable tie Tape x2 Open the top cover, and Packing support x2... - Page 4 Initial Settings After powering on the printer for the first time, complete the simple setup as instructed on the screen. Then select language and press to proceed. Home Menu Filament Network Status Load, unload fi lament and view the Display online status of Wi-Fi information about the fi...
-
Page 5: Load Filament
Load Filament First install the cartridge to the cartridge slot… Remove the filament Install the new filament Place and push to click the cartridge. stopper and tape. cartridge into the empty slot. Select "Filament" > "Cartridge " > "Load". Guide Hole Cartridge cover... -
Page 6: Sample Print
Sample Print Select "Print" > "Sample " on the screen. Select a sample to print, and tap to print. Printing process is shown Apply glue stick gently and evenly to the print bed base on the on the screen. You may click size of the printing object previewed on screen, and press for "Printer info"... - Page 7 Cloud Gallery Once the printer is connected Browse the Gallery and switch among different categories; tap on to the Internet, select "Gallery" the desired model for a zoomed-in preview. to go to XYZprinting cloud gallery. P r e v i e w t h e i m a g e a n d Press to download, and wait for the download to complete.
- Page 8 Unload fi lament Please always complete the procedure for " Unload Filament " before changing a new cartridge. Select "Filament" > "Cartridge" > "Unload" on the screen F i l a m e n t i s u n l oa d e d f ro m When filament is pulled out, Remove cartridge locker extruder automatically.
- Page 9 XYZware To transmit print object(s) via USB flash drive or PC to your da Vinci printer, please prepare the file with XYZware. When your PC is connected to the printer, you can send the object(s) to printer directly. XYZware virtualizes the printing platform on the screen. You may move, rotate and resize the object(s) in the software, and send the file for printing via USB flash drive or PC.
- Page 10 This print bed has been calibrated by our professional technician before shipment. Do not adjust the platform yourself unless necessary, or contact the customer service center. Print Bed Calibration 1.Check for fi rmware update In XYZware, select “About” > “Firmware Update”. 2.Activate Calibration Select "Setting">"Printer Settings">...
-
Page 11: Specifications
• 3 values should be no more than ±0.2 from each other. When fi nishing the adjustment, repeat the calibration from step 2 until it shows "Calibration Completed". Specifi cations Model Name da Vinci 1.1 Plus 3D Printer Nozzle Diameter 0.4mm Print Technology... -
Page 12: Support Details
Support Details The troubleshooting instruction may guide you to fix the problem. If any error persists, please contact customer service center for support. Customer Support Center:http://support.xyzprinting.com Technical Support (US):supportus@xyzprinting.com Technical Support (EU):supporteu@xyzprinting.com Other Region:support@xyzprinting.com Service Service Symptom Action Symptom Action Code Code Replace cartridge 1 before...
