VR Field System Controls and Functions
Front Panel
POWER.Button

Front Panel Controls and Functions

The VR Field System consists of a VRF (VR Field
Master) and one to six individual receiver modules. The
VRF front panel provides an easy-to-use LCD interface
for system setup, monitoring and troubleshooting. Dur-
ing normal operation, the LCD shows RF and audio lev-
els, diversity status, pilot tone status (where applicable)
and transmitter battery status (when available) for all six
receivers at the same time. Individual screens for each
receiver are also available to provide additional informa-
tion and make adjustments.
Individual output channel audio can be monitored via
the front panel.
POWER Button
The POWER button is used both to control the applica-
tion of power to the unit and to clear (or reset) the Scan
Mode spectrum analyzer.
Pressing and holding the POWER button for at least
two seconds turns the unit off.
Function Button
Used for special functions in selected Setup Screens.
LCD Screen
The LCD Screen is a graphics-type Liquid Crystal Dis-
play used to set up and monitor system operation. (See
LCD Interface.)
PUSH FOR MENU/SELECT Rotary Control
The PUSH FOR MENU/SELECT (hereafter called
the MENU/SELECT control) is a dual function control
for navigating and selecting Setup Menus or Setup
Screens, and for setting parameters within the Setup
Screens.

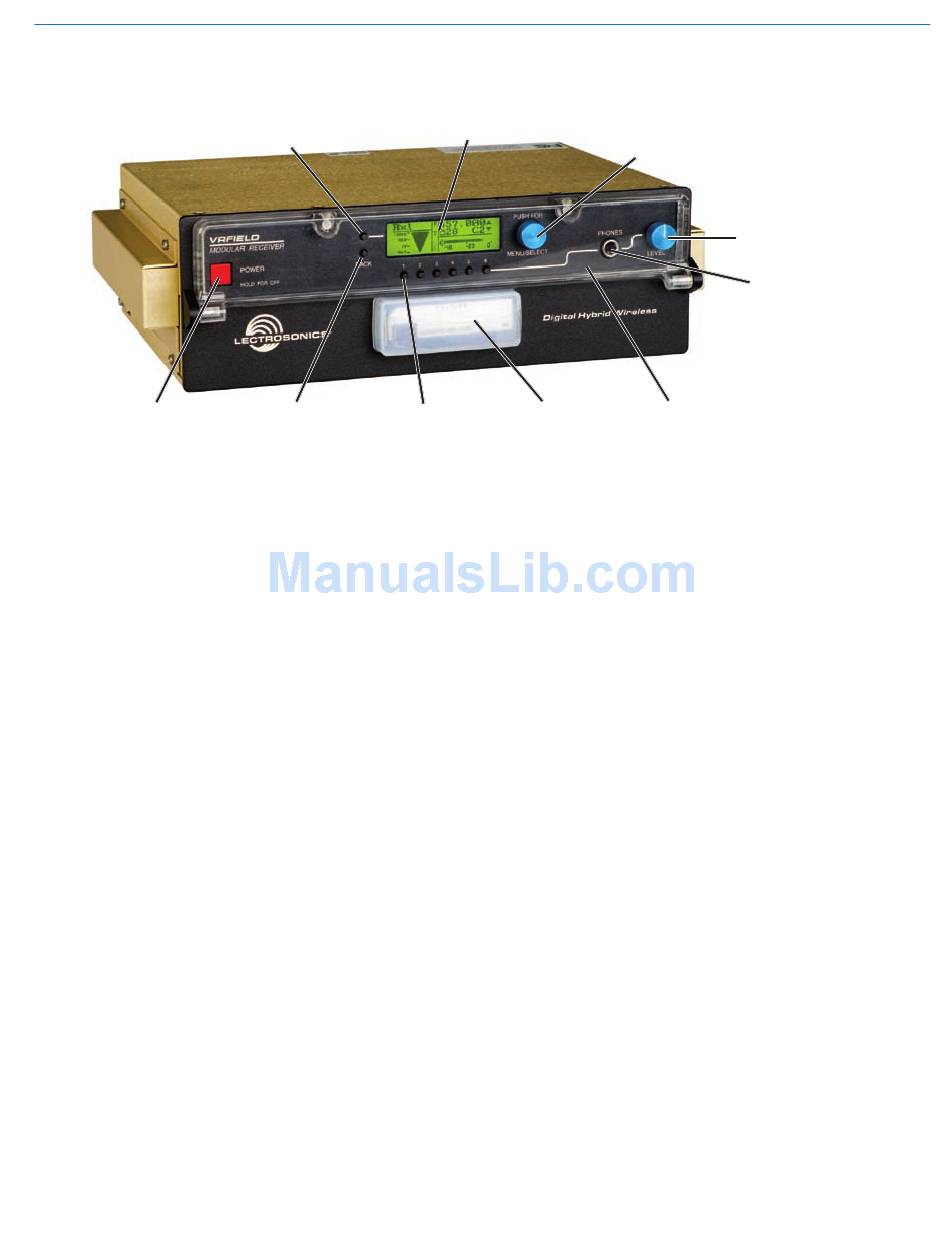

Rio Rancho, NM
Function.Button
BACK.Button Receiver.Select.
Buttons
Modular Digital Hybrid Wireless™ Receiver
LCD.Screen
PUSH.FOR.MENU/SELECT.
NP1.Type.Battery
LEVEL Control
The LEVEL control is used to adjust the output level of
the front panel PHONES jack.
PHONES Jack
The stereo PHONES jack is provided for monitoring
the audio output of selected receivers. Only the audio
from a single receiver (or diversity pair) selected via the
Receiver Select Buttons will be present at this jack.
Receiver Select Buttons
The six Receiver Select buttons are used to select indi-
vidual installed receiver modules either for monitoring
via the PHONES jack, or for setup and adjustment.
BACK Button
The BACK button is used to return to the previous
menu or setup screen.
Pressing the BACK button from the SetUpRx menu
returns to whatever screen was active prior to entering
SetUpRx.
NP1 Type Battery
The VR Field can be powered by any type of NP1-style
battery, an industry-standard battery that is readily
available from pro audio/video suppliers.
Dust Cover
The see-through dust cover swings open when the
controls need to be accessed, and swings into place
providing a protective barrier between the controls and
the elements. It also provides protection against acci-
dental adjustments.
Rotary.Control
LEVEL.Control
PHONES.Jack
Dust.Cover
