Frequency Coordination
Intermodulation interference is a problem constantly
lurking in the background, especially when working
in environments where simultaneous productions are
taking place in close proximity. In these cases, proper
frequency coordination is a must. There are basically
three methods to coordinate frequencies:
• Use the built-in frequency groups
• Scan for clear channels (See SmartTune™
and Scan Function.)
• Call Lectrosonics

Frequency Compatibility Chart

Considering that multiple systems can be used in a produc-
tion, coordinating frequencies to minimize interference
between these channels can be a daunting process.

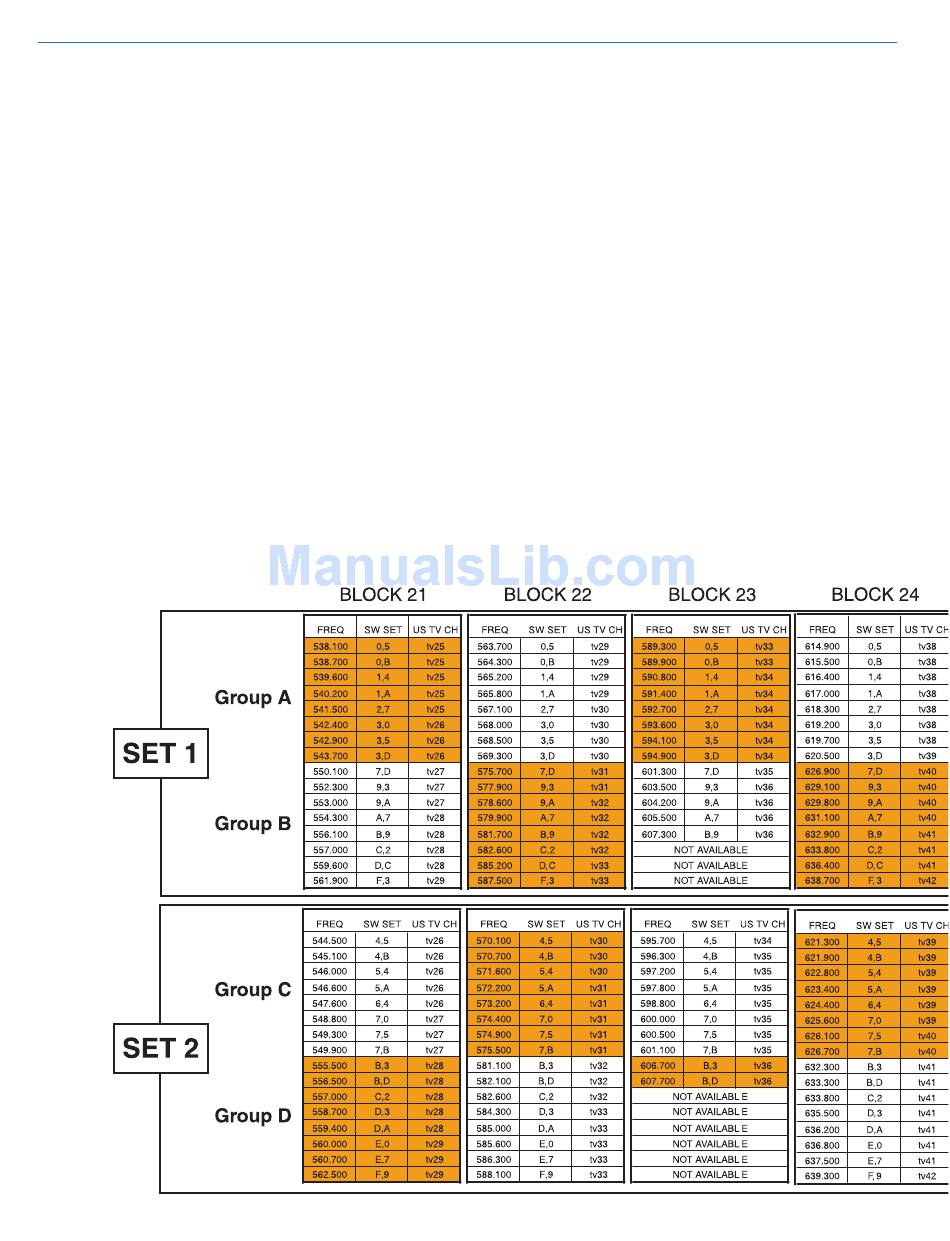

The Frequency Compatibility Chart was designed to as-
sist in minimizing intermodulation problems for multiple
Frequency Compatibility Chart

channel wireless systems. It does this by identifying
potential intermodulation problems and listing compat-
ible frequencies and frequency groups. This chart can
be used with all Digital Hybrid Wireless
receivers.
The chart divides the frequency blocks used in the North
American market into Set 1 and Set 2, then further di-
vides each row into two groups of eight frequencies each.
These frequency groups are labeled A and B and C and
D, and correspond to the factory set frequency groups
(Groups A, B, C and D) described in the Tuning Setup
Screen.
Understanding and using the Frequency Compatibility
Chart is not as difficult as it first appears. There is a pat-
tern of compatible frequencies that becomes apparent, as
illustrated on the Frequency Compatibility Diagram on the
next page.
