VR Field Receiver

Power Supply

The VR Field System can be operated from a single
NP1-type battery, or an external DC power source with
a range of +10 VDC (1.2 A) to +18 VDC (700 mA).
(A +15 DCV, 1.23 amp power source is supplied with
each unit.) The receiver has a built-in Poly-Fuse to
protect the unit. If a problem occurs that trips this fuse,
it will reset after the power supply is disconnected
for about 15 seconds.
Note: To use external power, temporarily
disconnect the power supply cable that
connects the battery to the master unit.

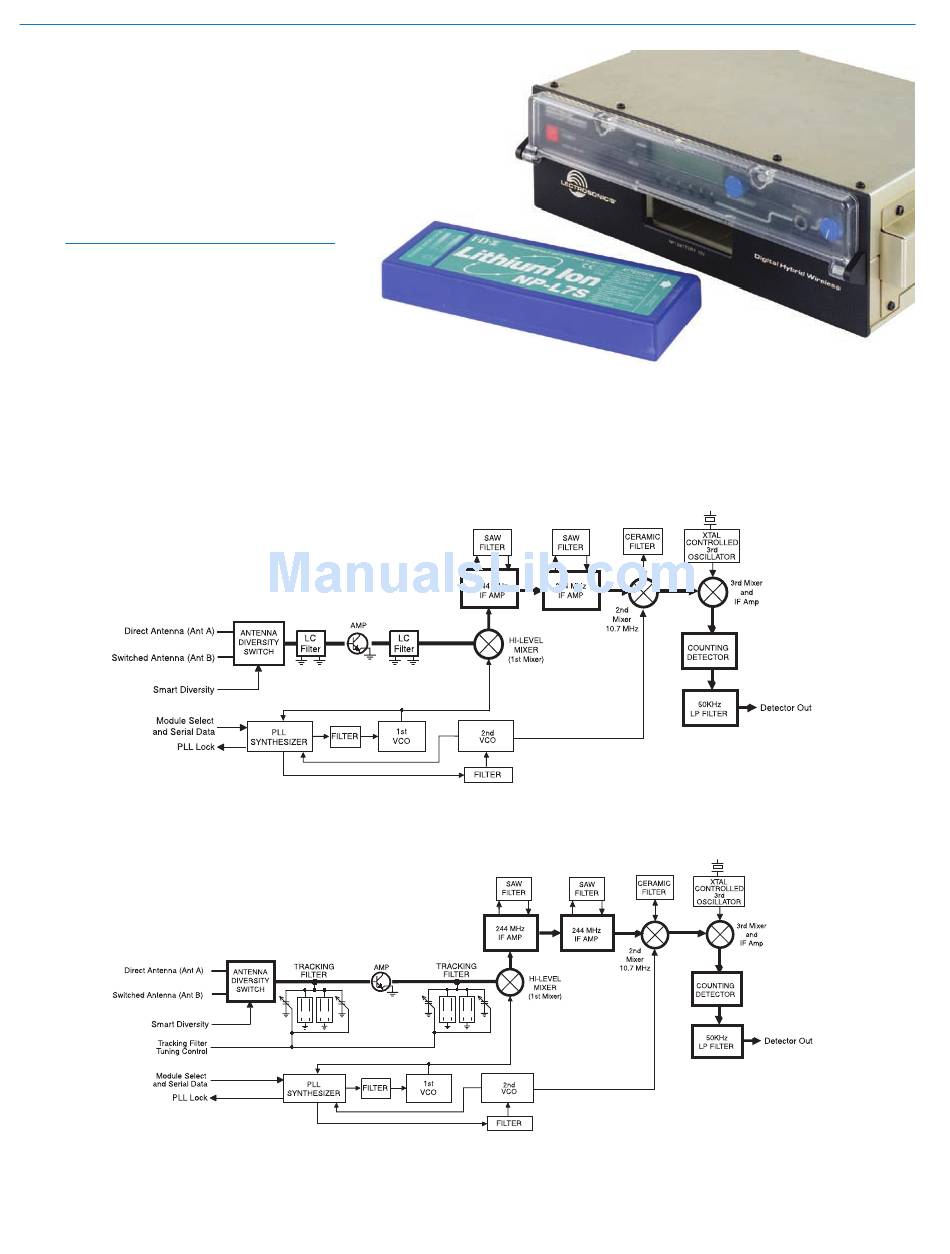

VRS Functional Block Diagram
VRT Functional Block Diagram

For.Internal.Power,.the.VR.FIeld.
uses.a.single.NP1-type.battery.
(available.from.most.
.pro.audio/video.suppliers).
