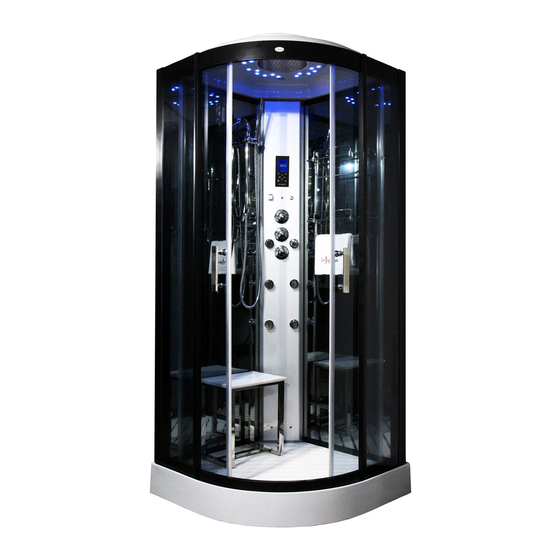

INSTALLATION MANUAL

INS8727

ATTENTION INSTALLERS:

These instructions must be

left with the customer

www.insigniarange.com

CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE ONCE

THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

WARRANTY REG NO: __________________________

to claim your full 5 year warranty, register your shower within 90 days at: www.insigniarange.co.uk/warrantyreg.aspx

Last Modified: 08/02/2018

www.insigniarange.co.uk

30 Day Technical Support:

(NOTE: This service is only available to customers from the day of delivery,

please have your supplier's details and your postcode to hand before calling)

Replacements Parts:

inside of your warranty contact:

www.insigniarange.co.uk/customerService.aspx

Spares/Replacements Parts:

outside of your warranty

contact 0844 800 3069

01908 226545

Table of Contents

Need help?

Do you have a question about the INS8727 and is the answer not in the manual?

Questions and answers

Summary of Contents for Insignia INS8727

Page 1 INSTALLATION MANUAL www.insigniarange.co.uk 30 Day Technical Support: 01908 226545 INS8727 (NOTE: This service is only available to customers from the day of delivery, please have your supplier’s details and your postcode to hand before calling) Replacements Parts: inside of your warranty contact: www.insigniarange.co.uk/customerService.aspx...
Page 2: Table Of Contents
www.insigniarange.com Last Modified: 08/02/2018 Contents Introduction Electrical Requirements What’s In The Boxes? Screw Pack Contents Plumbing Requirements Schematics Starting The Installation Accessory Installation Electric Box Connections Steam Generator Connections Sealing and Water Testing Control Panel Instructions Help Book Information...
Page 3 Last Modified: 08/02/2018 Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
Page 4 DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE. If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and will not adhere as intended.
Page 5: Electrical Requirements
www.insigniarange.com Last Modified: 08/02/2018 TOTAL ELECTRICAL REQUIREMENTS Voltage Rating 220 -240AC Frequency Rating 50HZ Power Rating 2.8KW Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation. UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way due to continued additions to current regulations.
Page 6 www.insigniarange.com Last Modified: 08/02/2018 Tool Requirements Adhesive Requirements Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste Not Supplied Supplied Not Supplied Hardware Requirements A Steam Shower requires 3 x 1 Metre Braided Hose Not Supplied...
Page 7: What's In The Boxes
www.insigniarange.com Last Modified: 08/02/2018 Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word “DRY RUN”...
Page 8 Note: In some cases you may have more screws than needed, this is done so you have spares! VERY IMPORTANT Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been checked and is present.
Page 9 www.insigniarange.com Last Modified: 08/02/2018 Pressure Requirements from your house supply We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump.
Page 10 www.insigniarange.com Last Modified: 08/02/2018...
Page 11 www.insigniarange.com Last Modified: 08/02/2018 TO START Make sure you have a clear space, remember when finished and in place you need access to check your build and able to pull the shower out for servicing or should you have the need to replace anything! Take the shower tub and remove all the protective wrapping and fit the waste.
Page 12 The end with the groove is designed to sit on the tray, with the flat end connecting to the roof. Please note the ‘U’ shaped channel is meant to face inwards to allow the glass to fit correctly. (wider rail with Insignia logo at the top)
Page 13 www.insigniarange.com Last Modified: 08/02/2018 Step 3 Now attach your inner uprights to your front fixed glass panels by inserting these over the thin rubber seals as shown by the arrows in the image. Next screw the inner uprights to your curved rails using the ST25 screws. (please note that the front uprights will need a pilot hole drilled before screwing) Step 4 Now meet the front of the shower with the back panels.
Page 14 www.insigniarange.com Last Modified: 08/02/2018 Step 5 Align the roof with your shower walls and using the ST25 screws and SW9 washers, fix the back walls to the roof by screwing upwards from the rear of the shower and repeat this process to fix to the tray as indicated in the images Using ST25 Screws please fix the panels to the tray Step 6 Fit the adjustable wheels to the top and bottom of the glass doors and...
Page 15: Accessory Installation
www.insigniarange.com Last Modified: 08/02/2018 Accessory Installation Please Note Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using a screwdriver on the smaller holes.
Page 16 www.insigniarange.com Last Modified: 08/02/2018 Roof Lights The roof lights come packed in with your accessories and need to be inserted on site. On top of the roof there are 24 nuts, which simply need tightening by hand. Once this is done, the lights simply push onto the fitting.
Page 17 www.insigniarange.com Last Modified: 08/02/2018 Roof Cover (if supplied) Due to the different coloured light settings this shower model boasts, the wiring is inevitably bigger and more noticeable on top of the shower cabin. Because of this we have a cover that simply slots over the top, secured in place around the thread of the monsoon rain shower.
Page 18 www.insigniarange.com Last Modified: 08/02/2018 Hand Shower Attach the chrome riser bar to the glass wall ensuring the water inlet is inserted through the lower large hole and hand tightened from the rear side. Now tighten the chrome shower holder ensuring that this will take the hand shower itself without falling (please note over tightening will prevent the holder from sliding up and down) Thermostatic Probe...
Page 19 Shower Valve Device output may differ from the image. Please refer to your outer chrome faceplate inside your Insignia shower as a reference point. IF YOUR DIAL DOES NOT CORRESPOND TO THE APPROPRIATE DEVICE: Turn on your water to the shower and note which output the water exits from then turn off the water and swap over the relevant hose.
Page 20: Electric Box Connections
www.insigniarange.com Last Modified: 08/02/2018 Electric Box Connections Connect the cables below to the corresponding devices on the shower 12V power Supply...
Page 21: Steam Generator Connections
www.insigniarange.com Last Modified: 08/02/2018 Steam Generator Connections The steam generator has 3 connections. Steam Outlet: Connect the white insulated hose to the white steam pod within your shower. Make sure these are fitted in the correct position as they are only attached for transportation reasons only.
Page 22 www.insigniarange.com Last Modified: 08/02/2018 Silicone Seal (vertical joints) RubberGum (horizontal joints) TESTING FOR WATER LEAKS LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALENT TO CURE AND ENSURE THE SHOW- ER IS AWAY FROM ITS FINAL POSITION TO ALLOW REAR VIEWING Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model dependent) on your shower.
Page 23: Control Panel Instructions
10 minutes. After this the screen will power off. To see our tutorial videos for operating this control panel’s features, please search for “Insignia Showers” on YouTube and find our “SUN Control Panel” Playlist, or you can...
Page 24 www.insigniarange.com Last Modified: 08/02/2018 Control Panel Instructions Connecting to Bluetooth Step 2 Step 1 Then simply go on your device and To connect a device via pair up with the shower which should Bluetooth, press the music be shown as “INS”. Once this is function button twice (which complete you will hear a beep to looks like a musical note) the...
Page 25: Door Handles
Part Description SP074 Monsoon Shower head SP037 Speaker cover INS8727-11 Bottom Rail SP078 Ozone Module INS8727-10 Top rail SP117 Insignia Control Panel INS8727-4 Tray SP201 Blister pack SP001 Round Body Jet INS8727-3 Blank roof SP227 Microphone Style Hand SP236 Complete riser bar...
Page 26 Last Modified: 08/02/2018 Need Help? If so then simply download Insignia’s free comprehensive help and troubleshooting brochure now! Simply visit: www.insigniarange.co.uk/help.aspx...
Page 27 All images are registered with ImageTraker Insignia™ is a registered trademark of Maclean International Ltd All images are subject to copyright. Images may not be used in any way shape or form with out written permission from Maclean International Ltd. Images are NOT permitted...
