CUT LOOP FOR AUTOMATIC TRANSMISSION ONLY
CUT LOOP FOR AUTOMATIC TRANSMISSION ONLY
!
!
M1
TWO KEYS ARE REQUIRED FOR THIS INSTALLATION.
1
M5
ONE KEY WILL REMAIN PERMANENTLY IN THE VEHICLE.
M4
THE OTHER KEY WILL BE USED FOR THE
M6
M2
PROGRAMMING PROCEDURE. IT WILL THEN BE
M3
RETURNED TO THE OWNER.
M1
01 ORANGE
01 ORANGE
02 RED
02 RED
03 PURPLE
03 PURPLE
04 PINK/WHITE
05 PINK
05 PINK
06 WHITE
06 WHITE
07 RED
07 RED
08 BLACK
08 BLACK
M2
01 GREEN•BLACK DOT
01 GREEN•BLACK DOT
02 BLUE•BLACK DOT
02 BLUE•BLACK DOT
03 RED/WHITE•BLACK DOT
03 RED/WHITE•BLACK DOT
04 GREEN/WHITE•BLACK DOT
04 GREEN/WHITE•BLACK DOT
05 GREEN/BLACK•BLACK DOT
05 GREEN/BLACK•BLACK DOT
06 BLUE/WHITE•BLACK DOT
06 BLUE/WHITE•BLACK DOT
07 EMPTY
07 EMPTY
08 WHITE/PURPLE•BLACK DOT
09 PURPLE/BLACK•BLACK DOT
09 PURPLE/BLACK•BLACK DOT
10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT
10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT
11 BROWN/BLACK•BLACK DOT
11 BROWN/BLACK•BLACK DOT
12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT
12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT
M3
01 BROWN•SILVER DOT
01 BROWN•SILVER DOT
02 BLACK/WHITE•SILVER DOT
02 BLACK/WHITE•SILVER DOT
03 PURPLE•SILVER DOT
03 PURPLE•SILVER DOT
04 GREEN•SILVER DOT
04 GREEN•SILVER DOT
05 PURPLE/WHITE•SILVER DOT
05 PURPLE/WHITE•SILVER DOT
06 WHITE/BLUE•SILVER DOT
06 WHITE/BLUE•SILVER DOT
07 GRAY•SILVER DOT - HOOD (-) INPUT
07 GRAY•SILVER DOT - HOOD (-) INPUT
08 BLUE•SILVER DOT
08 BLUE•SILVER DOT
09 GRAY/BLACK•SILVER DOT
09 GRAY/BLACK•SILVER DOT
10 EMPTY
10 EMPTY
M4
01 EMPTY
01 EMPTY
02 EMPTY
02 EMPTY
03 BROWN/RED - CANH 1
03 BROWN/RED - CANH 1
04 BROWN/YELLOW - CANL 1
04 BROWN/YELLOW - CANL 1
05 BLUE/RED
05 BLUE/RED
06 BLUE/YELLOW
06 BLUE/YELLOW
07 EMPTY
07 EMPTY
08 ORANGE
08 ORANGE
09 YELLOW
09 YELLOW
10 EMPTY
10 EMPTY
11 GRAY/RED - PTS (-) OUTPUT
11 GRAY/RED - PTS (-) OUTPUT
12 GRAY/YELLOW
12 GRAY/YELLOW
13 GREEN/RED - PTS (-) OUTPUT
13 GREEN/RED - PTS (-) OUTPUT
14 ORANGE/WHITE - IGNITION (+) INPUT
14 ORANGE/WHITE - IGNITION (+) INPUT
15 BROWN
15 BROWN
16 ORANGE/BLACK
16 ORANGE/BLACK
17 PINK
17 PINK
18 PURPLE
18 PURPLE
19 RED - 12V (+) INPUT
19 RED - 12V (+) INPUT
20 BLACK - GROUND (-)
20 BLACK - GROUND (-)
M5
01 GRAY/BLACK•BLUE DOT - 12V (+) INPUT
01 GRAY/BLACK•BLUE DOT - 12V (+) INPUT
02 WHITE/BLACK•BLUE DOT - IMMOBILIZER VEHICLE SIDE
03 GRAY/RED•BLUE DOT
03 GRAY/RED•BLUE DOT
04 WHITE/RED•BLUE DOT - IMMOBILIZER CONNECTOR SIDE
05 GRAY•BLUE DOT - BRAKE (+) OUTPUT
05 GRAY•BLUE DOT - BRAKE (+) OUTPUT
06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE
T002_W
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2017

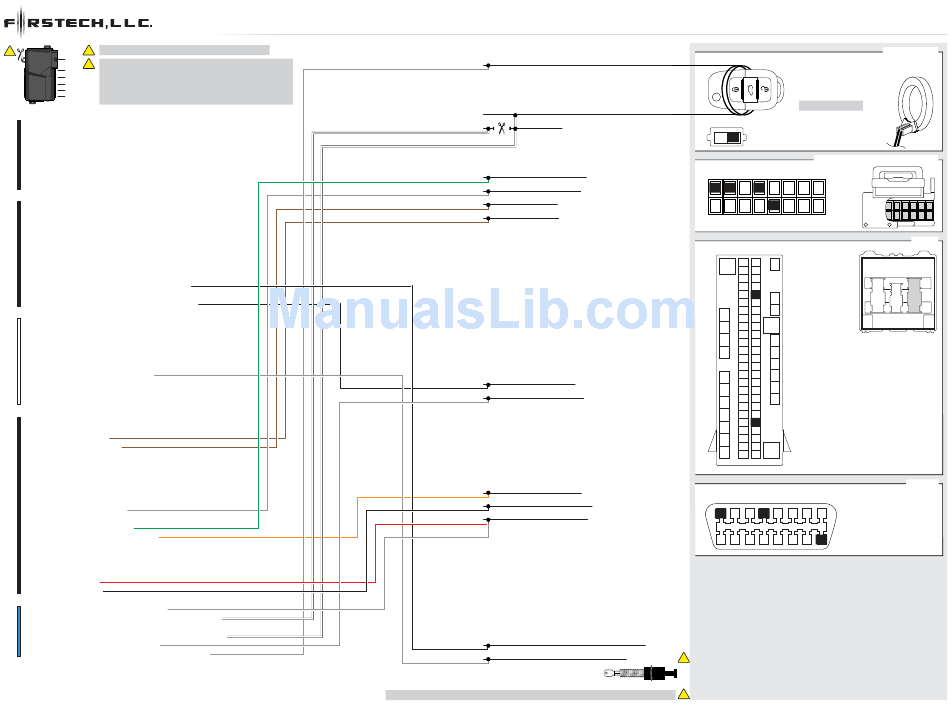

HARDWIRE / WIRING DIAGRAM - 1 OF 1
IMMOBILIZER (DATA) BROWN - 02
CANL (DATA) ORANGE/BROWN - 15
CANH (DATA) ORANGE/GREEN - 16
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
FT-RSD-VW7-[FT-DC3-HC]-EN
1: BLACK
1
2
1: BLACK
PTS 2 (-) BLUE/WHITE - 04
16 15
14
13
PTS 1 (-) BLUE/YELLOW - 13
8
7
6
1: BLACK/WHITE
13
38
1
14
39
15
40
16
41
17
42
18
43
19
44
2
20
45
21
46
3
22
47
4
23
48
24
49
5
25
50
26
51
27
52
6
28
53
HAZARD (-) PURPLE/RED - 42
7
29
54
BRAKE (+) BLACK/RED - 58
30
55
8
31
56
9
32
57
33
58
10
34
59
35
60
11
36
61
12
37
62
IGNITION (+) RED/BLUE - 01
1
GROUND (-) BROWN - 04
1
2
3
12V (+) GRAY/PURPLE - 16
9
10 11 12 13 14 15 16
HORN (-)
HOOD SWITCH
2
2
PAGE 5 OF 9
20170808
IMMOBILIZER (A)
20 LOOPS (24 AWG)
AROUND KEYFOB
REMOVE BATTERY
1
STEERING COLUMN LOCK MODULE (B)
12 11 10
9
5
4
3
2
1
1
BCM (C)
63
1
64
65
66
67
68
69
70
71
72
73
OBDII (D)
4
5
6
7
8
16
2015-2017 Audi A3 PTS AT
www.idatalink.com
