Figure 1- 2: Bullseye Signal As Displayed On A Television Monitor - Tektronix AWVG1 User Manual

Getting Started
1- 4

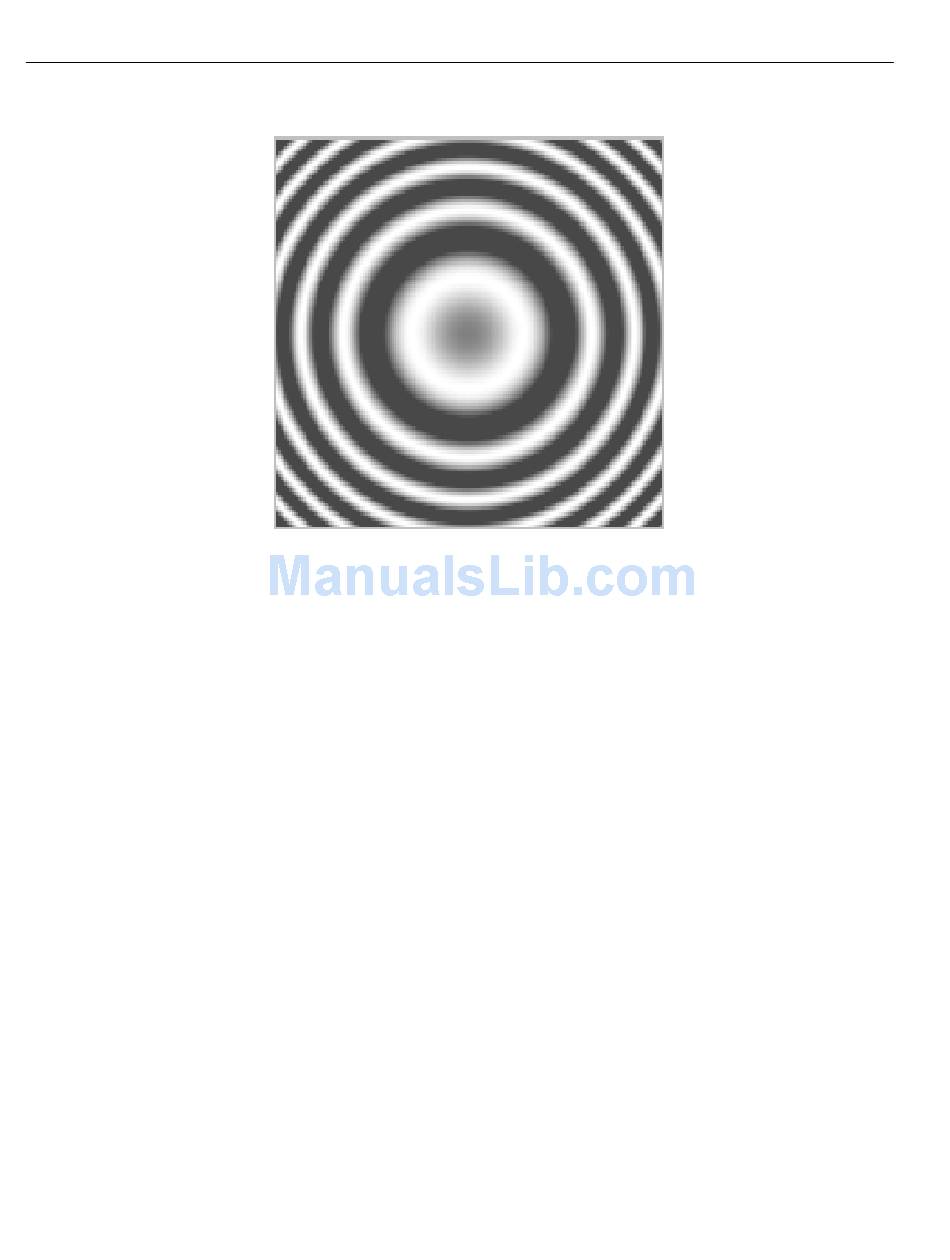

Figure 1- 2: Bullseye signal as displayed on a television monitor

11. Move the output cable to each of the BNC output connectors to ensure that
the signal appears correctly.
12. Move the output cable back to Output 1.
13. Select a different zone plate test signal and check that the displayed signal
changes. You only need to do this on Output 1.
14. Check the AWVG1 External Input as follows:
a. Using a 75 Ω coaxial cable, connect a television test signal from a
source such as an AVG1 module, to the AWVG1 module External Input.
b. Check the output of the AWVG1 module on the television monitor in
pulse cross mode. Check that the signal is displayed correctly. Check
that the appropriate burst for your video format is present in the signal.
This concludes the functional check.
