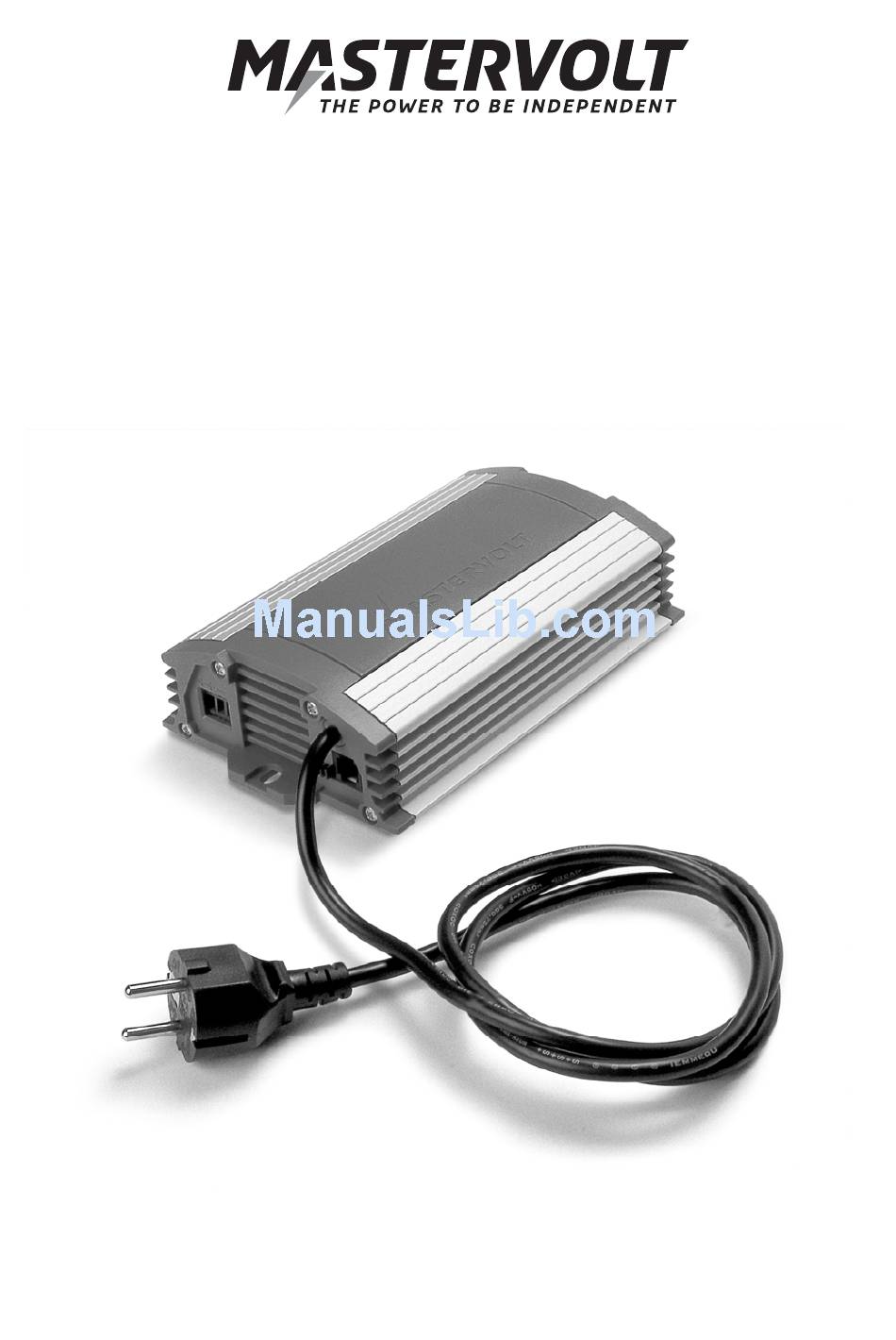

- Page 1 USERS MANUAL ChargeMaster 12/15-2 Switch mode - three step battery charger...
- Page 2 OVERVIEW CHARGEMASTER 12/15-2 Figure 1 – Abbildung 1 Figuur 1 – Figura 1 Settings and Connections RJ12-jack connection, CSI alarm and PC QRS232 LED indicator, flashing = BULK / ABSORPTION, continuous=FLOAT Remove jumper for diode compensation Remove jumper for gel/AGM setting Remove jumper for force float Negative DC output common (–)
- Page 3 The charger is suitable for charging gel / Product description and application AGMbatteries (high float), if jumper (4) is The ChargeMaster 12/15-2 is a battery charger for removed. charging and maintaining the charged condition of The charger only functions as a drop charger lead batteries and supplying users connected to a (force float), if jumper (5) is removed.
-
Page 4: Installation
INSTALLATION CHARGEMASTER 12/15-2 Mains supply (230 VAC - 50/60Hz) Red wires POS (+) Black wire NEG (–) Fuse + Fuse holder Option Fuse + Fuse holder BAT 1 BAT 2 Do not place the fuses before the entire installation is completed... -
Page 5: Specifications
CHARGEMASTER 12/15-2 SPECIFICATIONS General Model ChargeMaster 12/15-2 Article number 43011500 0 C to 40 C (derating of 2% / °C >40°C) Operating temperature -20 C to 70 C Storage temperature Protection degree IP21 (horizontally mounted), IP20 (vertically mounted) Noise level Not audible (<30 dBA) -
Page 6: Outline Drawing
DIMENSIONS CHARGEMASTER 12/15-2 OUTLINE DRAWING Figure 4 All dimensions are in mm. Shop the largest selection of reliable marine electronics and navigation in our online store.
