Wi-Fi INTERFACE
MODEL
MAC-568IF-E
INSTALLATION GUIDE
Intelligent control, no matter where you are.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAC-568IF-E and is the answer not in the manual?

Questions and answers

Related Manuals for Mitsubishi MAC-568IF-E

Summary of Contents for Mitsubishi MAC-568IF-E

  • Page 1 Wi-Fi INTERFACE MODEL MAC-568IF-E INSTALLATION GUIDE Intelligent control, no matter where you are.
  • Page 2 • Router capable of WPA2-AES encryption. 2.4GHz needs to be enabled on dual band routers. The wireless network coverage must include the heat pump installation location. • A PC or Smartphone/Tablet that is iOS/Android compatible. • A compatible Mitsubishi Electric indoor unit with a Wi-Fi Interface.
  • Page 3 Wi-Fi Interface or generation, or fire. professional installer. • Mitsubishi Electric’s components or other • The Wi-Fi Interface should be securely designated components must be used for installed in accordance with this installation.
  • Page 4 Warning (Improper handling may have serious consequences, including serious injury or death.) • Attach the electrical cover to the indoor • Do not install the Wi-Fi Interface nearby unit securely. the automatic control devices such as If the electrical cover of the indoor units is not automatic doors or fire alarms.
  • Page 5 [Precautions for setting up, or use of the Wi-Fi Interface] Warning (Improper handling may have serious consequences, including serious injury or death.) Be sure not to do. Never touch with wet hand. • Do not disassemble, modify, or repair by •...
  • Page 6 Wi-Fi service. Third party Wi-Fi Interfaces cannot connect to Mitsubishi Electric’s Wi-Fi service. Mitsubishi Electric is not responsible for any (i) under performance of a system or any product; (ii) system or product fault; or (iii) loss or damage to any system or product;...

  • Page 7: Product Introduction

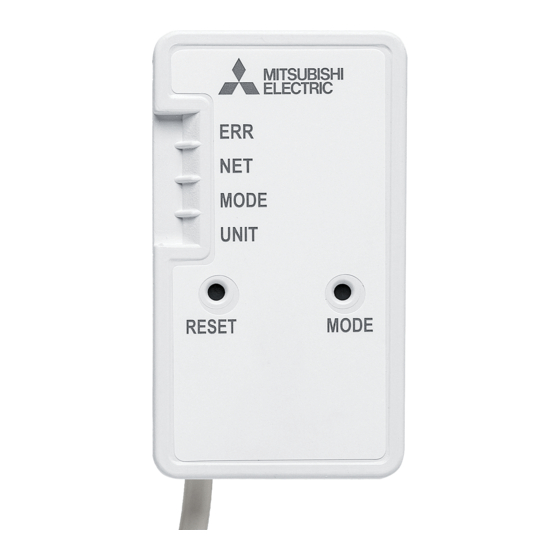

    Product Introduction Item Description MODE Button Selects modes. RESET Button Resets the system and ALL settings. MODE UNIT ERR LED (Orange) Shows the network error state. RESET MODE NET LED (Green) Shows the network state. MODE LED (Orange) Shows the Access Point Mode state. UNIT LED (Green) Shows the indoor unit state.

  • Page 8: Parts

    Parts Interface unit Fixing screw Fixing screw Mounting cord Fastener Holder Clip (with connecting clamp (for bundling cable) 3.5×16 mm 4×16 mm the wires) Connecting the Wi-Fi Interface (For details about your heat pump, see the relevant installation manual) Before dismantling the indoor unit, turn the power off and make sure that the power has been disconnected from the complete system.
  • Page 9 When mounting on the outer side of the indoor unit Holder Holder Mark for cable Align Interface unit Clip Connecting cable Insert the interface unit into the holder until Insert the clip into the holder until it clicks it clicks into place. into place.
  • Page 10 Wi-Fi Interface: Setting Up Instructions Information for users: The following steps explain how to connect the MAC-568IF-E Interface to a router. : ON : OFF : Flashing KEY (LED LIGHTS): MODE UNIT RESET MODE Wi-Fi Control Ensure the Wi-Fi Interface is...
  • Page 11 Check the label on the back of the Open Wi-Fi Control App and follow interface for the SSID. Open the Wi-Fi the ‘How to Setup’ instructions in the networks screen on your smartphone/ ‘Setup Wi-Fi Interface’ section. tablet and connect to the network If the app does not go to this section, with the same name as the SSID.
  • Page 12 MODE UNIT RESET MODE Activate WPS on your Wi-Fi Interface When WPS-Push is enabled on the by using a small object to press and Wi-Fi Interface, MODE LED starts hold the MODE Button for 2 seconds. flashing orange (every second). MODE MODE UNIT...

  • Page 13: Led Pattern

    LED Pattern : ON : OFF : Flashing ● Software initialising MODE UNIT Description (Orange) (Green) (Orange) (Green) Firmware updating Firmware downloading (every second) (every second) Reset to the factory default ● Wireless setting MODE UNIT Description (Orange) (Green) (Orange) (Green) Access Point Mode activated (every 5 sec)
  • Page 14 • If Static IP has been set - make sure it is correct as per router network settings. If a problem regarding connecting your router and the Wi-Fi Interface persists, please contact your local Mitsubishi Electric office, as listed on the back of this guide. A list of compatible routers is also available.

  • Page 15: Specifications

    Mitsubishi Electric Wi-Fi Heat Pump Control Register Your Heat Pump(s) Thank you for choosing a Mitsubishi Electric Heat Pump with Wi-Fi Control. Once your Wi-Fi Interface is installed, either download the app (search term: Mitsubishi Wi-Fi Control) or visit our website to register your heat pump(s).

  • Page 16: Contact Details

    Helpline opening hours 8.30am - 5.00pm weekdays HEAD OFFICE: TOKYO BUILDING, 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN MITSUBISHI ELECTRIC CONSUMER PRODUCTS (THAILAND) CO., LTD AMATA NAKORN INDUSTRIAL ESTATE 700/406 MOO 7, TAMBON DON HUA ROH, AMPHUR MUANG, CHONBURI 20000, THAILAND...
