Summary of Contents for Mangar Surfer Bather

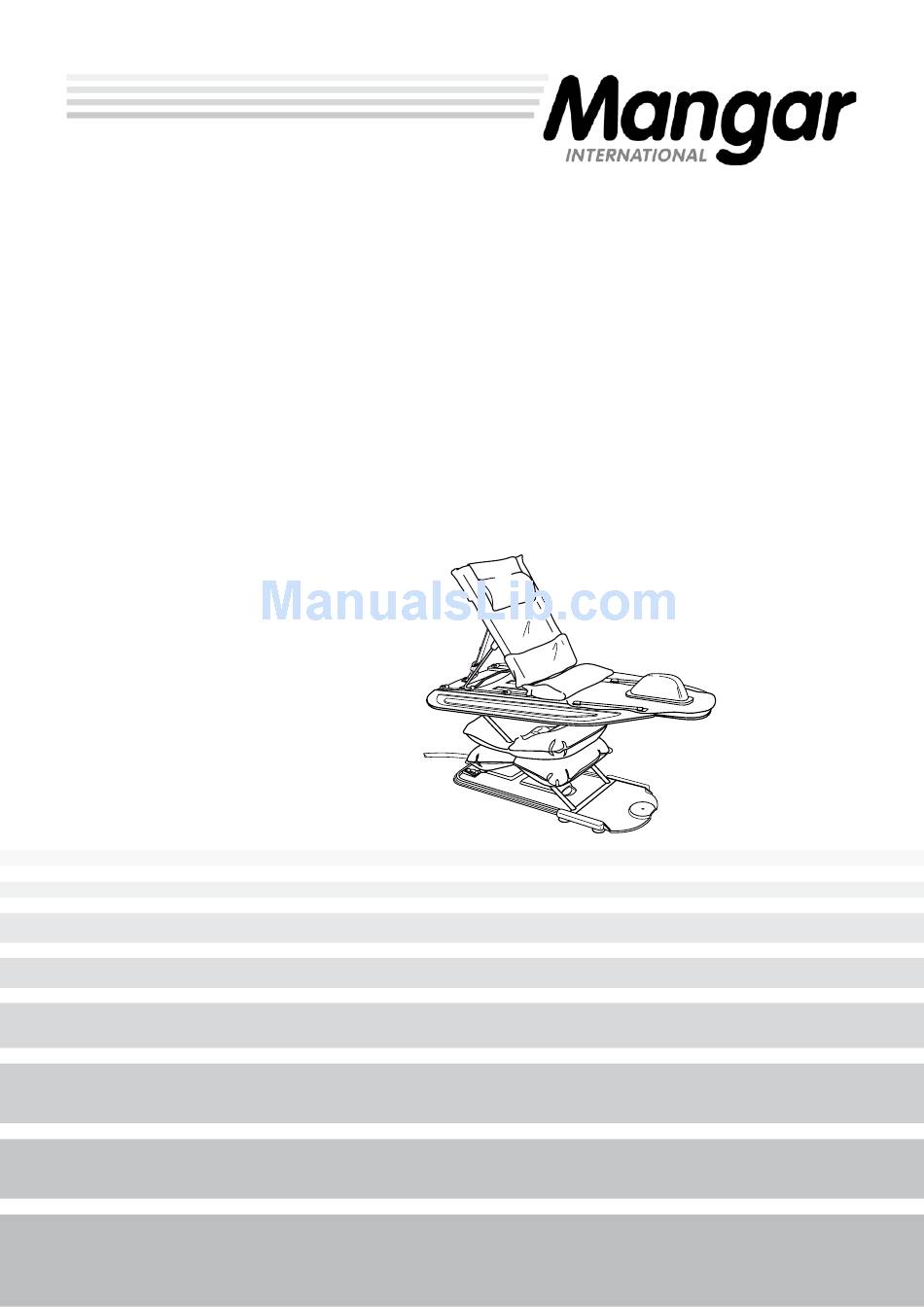

- Page 1 Surfer Bather user instructions...
-
Page 2: Safety Information
The Surfer Bather should only be used as a bathing aid, NEVER use it out of a bath. NEVER use the Surfer Bather to climb in or out of the bath. NEVER use it as a step, stand or as a device for lifting items. -
Page 3: Cautions
Only recharge the battery with the Mangar International battery charger supplied with the Airflo • compressor. Disconnect the Airflo compressor from the Surfer Bather before transporting so as to avoid • accidental inflation. •... -
Page 4: Table Of Contents
Standard product contents ................... 5 Installation and use ......................6 Fitting/Adjustment of backrest and platform pad ............6 Fitting the Surfer Bather in the bath ................7 To raise and lower the Surfer Bather ................7 Maintenance and care...................... 8 To remove the Surfer Bather from the bath.............. -
Page 5: Product Description

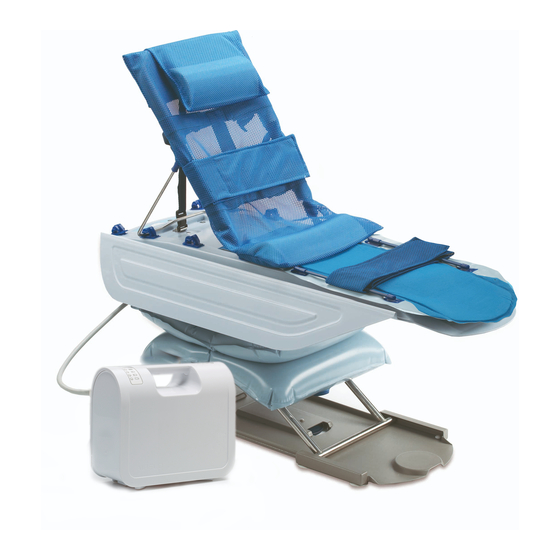

Product Description Intended use The Surfer Bather is a pneumatically powered elevating bathing platform designed to assist in the bathing of children. The Surfer Bather is particularly suitable for children with limited upper body stability. The adjustable backrest, together with straps if necessary, provides full support. -
Page 6: Installation And Use
Installation and Use Fitting/Adjustment of Backrest and Platform • The backrest and the platform pad are secured to the platform by means of plastic lugs inserted into keyhole slots. Locate and slide the lug into the slot as indicated (1 & 2 fig. -
Page 7: Fitting The Surfer Bather In The Bath
NEVER leave a child unattended whilst they are on ‘Up’ the Surfer Bather. ‘Down’ • To raise the Surfer Bather, press ‘up’ on the Airflo hand control (fig. 7). • To stop at any point, release the ‘up’ button. •... -
Page 8: Maintenance And Care
Routine Cleaning After use, fully inflate and rinse with clear water to remove soaps and impurities. The Surfer Bather can be cleaned with a proprietary liquid cleaner or disinfectant; wiped dry or left to air dry - Do not dry using hot air. -
Page 9: Refitting The Netting To The Backrest Frame After Laundering
Velcro ® panel (F) as required. Transportation / Storage Disconnect the Airflo compressor from the before transporting so as to avoid Surfer Bather accidental inflation. Ensure that the is clean and thoroughly dry before storing. Failure to thoroughly dry Surfer Bather... -
Page 10: List Of Parts
12. Backrest Catch 13. Platform Pad 14. Relief valve 15. Base Board To look after your Surfer Bather regularly check that: • The bellows buckle (6) is properly fastened and that the bellows (4) are undamaged. • The platform catches (2) are secure and undamaged. -
Page 11: Troubleshooting
Remedy • Ensure that the air hose from the Surfer Bather is connected to the Airflo. Surfer Bather fails to inflate or will not stay at • • Check that there are no kinks in the air hose the chosen height. -
Page 12: Appendices
(b) The defect is not attributable to accidental damage (either in transit or otherwise), misuse or unauthorised repair. Surfer Bather serial number: ........ Date of purchase: ........ Invoice/Delivery note number: ........ Mangar International reserves the right to alter product specifications and/or any of the information contained within this document without notice. - Page 13 Gently squeeze the foam to remove surplus water and leave to air dry. Storage Ensure that the foam, cover and strap are thoroughly dry before storing. Mangar International reserves the right to alter product specifications and/or any of the information contained within this document without notice. Simple solutions for everyday independence...
-
Page 14: Declaration Of Conformity
Appendices DECLARATION OF CONFORMITY This is to certify that :- The Surfer Bather - HSA0141 and its accessories complies with:- The requirements for Class 1 devices of the Medical Devices Directive 93/42/EEC as amended by 2007/47/EC Signed: Date: August 2010 A.
