    (battery version) ME0082 issue 1 The Airflo by Mangar International, is a low pressure air compressor, which has been designed for use with Mangar International pneumatic lifting equipment. PLEASE BE SURE THAT YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS...

  • Page 3: Standard Package Contents

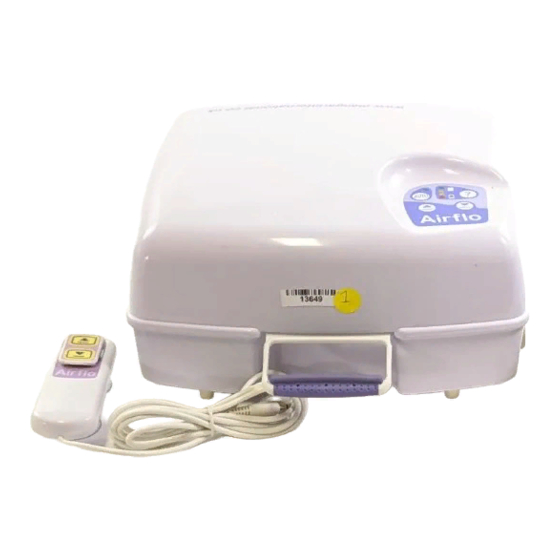

    (battery version) ME0082 issue 1 Standard Package Contents - fig. 1 1 x Airflo compressor fitted with two 12v - 2.3Ah batteries (A) 1 x Battery charger (B) 1 x Mains charger lead (C) 1 x Push-button hand control (D) 1 x User instructions Battery Gauge - fig.

  • Page 4: Battery Charging

    Connecting the Air Hose - fig. 4 Disconnect the Airflo from the battery charger and place the Airflo in a safe and convenient position. Connect the air hose from the Mangar International equipment to the air outlet socket (A). The connector will ‘click’...

  • Page 5: Extra Air Flow

    (battery version) ME0082 issue 1 Extra Air Flow - fig. 5 The switch (A) on the underside of the Airflo changes the air flow from ‘Normal’ to ‘High’. The switch should usually be set to ‘Normal‘ and only changed to ‘High‘ when directed to do so by the user instructions for the Mangar International product that is to be inflated.
  • Page 6 (battery version) ME0082 issue 1 ‘Auto’ Control Button - fig. 7 The ‘Auto’ function is designed for use with the range of Mangar International pneumatic hand controls:- • Lever Hand Control - fig. • CAMEL Hand Control - fig.
  • Page 7 (B), rotating the connector to lock it in place. Connect the air hose from the hand control to the Airflo air outlet socket (A). Select ‘Auto’ function (see ‘Auto’ Control Button).

  • Page 8: Cleaning & Storage

    Maintenance - fig. 11 At approximately 12 month intervals, inspect the air filter located in the base of the Airflo (A), and if necessary, fit a new filter (a kit of replacement filters is available through your supplier - part number: CA0233).

  • Page 9: Trouble Shooting Guide

    This happens when the compressor’s internal temperature cut-out has tripped. Leave the Airflo for 15 minutes to cool. Compressor does not run when ‘up’ is selected on the push button hand control. The top two lights on the Battery Gauge are Ensure that the air hose from the product being flashing.

  • Page 10: Symbols Used On Airflo And Charger

    (battery version) ME0082 issue 1 symbols used on Airflo and Charger labels Class II Double Insulated equipment Attention consult instructions Type B equipment (protection against Dangerous voltage electric shock) Alternating current (AC) Direct current (DC) Fuse (with rating) Duty cycle...

  • Page 11: Symbols Used On Packaging

    Date of purchase: ......Invoice/Delivery note number: ......Mangar International reserves the right to alter product specifications and/or any of the information contained within this document without notice. WITH RESPECT TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL60601-1, IEC6060-1, CAN/CSA C22.2 No.601.1...
