4.3.6. Battery test

1. Selecting the position 1.5V (1.5V battery test) or 9V (9V battery test)
2. Insert the test leads into the jacks, the red plug into VmAA
into COM jack
3. Connect the red and black test leads to the positive and negative poles of the battery
under test respectively (see Fig. 7). The battery voltage value is displayed
4. For HOLD function refer to § 4.2.1

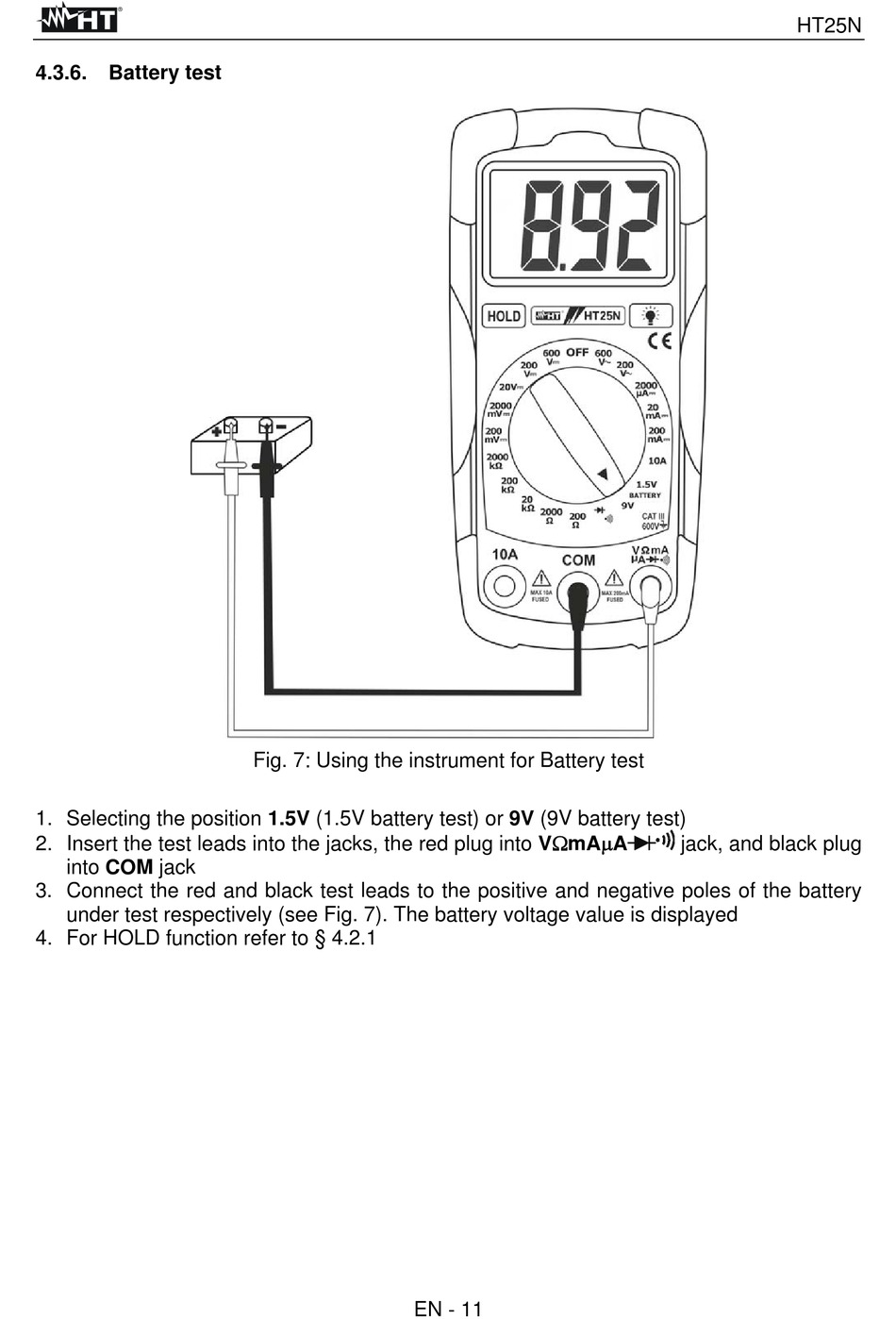

Fig. 7: Using the instrument for Battery test
EN - 11
HT25N
jack, and black plug
