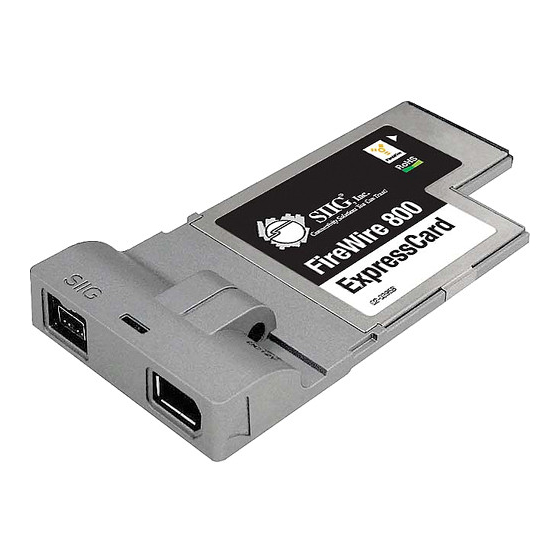

Introducing the FireWire 800 ExpressCard
The FireWire 800 ExpressCard adds FireWire 800 (1394b)
interface to your ExpressCard equipped computer.
Features and Benefits
•
Provides 1 FireWire 800 (9-pin) and 1 FireWire 400
(6-pin) ports for multiple device connections
•
Supports data transfer rates up to 800Mb/s
•
Supports hot-swapping and Plug-n-Play connection
of peripheral devices
•
Works with FireWire devices including DV
camcorders, CD-RW/DVD-ROM drives, portable
hard disks, digital cameras and other audio/video
devices
System Requirements
•
ExpressCard-enabled notebook PC with an available
ExpressCard/54 slot
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
Package Contents
•
FireWire 800 ExpressCard
•
Driver CD
•
Quick installation guide
04-0442D
FireWire 800 ExpressCard
Quick Installation Guide
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
1
