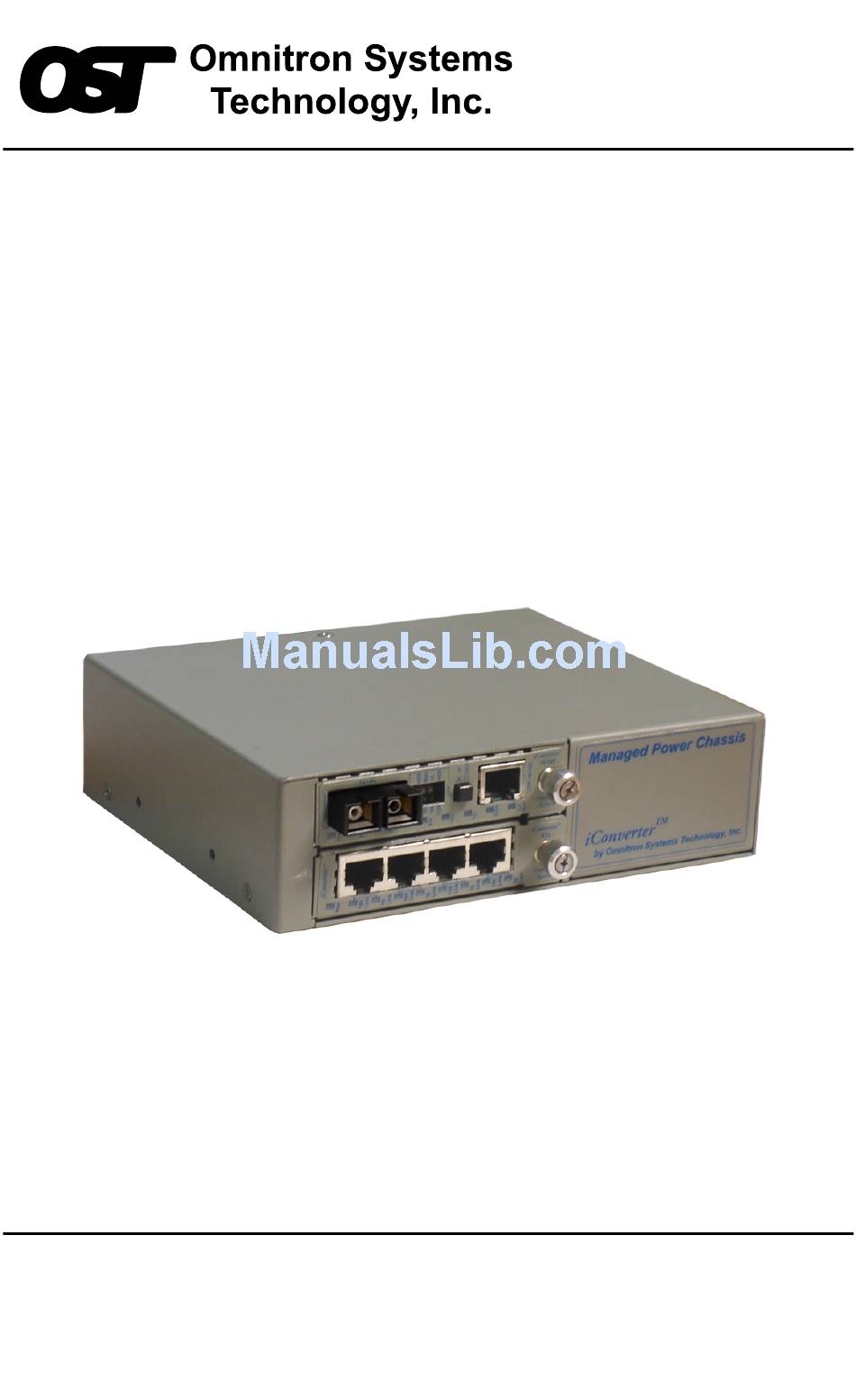

Page 1: User Manual
FlexSwitch 1Fx+4U Model 6550-FK Replacement Kit User Manual 140 Technology #500, Irvine, CA 92618 Phone: (949) 250-6510; Fax: (949) 250-6514... -
Page 2: Table Of Contents
Table of Contents INTRODUCTION ..............3 General Description ............. 3 Chassis Models ..............3 INSTALLATION ..............4 Chassis Installation .............. 4 Module Installation ............... 4 Fiber Installation..............4 UTP Installation ..............4 CONFIGURATION ..............5 AC Site Preparation .............. 5 AC Powered Chassis Mounting .......... -
Page 3: Introduction
100Base-Fx fiber port supports half or full duplex operation. The 6550-FK features on-board and front panel accessible DIP-Switches for manual configuration of the ports. Chassis Models FlexSwitch Replacement Matrix Discontinued Part Replacement Part 6550-0 6550-0-FK 6550-2 6550-2-FK 6550-3 6550-3-FK 6551-0 6551-0-FK 6551-2... -
Page 4: Installation
INSTALLATION Chassis Installation The 6550-FK is designed to accommodate wall-mounting and tabletop installations. For wall-mounting, the 8249-0 Wall-Mount kit (sold separately) is designed to attach the chassis to a wall, backboard or other flat surfaces. For tabletop installations, place the unit on a flat level surface. Attach the rubber feet to the bottom of the chassis to prevent the unit from sliding. -
Page 5: Configuration
CONFIGURATION AC Site Preparation • Power source should be available within 5 ft. of the chassis and installed per the National Electrical Code ANSI/NFPA-70. • This equipment requires a 100-240VAC, 0.5Amp, 50/60Hz power outlet. Appropriate overloading protection should be provided on the AC power source outlets utilized. -
Page 6: Configuring The Dip-Switches
Configuring the DIP-Switches The 6550-FK has been pre-configured with Auto-Negotiation enabled on all UTP ports for plug and play easy of use. However, the iConverter Modules offer additional configuration flexibility. 3.3.1 4Tx Switch Module The 4Tx Switch Module has been pre-configured for Auto-Negotiation. A board-mounted DIP-Switch is available to manually configure Port 1 and 2. -
Page 7: Media Converter Module - Front Panel
UTP 10/100Mbps “10/100” DIP-Switch (Port 1 or Port 2) When the UTP “AN/MAN” DIP-Switch (described above) is in the manual “MAN” position, the “10/100” DIP-Switch determines the speed of operation for the designated UTP port. Setting the “10/100” DIP-Switch to “100” position (factory default) forces the UTP port to operate at 100Mbps. -
Page 8: Media Converter Module - On-Board
10/100 speed and duplex mode of a mating Auto-Negotiating device connected to its UTP port. When the UTP “AN/Man” DIP-Switch is in the “Man” position, the converter does not auto-Negotiate and operates in the mode selected by the Full/Half Duplex “FDX/HDX” and “10/100” DIP-Switches. UTP 10/100 “10 / 100”... -
Page 9: Led Indicators
setting and will cause a “deadly embrace” lockup. A and B Backplane Enable “BPOEN” DIP-Switch This DIP-Switch must be in the UP position (factory default) for the module to operate correctly. The backplane must be enabled for the Media Converter Module to communicate. -
Page 10: Media Converter Module
Media Converter Module The Media Converter Module has LED indicators to provide information on how the module is communicating to its link partner. The LED indicators can also be used to troubleshoot problems with the connections. Media Converter Module LED Function Color OFF State ON State... -
Page 11: Specifications
SPECIFICATIONS Description Fast Ethernet Switch with 5 10/100 UTP Ports and 1 100Base-Fx Fiber Port Protocols 10Base-T, 100Base-Tx, 100Base-Fx with 1535 bytes max. frame size UTP Cable Type EIA/TIA 568A/B Category 5 and higher Fiber Cable Type Multimode: 50/125, 62.5/125, 100/140um Singlemode: 9/125um UTP Connector Type RJ45... -
Page 12: Link Modes
LINK MODES In order to accommodate different user requirements, the 6550-FK Media Converter Module supports three different link modes. Link Segment (LS) LS mode transmits a link signal independently of any received ‘Link’ at any port. Utilizing this configuration, a loss of a receive link signal will only affect the port detecting the loss of signal. - Page 13 To avoid electrical shock, do not perform any servicing of this unit other than that contained in the operating instructions, unless you are qualified and certified to do so by Omnitron Systems Technology, Inc. Caution All user-required operations can be performed without opening the unit. Never attempt to open or remove the cover or tamper with the unit.
- Page 14 TECHNICAL SUPPORT If you encounter problems with this product, contact Omnitron Technical Support. Phone: 800-675-8410 949-250-6510 Fax: 949-250-6514 Address: Omnitron Systems Technology, Inc. 140 Technology Dr., #500 Irvine, CA 92618 Email: support@omnitron-systems.com URL: http://www.omnitron-systems.com Form: 040-06550-FK1 A 02/07 Page 14...
