3) VERIFY OPERATION
Verify the correct LED is illuminated based on the configuration of the port.

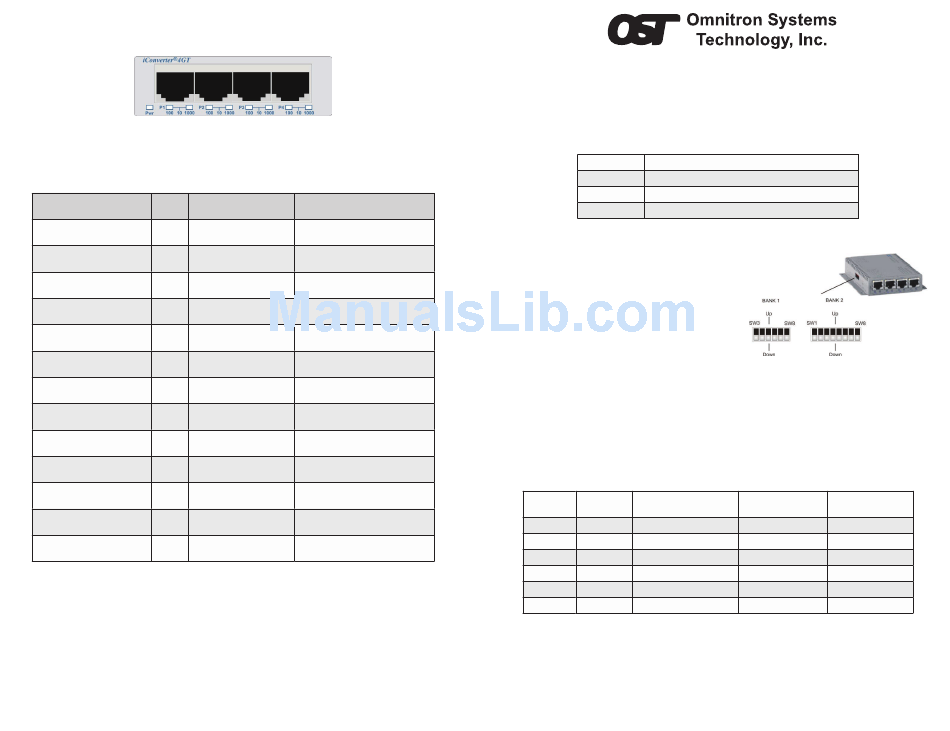

Figure 6: Front panel layout
Each port can operate at 10/100/1000Mbps. The figure below indicates the operation of the port
based on the illuminated LEDs. If the 100 LED is illuminated, the port is operating at 100Mbps. If
the 1000 LED is illuminated, the port is operating at 1000Mbps and if the 100 and 1000 LEDs are
illuminated, the port is operating at 10Mbps.
LED Function
Color OFF State
"Legend"
Power
Green No power
"PWR"
P1 Link Activity
Green Port not linked at 100M
"100"
P1 Link Activity
Green Port not linked at 1000M
"1000"
P1 Link Activity
Green Port not linked at 10M
"100" and "1000"
P2 Link Activity
Green Port not linked at 100M
"100"
P2 Link Activity
Green Port not linked at 1000M
"1000"
P2 Link Activity
Green Port not linked at 10M
"100" and "1000"
P3 Link Activity
Green Port not linked at 100M
"100"
P3 Link Activity
Green Port not linked at 1000M
"1000"
P3 Link Activity
Green Port not linked at 10M
"100" and "1000"
P4 Link Activity
Green Port not linked at 100M
"100"
P4 Link Activity
Green Port not linked at 1000M
"1000"
P4 Link Activity
Green Port not linked at 10M
"100" and "1000"
Figure 7: LED Indicators
Omnitron Systems Technology * 140 Technology Dr. #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
ON/Blinking State
Module has power
ON: Port linked at 100M
Blinking: Data activity
ON: Port linked at 1000M
Blinking: Data activity
ON: Port linked at 10M
Blinking: Data activity
ON: Port linked at 100M
Blinking: Data activity
ON: Port linked at 1000M
Blinking: Data activity
ON: Port linked at 10M
Blinking: Data activity
ON: Port linked at 100M
Blinking: Data activity
ON: Port linked at 1000M
Blinking: Data activity
ON: Port linked at 10M
Blinking: Data activity
ON: Port linked at 100M
Blinking: Data activity
ON: Port linked at 1000M
Blinking: Data activity
ON: Port linked at 10M
Blinking: Data activity
040-08482-001B 12/10
iConverter 4GT
Standalone Module User Manual
Product Overview
iConverter
The 4GT standalone module is an unmanaged four-port 10/100/1000Mbps Ethernet
switch that supports Half/Full Duplex and auto-negotiation on each RJ-45 port.
Model Numbers
Model Number
8482-4-D Wall mount with External US AC Power Supply
8482-4-E Wall mount with External Universal AC Power Supply
8482-4-F Wall mount with DC Terminal Power
Installation Procedure
1) Configure DIP-switches
2) Install Standalone Module and Connect Cables
3) Verify Operation
1) CONFIGURE DIP-SWITCHES
DIP-switches are located on the side of the module.
DIP-SWITCH BANK 1
The location of the DIP-switches is shown in Figure 1.
Each port can be configured for Auto Negotiation (AN) or Manual configuration (Man). When
configured for AN, the port automatically determines the speed, duplex and pause capability of the
connected device. If the port is configured for Manual, the speed and duplex is determined by the
100/10 and FDX/HDX DIP-switches (see Figure 4 for configuration details).
1000Mbps Manual operation is not supported. For 1000Mbps operation, configure the ports for
AN operation.
The functions of DIP-switch Bank 1 are outlined in Figure 2. DIP-switch Bank 1 controls the
operation of Port 1 and Port 2.
Switch Legend Function
SW3 AN/Man Port 1 Negotiation
SW4 100/10 Port 1 Speed
SW5 FDX/HDX Port 1 Duplex
SW6 AN/Man Port 2 Negotiation
SW7 100/10 Port 2 Speed
SW8 FDX/HDX Port 2 Duplex
Figure 2: DIP-switch Bank1 Definitions
SW3 - Port 1 "AN/Man"
This DIP-switch configures Port 1 for Auto Negotiation or Manual operation.
SW4 and SW5 - Port 1 Speed "100/10" and Duplex "FDX/HDX"
See Figure 4 for configuring duplex and speed when the port is configured for Manual operation.
Page 1
Description
Figure1: DIP-switch Locations
DOWN
UP
(Default)
AN Man
100 10
FDX HDX
AN Man
100 10
FDX HDX
