Introduction
Item
3
4
5

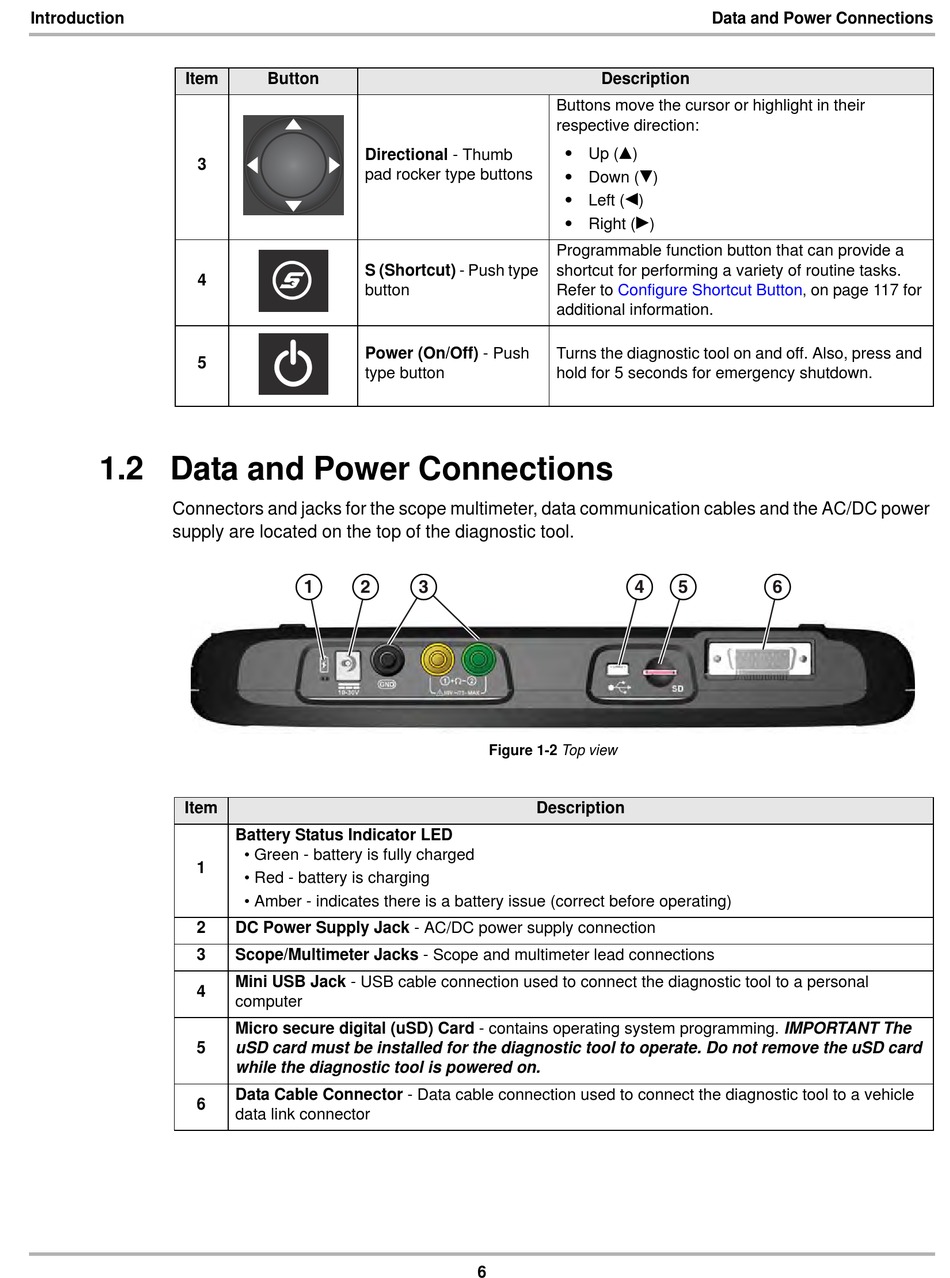

1.2 Data and Power Connections

Connectors and jacks for the scope multimeter, data communication cables and the AC/DC power
supply are located on the top of the diagnostic tool.
Item
1
2
3
4
5
6
Button
Directional - Thumb
pad rocker type buttons
S (Shortcut) - Push type
button
Power (On/Off) - Push
type button
Battery Status Indicator LED
• Green - battery is fully charged
• Red - battery is charging
• Amber - indicates there is a battery issue (correct before operating)
DC Power Supply Jack - AC/DC power supply connection
Scope/Multimeter Jacks - Scope and multimeter lead connections
Mini USB Jack - USB cable connection used to connect the diagnostic tool to a personal
computer
Micro secure digital (uSD) Card - contains operating system programming. IMPORTANT The
uSD card must be installed for the diagnostic tool to operate. Do not remove the uSD card
while the diagnostic tool is powered on.
Data Cable Connector - Data cable connection used to connect the diagnostic tool to a vehicle
data link connector
Description
Buttons move the cursor or highlight in their
respective direction:
b
•
Up ( )
d
• Down ( )
e
•
Left ( )
c
•
Right ( )
Programmable function button that can provide a
shortcut for performing a variety of routine tasks.
Refer to Configure Shortcut
additional information.
Turns the diagnostic tool on and off. Also, press and
hold for 5 seconds for emergency shutdown.
Figure 1-2 Top view
Description
6
Data and Power Connections
Button‚ on page 117 for
