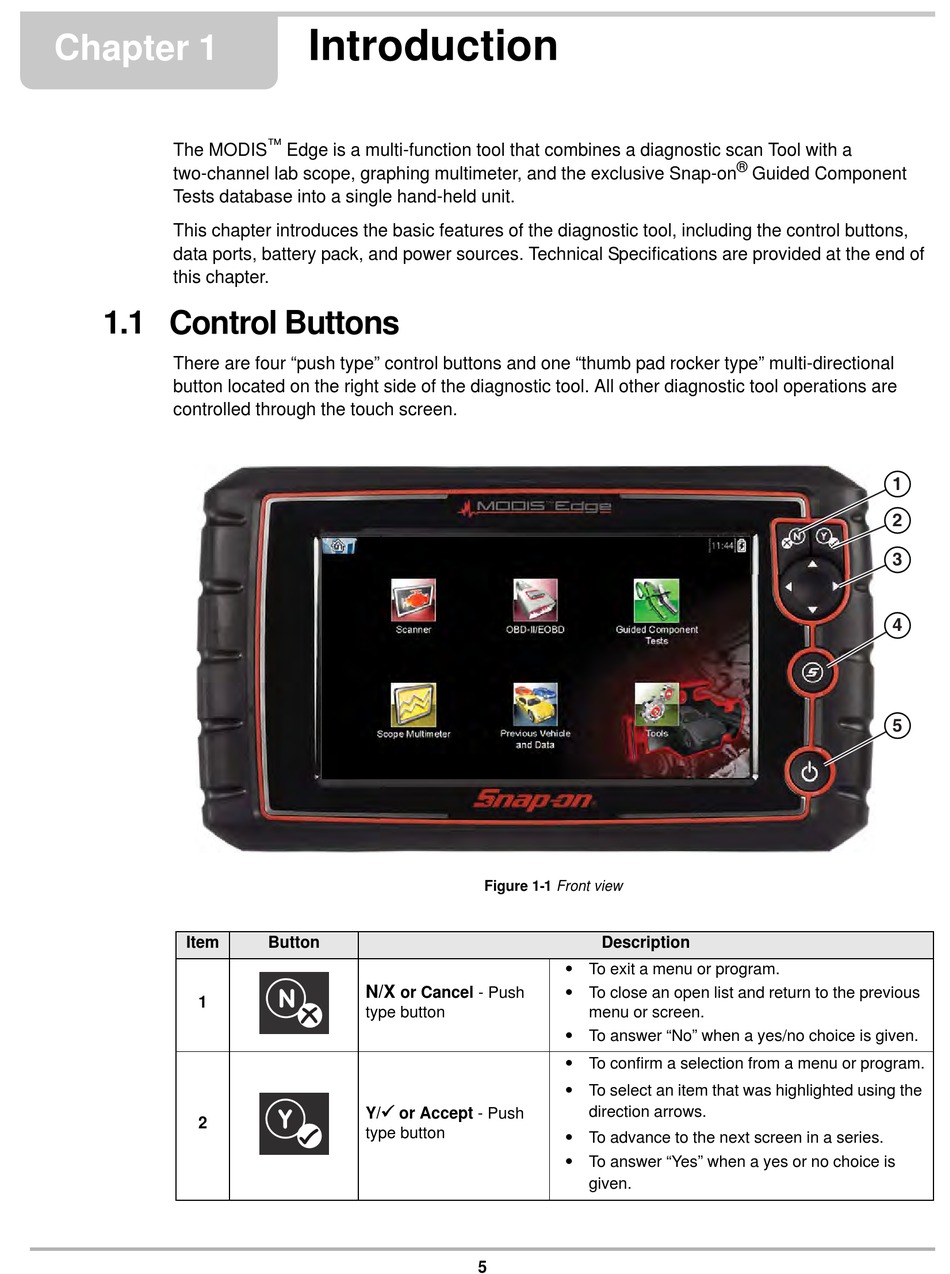

Chapter 1
The MODIS
two-channel lab scope, graphing multimeter, and the exclusive Snap-on
Tests database into a single hand-held unit.
This chapter introduces the basic features of the diagnostic tool, including the control buttons,
data ports, battery pack, and power sources. Technical Specifications are provided at the end of
this chapter.

1.1 Control Buttons

There are four "push type" control buttons and one "thumb pad rocker type" multi-directional
button located on the right side of the diagnostic tool. All other diagnostic tool operations are
controlled through the touch screen.
Item
1
2
Introduction
™
Edge is a multi-function tool that combines a diagnostic scan Tool with a
Button
N/X
or Cancel - Push
type button
a
Y/ or Accept - Push
type button
Figure 1-1 Front view
Description
•
To exit a menu or program.
•
To close an open list and return to the previous
menu or screen.
•
To answer "No" when a yes/no choice is given.
•
To confirm a selection from a menu or program.
• To select an item that was highlighted using the
direction arrows.
•
To advance to the next screen in a series.
•
To answer "Yes" when a yes or no choice is
given.
5
®
Guided Component
1
2
3
4
5
