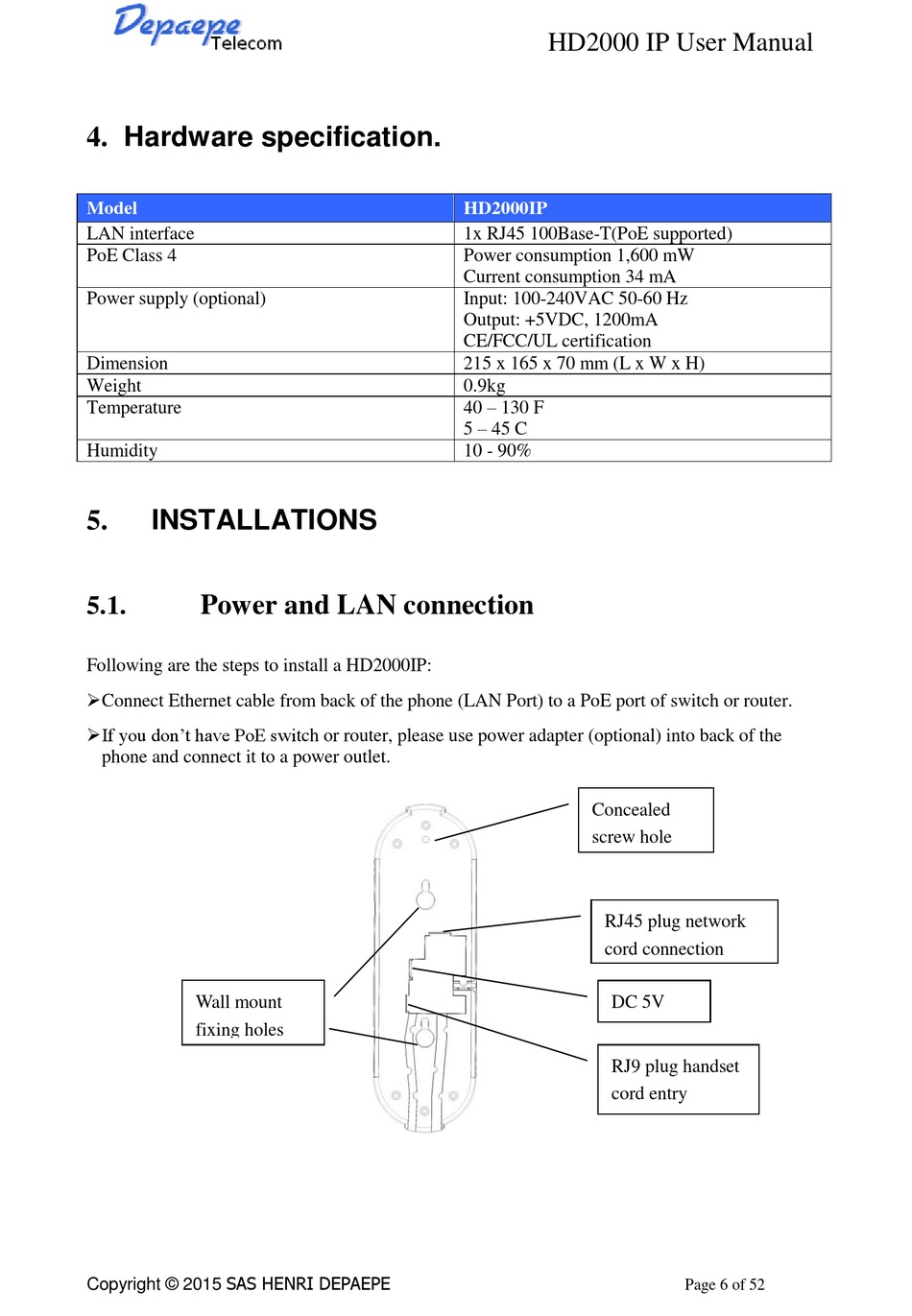

4. Hardware specification.

Model
LAN interface
PoE Class 4
Power supply (optional)
Dimension
Weight
Temperature
Humidity

INSTALLATIONS

5.

Power and LAN connection

5.1.
Following are the steps to install a HD2000IP:
 Connect Ethernet cable from back of the phone (LAN Port) to a PoE port of switch or router.
 If you don't have PoE switch or router, please use power adapter (optional) into back of the
phone and connect it to a power outlet.
Wall mount
fixing holes
Copyright © 2015 SAS HENRI DEPAEPE
HD2000 IP User Manual
HD2000IP
1x RJ45 100Base-T(PoE supported)
Power consumption 1,600 mW
Current consumption 34 mA
Input: 100-240VAC 50-60 Hz
Output: +5VDC, 1200mA
CE/FCC/UL certification
215 x 165 x 70 mm (L x W x H)
0.9kg
40 – 130 F
5 – 45 C
10 - 90%
Concealed
screw hole
RJ45 plug network
cord connection
DC 5V
RJ9 plug handset
cord entry
