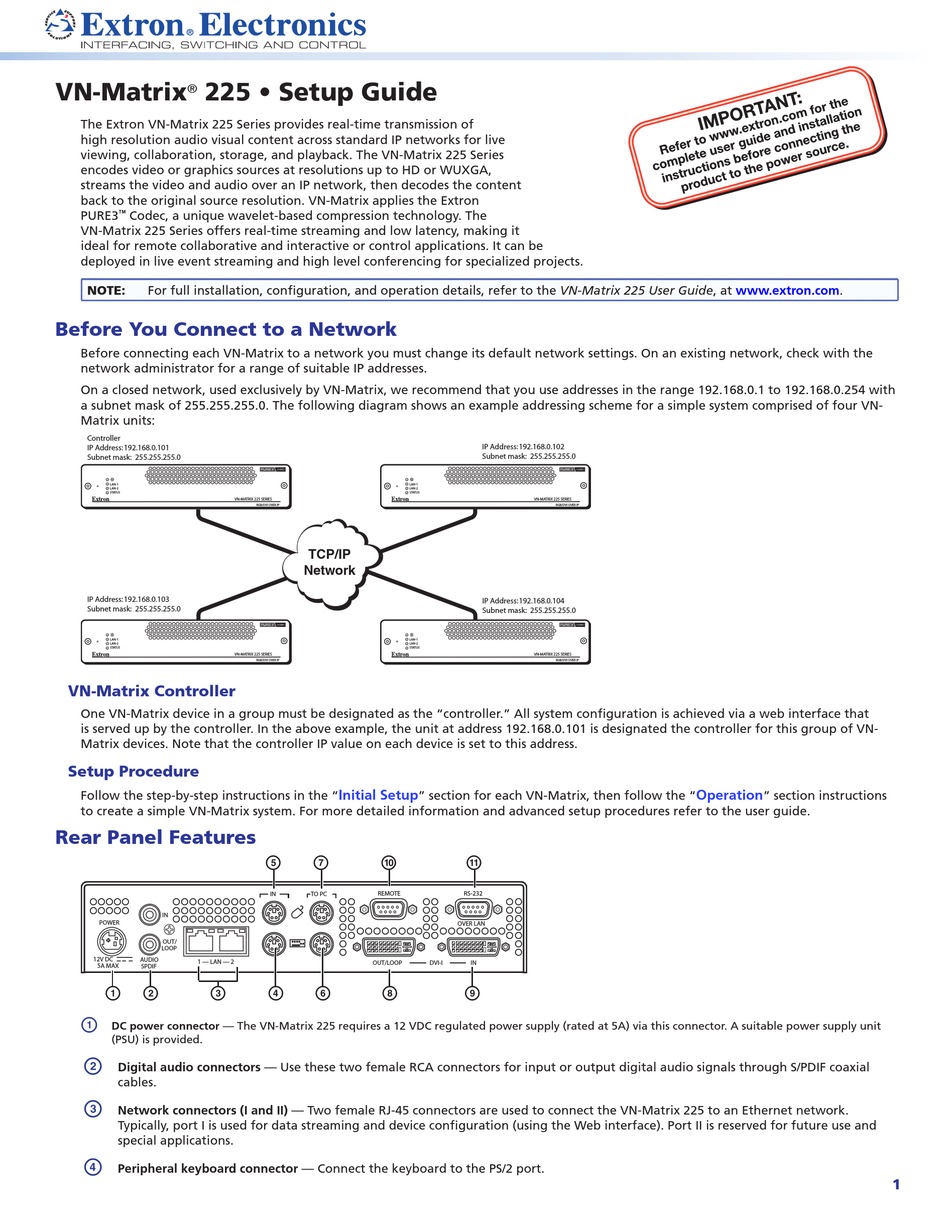

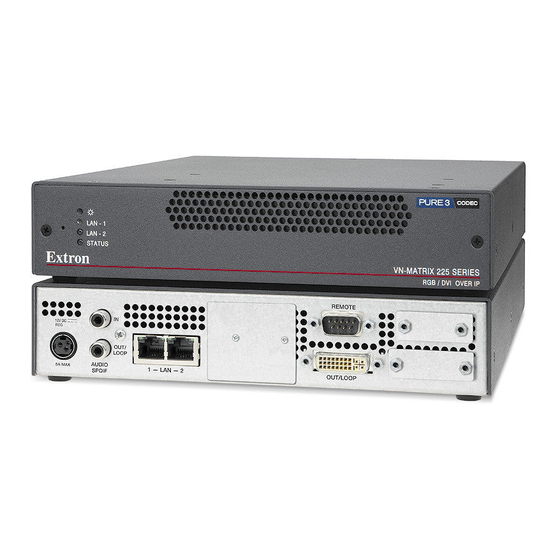

VN-Matrix 225 • Setup Guide
®
The Extron VN-Matrix 225 Series provides real-time transmission of
high resolution audio visual content across standard IP networks for live
viewing, collaboration, storage, and playback. The VN-Matrix 225 Series
encodes video or graphics sources at resolutions up to HD or WUXGA,
streams the video and audio over an IP network, then decodes the content
back to the original source resolution. VN-Matrix applies the Extron
PURE3 Codec, a unique wavelet-based compression technology. The
™
VN-Matrix 225 Series offers real-time streaming and low latency, making it
ideal for remote collaborative and interactive or control applications. It can be
deployed in live event streaming and high level conferencing for specialized projects.
NOTE:
For full installation, configuration, and operation details, refer to the VN-Matrix 225 User Guide, at www.extron.com.
Before You Connect to a Network
Before connecting each VN-Matrix to a network you must change its default network settings. On an existing network, check with the
network administrator for a range of suitable IP addresses.
On a closed network, used exclusively by VN-Matrix, we recommend that you use addresses in the range 192.168.0.1 to 192.168.0.254 with
a subnet mask of 255.255.255.0. The following diagram shows an example addressing scheme for a simple system comprised of four VN-
Matrix units:
Controller
IP Address: 192.168.0.101
Subnet mask: 255.255.255.0
LAN-1
LAN-2
STATUS
VN-MATRIX 225 SERIES
IP Address: 192.168.0.103
Subnet mask: 255.255.255.0
LAN-1
LAN-2
STATUS
VN-MATRIX 225 SERIES
VN-Matrix Controller
One VN-Matrix device in a group must be designated as the "controller." All system configuration is achieved via a web interface that
is served up by the controller. In the above example, the unit at address 192.168.0.101 is designated the controller for this group of VN-
Matrix devices. Note that the controller IP value on each device is set to this address.
Setup Procedure
Follow the step-by-step instructions in the "
to create a simple VN-Matrix system. For more detailed information and advanced setup procedures refer to the user guide.

Rear Panel Features

IN
POWER
OUT/
LOOP
12V DC AUDIO
1 — LAN — 2
5A MAX
SPDIF
a b c
a
DC power connector — The VN-Matrix 225 requires a 12 VDC regulated power supply (rated at 5A) via this connector. A suitable power supply unit
(PSU) is provided.
b
Digital audio connectors — Use these two female RCA connectors for input or output digital audio signals through S/PDIF coaxial
cables.
c
Network connectors (I and II) — Two female RJ-45 connectors are used to connect the VN-Matrix 225 to an Ethernet network.
Typically, port I is used for data streaming and device configuration (using the Web interface). Port II is reserved for future use and
special applications.
d
Peripheral keyboard connector — Connect the keyboard to the PS/2 port.
LAN-1
LAN-2
STATUS
RGB/DVI OVER IP
TCP/IP
Network
LAN-1
LAN-2
STATUS
RGB/DVI OVER IP
Initial Setup
" section for each VN-Matrix, then follow the "
e g j
IN TO PC REMOTE
OUT/LOOP DVI-I
d f h
IP Address: 192.168.0.102
Subnet mask: 255.255.255.0
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
IP Address: 192.168.0.104
Subnet mask: 255.255.255.0
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
k
RS-232
OVER LAN
IN
i
