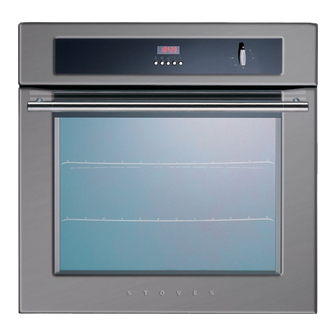

- Page 1 6 6 0 0 0 0 G G R R 600mm Rotostar Gas Oven & Grill Natural Gas User & Installation Instructions...
- Page 2 IMPORTANT NOTICE Please note the cooling fan fitted to this appliance is an integral part of its safety and functionality. When the appliance is installed care must be taken that the cooling fans perfor- mance is not impeded by any objects coming into contact with it. (Installation pipes, leads etc) Care must also be taken that there is sufficient air flow at the rear of the appliance for the cooling fan to run at its optimum efficiency.
- Page 3 Stoves Customer Care Thank you for choosing this British built appliance from Stoves. We hope you enjoy many years of trouble free cooking with this oven. Should you need to contact us however, please call the number below and our Customer Care Centre staff will be pleased to help in any way they can.
-
Page 4: Table Of Contents
Technical Data ......... Stoves Customer Care ........ -
Page 5: Introduction
INTRODUCTION Thank choosing Before using the oven or grill for British built appliance by Stoves the first time, remove any protective polythene film and wash the oven We hope the following information shelves and shelf runners in hot soapy will help you to familiarise yourself... - Page 6 INTRODUCTION Cooling fan Gas & Electrical connection When you switch on the oven or grill Please refer to installation instructions you will hear the cooling fan come on. for the Gas & Electrical Safety Regulations This fan provides air for the burners and the Ventilation Requirements.
- Page 7 INTRODUCTION To replace an oven light bulb Environmental Protection Switch off the electricity supply to the We are committed to protecting the appliance at the socket, to avoid the environment operate risk of electric shock. Environmental Management System which complies with current policy. Wait until the oven is cool, then remove the oven shelves.
-
Page 8: Be Safe - Not Sorry
BE SAFE - NOT SORRY When you are cooking, keep • Do not use foil on oven shelves or children away from the vicinity allow it to block the oven flue, as of the appliance. this creates a fire hazard, and prevents heat circulation. -
Page 9: Using The Grill
USING THE GRILL Caution: Accessible parts may Preheating be hot when grill is used. Always preheat the grill for about 3 Young children should be kept minutes for best cooked results. The away. green indicator will illuminate to indicate that the grill is ready. Grill ignition The door must be open when the grill Aluminium foil... - Page 10 USING THE GRILL Detachable grill pan handle Notes • Position the oven shelf on the grid desired shelf position. • Position the grill pan centrally on the oven shelf. • If you choose to grill with the door in the stop position you can remove the grill pan handle by sliding it to the recess.
-
Page 11: Using The Oven
USING THE OVEN Caution: When you are cooking Note: The Rotostar burner will cycle on keep children away from the and off during cooking, maintaining vicinity of the oven. an even temperature, giving greater fuel efficiency. Warning: do not use the oven if the Manual operation fan is not working. - Page 12 USING THE OVEN Oven furniture Oven lights Oven lights will come on when the oven is in use. Baking tray and roasting tins For best cooked results and even browning, the maximum size baking trays and roasting tins that should be used are as follows;...
-
Page 13: Programmer / Clock
Programmer / Clock The Programmer Buttons Manual operation minute minder cook time ready time minus plus To set the programmer to manual To set the “Time of Day” operation at any time (cancelling any automatic setting), press the cook time and ready time buttons simultaneously. - Page 14 Programmer / Clock Semi-automatic cooking (example) 1. A (Auto) symbol appears. You have started cooking a meal or dish in the oven, and want to set the time for the oven to switch off. Press the cook time button, then use the plus and minus buttons to set the display to show the length of cooking time required, eg;...
- Page 15 Programmer / Clock 5. A (Auto) symbol appears. Fully automatic cooking (example) For use when a delayed start time is required. You want to set the length of cooking time, and the time for the oven to switch off. The programmer will automatically calculate the cooking start time.
- Page 16 Programmer / Clock The oven will automatically switch off 9. A (Auto) symbol will flash. at 18.00 hours (6.00 pm) and the alarm will sound (9). To switch off the alarm press the minute minder button (10). When the oven has switched off, return the oven control knob to the “off”...
- Page 17 Automatic cooking - hints Automatic cooking Do not • Never place warm food in the These notes below are to help you with oven for delayed cooking - eg; using the automatic cooking facility. stews prepared by frying meat first Please make sure that you read them must be thoroughly cooled before carefully before you start using the...
-
Page 18: Cleaning
CLEANING Caution: Any cleaning agent Painted, plastic & metal finish parts used incorrectly may damage DOOR HANDLE CONTROL KNOBS the appliance. Only use a clean cloth wrung out in Always let the oven cool before hot soapy water. cleaning. Some cooking operations generate a Enamel surfaces considerable amount of grease. - Page 19 CLEANING Glass parts Important: if the inner door glass panel is removed for cleaning, it must & FACIA PANEL DOOR PANELS be replaced the right way up as Use a mild cream cleaner. Rinse thor- shown, and pushed fully in to the oughly and dry with a soft cloth.
- Page 20 CLEANING Stainless Steel surfaces (stainless steel finish models only) FACIA PANEL HANDLES DOOR PANELS Only use a clean cloth wrung out in hot soapy water, and dry with a soft cloth. Stubborn marks can be removed using stainless steel cleaner. We recom- mend that you clean the whole of the stainless steel area to maintain a uni-...
-
Page 21: Micro-Computer Operation
Electrical interference either from the contact Customer Care. mains or other electrical equipment The 600GR oven grill unit uses a built may cause the computer to indicate a in micro-computer to control the oven fault when non exists, chiefly when first temperature. -
Page 22: Installation Instructions
INSTALLATION INSTRUCTIONS Before start: Please read For installation in countries other than the instructions. Planning your installation will UK, the appliance must be connected in save you time and effort. accordance with all local gas and electrical regulations. In the Republic of Ireland, Prior to installation, ensure that the local Installers should refer to IS813 Domestic distribution conditions (nature of the gas and... - Page 23 INSTALLATION INSTRUCTIONS Step 1: Prepare installation Ensure that the built in unit is appropriately fixed to the wall. Do not lift the appliance by the door handle. • When installed in a typical 600mm deep built in housing unit, Whilst every care is taken to eliminate the false back should be removed burrs and raw edges from this product, from the housing unit, to provide the...
- Page 24 INSTALLATION INSTRUCTIONS Housing dimensions Ensure that you route all mains electrical cables and flexible tubing The appliance is designed to fit into a well clear of any adjacent heat source, standard 600mm wide housing unit with such as an oven, grill or hob. minimum internal dimensions as shown.
- Page 25 INSTALLATION INSTRUCTIONS Step 3: Connect to the electricity As the colours of the wires in the mains supply lead for the appliance may not correspond with the coloured markings This appliance must be connected by identifying the terminals in your spur a competent person, using fixed box, proceed as follows: wiring via a double pole switched...
- Page 26 INSTALLATION INSTRUCTIONS Step 3: Connect to the gas supply 5. Natural Gas - Flexible connections should be to BS 669. Parts of the 1. The inlet to the appliance is pipe appliance likely to come into contact thread ISO RP ”...
- Page 27 INSTALLATION INSTRUCTIONS Step 4: Check edging strip Step 5: Secure appliance into housing unit The edging strip is factory fitted to the front side edges of the appliance Insert appliance into cabinet. front frame. This strip provides the Note: The unit housing the appliance cabinetry with extra protection from must be appropriately fixed.
- Page 28 INSTALLATION INSTRUCTIONS Step 5: Commissioning Grill 1. The door must be open for the grill burner to ignite, either fully open Burner aeration or using the door stop position All burners have fixed aeration and no (open approximately 170mm). adjustment is possible. 2.
-
Page 29: Fault Finding
FAULT FINDING Fault Finding Electrical faults These may be either component failure or wiring / connector faults. Should Method of operation any disconnections be made, it is When the control knob is rotated from important that they be re-connected the ‘OFF’ position, a microswitch exactly as before or the computer closes and allows the gas control will lock out;... - Page 30 FAULT FINDING Typical faults assuming all wiring is correct: Symptom Fault HLO on switching On mains Component fault on main PCB, incorrect wiring HLO on turning On oven/grill Fault on control board / potentiometer, incorrect wiring Oven start up, burner lights and Short circuit thermistor assembly.
- Page 31 FAULT FINDING Symptom Fault Oven fan does not start, Faulty fan or connections. oven lamps light Oven fan does not start, Component failure on main board. lamps do not light Faulty connections. Cooling fan fails to start 1. Faulty fan. 2.
-
Page 32: Technical Data
TECHNICAL DATA Data Badge Oven / Grill Light(s) Abbreviated data badge located on 2 x 25W front frame. Full data badge located Grill Burner on rear panel. Spark gap 3 - 4mm. Gas Category This appliance is factory set for use on Oven Burner either Natural Gas only. -
Page 34: Stoves Customer Care
Stoves Customer Care Please keep this handbook in a safe place as the information inside may be of use should you sell, or pass on the appliance. Please fill in the model number and serial number in the spaces provided below as they will assist us should you need to call.
