The T154 Temperature Monitor will monitor and control up to four, three-
wire RTD inputs. All input channels may be user programmed for two
separate outputs with a range of 0 to 240°C (32 to 464°F). The set points are
common to all channels. The unit is microprocessor based which offers
application flexibility, and easy integration to a variety of applications
including electric motors; electric and diesel generators; all types of
transformers; electric cables; and industrial and chemical processes. ANSI 49
covers the thermal protection provided.
The unit is intended for semi-flush mounting with hardware provided.
Installation and set-up is simple using the universal power supply 24 to 240V
AC or DC and functional user controls and display.
T154 is designed for semi-flush panel mounting. Mounting hardware is
included with each unit. The panel cutout dimension is 92 x 92mm (3.62 in. x
3.62 in.).

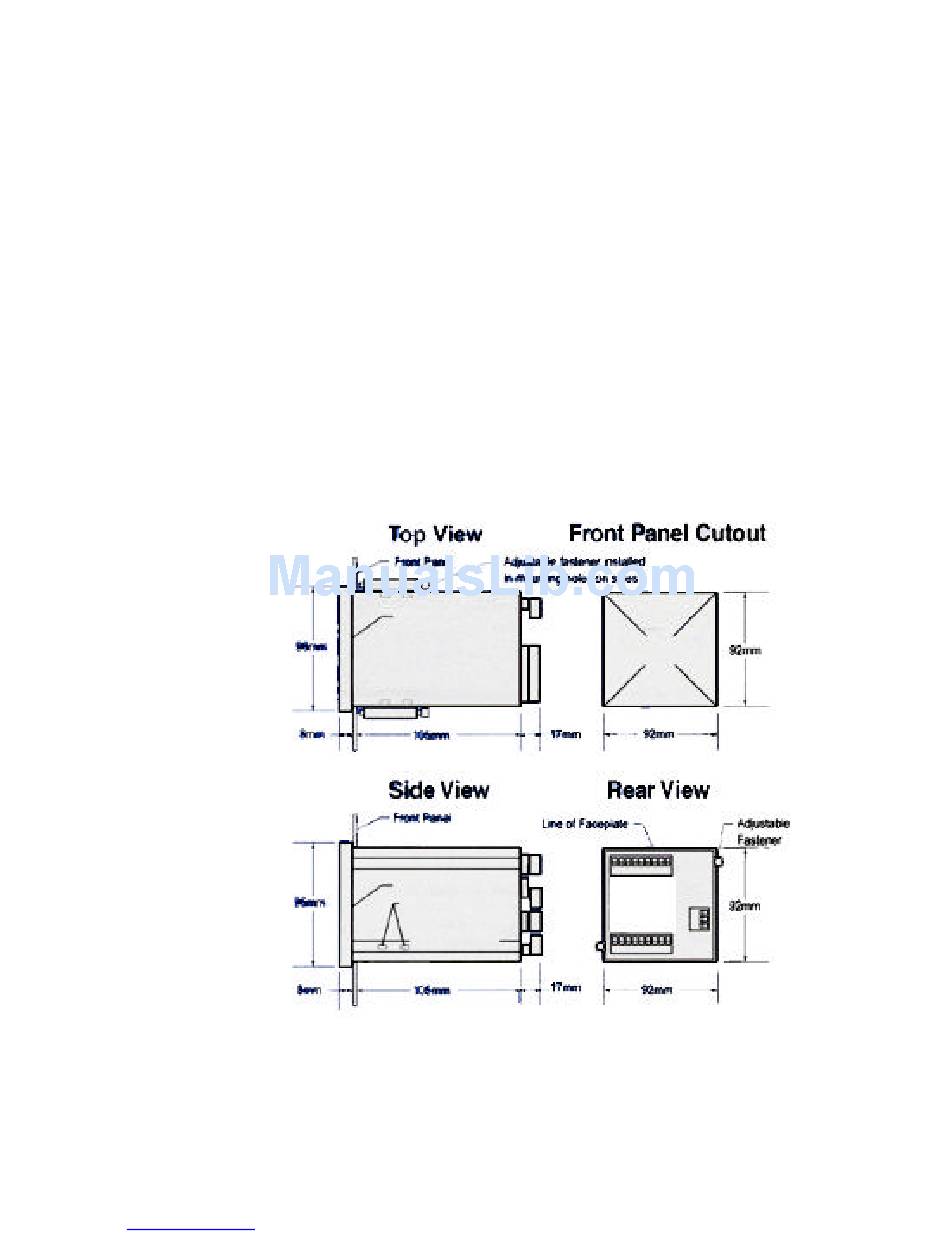

Dimensions Ref Figure 1
96 x 96 x 127 mm (3.78 x 3.78 x 5.51 in.)
Figure 1
