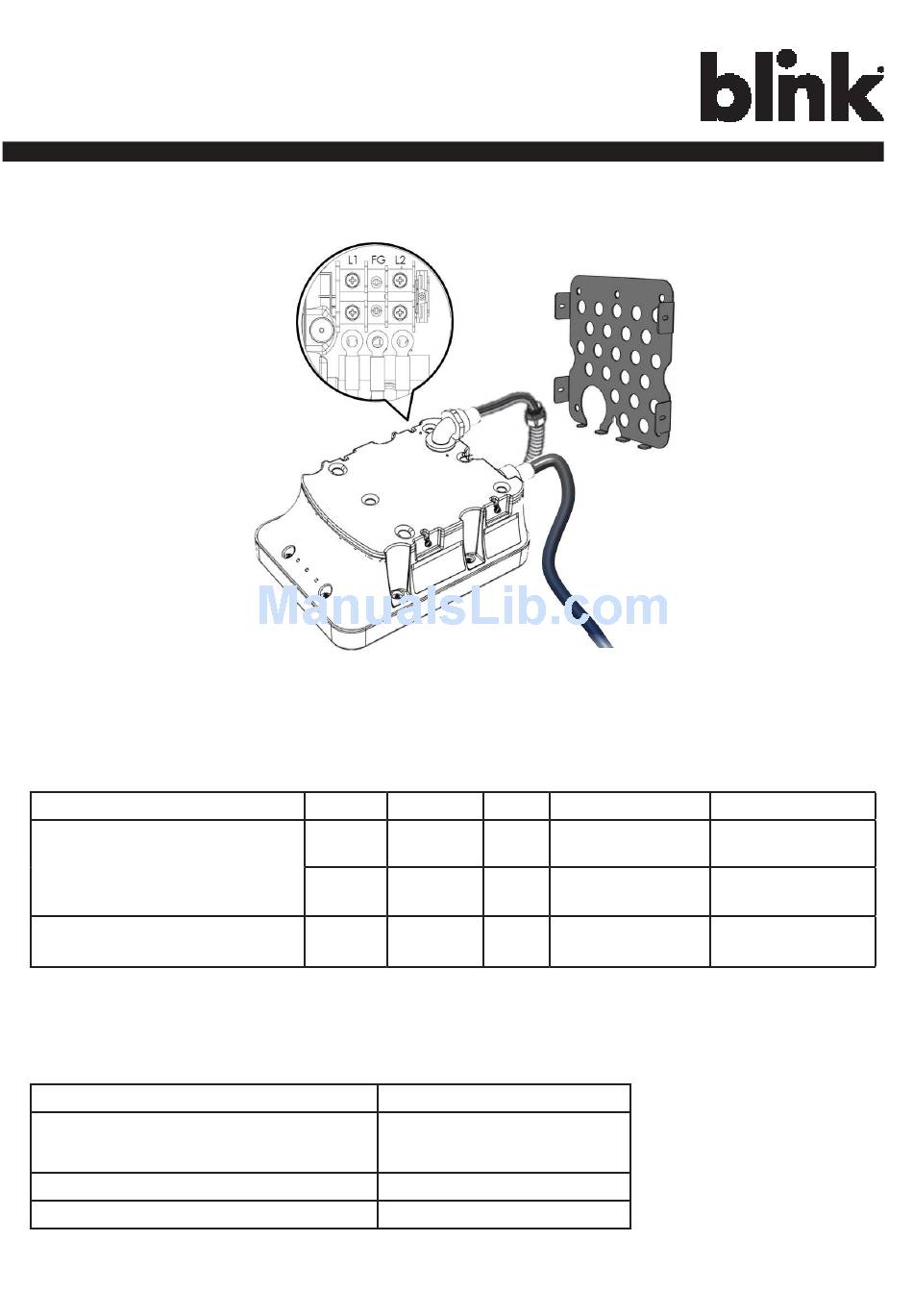

Figure 3-5. Wiring - Blink IQ 200 Instruction Manual

Charge on.
3-4. Please use following wire and torque force when connecting to input terminal block. using conductor
type other than RHH, RHW and RHW-2 with outer covering.
Model
IQW2-80U-M1-R2-N-25 (Ad-
vanced) IQW2-80U-W1-N1-
N-25 (Smart) IQW2-32U-M1-R2-
N-25 (32A)
IQW2-00U-M1-R2-N-00 (Kiosk)
CAUTION: "To reduce the risk of the fire, connect only to a circuit provided with (@) amperes maximum
branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70, and
the Canadian Electrical Code, Part I, C22.2".
Model
IQW2-80U-M1-R2-N-25 (Advanced)
IQW2-80U-W1-N1-N-25 (Smart)
IQW2-32U-M1-R2-N-25 (32A)
IQW2-00U-M1-R2-N-00 (Kiosk)
12

Figure 3-5. Wiring

Terminal Conductor Screw Rating
L1, L2 2 AWG
G 8 AWG
L1, L2, 14 AWG
G
Current Rating
100 A
40 A
15 A
M8 90C, copper wire
M6 60C, copper wire
M4 60C, copper wire
Torque - lb-in (N-m)
97.4 (11)
70.8 (8)
7.1 (0.8)
