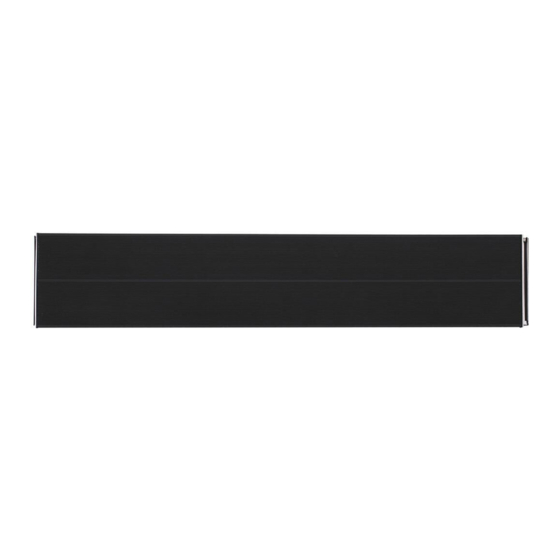

Herschel SUMMIT 2600 Installation & Operating Instructions Manual
Ceiling or wall-mounted infrared heaters
Hide thumbs
Also See for SUMMIT 2600:
- Installation & operating instructions manual (7 pages) ,
- Installation & operating instructions manual (45 pages)
Table of Contents
Advertisement
Quick Links
TECHNICAL INFORMATION:
Rated Power:
Heating Element:
Emitter:
Dimensions 2600R:
Dimensions 2600:
Remote control:
Warm-up time:
Useful wavelength range:
Weight:
Protection:
ELECTRICAL EQUIPMENT:
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
IMPORTANT NOTICE TO PURCHASER:
Before utilizing the product, you should determine the suitability of the product for its intended use. HERSCHEL INFRARED LTD
expressly disclaims the implied warranties and conditions of merchantability and fitness for a particular purpose. In no case shall
HERSCHEL INFRARED LTD be liable under any legal theory, including but not limited to contract or strict liability, for any direct,
indirect special, incidental or consequential damages resulting from product use.
The product complies with Safety Standards EN60335-2-30, RoHS and EMC EN 50336 and EN 62233. These cover the
essential requirements of EEC Directives 2006/42/EC, 2011/65/EC and 2004/108/EC.
Original instructions covering SUMMIT 2600 & 2600R produced 052017 onwards.
HERSCHEL SUMMIT 2600
HERSCHEL SUMMIT 2600R
Ceiling or Wall-mounted Infrared Heaters
INSTALLATION & OPERATING INSTRUCTIONS
2600W at 230V
Herschel Kanthal AF
Structured Aluminium surface with Ge IR enhancing coating
1410 x 160 x 45 mm (with Remote Controller)
1290 x 160 x 45 mm (without Remote Controller)
2 power levels (100% & 50%) & 9 hour timer (9 x 1 hour increments)
<10 Minutes
3 - 10μm
6.9kg (version without remote; 7.4kg version with remote)
2 Years (excludes remote control)
IP65
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Herschel SUMMIT 2600
Summary of Contents for Herschel SUMMIT 2600
- Page 1 In no case shall HERSCHEL INFRARED LTD be liable under any legal theory, including but not limited to contract or strict liability, for any direct, indirect special, incidental or consequential damages resulting from product use.
- Page 2 Herschel SUMMIT is rated to a standard IP65 enabling it to be mounted outdoors and exposed to occasional rainfall. To prolong the life of the heater we recommend installing it where it will be sheltered from the effects of weather. Herschel SUMMIT is not intended for installation in locations that are permanently wet or humid.
- Page 3 300mm (12”) away from the nearest wall or other structure except when multiple heaters are being ceiling recessed (see CAUTION below). For longer distances from the ceiling, an optional chain mounting kit is available from Herschel. Chain length is 320mm.
- Page 4 OPERATION BY REMOTE CONTROLLER: The Herschel SUMMIT 2600R is operated from the remote control supplied with the heater. The SUMMIT 2600 has no remote control. Insert 2 x AAA Alkaline batteries into the remote control.
- Page 5 The SUMMIT 2600R is best-in-class if used with the appropriate HerscheliQ controller in conjunction with the remote control and timer function. The legislation does not apply to SUMMIT 2600 or 2600R intended for use outdoors or for heating indoors in an unenclosed space where this prevents application of EcoDesign regulations.
- Page 6 APPENDIX 1 – ECODESIGN Information for SUMMIT 2600 / 2600R when used with Herschel iQ Model Identifier: Herschel SUMMIT 2600 Item Symbol Value Unit Item Unit Heat Output Type of heat input for electric storage local space heaters only (select one)
