TECHNICAL INFORMATION:
Rated Power:
Heating Element:
Reflector:
Dimensions:
Remote control:
Warm-up time:
Useful wavelength range:
Weight:
Warranty:
Protection:
ELECTRICAL EQUIPMENT:
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
IMPORTANT NOTICE TO PURCHASER:
Before utilizing the product, you should determine the suitability of the product for its intended use. HERSCHEL INFRARED LTD
expressly disclaims the implied warranties and conditions of merchantability and fitness for a particular purpose. In no case shall
HERSCHEL INFRARED LTD be liable under any legal theory, including but not limited to contract or strict liability, for any direct,
indirect special, incidental or consequential damages resulting from product use.
The product complies with Safety Standards EN60335-2-30, RoHS and EMC EN 50336 and EN 62233. These cover the
essential requirements of EEC Directives 2006/42/EC, 2011/65/EC and 2004/108/EC.
Original instructions covering COLORADO 2500R produced 042017 onwards.

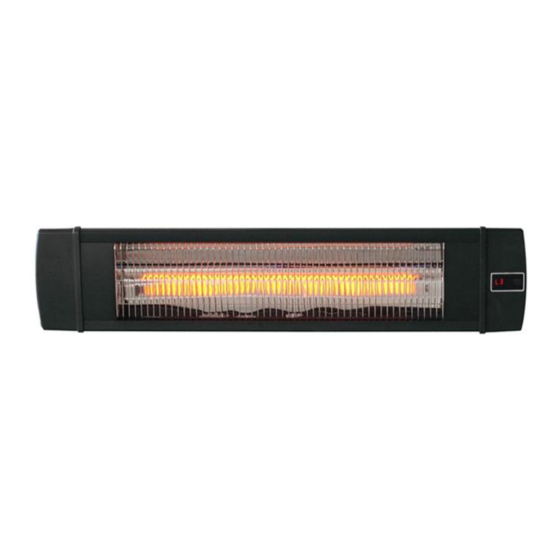

HERSCHEL COLORADO 2500R
Ceiling or Wall-mounted Infrared Heaters
INSTALLATION & OPERATING INSTRUCTIONS
2500W at 230V
Ultra long life Carbon heating lamp (10,000 hours)
Mirror Aluminium (98% reflection preventing rearward heat loss)
879 x 195.3 x 84.7 mm
4 power levels (25% power increments) & 9 hour time (9x1 hour increments)
5-10 seconds
2 - 5μm
3kg
2 Years (excludes lamp & remote control)
IP55
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Herschel COLORADO 2500R
Summary of Contents for Herschel COLORADO 2500R
-

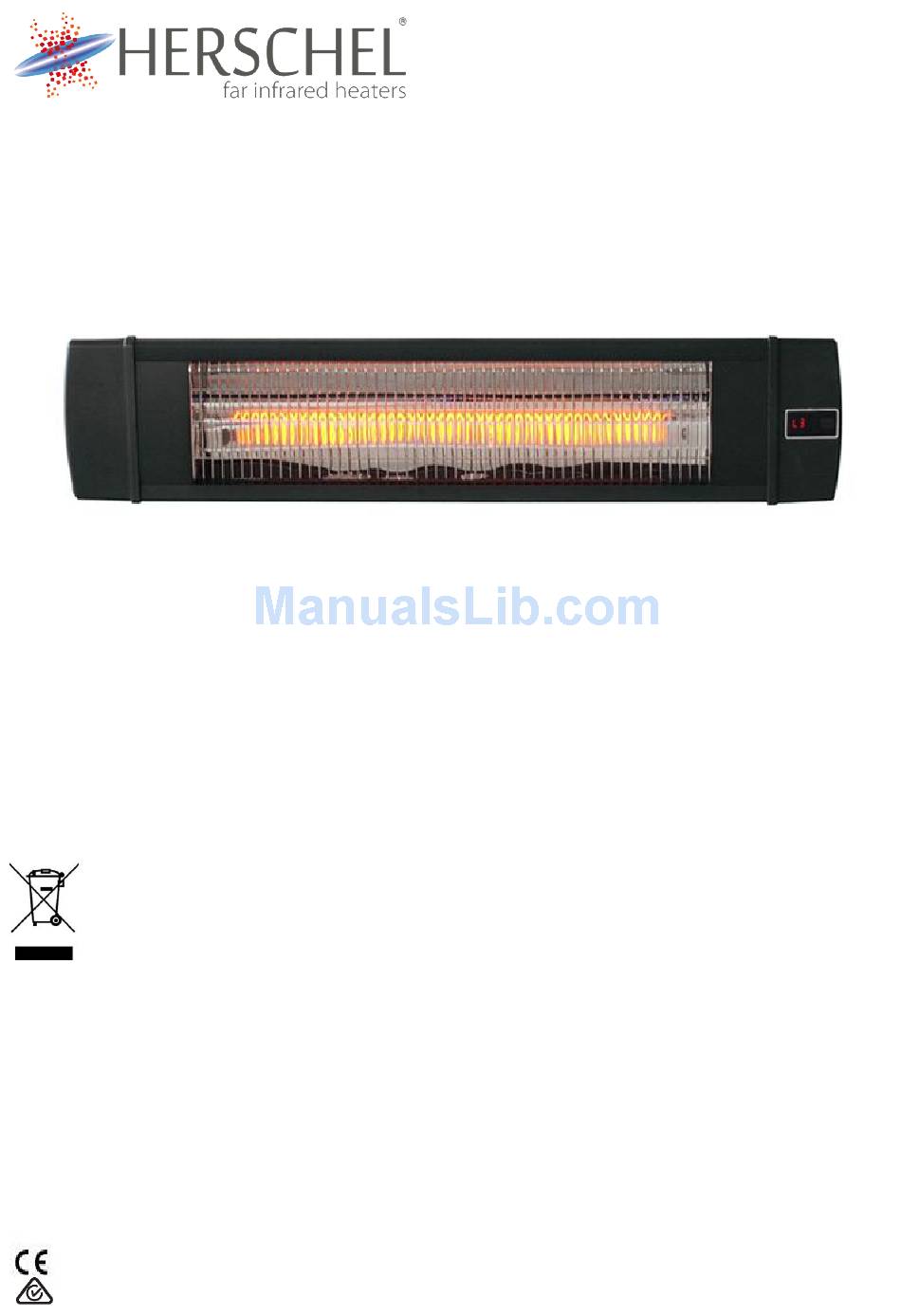

Page 1: Technical Information
In no case shall HERSCHEL INFRARED LTD be liable under any legal theory, including but not limited to contract or strict liability, for any direct, indirect special, incidental or consequential damages resulting from product use. - Page 2 Switches and other controls cannot be touched by a person in a bath or shower. If in doubt, do not install. Herschel Infrared Ltd shall not be liable for any loss, damage or injury caused or resulting from inadequate fitting or incorrect placement of heaters close to water sources.
- Page 3 For permanent installation (i.e. not using a stand), the Herschel COLORADO must be located in a position to allow proper and efficient use but one that ensures hot parts are not touched accidentally. The recommended installation height of the COLORADO is 2.4m to 3.5m (95”-138”) from the floor.
- Page 4 Diagram 1: Wall / Ceiling Position Diagram 2: Installation using a stand: The Colorado may be installed on its own stand (available separately). Installation is easy using the brackets supplied following the diagrams below. The heater incorporates a tip-over function which will cut the power if the unit detects an angle greater than 45°. CAUTION: •...
- Page 5 The COLORADO is not recommended for use indoors to reach and maintain a defined temperature level in an enclosed space. Herschel is not responsible for any breach of the legislation where the COLORADO is used indoors in such a way as to put it within scope of the EcoDesign Directive.
