Herschel Select XLS Series Manual

Smart infrared panel heaters
Hide thumbs Also See for Select XLS Series:

Advertisement

Quick Links

Download this manual
Select XLS range
Smart infrared panel heaters
Instructions, operating, mounting and installation guide
Select XLS white
XLS300W
XLS275W-EU
XLS400W
XLS350W-EU
XLS600W
XLS500W-EU
XLS800W
XLS750W-EU
XLS1100W
XLS1000W-EU
The product complies with European Safety Standards Low Voltage Directive 2014/35/EC, EMC Directive 2014/30/EC, RoHS 2011/65/EC & Ecodesign
requirements for local space heaters 2009/125/EC.
Original instructions covering Select XLS models produced from 06/2019 onwards
Models

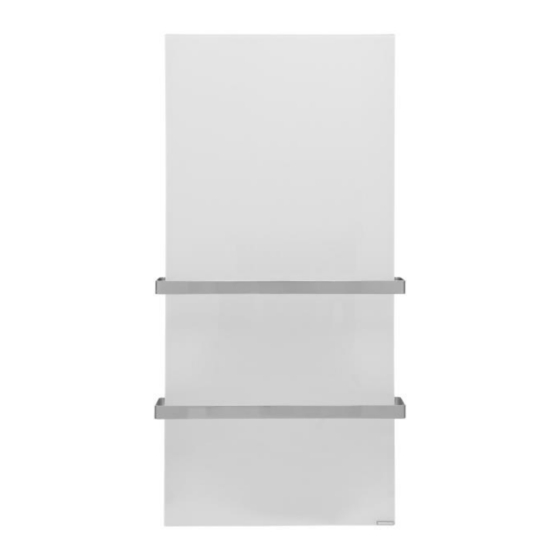

Select XLS towel heater
XLS500T
XLS700T
Select XLS mirror
XLS350M
XLS500M
XLS700M
Select XLS
Select XLS Glass
XLS800G

Advertisement

loading
Need help?

Need help?

Do you have a question about the Select XLS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Herschel Select XLS Series

Summary of Contents for Herschel Select XLS Series

  • Page 1 Select XLS Select XLS range Smart infrared panel heaters Instructions, operating, mounting and installation guide Models Select XLS white Select XLS mirror Select XLS Glass Select XLS towel heater XLS350M XLS800G XLS500T XLS300W XLS275W-EU XLS500M XLS700T XLS400W XLS350W-EU XLS700M XLS600W XLS500W-EU XLS800W XLS750W-EU...

  • Page 2: Important Safety Precautions

    If in doubt, do not install. Herschel Infrared Ltd shall not be liable for any loss, damage or injury caused or resulting from inadequate fitting or incorrect placement of heaters close to water sources.
  • Page 3 If you have any questions our website also has many FAQs or you can call, message or online chat with us, we are always happy to help ensure that you get the most from your new Herschel heating system.
  • Page 4 The Select XLS White panels can be used freestanding or as portable heaters e.g. for temporary or seasonal heating. For portable use we strongly recommend the use of Herschel Feet. These are specially designed to reduce the risk of the heater falling over and to prevent the bottom of the heater having direct contact with floor surfaces.
  • Page 5 Larger panels 800w and upwards may require two people to install safely. The Herschel Select XLS White series can be mounted on the surface of ceilings using the supplied EASYFIX mount. If recessing heaters into a plaster ceiling,...
  • Page 6 DO NOT connect a heater that is damaged in any manner to the power network. For mounting the Herschel panel use the supplied mounting hardware only and install in accordance with the installation guide.
  • Page 7 Operation – using with XLS controls All Herschel Select XLS panels are equipped with a SMART-R XLS receiver on the rear of the rear panel. SMART-R will pair wirelessly (via RF) with XLS thermostatic controllers. The T-BT is a battery operated thermostat. Wi-Fi and APP control is not possible with T-BT.
  • Page 8 In the event of a panel failing to heat when required, first check that the Power Switch (4) is in the ON position. The heater is intended to be turned on or off by the Herschel XLS controller with the Power Switch (4) being an override only).
  • Page 9 The Select XLS White panels can be painted to match décor using a suitable heat resistant paint. However, Herschel will not be responsible if the paint deteriorates or discolours. Any rights to return the heater for a refund within statutory periods will be voided where the heater has been painted. Painting the panel will not affect your warranty for repair or replacement.
  • Page 10 Don’t underspecify your heater requirements Herschel is lower energy heating but it’s not magic and if you try to heat a room with an undersized heater you’ll just end up cold and wasting energy and money. Ensure you have the correct sized heater(s) for the room and if in any doubt consult the website, your local dealer or contact us.

  • Page 11: Year Warranty

    Disclaimer Herschel Infrared Ltd cannot accept responsibility for damage, loss or injury caused by ingress of water or moisture, accidental damage, mishandling, external impact, adjustment by unauthorised personnel or failure to follow the correct maintenance and safety precautions as stated in the manual. Refer to Herschel Infrared Ltd’s warranty policy for full details.
  • Page 12 Removal Herschel Easy-fix is designed to be secure to avoid accidental dismounting or tampering with the panel. To dismount the panel, screw the four distance pieces back in and move the panel to the left, then up and over to the left again (portrait mounting) or up, then to the right and then up again (landscape mounting).
  • Page 13 = 36% Actual efficiency target post Lot 20 = 37% Herschel Select XLS White Panels are compliant if used with a plugin electronic room temperature control such as Herschel T-PL. Technical Details Nominal heat output (P = Rated Wattage of heater (see product label)
