Network Configuration - En-Vision America ScripTalk 220-SN User Manual

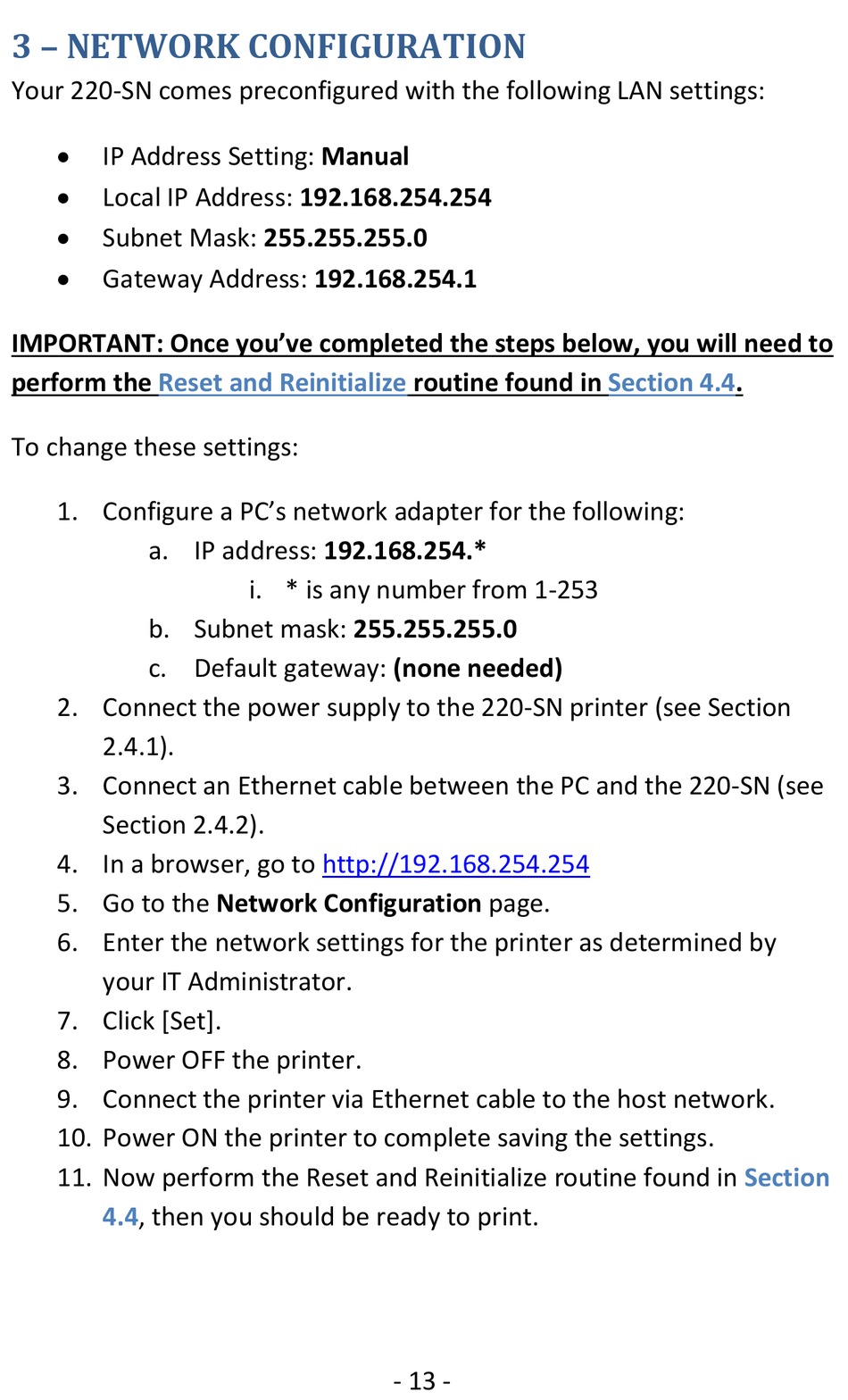

3 – NETWORK CONFIGURATION
Your 220-SN comes preconfigured with the following LAN settings:

IP Address Setting: Manual

Local IP Address: 192.168.254.254

Subnet Mask: 255.255.255.0

Gateway Address: 192.168.254.1
IMPORTANT: Once you've completed the steps below, you will need to
perform the Reset and Reinitialize
To change these settings:
1. Configure a PC's network adapter for the following:
a. IP address: 192.168.254.*
b. Subnet mask: 255.255.255.0
c. Default gateway: (none needed)
2. Connect the power supply to the 220-SN printer (see Section
2.4.1).
3. Connect an Ethernet cable between the PC and the 220-SN (see
Section 2.4.2).
4. In a browser, go to
5. Go to the Network Configuration page.
6. Enter the network settings for the printer as determined by
your IT Administrator.
7. Click [Set].
8. Power OFF the printer.
9. Connect the printer via Ethernet cable to the host network.
10. Power ON the printer to complete saving the settings.
11. Now perform the Reset and Reinitialize routine found in
4.4, then you should be ready to print.
i. * is any number from 1-253
http://192.168.254.254
- 13 -
routine found in Section 4.4.
Section
