1.3 – PARTS IDENTIFICATION (CONT.)

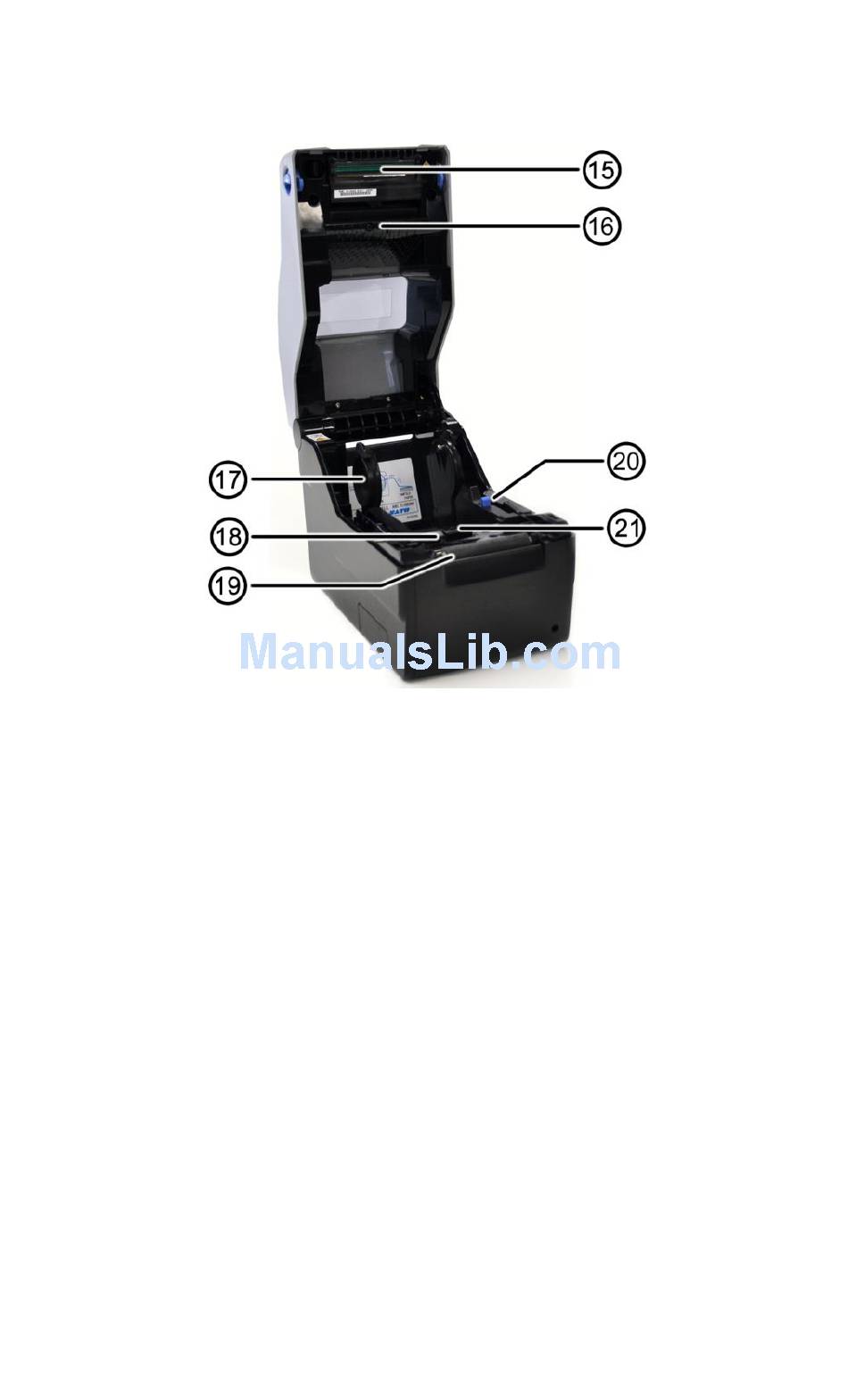

Internal View with Top Cover Open
(15) Print Head – This component is used to print on the paper
(16) Upper Gap Sensor – Detects the gap of the label in conjunction
with the Lower Gap Sensor (18)
(17) Roll Media Holder – Suspends the roll of labels for smooth
feeding
(18) I-Mark (Paper) Sensor – Under the left Media Guide; detects
the I-Mark (black bar) on the media backing
(19) Platen Roller – Feeds the labels
(20) Media Guide Slide Lever – Push backwards to unlock the Roll
Media Holder slides for width adjustment
(21) Lower Gap Sensor – Detects the gap of the label in conjunction
with the Upper Gap Sensor (16)
