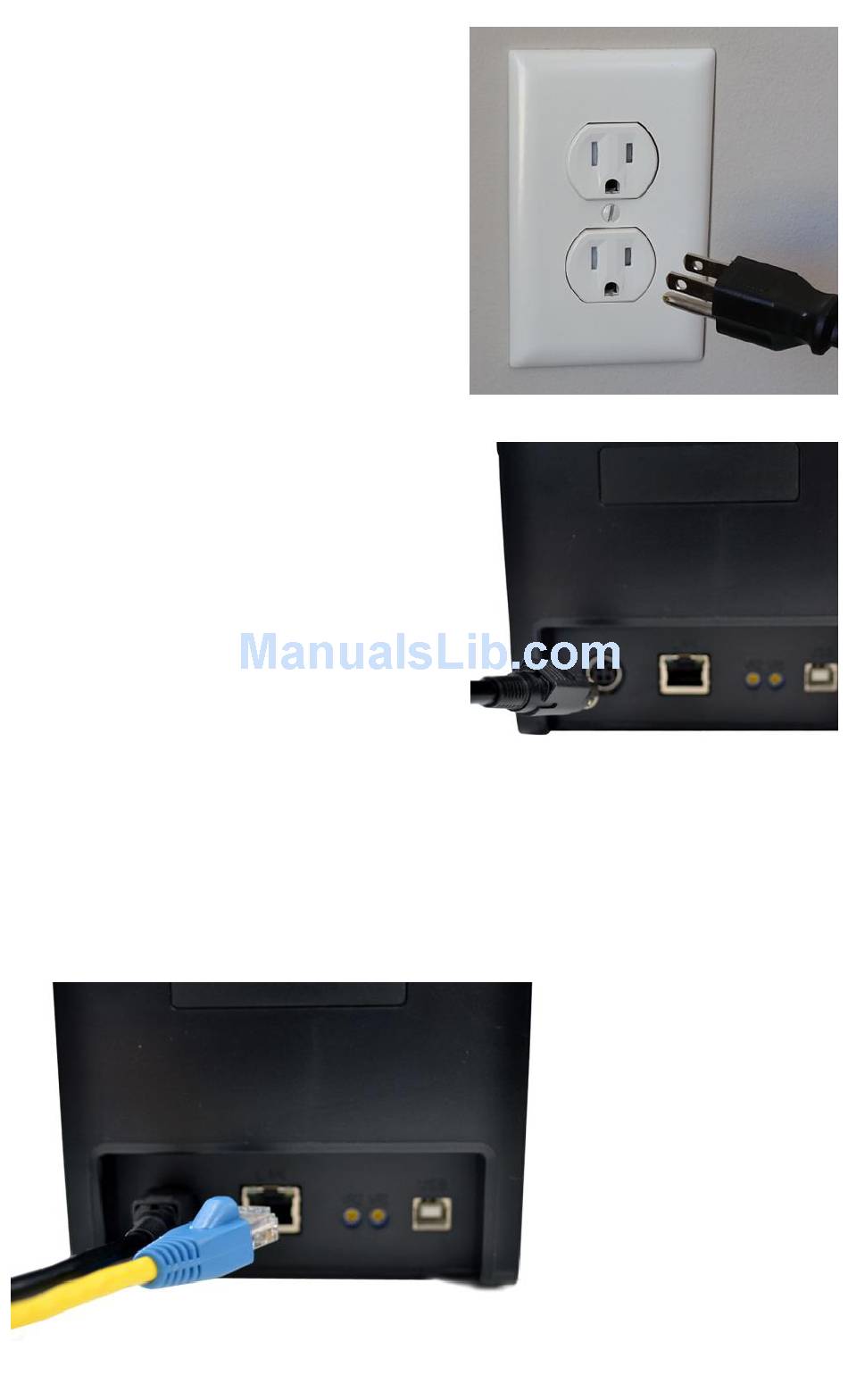

2. Plug the 3-prong plug of the
power cable into a grounded
wall outlet or a grounded
surge suppressor strip
(recommended).
3. Plug the 4-pin plug of the
power supply into the
printer's DC Input Power
Terminal. Be sure to orient
the plug so that the flat side
faces up.
Note:
To remove this spring-loaded
locking plug, be sure to grip
only this plug (not the cord) and pull straight out.
2.4.2 – Network Connection
Connect a Cat5 or faster Ethernet cable between the RJ45 port on the
220-SN and your host PC or network.
