MONITORED WIRELESS EDGE KIT
MONITORED WIRELESS EDGE KIT
MONITORED WIRELESS EDGE KIT
Model/Modèle/Modelo LMWEKITU
Review Copy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMWEKITU and is the answer not in the manual?

Questions and answers

Related Manuals for Chamberlain LMWEKITU

Summary of Contents for Chamberlain LMWEKITU

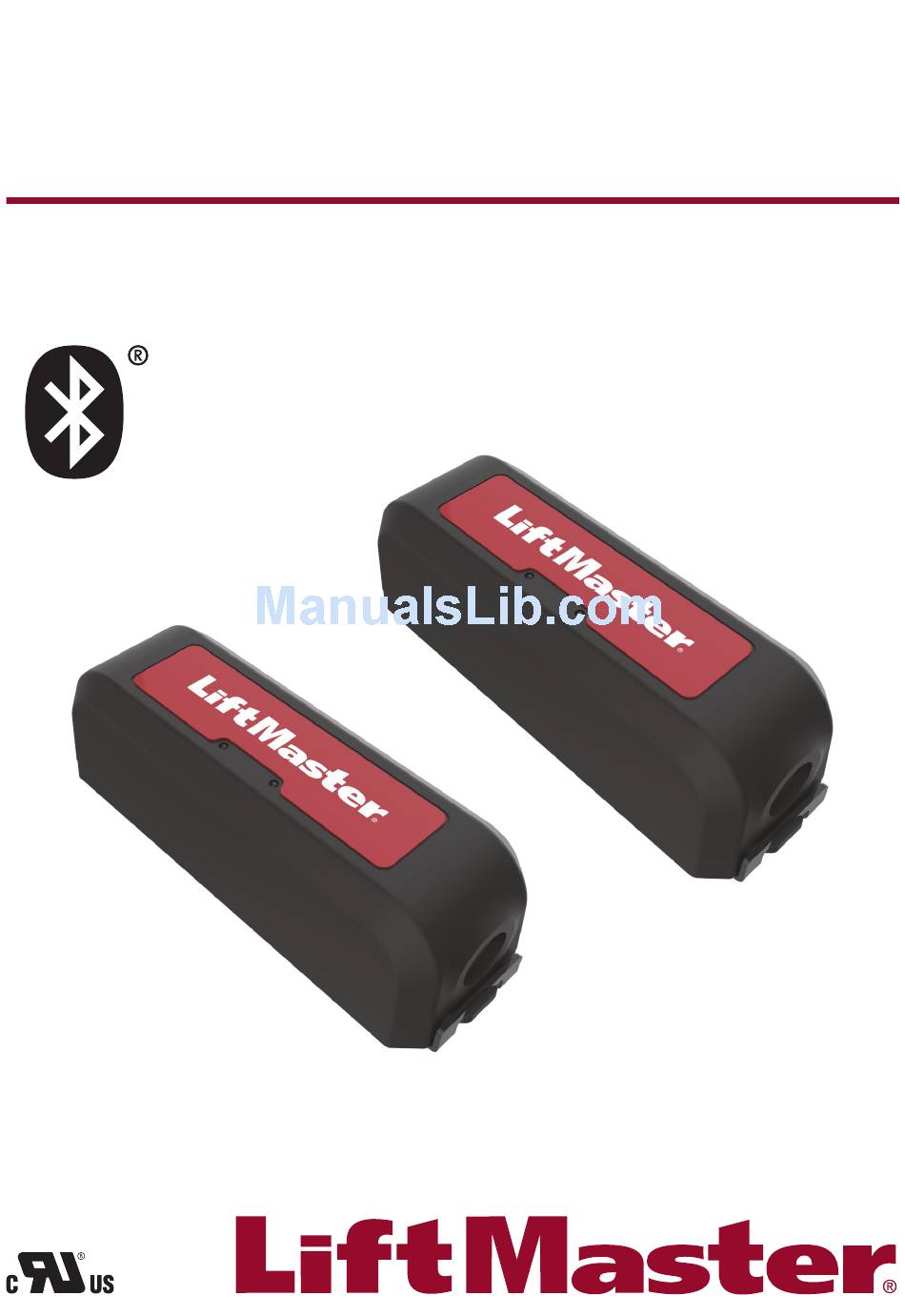

  • Page 1 MONITORED WIRELESS EDGE KIT MONITORED WIRELESS EDGE KIT MONITORED WIRELESS EDGE KIT Model/Modèle/Modelo LMWEKITU Review Copy...
  • Page 2 To prevent possible SERIOUS INJURY or DEATH from a closing gate or door: • Be sure to DISCONNECT ALL POWER to the operator BEFORE installing the wireless edge kit. ® • The gate or door MUST be in the fully opened or closed position BEFORE installing the LiftMaster Monitored Entrapment Protection device.
  • Page 3 CARTON INVENTORY INVENTAIRE DE L’EMBALLAGE CONTENIDO DE LA CAJA Transmitter Transmitter Transmitter AA Lithium Batteries (2) Energizer ® Ultimate Lithium AA L91 recommended as replacements AA Lithium Batteries (2) Energizer ® Ultimate Lithium AA L91 recommended as replacements AA Lithium Batteries (2) ®...
  • Page 4 WIRE RECEIVER 1. Find the operator diagram on pages 12-18 to see the mounting location for the receiver and wire routing. 2. Open the receiver housing. 3. Route the wire harness from the receiver to the operator control board. Connect the wire harness to the “EXP. BOARD” terminal on the control board or to the expansion board (if installed) using the provided I C dongle.
  • Page 5 INSTALL TRANSMITTER BATTERIES AND SET EDGE DIRECTION 1. Open the transmitter housing. 2. Install the batteries. 3. Decide the direction (open or closed) the edge will be installed. Set “OPEN/CLOSE” DIP switch to match the direction of the edge protection. INSTALL TRANSMITTER BATTERIES AND SET EDGE DIRECTION 1.

  • Page 6: Mount The Receiver

    MOUNT THE RECEIVER 1. Find the operator diagram on pages 12-18 to see the mounting location for the receiver. 2. Attach the mounting bracket to the gate operator. 3. Reattach the receiver housing. 4. Snap the receiver onto the mounting bracket and secure with screw provided. MOUNT THE RECEIVER 1.
  • Page 7 WIRE AND MOUNT THE TRANSMITTER(S) NOTE: The transmitter can be wired to 1 or 2 edge sensors. 1. Route the wires from the edge sensor into the transmitter. Connect the wires to the terminal blocks (polarity is NOT important). 2. Attach the mounting bracket to the gate using the screws provided. If installing on a round surface, use zip ties (not provided).
  • Page 8 TEST Apply pressure to edge. The red LED on the TRANSMITTER and the corresponding open or close edge LED on the gate operator control board will flash. If the TRANSMITTER LED does not flash, check the transmitter and edge sensor for proper installation and wiring.

  • Page 9: Battery Status

    BATTERY STATUS During normal operation, the red status LEDs on the transmitter(s) and receiver flash to indicate the battery status. NOTE: The receiver LED corresponds to the lowest battery level of all transmitters. 1 Flash Battery is fine. 2 Flashes Battery is low;...

  • Page 10: Remove A Transmitter

    REMOVE A TRANSMITTER 1. Disconnect the edge sensor wires from the TRANSMITTER. 2. Remove the batteries from the TRANSMITTER. 3. Press and hold the RECEIVER learn button until the red status LED begins to flash (about 3 seconds) then release. The receiver will remove disconnected transmitters from memory and return to normal operation after 60 seconds or when the user presses the learn button again.

  • Page 11: Troubleshooting

    TROUBLESHOOTING The diagnostic display on the operator control board will display an error code to indicate a problem. See the gate operator manual for instructions to display error codes. Wireless edge battery low Replace batteries in wireless edge. Wireless edge triggered more than 3 minutes Check wired input for wiring issue or obstruction.
  • Page 12 MODEL RSW12U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. MODEL RSW12U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. MODEL RSW12U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. 7-1/2"...
  • Page 13 MODEL CSW24U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. MODÈLE CSW24U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. MODELO CSW24U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. 7-1/2"...
  • Page 14 MODELS RSL12U AND CSL24U - RECEIVER MOUNTING LOCATION MODÈLES RSL12U ET CSL24U - RECEIVER MOUNTING LOCATION MODELOS RSL12U Y CSL24U - RECEIVER MOUNTING LOCATION 5" (12.7 cm) 4-7/16" (11.27 cm) 1-3/4" (4.44 cm) RSL12U 1-1/2" (3.81 cm) 4-7/16" (11.27 cm) 3-3/16"...
  • Page 15 MODELS LA400, LA412, AND LA500 - RECEIVER MOUNTING LOCATION MODÈLES LA400U, LA412, ET LA500 - RECEIVER MOUNTING LOCATION MODELOS LA400U, LA412, Y LA500 - RECEIVER MOUNTING LOCATION 5-1/8" (13.01 cm)) 4-7/16" (11.27 cm) 1" (2.54 cm) STANDARD CONTROL BOX BOÎTER DE CONTRÔLE STANDARD CAJA DE CONTROL ESTÁNDAR STANDARD CONTROL BOX GRAND BOÎTER DE CONTRÔLE EN MÉTAL...
  • Page 16 MODEL CSW200U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. MODÈLE CSW200U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. MODELO CSW200U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. 8"...
  • Page 17 MODEL SL3000U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. MODÈLE SL3000U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. MODELO SL3000U - RECEIVER MOUNTING LOCATION Mount the bracket on the side facing the gate. 3-1/4"...
  • Page 18 MODELS SL585 AND SL595 - RECEIVER MOUNTING LOCATION MODÈLES SL585 AND SL595 - RECEIVER MOUNTING LOCATION MODELOS SL585 AND SL595 - RECEIVER MOUNTING LOCATION 4-1/16" (10.3 cm) 4-7/16" (11.27 cm) 1" (2.54 cm) SL585 6" (15.24 cm) 4-7/16" (11.27 cm) 11-3/4"...
  • Page 19 WARRANTY LiftMaster ® warrants to the first consumer purchaser of this product that it is free from defect in materials and/or workmanship for a period of 2 years from the date of purchase. GARANTIE ® LiftMaster garantit à l’acheteur initial de ce produit que celui-ci est exempt de tout défaut matériel ou de fabrication pendant une période de deux ans suivant la date d’achat.
  • Page 20 For parts and accessories visit LiftMaster.com Pour les pièces et accessoires, allez à LiftMaster.com En LiftMaster.com pueden adquirirse repuestos y accesorios LiftMaster ® 845 Larch Avenue Elmhurst, IL 60126-1196 LiftMaster.com Review Copy ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. The Bluetooth ®...
