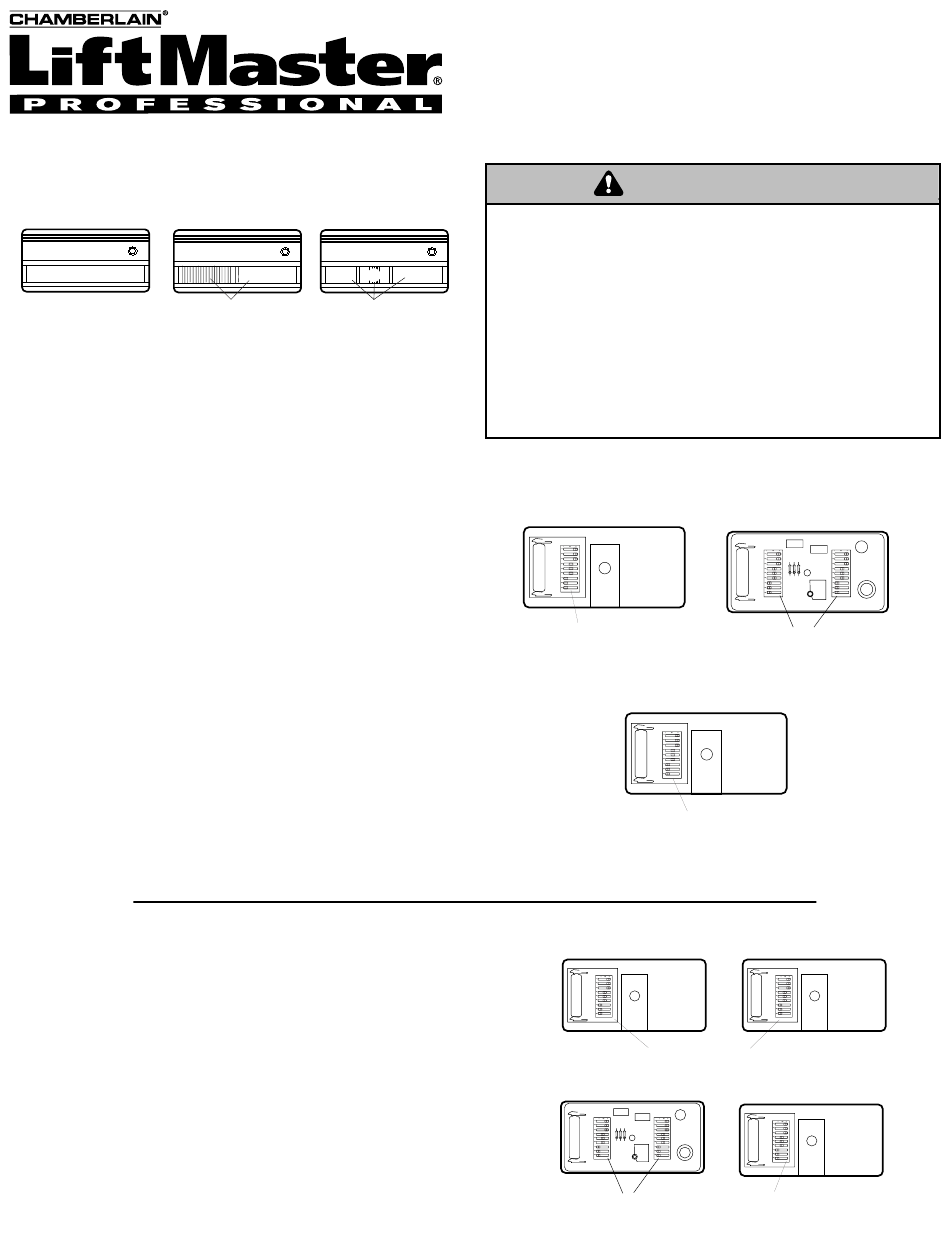

Figure 1
Model 61
Locating your code switches
Single-Function Transmitter:
Slide the battery compartment cover back to access the
code switches in the transmitter (Figure 2) .
Two-Function Transmitter:
The two-function transmitter has two push buttons (For
channel 1 and channel 2), each activated by its own set of
code switches. One of the buttons can be used to operate
a garage door opener. The other button can operate an
entry way, light product or another door opener.
Access the code switches for channel 1 (smooth button)
by sliding back the battery compartment cover. To access
the code switches for channel 2 (ribbed button), remove
the battery compartment cover and the cover screw.
Then depress the tab in the edge of the case (alongside
the battery). The remote control case back will lift off
(Figure 2) .
Multi-Function Transmitter:
The multi-function transmitter has three buttons. The
large button is recommended for use with a garage door
opener. The other push buttons can be used to operate
another garage door opener and/or light control product.
Slide back the battery compartment cover to access the
code switches in the multi-function transmitter (Figure 2) .
To match or change the code in the
transmitter
Locate the code switches in both the new and the original
transmitters, either by removing the case screw and cover
or by sliding the battery compartment cover back. Place
transmitters side by side as shown (Figure 3) and set
switches in all transmitters to matching positions (+,0,-).
Use a pen or screwdriver to slide the code switches.
NOTE: Code switch #1 on the multi-function transmitter is
dormant, when used with a single function transmitter. Set
code switch #1, in the single-function transmitter, to match
the push button selected on the multi-function transmitter
(Figure 1).
Model 62 Model 63
(+) (0)
Push Buttons Push Buttons
To prevent possible SERIOUS INJURY or DEATH from a
moving gate or garage door:
• ALWAYS keep remote controls out of reach of children.
(–)
NEVER permit children to operate, or play with remote
control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is
properly adjusted, and there are no obstructions to door
travel.
• ALWAYS keep gate or garage door in sight until completely
closed. Never permit anyone to cross path of moving gate
or door.
Figure 2
Model 61
Single-Function Transmitter
Code switches (1-9)
Figure 3
Match code switches (1-9)
between old transmitter and
new transmitter
Single-Function Transmitter
Model 61LM
Two-Function Transmitter
Model 62LM
Multi-Function Transmitter
Model 63LM
WARNING
Model 62
Two-Function Transmitter
Code switches (1-9)
Model 63
Multi-Function Transmitter
Code switches (1-9)
(Code switch #1 is
dormant.)
Match code switches (1-9)
between old transmitter and
new transmitter
Match code switches (2-9)
between old transmitter and
new transmitter
