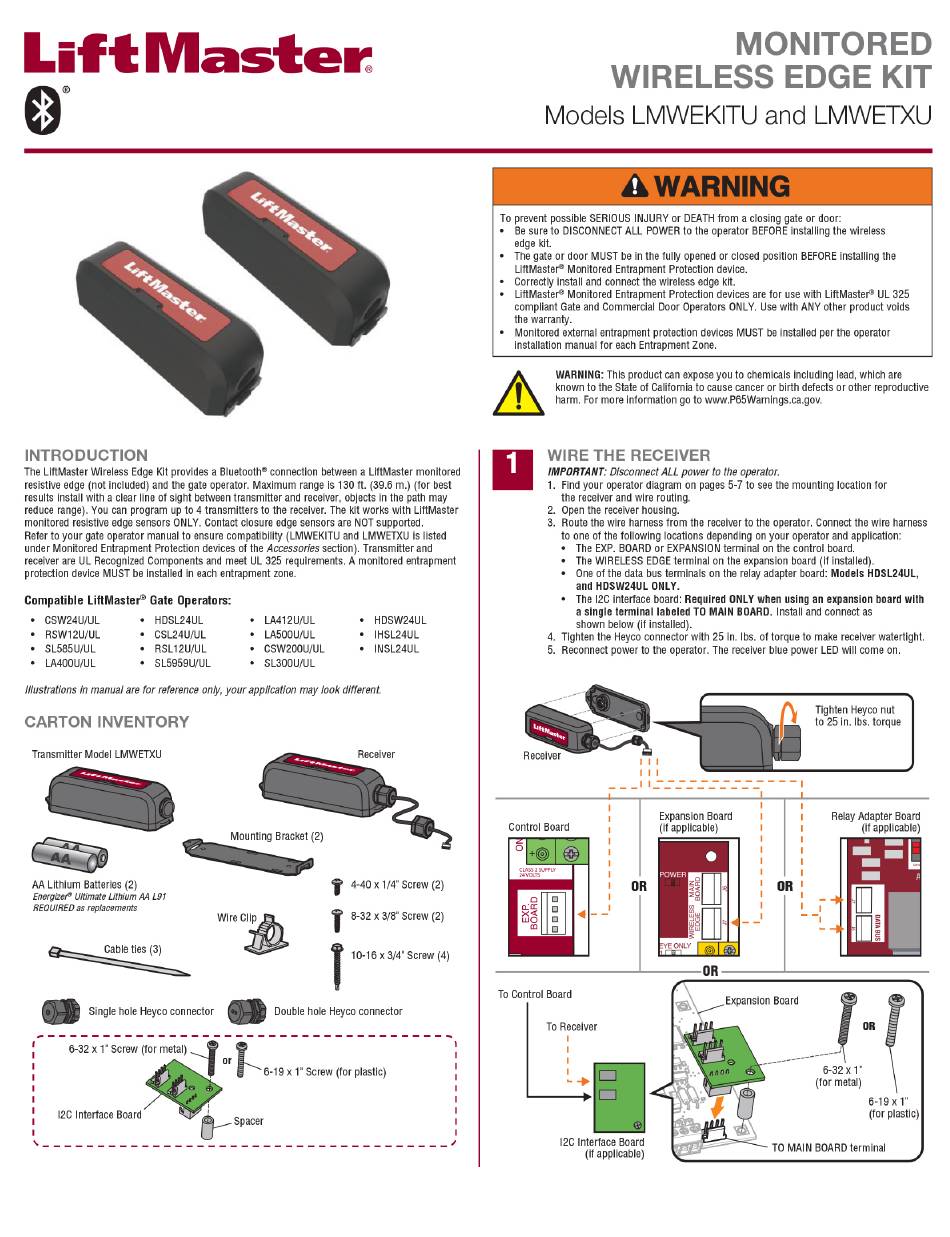

- Page 1 For more information, please visit www.devancocanada.com or call toll free at 855-931-3334...
- Page 2 INSTALL TRANSMITTER BATTERIES AND SET WIRE AND MOUNT THE TRANSMITTER(S) EDGE DIRECTION For best results, install with a clear line of sight between transmitter and operator. The transmitter can be wired to 1 or 2 edge sensors. 1. Open the transmitter housing. 1.
- Page 3 Diagnostic mode will time out after 2 minutes of inactivity or press and release the STOP button to exit diagnostic mode. Control Board DIAGNOSTICS Status LED Diagnostic Codes for LMWEKITU Wireless edge battery low Replace batteries in wireless edge. Wireless edge triggered Check wired input for wiring issue or obstruction.
- Page 4 Advanced Diagnostic Codes Transmitter and Receiver Troubleshooting Advanced diagnostic codes for the LMWEKITU are available in control board firmware version 3.5 • Test programming from transmitters to receiver, see 6 TEST page 2. Ensure you receive a or higher. signal (status LED) when you depress the edge(s). Reprogram transmitters as necessary.
- Page 5 Bluetooth Communication Troubleshooting RECEIVER MOUNTING LOCATION ® • Check for electromagnetic interference from nearby electronics which could be broadcasting at Drill .15" (3.8 mm) holes with a #25 drill bit for the mounting the bracket. the frequencies used by the transmitter. Models LA400/UL, LA412/UL, and LA500/UL - Standard Control Box - LED and fluorescent lighting systems: Turn off the lights and see if performance improves.
- Page 6 Models RSW12U/UL, and CSW24U/UL Mount the bracket on the side facing the gate. Heyco connector Heyco connector 8-3/8" (21.3 cm) 4-7/16" (11.3 cm) 1-3/4" (4.4 cm) Models CSW200U/UL Mount the bracket on the side facing the gate. 8-7/16" (21.4 cm) 10-3/8"...
- Page 7 Models SL585U, SL585UL - RECEIVER MOUNTING LOCATION Models HDSL24UL Drill .15” (3.8 mm) holes with #25 drill for mounting bracket. Mount the bracket on the side facing the gate. 4-1/16" (10.3 cm) 4-7/16" (11.3 cm) 1" (2.5 cm) Heyco connector Heyco connector Models SL595U, SL595UL, INSL24UL, IHSL24UL - RECEIVER MOUNTING LOCATION Drill .15”...
-
Page 8: Warranty
WARRANTY LiftMaster warrants to the first consumer purchaser of this product that it is free from defect in materials and/or workmanship for a period of 2 years from the date of purchase. ® NOTICE: This device complies with part 15 of the FCC rules and Innovation, Science and Economic Development Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
