Operating Elements And Connections - EuroLite DMX LED EASY Operator 4x4 User Manual

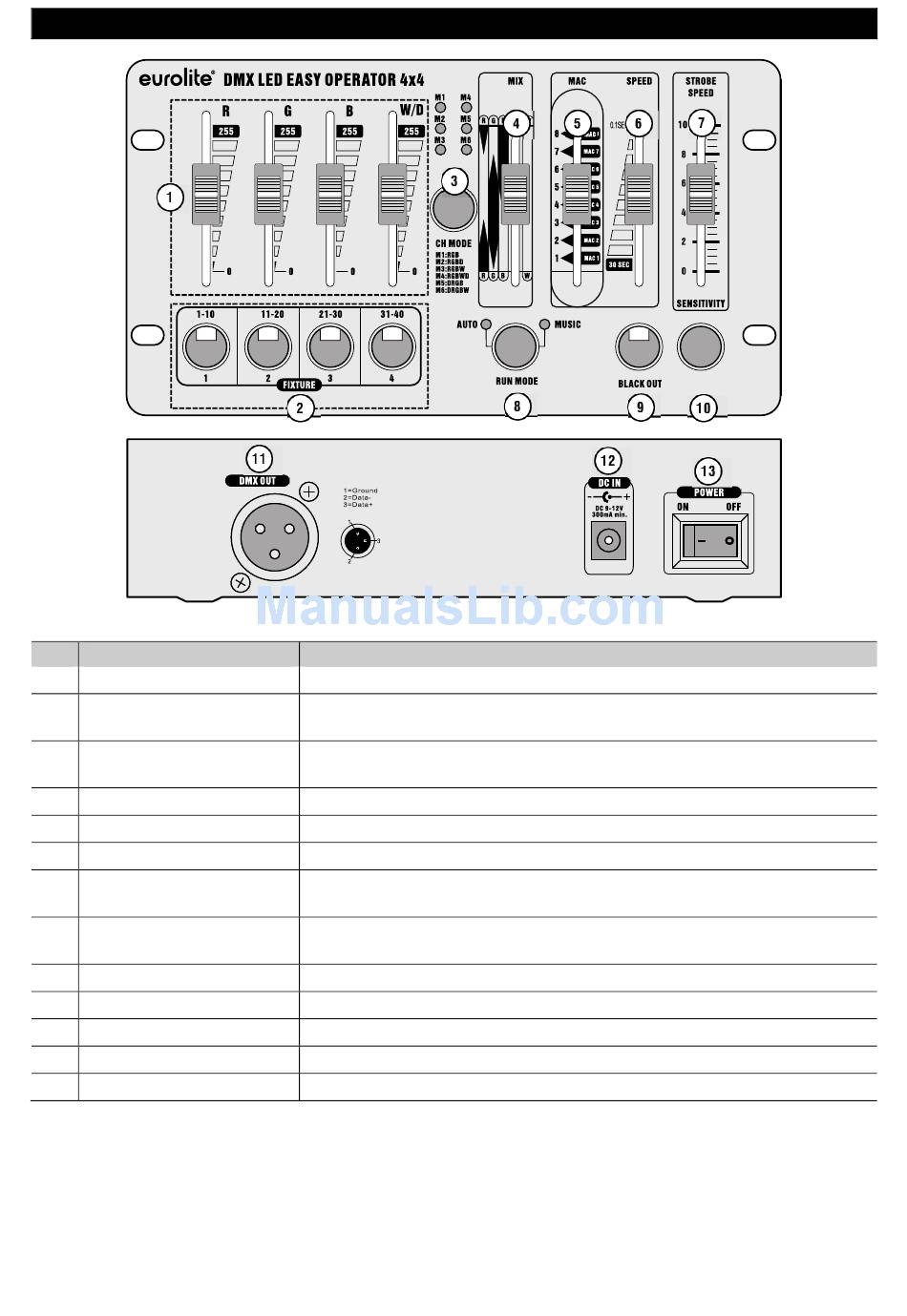

No. Element
1 R/G/B/W/D channel faders
2 FIXTURE buttons
3 CH MODE button
4 MIX fader
5 MAC fader
6 SPEED fader
7 STROBE SPEED/
SENSITIVITY fader
8 RUN MODE button
9 BLACKOUT button
10 STROBE button
11 DMX output
12 Power on/off
13 Power input

OPERATING ELEMENTS AND CONNECTIONS

Function
For adjusting the DMX values of the spotlights connected.
To select/deselect the spotlights to be controlled. The LEDs of the buttons
light up to indicate which fixtures are selected.
To set the controller to the channel functions of the type of spotlights used.
The corresponding LEDs indicate the current setting.
For quick adjustment of an internal RGBW color mix.
To select a color change program.
To adjust the program running speed.
To adjust the flash rate in stroboscope mode or the microphone sensitivity
for sound control.
To enable automatic or sound-controlled color change programs. The
corresponding LEDs indicate the current setting.
To turn off all spotlights.
To enable the internal stroboscope function.
Connects the DMX input of the first fixture in the DMX chain.
Switches the controller on and off.
Plug in the mains cable of the power adapter here.
11 • EN
