Mounting to a wall

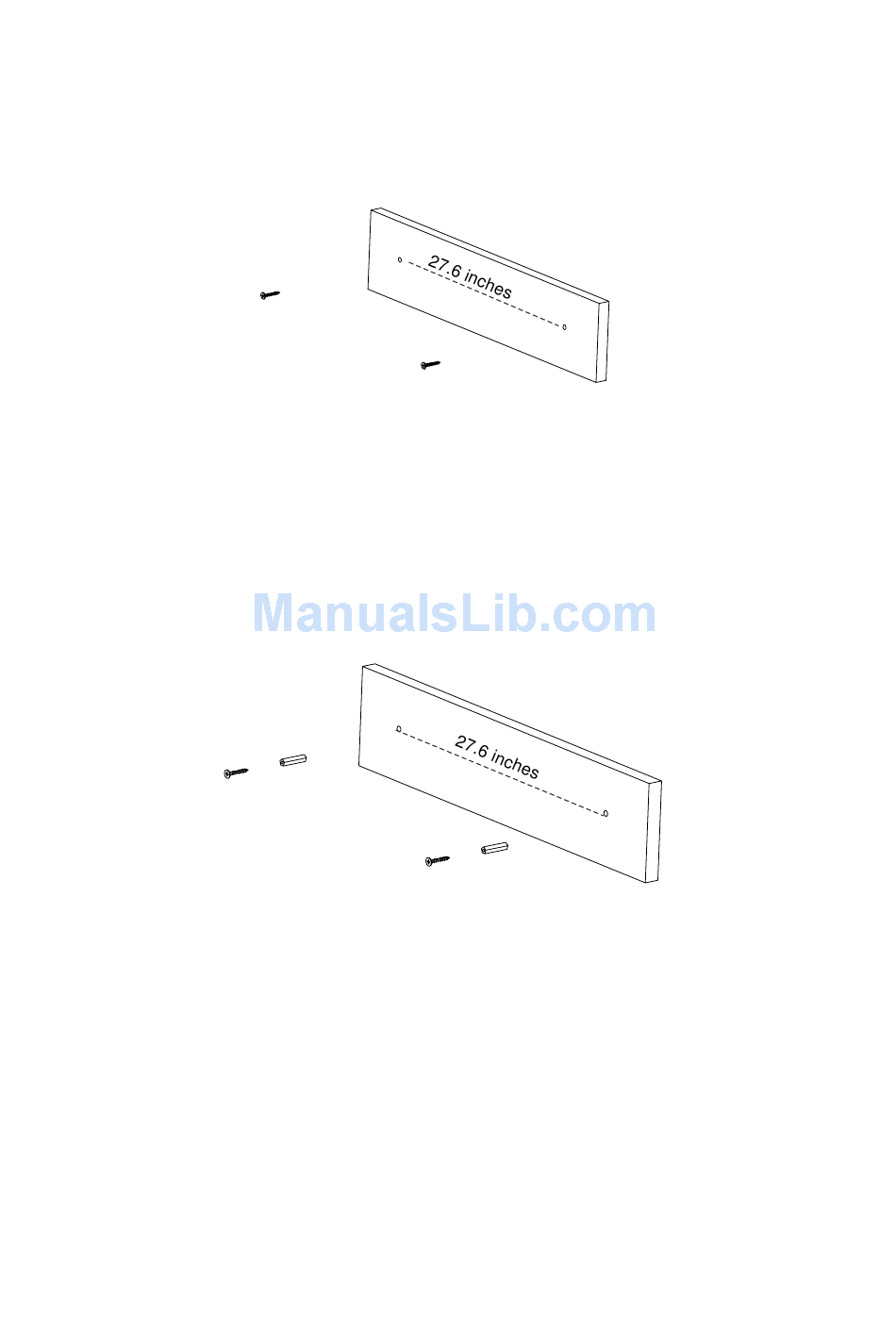

2.1 Mounting to a wooden wall
screws not included
A. Mark the position of the mounting screws on the wall using a pencil.
B. Drill the screws directly into the marks that you have made on the wall and
leave approx. 0.3 inches length to hook the sound bar.
C. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
2.2 Mounting to a brick wall
screws and plastic fixing plug are not included
A. Mark the position of the mounting screws on the wall using a pencil.
B. Drill 2 holes on wall with a powerful electric drill (not included).
C. Insert the fixing plug and hammer into the holes.
D. Secure the screws into the fixing plug and leave approx. 0.3 inches length
to hook the sound bar.
E. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
