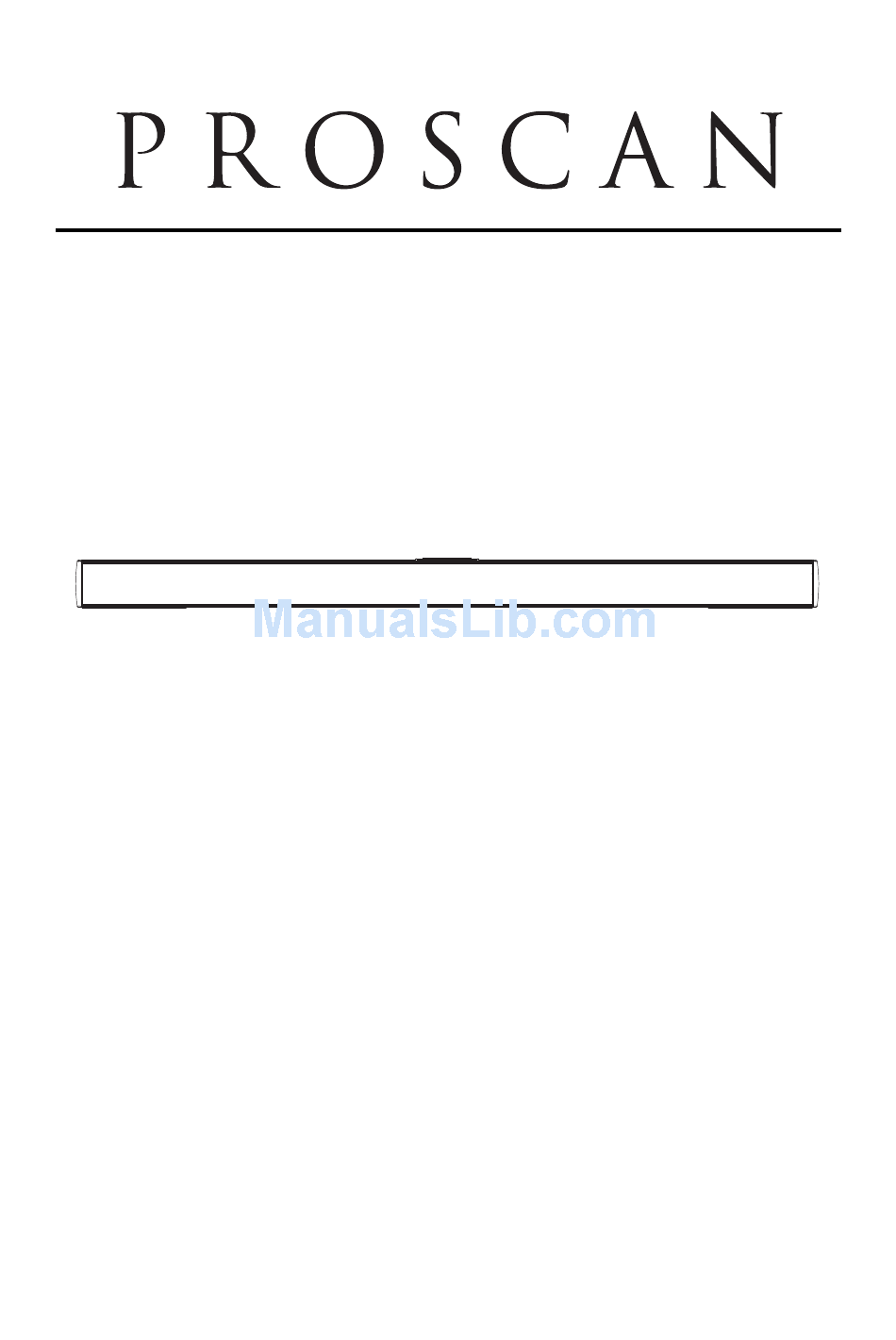

- Page 1 32'' Bluetooth Soundbar MODEL:PSB3200-FD-PL Please read this instruction manual carefully and keep it for future reference...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To assure continued operation, follow the attached installation instructions and use only shielded cables when connecting to other devices.
- Page 4 provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11.
-
Page 5: Placement And Mounting
PLACEMENT AND MOUNTING 1. Placing the device on table - Ventilation When placing the Sound Bar on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar for ventilation. -
Page 6: Mounting To A Wall
Mounting to a wall 2.1 Mounting to a wooden wall screws not included A. Mark the position of the mounting screws on the wall using a pencil. B. Drill the screws directly into the marks that you have made on the wall and leave approx. -
Page 7: Location Of Controls
LOCATION OF CONTROLS: Front View 1. Indicator 3. Speaker 3. Speaker 2. Remote sensor Rear View LINE IN AUX IN LINE IN AUX IN 5. LINE IN jacks 6. DC IN jack 4. AUX IN jack Top View Standby Play Vol- Vol+ /Source... -
Page 8: Remote Control
REMOTE CONTROL STANDBY (Play/pause) button STANDBY button VOL - (Volume down) button (Mute) button VOL + (Volume up) button 3. SOURCE button (Previous) button (Next) button... -
Page 9: Battery Precautions
BATTERY INSTALLATION OF REMOTE CONTROL FIRST TIME USE ●Remove and discard the insulation tab as figure on the right. ●Replacing Batteries For Remote Control 1. Push and slide out the battery holder as figure 1 below. 2. Replace the battery with a new CR2025 button cell as the polarity markings on the rear of the Remote Control. -
Page 10: General Operation
GENERAL OPERATION 1. Connect the AC/DC adapter to the unit and wall outlet. The red indicator will light and the unit is in standby mode. 2. Press and hold the Standby/Source button on the unit or press the STANDBY button on remote control to turn on the unit. Press the Standby/Source button on the unit or press the SOURCE button on remote control repeatedly to switch to desired mode. -
Page 11: Bluetooth Pairing And Connection
3. Power ON the external BT Device and select Bluetooth to enter into search mode. when appears, click it to start pairing. " PROSCAN " After paired, the indicator will stop blinking and a voice tone sounds "Paired". ( For details on pairing procedures, please refer to the user's manual of your BT Device.) - Page 12 LISTEN THROUGH AUX IN An external (Auxiliary) audio source (ie.,personal CD player or MP3 player) can be connected to this unit and heard through the speakers. 1. Plug one end of the Aux In cable into the AUX IN jack on the rear of the unit. 2.
- Page 13 LISTEN THROUGH LINE An external Video/Audio player (such as TV, DVD player, VCR, etc.) can be connected to this unit and heard through the speakers. 1. Plug one end of RCA White and Red cable into the LINE IN jacks on the rear of the unit.
-
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION No power Power AC/DC Adapter Connect the power AC/DC adapter not connected to the unit or wall outlet. The unit is in standby mode Press and hold Standby/Source button on the unit or press button on remote control to turn on the unit from Standby mode. -
Page 15: General Specifications
GENERAL SPECIFICATIONS Power Input..............AC 100-240V~; 50/60Hz Power Output...............9V 1300mA Audio Power.....................5W x 2 (tested in open area) Bluetooth Effective Range in Open Area.........Up to 32 feet Remote Effective Range..............Up to 16 feet ACCESSORIES 1 x AC/DC Adapter 1 x Remote Control 1 x AUX IN Cable 1 x LINE IN Cable 1 x User's Manual... -
Page 16: Limited Product Warranty
LIMITED PRODUCT WARRANTY This quality product is warranted to be free from manufacturer’s defects in material and workman-ship, provided that the unit is used under the normal operating conditions intended by the manufacturer. Should you have any problem with this product, please and it is highly recommended to visit our website at www.curtisint.com before you take any other steps as we have additional copies of instruction manuals, operating manuals and trouble shooting tips on our website which gives you the answer on most of the...
