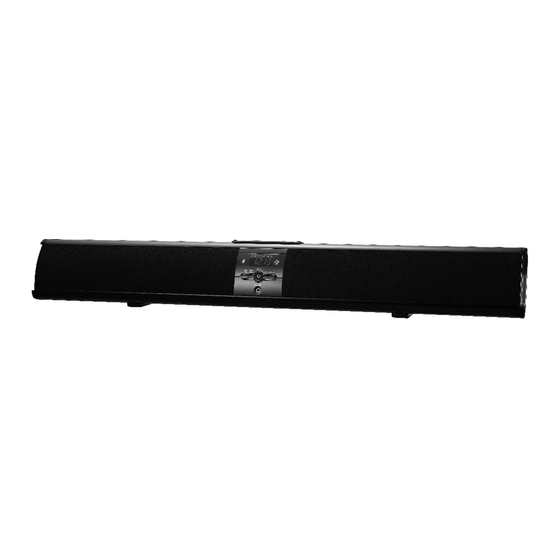

- Page 1 32" SOUND BAR SPEAKER USER MANUAL Model:PSB322 PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
- Page 2 SAFETY INSTRUCTIONS 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Clean only with a slightly damp cloth. 7.Do not block any ventilation openings. 8.Install in accordance with the manufacturer’s instructions. 9.Do not install or operate near any heat sources such as radiators,stoves,or other apparatus that produce heat 10.Unplug this apparatus during lightning storms or when unused for long periods of time.
- Page 3 MOUNTING 1. Follow the figure 1 above to determine the positions where the screws should be mounted. Make sure the two brackets are mounted in the same level. 2. Insert the fixing plugs into the screw holes and insert screws to fix the metal bracket onto the wall.
- Page 4 3. Hang the unit on the wall Note: The gap between the metal bracket and plastic mounting holder on the rear of the unit is designed for simple mounting, which will make the unit movable.
-
Page 5: Product Overview
PRODUCT OVERVIEW Front View MODE TUN- TUN+ VOL- VOL+ AUX IN 1 MODE TUN- TUN+ VOL- VOL+ AUX IN 1 1. LCD Display 6. Remote Sensor 2. Standby/MODE Button 7. Volume+ Button 3. Tune- Button 8. Volume- Button 4. Tune+ Button 9. -
Page 6: Mode Button
Remote Control MODE TUN- TUN+ FM SCAN CLOCK MO/ST VOL- VOL+ BASS- BASS+ TREBLE- TREBLE+ 1.MODE Button 6. EQ Butt 12. CLOCK/MO/ST Button 2. Standby Button 7. VOL-(Volume-) Button 13. VOL+ (Volume+) Button 3. FM SCAN Button 8. BASS- Button 14. -
Page 7: Power Control
POWER CONTROL - To turn the unit on · Connect the supplied power adapter. · Press STANDBY button to turn on the unit. - To turn the unit off · Press STANDBY button on the remote control or hold STANDBY button in the front of the unit. NOTE: If the unit is not used for a long period of time, disconnect the power adapter. -
Page 8: Aux In Connection
AUX IN - AUX IN source may include: ·Personal audio players ·Personal computers or laptops - AUX IN connection: 1. Connect a stereo 3.5mm jack cable (supplied) between the headphone or LINE/Audio output of the personal audio player and the AUX IN1 jack on the front of the unit. - Page 9 RCA AUX IN -RCA AUX IN sources may include ·TV/DVD/VCR -RCA AUX IN connection 1. Connect the RCA audio cable (supplied) to the audio output jack on DVD player and AUX IN AUX 2 jack on the rear of the unit. 2.
- Page 10 5. Choose “add a new Bluetooth device”or “setup Bluetooth device”on your device. It will start to search. Once “PSB322” shows on your device, select it. If your device prompts you for a pass code, please enter 0000. If the pairing attempt fails or times out, please start pairing procedure again.
-
Page 11: Specifications
SPECIFICATIONS Power source of the remote control..........DC 3V, 1x CR 2025 button cell Output of the power adapter..................DC 16V 1.8A Audio output........................10W x 2 Power consumption........................25W Bluetooth working range......................10M FM coverage......................87.5-108.0MHz ACCESSORIES 1 x Power adapter 1 x Instruction manual 1 x Remote control 1 x CR 2025 button cell (Already installed in the remote control)
