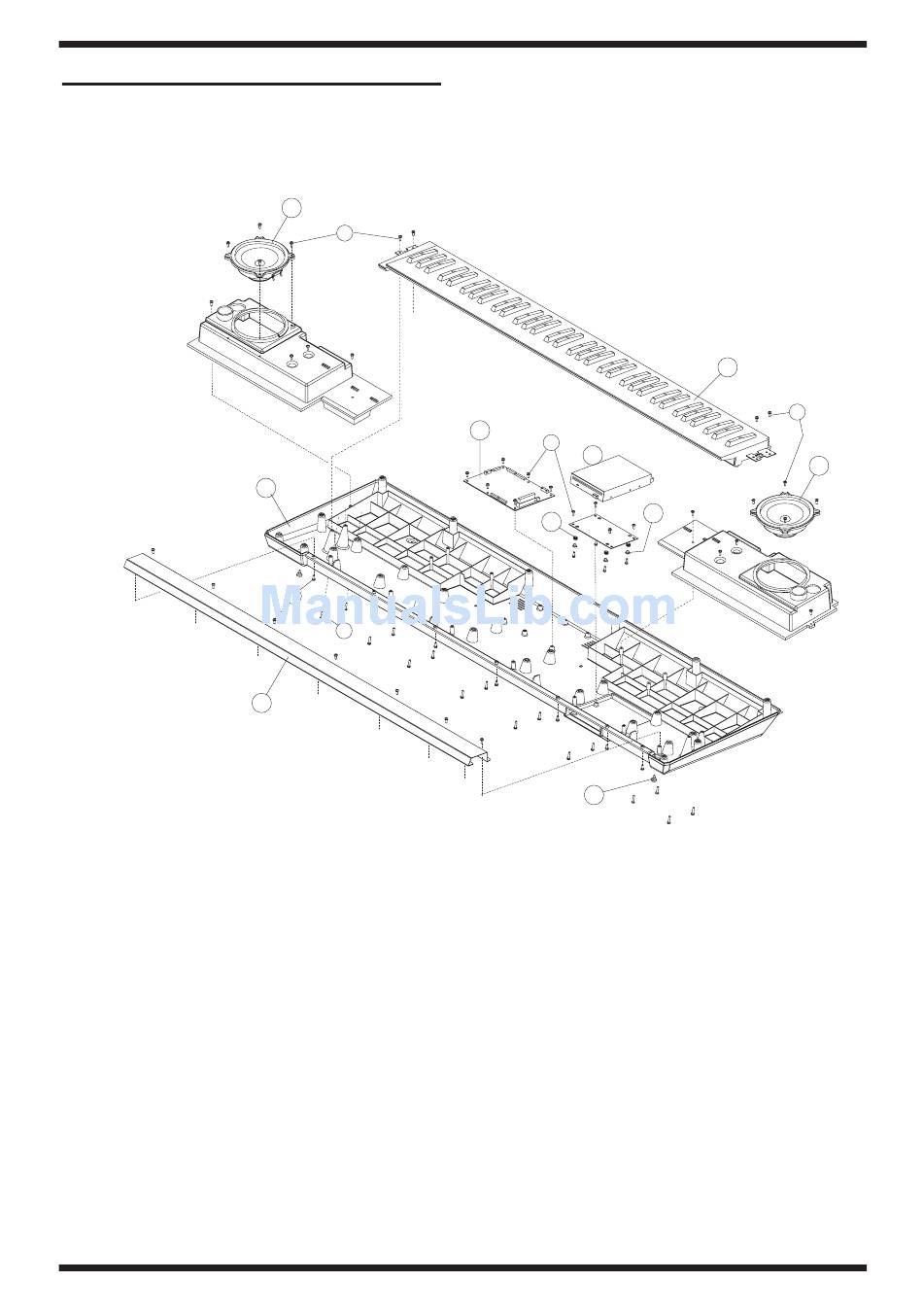

EXPLODED VIEW - BOTTOM
No. Part No.
1 7775710000
2
K2418125
3 7775701000
4
J240910601
5 22165134
6 22265242
7775720000
7
K2358105
8
9 7775709000
(SCREW)
A J2289212
B J2289131
2
A
1
A
B
9
Description
BLACK VARN+CONDUCTIVE BOTTOM CBNT
LOUDSPEAKER MM.130 4OHM RIF.2313
CPU PCB ASSY EXR-7
FLOPPY D.DRIVER JU-257A167P
BRASS BUSHING
RUBBER GUIDE BUSHING
76 KEY KEYBOARD TP/9S
PRESSURE RUBBER
VARN+SILK. KEYBOARD BLIND EXR-7
SCREW 3,5X10 TC TC PR BRUN
SELF TAP. SCREW 3,5x16 TCTC PR BZ
3
A
4
6
5
8
EXR-7
7
A
2
7
