Exploded View (Top) - Roland EXR-7 Service Notes

Apr.2004

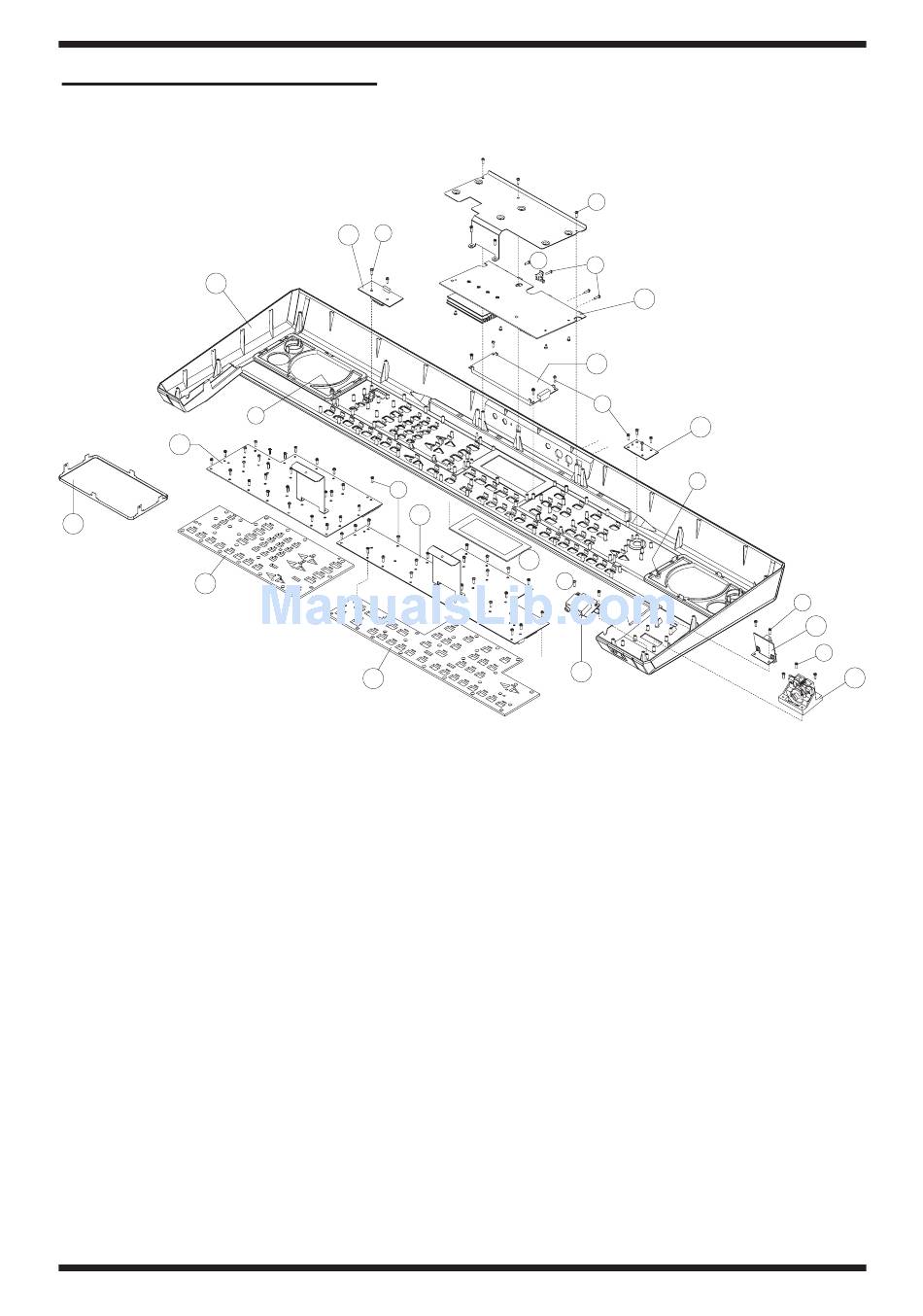

EXPLODED VIEW - TOP
1
1 4
1 2
1 3
No. Part No.
1 7775711000
2 7775703000
3 7775708000
4 7775712000
5
7775707000
6 7775706000
K3278112
7
7775310000
8
9 7775705000
10
7775702000
11 K2268188
12
K2248187
13
K2268189
14 7775704000
(SCREW)
A
J2289125
B J2289126
C J2289160
D
J2289108
6
A
2
B
A
10
1 1
Description
VARN.+SILK TOP CBNT EXR-7
D.BEAM PCB ASSY EXR-7
JACK PCB ASSY EXR-7
LCD ASSY+CONNECT. EXR-7
VOLUME PCB ASSY EXR-7
SWITCH PCB ASSY EXR-7
PITCH BENDER SW+CABLE (36)+1C.
SILKSCREENED PLEXIGLASS EXR-3/5
PHONES PCB ASSY EXR-7
RIGHT CONTROL PCB ASSY EXR-7
RIGHT VIBRATION DUMPER HLC/30 GREY EXR-7
RIGHT/LEFT LOUDSPEAKER GRILL EXR-5
LEFT VIBRATION DUMPER HLC/30 GREY EXR-7
LEFT CONTROL PCB ASSY EXR-7
SCREW 2,9X10 TC TC PR TROP
SELF TAP. SCREW 2,9x8 TCTC PR BZ
SELF TAP. SCREW 2,9x13 TCTCPR BR
SELF LOCK. SCREW M3x10 TCTC H.6
A
D
C
3
4
A
5
B
8
A
9
A
6
A
7
