Fluke 28 II Ex Calibration Information Manual

Digital multimeter
Hide thumbs

Advertisement

Quick Links

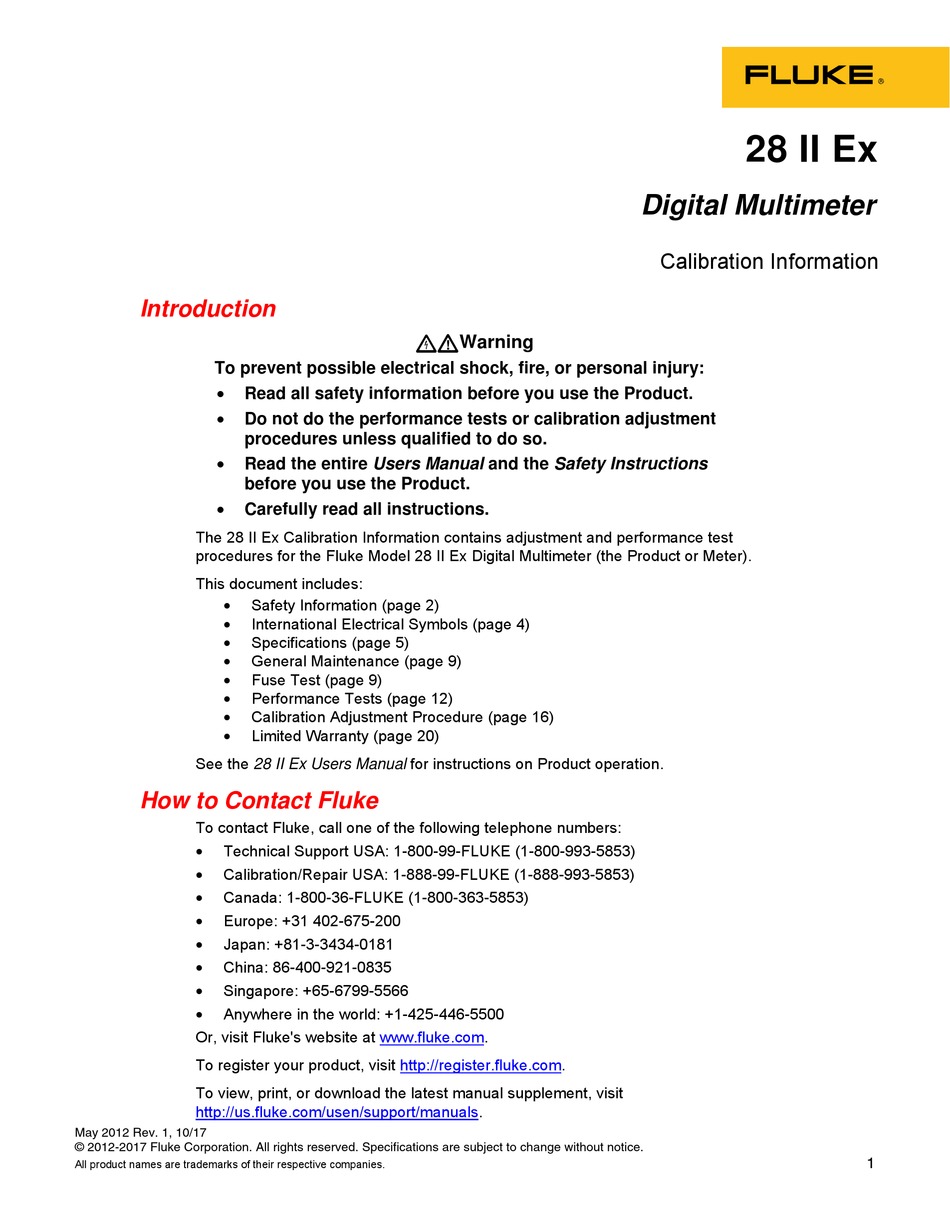

Introduction
To prevent possible electrical shock, fire, or personal injury:
Read all safety information before you use the Product.
Do not do the performance tests or calibration adjustment
procedures unless qualified to do so.
Read the entire Users Manual and the Safety Instructions
before you use the Product.
Carefully read all instructions.
The 28 II Ex Calibration Information contains adjustment and performance test
procedures for the Fluke Model 28 II Ex Digital Multimeter (the Product or Meter).
This document includes:
Safety Information (page 2)
International Electrical Symbols (page 4)
Specifications (page 5)
General Maintenance (page 9)
Fuse Test (page 9)
Performance Tests (page 12)
Calibration Adjustment Procedure (page 16)
Limited Warranty (page 20)
See the 28 II Ex Users Manual for instructions on Product operation.

How to Contact Fluke

To contact Fluke, call one of the following telephone numbers:
Technical Support USA: 1-800-99-FLUKE (1-800-993-5853)
Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: +31 402-675-200
Japan: +81-3-3434-0181
China: 86-400-921-0835
Singapore: +65-6799-5566
Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To view, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals.
May 2012 Rev. 1, 10/17
© 2012-2017 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
XWWarning
28 II Ex

Digital Multimeter

Calibration Information

1
