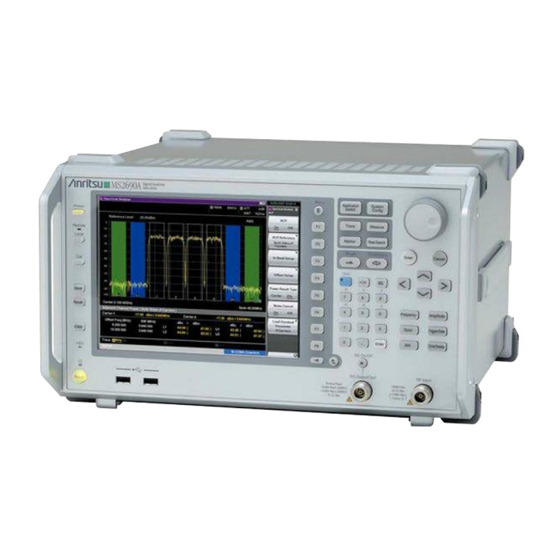

Anritsu MS2691A Operation Manual

Signal analyzer
Hide thumbs Also See for MS2691A:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
MS2690A/MS2691A/MS2692A
Signal Analyzer
Operation Manual
Signal Analyzer Function
Operation
30th Edition
● For safety and warning information, please read this
manual before attempting to use the equipment.
● Additional safety and warning information is provided
within the MS2690A/MS2691A/MS2692A Signal
Analyzer Operation Manual (Mainframe Operation).
Please also refer to this document before using the
equipment.
● Keep this manual with the equipment.
ANRITSU CORPORATION
Document No.: M-W2852AE-30.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS2691A and is the answer not in the manual?

Questions and answers

Related Manuals for Anritsu MS2691A

Summary of Contents for Anritsu MS2691A

  • Page 1 ● For safety and warning information, please read this manual before attempting to use the equipment. ● Additional safety and warning information is provided within the MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Mainframe Operation). Please also refer to this document before using the equipment.

  • Page 2: Safety Symbols

    Ensure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.
  • Page 3 Cautions Against Computer Virus Infection ● Copying files and data Only files that have been provided directly from Anritsu or generated using Anritsu equipment should be copied to the instrument. All other required files should be transferred by means of USB or CompactFlash media after undergoing a thorough virus check.

  • Page 5: About This Manual

    About This Manual  Operation manual configuration The operation manual configuration of the MS2690A/MS2691A/MS2692A Signal Analyzer is shown below. MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Main Frame Operation) MS2830A Signal Analyzer Operation Manual (Main Frame Operation) MS2840A Signal Analyzer Operation Manual (Main Frame Operation)
  • Page 6  Signal Analyzer Operation Manual (Mainframe Operation)  Signal Analyzer Operation Manual (Mainframe Remote Control) Description of basic operations, maintenance procedures, common functions and common remote functions of the mainframe  Signal Analyzer Operation Manual (Signal Analyzer Function Operation) <This document> ...
  • Page 7 Table of Contents About This Manual........Chapter 1 Overview ........... 1-1 Overview of Signal Analyzer ......... 1-2 Features of Signal Analyzer .......... 1-3 Chapter 2 Basic Operation ........ 2-1 Display Description ............2-2 Setting Frequency ............2-4 Setting Level ............... 2-15 Setting IQ Data Capture Time Range ......
  • Page 8 Chapter 6 System Setting ......... 6-1 Setting System .............. 6-2 Erasing Warm up Message .......... 6-3 Setting Title ..............6-4 Adjusting Internal Reference Clock Signal ....6-5 Input Source for Reference Clock Signal ..... 6-6 Pre-Amp On/Off Display ..........6-7 Setting Preselector ............
  • Page 9 Chapter 1 Overview This chapter describes an overview of the Signal Analyzer function. Overview of Signal Analyzer ......... 1-2 Features of Signal Analyzer .......... 1-3...

  • Page 10: Overview Of Signal Analyzer

    Chapter 1 Overview 1.1 Overview of Signal Analyzer The MS2690A/MS2691A/MS2692A Signal Analyzer (hereinafter, referred to as “MS2690A/MS2691A/MS2692A”) can measure the transmitter characteristics of wireless devices for various types of mobile communications quickly, accurately, and easily. The Signal Analyzer function can achieve high-speed spectrum analysis...

  • Page 11: Features Of Signal Analyzer

    (i.e., short sweep time). This results in a limitation of the sweep speed for accurate measurement. On the other hand, the MS2690A/MS2691A/MS2692A captures the time domain data and performs FFT processing to display all the signals in the frequency band simultaneously, quickly, and accurately.

  • Page 12: Method

    Chapter 1 Overview Analyzing captured IQ data in various domains The MS2690A/MS2691A/MS2692A can analyze simultaneous input signals by capturing IQ data for a certain time interval. Spectrum: Performs spectrum analysis by the FFT method. It performs noise measurement and power...

  • Page 13: Chapter 2 Basic Operation

    Chapter 2 Basic Operation This chapter describes the basic operation for the Signal Analyzer function. Display Description ............2-2 Setting Frequency ............2-4 2.2.1 Setting center frequency ........2-8 2.2.2 Setting frequency span ........2-9 2.2.3 Setting start frequency........2-11 2.2.4 Setting stop frequency ........

  • Page 14: Display Description

    Chapter 2 Basic Operation 2.1 Display Description This section describes the display items on the main screen of the Signal Analyzer function. Figure 2.1-1 Main screen of Signal Analyzer function...
  • Page 15 Display Description The main function menu on the main screen is described below. Figure 2.1-2 Main function menu Table 2.1-1 Main function menu Menu Display Function Sets the frequency. Frequency 2.2 “Setting Frequency” Sets the level. Amplitude 2.3 “Setting Level” Sets the trigger.
  • Page 16 Chapter 2 Basic Operation 2.2 Setting Frequency The Signal Analyzer function can set the following four measurement frequencies.  Center frequency  Frequency span  Start frequency  Stop frequency Pressing (Frequency) from page 1 of the main function menu, or pressing displays the Frequency function menu.
  • Page 17 Sets the step size for center, start and stop frequency. Step Size 2.2.6 “Setting step size” Selects the Spurious Mode (1-L band capture), or Normal Frequency Band Mode (normal capture) (displayed only for Mode MS2691A/MS2692A with Option 003 installed). (Spurious/Normal) 2.2.5 “Setting frequency band”...
  • Page 18 Micro Wave 2.3.7 “Microwave Preselector Bypass” Preselector Bypass 1.3.7 “ MS2692A-067/167 ” in the MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Mainframe Operation) The display items related to the frequency parameters are described below. Figure 2.2-3 Display items related to frequency parameters Table 2.2-2 Display items related to frequency parameters...
  • Page 19 Setting Frequency The relationships between the center frequency, frequency span, start frequency, and stop frequency are always as shown in Figure 2.2-4. When any of the center frequency, start frequency, stop frequency, and frequency span are set, the remaining 2 frequencies that have not been set are automatically set.
  • Page 20 (MHz) to set the center frequency. Setting range and resolution for center frequency Setting range: 0 Hz to 6 GHz (MS2690A) 0 Hz to 13.5 GHz (MS2691A) 0 Hz to 26.5 GHz (MS2692A) If the frequency span is more than 50 MHz, the lower limit frequency is 300 MHz.
  • Page 21 Setting Frequency 2.2.2 Setting frequency span Example: To set the frequency span to 1 kHz <Procedure> Press , or press (Span) from the Frequency function menu. After pressing , press (kHz) to set the frequency span. Setting range and resolution for frequency span Setting range: 1 kHz to 125 MHz Rotary knob resolution:...
  • Page 22 Chapter 2 Basic Operation Frequency Span can be set to a maximum of 31.25 MHz when Frequency Band Mode is set to Spurious. The center/start/stop frequency setting ranges are limited, as shown below, when the frequency span is 50 MHz or more. When the frequency span is 50 MHz or more(MS2690A/91A): When the frequency span is 50 MHz or more (when Option 067/167 is not installed in the MS2692A):...
  • Page 23 Setting range and resolution for start frequency  GHz  Setting range: Hz to (MS2690A)  GHz  Hz to (MS2691A)  GHz  Hz to (MS2692A) Minimum resolution: 1 Hz Rotary knob resolution: Up/down step key resolution: 2.2.6 “Setting step size”...
  • Page 24 (GHz) to set the stop frequency. Setting range and resolution for stop frequency GHz  Setting range: Hz to (MS2690A) x Hz to GHz  (MS2691A) x Hz to GHz  (MS2692A) Minimum resolution: 1 Hz Rotary knob resolution: Up/down step key resolution: 2.2.6 “Setting step size”...
  • Page 25 Setting Frequency 2.2.5 Setting frequency band Note: This function can be used only when Option 003 Extension of Preselector Lower Limit to 3 GHz is installed. When Option 003 Extension of Preselector Lower Limit to 3 GHz is installed, the passing lower limit frequency of the preselector can be changed from 6 GHz to 3 GHz by changing the frequency band mode.
  • Page 26 (GHz) to set the stop frequency. Setting range and resolution for step size Setting range: 1 Hz to 6 GHz (MS2690A) 1 Hz to 13.5 GHz (MS2691A) 1 Hz to 26.5 GHz (MS2692A) Minimum setting resolution: 1 Hz Rotary knob resolution:...
  • Page 27 Setting Level 2.3 Setting Level Pressing (Amplitude) from the main function menu, or pressing displays the Amplitude function menu. Figure 2.3-1 Amplitude key Figure 2.3-2 Amplitude function menu 2-15...
  • Page 28 Press Amplitude, and then press to display this menu. Enables/Disables the Micro Wave Preselector Bypass function. This function is available with MS2692A-067/167. Micro Wave 2.3.7 “Microwave Preselector Bypass” Preselector Bypass 1.3.7 “ MS2692A-067/167 ” in the MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Mainframe Operation) 2-16...
  • Page 29 Setting Level The display items related to the level parameters are described below. Figure 2.3-3 Display items related to level parameters Table 2.3-2 Display items related to level parameters Display Description Ref. Level Displays the reference level. Displays the adding offset value of the Ref.
  • Page 30 Chapter 2 Basic Operation Table 2.3-3 and Table 2.3-4 show the level display modes of the Signal Analyzer function and the reference level (top of the amplitude scale) setting range of each mode. Table 2.3-3 Reference level setting range (When Pre-Amp is set to Off) Scale Mode Unit Reference Level Range...
  • Page 31 Setting Level 2.3.1 Setting reference level The reference level (upper end of amplitude scale) can be set. Example: To set the reference level to  10 dBm <Procedure> Press Press (Reference Level). After pressing , press (dBm) to set the reference level.
  • Page 32 Chapter 2 Basic Operation 2.3.2 Setting input attenuator The input attenuator can be set. (1) Auto mode The input attenuator is automatically set according to the set reference level. Table 2.3.2-1 and Table 2.3.2-2 show the settings in the Auto mode. Table 2.3.2-1 Input attenuators set in Auto mode (When Pre-Amp is set to Off) N = Reference Level (dBm)
  • Page 33 Setting Level Table 2.3.2-2 Input attenuators set in Auto mode (When Pre-Amp is set to On) N = Reference Level (dBm) Attenuator Auto (dB) 120   20 20 <  18 18 <  16 16 <  14 14 <...
  • Page 34 Chapter 2 Basic Operation (2) Manual setting In the Auto mode, the input attenuator is set so that the level can be measured with high accuracy, without any effect of gain compression, with a low noise level, when a signal at the same level as the reference level is input.
  • Page 35 Setting Level Table 2.3.2-4 Input attenuator setting range (When Pre-Amp is set to On) Attenuator Manual Lower Limit Upper Limit Logic* ( = 20,  = 21,  = 22) 60 dB The minimum value is 0 dB. The following rules apply: <1>...
  • Page 36 Chapter 2 Basic Operation Setting the input attenuator Example: To set the input attenuator to 30 dB using the Auto mode <Procedure> Press Press (Attenuator Auto/Manual) and select Auto. Press (Reference Level). After pressing , press (dBm). The input attenuator is set to 30 dB.
  • Page 37 Setting Level Displaying Level Over When the RF input signal level exceeds the specified value, distortion occurs and correct measurement values cannot be obtained. In this case, is displayed on the screen. When displayed, lower the RF input signal level, or do the following: ...
  • Page 38 Chapter 2 Basic Operation 2.3.3 Setting scale Pressing (Scale) from the Amplitude function menu displays the Scale function menu. Page 1 Page 1 When Log is When Lin is selected selected Figure 2.3.3-1 Scale function menu Table 2.3.3-1 Scale function menu Menu Display Function Sets the scale mode (Log/Lin).
  • Page 39 Setting Level (1) Setting the Log scale Example: To set Log Scale Division to 20 dB/Div and the number of scale lines to 12 <Procedure> Press Press (Scale). Press (Scale Log/Lin) and select Log. Press (Log Scale Division). After pressing , press (dB/Div) to set the Log Scale Division.
  • Page 40 Chapter 2 Basic Operation 2.3.4 Setting reference level unit Note: This function can be set only when the scale mode is Log. In the Log scale, there are 7 types of units for the reference level: dBm, dBV, dBmV, dBV (emf), V, W, and dBV/m. Example: To set the reference level to 10 dBmV <Procedure>...
  • Page 41 Setting Level 2.3.5 Setting reference level offset The reference level and waveform trace can be displayed with any offset value added. Reference level: 0 dBm Measured results: 20 dBm Waveform display When offset value of +10 dB is specified: Reference level: 10 dBm Measured results: 10 dBm Waveform display with added +10 dB Figure 2.3.5-1 Adding an offset value...
  • Page 42 Chapter 2 Basic Operation 2.3.6 Pre-Amp Note: This function can be set only when Option 008 6 GHz Pre-Amp is installed. The level sensitivity can be increased by setting Pre-Amp to On. Example: To set Pre-Amp to On <Procedure> Press Press (Pre-Amp) to set to On.
  • Page 43 Setting IQ Data Capture Time Range 2.4 Setting IQ Data Capture Time Range The IQ data capture time range of the Signal Analyzer function can be set. Normally set the auto setting to obtain the optimal value. Pressing (Capture) from the main function menu displays the Capture function menu.
  • Page 44 Chapter 2 Basic Operation 2.4.1 Setting capture time The capture time length can be set. (1) Auto The required time range for the shortest measurement time is automatically set based on the current setting. Upon parameter changes, no re-analysis of the captured IQ data is performed, and capture of the RF signal is started again.
  • Page 45 Setting IQ Data Capture Time Range *1: 50 MHz can be set only when Option 004/104/077/177 is installed. *2: 62.5 MHz can be set only when Option 077/177 is installed. *3: 100 MHz and 125 MHz can be set only when Option 004/104/078/178 is installed.
  • Page 46 Chapter 2 Basic Operation 2.4.2 Recapture and Reanalysis The MS2690A/MS2691A/MS2692A can capture and save IQ data for a certain time interval to analyze the data many times. This can be used for analysis of the same IQ data with different parameters.
  • Page 47 Setting IQ Data Capture Time Range Capture Time Length Analysis Time Length Data length required for analysis* Parameter change The required data length is automatically Capture Time Length recaptured. Analysis Time Length Data length required for analysis* Includes data length required for calculation other than Analysis Time Length Figure 2.4.2-1 When Capture Time = Auto and Analysis Time = Auto Also, when the Analysis Time is set manually, the Capture Time is...
  • Page 48 Chapter 2 Basic Operation On the other hand, when the Capture Time is Manual, the maximum value required for calculation is always captured. Therefore, reanalysis can be performed without recapture, except for changes of the specific parameters. Capture Time Length Analysis Time Length Data length required for analysis* Parameter change...
  • Page 49 Setting IQ Data Capture Time Range 2.4.3 Parameters recaptured when Capture Time is set to Manual Some parameters may be recaptured and/or reanalyzed when they are changed. Table 2.4.3-1 through Table 2.4.3-7 list the parameters that are recaptured upon a change. Table 2.4.3-1 Common parameters recaptured upon a change Parameter Center Frequency...
  • Page 50 Chapter 2 Basic Operation Table 2.4.3-3 Common parameters recaptured upon a change in Power vs Time Parameter Standard Load Standard Parameter Noise Cancel Table 2.4.3-4 Common parameters recaptured upon a change in Frequency vs Time Parameter None Table 2.4.3-5 Common parameters recaptured upon a change in Phase vs Time Parameter None...
  • Page 51 Chapter 3 Selecting Waveform Capture Method This chapter describes waveform capture methods and capture methods using triggers. Single/Continuous Measurement ........3-2 3.1.1 Continuous measurement mode ...... 3-2 3.1.2 Single measurement mode ......3-2 Trigger Function ............3-3 3.2.1 Normal measurement ........3-6 3.2.2 Trigger measurement ........
  • Page 52 Chapter 3 Selecting Waveform Capture Method 3.1 Single/Continuous Measurement The capture mode (waveform capture method) of the Signal Analyzer function can be set with Figure 3.1-1 Single key and Continuous key 3.1.1 Continuous measurement mode When the trigger function is Off, measurement is executed continuously. When the trigger function is On, measurement is executed each time the trigger conditions are met.
  • Page 53 Trigger Function 3.2 Trigger Function The trigger functions of the Signal Analyzer function include normal measurement and trigger measurement. For trigger measurement, Video, Wide IF Video, SG Marker, BBIF and External can be selected as a trigger source. Pressing (Trigger) from the main function menu, or pressing displays the Trigger function menu.
  • Page 54 Chapter 3 Selecting Waveform Capture Method Figure 3.2-2 Trigger function menu Table 3.2-1 Trigger function menu Menu Display Function Sets the capture start condition. Trigger Switch (On/Off) 3.2.1 “Normal measurement” Selects the trigger source. Trigger Source 3.2.2 “Trigger measurement” Selects the edge where the trigger is Trigger Slope generated (rise or fall).
  • Page 55 Trigger Function The display items related to the trigger parameters are described below. Figure 3.2-3 Display items related to trigger parameters Table 3.2-2 Display items related to trigger parameters Display Description Displays the trigger source. “Free Run” is Trigger displayed in normal measurement. Displays the trigger delay time.
  • Page 56 Chapter 3 Selecting Waveform Capture Method 3.2.1 Normal measurement In the continuous measurement mode, waveforms are captured repeatedly and continuously. In the single measurement mode, a waveform is captured when is pressed. <Procedure> Press Press (Trigger Switch On/Off) and select Off to set the normal capture.
  • Page 57 Trigger Function 3.2.2 Trigger measurement Measurement starts when the conditions for the selected trigger source are met. The following five types of triggers are available: • Video trigger • Wide IF video trigger • SG marker trigger • External trigger •...
  • Page 58 Chapter 3 Selecting Waveform Capture Method Setting range and resolution for trigger delay Table 3.2.2-1 shows the setting range and resolution for the trigger delay. Table 3.2.2-1 Resolution and setting range for trigger delay Minimum Maximum Frequency Span Resolution Value Value 1 kHz 500 µs...
  • Page 59 Trigger Function (2) Wide IF video trigger An IF signal with a wide passing band of about 50 MHz or greater is detected, and waveform capture starts in synchronization with the rise or fall of the detected signal. Operation example: Setting the trigger level to –30 dBm and trigger slope to Fall <Procedure>...
  • Page 60 This function can be set only when Option 020 Vector Signal Generator is installed. The measurement of the MS2690A/MS2691A/MS2692A is started in synchronization with the rise or fall of the marker signal output of the Vector Signal Generator (SG option). This function allows measurement in sync with the output signal of the SG option.
  • Page 61 Interface Unit (hereafter Option 040/140) is not installed or the software package is Ver.6.00.00 or later. The measurement of the MS2690A/MS2691A/MS2692A is started in synchronization with the rise or fall of the marker signal output of the Baseband Interface Unit. For the settings of Trigger signals, refer to “MX269041A Digital I/F Control Software for DigRF2.5G/3G Operation...
  • Page 62 Chapter 3 Selecting Waveform Capture Method Displaying the trigger indicator When waiting for a trigger input, the trigger indicator displayed on the screen. Figure 3.2.2-2 Trigger indicator 3-12.

  • Page 63: Chapter 4 Trace

    Chapter 4 Trace This chapter describes the parameters and measurements for each trace. Selecting Trace ............. 4-3 Spectrum ............... 4-5 4.2.1 What is Spectrum trace? ........4-5 4.2.2 Setting spectrum parameters ......4-7 4.2.3 Setting analysis time......... 4-9 4.2.4 Setting scale ........... 4-13 4.2.5 Setting resolution bandwidth (RBW) ....
  • Page 64 Chapter 4 Trace 4.5.4 Setting scale ..........4-164 4.5.5 Setting detection mode ......... 4-166 4.5.6 Setting markers ..........4-167 4.5.7 Setting methods ..........4-173 CCDF ................ 4-175 4.6.1 What is CCDF trace? ........4-175 4.6.2 Setting CCDF parameters ......4-177 4.6.3 Selecting measurement method ....

  • Page 65: Selecting Trace

    Selecting Trace 4.1 Selecting Trace Pressing (Trace) on the main function menu, or pressing then (Trace Mode) displays the Trace Mode function menu. The trace type can be selected from this menu. Figure 4.1-1 Trace key...
  • Page 66 Chapter 4 Trace Figure 4.1-2 Trace Mode function menu Table 4.1-1 Trace Mode function menu Menu Display Function Spectrum trace. Spectrum 4.2 “Spectrum” Displays Power vs Time trace. Power vs Time 4.3 “Power vs Time” Displays Frequency vs Time trace. Frequency vs Time 4.4 “Frequency vs Time”...

  • Page 67: Spectrum

    Spectrum 4.2 Spectrum 4.2.1 What is Spectrum trace? Spectrum trace is a screen that converts captured IQ data from time domain data to frequency domain data by fast Fourier transformation (FFT) processing to display a spectrum. The display items for a spectrum trace are described below. Figure 4.2.1-1 Display items for spectrum trace...
  • Page 68 Chapter 4 Trace Table 4.2.1-1 Display items for spectrum trace Display Descriptions Analysis Start Time/ Displays the analysis start time and analysis Analysis Time time length. Length Displays the resolution bandwidth (RBW). Det. Displays the detection mode. Displays the trace point count (horizontal Trace Point axis).
  • Page 69 Spectrum 4.2.2 Setting spectrum parameters After selecting Spectrum for Trace Mode, pressing (Trace) from the main function menu or pressing displays the Trace function menu. 4.1 “Selecting Trace” Figure 4.2.2-1 Trace function menu Table 4.2.2-1 Trace function menu Menu Display Function Sets the trace type.
  • Page 70 Chapter 4 Trace Table 4.2.2-1 Trace function menu (Cont’d) Menu Display Function Used for setting related to detection. Time Detection 4.2.7 “Setting detection mode” Used for setting related to sub-trace. Sub Trace Setting 4.9 “Sub-Trace” Used for setting related to the Measure function. Measure 4.2.10 “Measure measurement”...
  • Page 71 Spectrum 4.2.3 Setting analysis time Pressing (Analysis Time) on the Trace function menu, or pressing displays the Analysis Time function menu. Figure 4.2.3-1 Analysis Time function menu Table 4.2.3-1 Analysis Time function menu Menu Display Function Time Switches between auto setting and manual (Main Trace) setting for the analysis start time and analysis (Auto/Manual)
  • Page 72 Chapter 4 Trace Setting analysis time Analysis time is the target time range for spectrum trace analysis. The analysis time is specified with the analysis start position (Analysis Start Time) and analysis time length (Analysis Time Length). Start point of capture data Analysis Time Length Analysis Time Analysis Start Time...
  • Page 73 Spectrum Table 4.2.3-2 Setting analysis time in Auto mode Analysis Start Time Analysis Time Length Capture Time Auto Manual : Capture time length [s] 2.4 “Setting IQ Data Capture Time Range” (2) Manual mode The analysis start time and analysis time length are set manually. This is an effective method for averaging spectrum measurements of modulation signals and noises as well as measuring discontinuous signals, such as burst.
  • Page 74 Chapter 4 Trace Analysis start time and analysis time length resolution Table 4.2.3-5 Frequency span and resolution Frequency Span Resolution 1 kHz 0.5 ms 2.5 kHz 0.2 ms 5 kHz 0.1 ms 10 kHz 50 µs 25 kHz 20 µs 50 kHz 10 µs 100 kHz...
  • Page 75 Spectrum 4.2.4 Setting scale Scale function menu Pressing (Trace) on the main function menu, or pressing then (Scale) displays the Scale function menu. Figure 4.2.4-1 Scale function menu Table 4.2.4-1 Scale function menu Menu Display Function Used for setting related to the vertical axis (level Vertical axis) scale.
  • Page 76 Chapter 4 Trace Vertical function menu Pressing (Vertical) on the Scale function menu displays the Vertical function menu. Figure 4.2.4-2 Vertical function menu Table 4.2.4-2 Vertical function menu Menu Display Function Sets the scale range (Log scale range) of the Log Scale Division vertical axis.
  • Page 77 Spectrum Horizontal function menu Pressing (Horizontal) on the Scale function menu displays the Horizontal function menu. Figure 4.2.4-3 Horizontal function menu Table 4.2.4-3 Horizontal function menu Menu Display Function Sets the center frequency of the horizontal axis Center scale. Sets the frequency width of the horizontal axis Width scale.
  • Page 78 Chapter 4 Trace (1) Setting the vertical axis scale The scale range Log scale and Lin scale of the main trace level axis are set. Example: To set the Log scale to 2 dB/Div and scale line to 12 <Procedure> Press Press (Scale).
  • Page 79 Spectrum (2) Setting the horizontal axis scale In a spectrum trace, the display frequency range (horizontal axis scale) can be changed freely within the range of the center frequency and frequency span. To set the display frequency range, the setting for Center (center of the display frequency range) and Width (frequency bandwidth of the display frequency range) are changed.
  • Page 80 Chapter 4 Trace 4.2.5 Setting resolution bandwidth (RBW) Pressing (RBW) on the Trace function menu, or pressing displays the RBW function menu. Figure 4.2.5-1 RBW function menu Table 4.2.5-1 RBW function menu Menu Display Function Selects auto setting or manual setting for the RBW (Auto/Manual) resolution bandwidth (RBW).
  • Page 81 Spectrum (1) Auto mode RBW is set to Auto in the initial state to automatically set to the optimal state so that no frequency or level measurement error occurs when the frequency span is changed. (2) Manual mode In normal measurement, a measurement can be performed without any special setting, if RBW is set to Auto.
  • Page 82 Chapter 4 Trace Resolution bandwidth setting range The setting range of the resolution bandwidth varies depending on the setting of Marker Result. Table 4.2.5-2 Pattern of Marker Result Integration Density Peak (Fast) Peak (Accuracy) Table 4.2.5-3 Setting range of resolution bandwidth RBW [Hz] Frequency Minimum...
  • Page 83 Spectrum (3) Setting the resolution bandwidth Example: To set the resolution bandwidth to 100 kHz <Procedure> Press Press (RBW). Press , and then press (kHz) to set the resolution bandwidth. In the Manual mode, the icon is displayed. Figure 4.2.5-2 “Manual” icon 4-21...
  • Page 84 Chapter 4 Trace 4.2.6 Setting storage mode Pressing and then (Storage) displays the Storage function menu. Figure 4.2.6-1 Storage function menu Table 4.2.6-1 Storage function menu Menu Display Function Used for setting related to the updating and Mode displaying of trace data. Count Sets the storage count.
  • Page 85 Spectrum Storage mode types In a spectrum trace, the following four storage mode types can be selected. Table 4.2.6-2 Four storage mode types Mode Description Display Example At each capture, the trace data are updated and displayed. These data are used for normal measurement.
  • Page 86 Chapter 4 Trace (1) Selecting the storage mode and storage count Example: To set the storage mode to Lin Average and storage count to 100 <Procedure> Press Press (Storage). Press (Mode) and select Lin Average. Press (Count). Press , and then press (Set) to set the storage count.
  • Page 87 Spectrum (2) Averaging function The digital averaging function, which performs an averaging operation at a point on the horizontal axis each time trace data is captured and displays the trace, can be executed by selecting Lin Average in the storage mode.
  • Page 88 Chapter 4 Trace Figure 4.2.6-2 Averaging function 4-26...
  • Page 89 Spectrum 4.2.7 Setting detection mode The detection mode can be selected by pressing and then (Time Detection). Detection mode types The detection mode in the analysis range is set. The detection mode can be selected from the three types: Average, Positive, and Negative. Table 4.2.7-1 Detection modes in analysis range Detection Mode Descriptions...
  • Page 90 Chapter 4 Trace Detection mode when Analysis Time is Auto When Capture Time and Analysis Time are set to Auto, in the spectrum trace, the analysis time range is minimized (to one FFT) to make the measurement time fastest. Therefore, there is only one data for detection even when the detection mode is changed, so the same measurement results are displayed.
  • Page 91 Spectrum On the other hand, when Capture Time is set to Manual mode and Analysis Time is set to Auto, in the spectrum trace, the analysis time range is the time set in Capture Time Length. Therefore, detection is performed for the FFT spectrums of all the IQ data captured. The maximum, average, or minimum value of all the captured spectrums is displayed.
  • Page 92 Chapter 4 Trace 4.2.8 Setting markers This section describes various Marker functions provided by the zone marker, and the functions to improve measurement efficiency, such as marker search and parameter setting with marker values. Pressing (Marker) on page 2 of the Trace function menu, or pressing displays the Marker function menu.
  • Page 93 Spectrum Table 4.2.8-1 Marker function menu Menu Function Active Marker Sets the active marker. Sets the marker mode of the active marker to Normal. The frequency (Time) and the level are Normal displayed on the screen. The normal marker is displayed as ▼ on the trace when Marker Result is Peak.
  • Page 94 Chapter 4 Trace Zone Width function menu On the Marker function menu, press (Zone Width) to display the Zone Width function menu. Figure 4.2.8-2 Zone Width function menu Table 4.2.8-2 Zone Width function menu Menu Function Type Switches between the spot marker and the (Zone/Spot) zone marker.
  • Page 95 Spectrum Marker Result function menu On page 2 of the Marker function menu, press (Marker Result) to display the Marker Result function menu. Figure 4.2.8-3 Marker Result function menu Table 4.2.8-3 Marker Result function menu Menu Function Integration Displays the total power in the zone band. Density Displays the power per 1 Hz in the zone band.
  • Page 96 Chapter 4 Trace Figure 4.2.8-4 Display items of marker result Table 4.2.8-4 Display items of marker result Display Descriptions Frequency Displays the frequency of each marker. The frequency difference between the active marker and the marker set by Relative To is Frequency displayed when the active marker is Delta.
  • Page 97 Spectrum Changing position and width of zone marker The area enclosed by the dashed lines at the center of the screen in Figure 4.2.8-3 is called a zone marker. The integral power, average power, or peak power is displayed as a marker value. Figure 4.2.8-5 Zone width, zone center frequency, and marker value (1) Changing Zone Center, Zone Width Set the zone center frequency and zone width.
  • Page 98 Chapter 4 Trace The other markers can be set in the same way. Setting range and resolution for Zone Center and Zone Width Setting range: Refer to Table 4.2.8-5. Zone Center minimum resolution: [Hz] The resolution is 0.01 Hz. Zone Width minimum resolution: 0.01 [Hz] : Sampling rate [Hz] 2.2.2 “Setting frequency span”...
  • Page 99 Spectrum (3) Zoom In Display Setting Example: To enlarge the zone range of the active zone marker <Procedure> Press Press to display the page 2 of Marker function menu. Press (Zoom) to enlarge the specified range. As shown in Figure 4.2.8-6, when the Zoom function is performed after setting the range with the zone marker, Center (center of the display frequency range) and Width (frequency bandwidth of the display frequency range) are changed to the zone marker range.
  • Page 100 Chapter 4 Trace (4) Zoom Out Display Setting Example: To reduce the current screen display data into the zone of the active zone marker <Procedure> Press Press to display the page 2 of Marker function menu. Press (Zoom Out) to downsize the entire screen to fit in the active zone of the zone marker.
  • Page 101 Spectrum (5) Displaying marker list Displays the list of the marker result. The marker frequency and the power are displayed on the list. Example: To set the marker display to On <Procedure> Press Press to move to page 2 of the Marker function menu, and set (Marker List) to On.
  • Page 102 Chapter 4 Trace 4.2.9 Setting marker search The marker search functions include Peak search and Next Peak search. Signal Search function menu Pressing (Signal Search) on page 2 of the Trace function menu, or pressing displays the Signal Search function menu. Figure 4.2.9-1 Signal search function menu 4-40...
  • Page 103 Spectrum Table 4.2.9-1 Signal Search function menu Menu Display Function Moves the active marker to the point where the integral power of the zone width of the active marker becomes maximal in the measurement Peak Search band. If two or more such points exist, the point with the lowest frequency (toward the left of the scale) is selected.
  • Page 104 Chapter 4 Trace Threshold function menu Pressing (Threshold) from the Signal Search function menu displays the Threshold function menu. Figure 4.2.9-2 Threshold function menu Table 4.2.9-2 Threshold function menu Menu Display Function Selects On/Off for the detection threshold Threshold (On/Off) function for integral peak power detection of the zone width.
  • Page 105 Spectrum Marker Search function menu Pressing (Marker Search Function) on the Signal Search function menu displays the Marker Search function menu. Figure 4.2.9-3 Marker Search function menu Table 4.2.9-3 Marker Search function menu Menu Function Sets the markers in the order of level in relation Search Peaks Sort Y to the peaks on the trace of the number specified in Search Peaks Number.
  • Page 106 Chapter 4 Trace (1) Setting Peak search The zone of the active marker is moved to the position where the marker value becomes the maximum in the measurement band. If two or more marker values exist, it is moved to the point with the lower marker frequency.
  • Page 107 Spectrum Setting range and resolution for search resolution Setting range: 0.01 to 50.00 dB Minimum resolution: 0.01 dB Rotary knob resolution: 0.1 dB Step key resolution: 1 dB (4) Setting the search threshold The threshold to restrict marker values to be searched is set. A search is performed for marker values above or below the threshold.
  • Page 108 Chapter 4 Trace Figure 4.2.9-4 Marker to Center Freq. / Marker to Ref. Level 4-46...
  • Page 109 Spectrum (7) Executing Marker Search Function Sorts the markers set in Search Peaks Number by frequency (time) or level. Note Marker Search Function can be executed when Marker Result is set to Peak (Fast) or Peak (Accuracy). Example: To sort four markers by level <Procedure>...
  • Page 110 Chapter 4 Trace Measurement example: Measuring the CN ratio <Measurement block> Non-modulation MS2690A/MS2691A signal source Center frequency : 1.9 GHz Offset frequency : 100 kHz 1.9 GHz C/N ratio 100 kHz Figure 4.2.9-6 Measurement block diagram <Procedure> Press and then press (Preset).
  • Page 111 Spectrum 13. Press (Couple Zone) to select Off. 14. Press (Type) to select Spot. 15. Press and then press (GHz) to set the center frequency of Marker 2. 16. Press to display the Marker function menu. 17. Press (Active Marker) and then press (Marker 1).
  • Page 112 Chapter 4 Trace 4.2.10 Measure measurement Measure function menu Pressing (Measure) on page 2 of the Trace function menu, or pressing displays the Measure function menu. Figure 4.2.10-1 Measure function menu 4-50...
  • Page 113 Spectrum Table 4.2.10-1 Measure function menu Menu Display Function Performs adjacent channel leakage power measurement. Select the reference power, offset channel bandwidth, carrier bandwidth, carrier center frequency, offset channel to measure, and bandlimiting filter. Performs power measurement in the specified frequency band.
  • Page 114 Chapter 4 Trace ACP function menu Pressing (ACP) on the Measure function menu displays the ACP function menu. Figure 4.2.10-2 ACP function menu 4-52...
  • Page 115 Spectrum Table 4.2.10-2 ACP function menu Menu Display Function When it is set to On, other measure functions of ACP (On/Off) the same trace are set to Off. Sets the reference power. Span Total: Uses the integral power on the entire screen as a reference.
  • Page 116 Chapter 4 Trace In Band Setup function menu Press (In Band Setup) on the ACP function menu to display the In Band Setup menu. Figure 4.2.10-3 In Band Setup function menu Table 4.2.10-3 In Band Setup function menu Menu display Function Carrier Number Sets the number of carriers.
  • Page 117 Spectrum The Offset Setup function menu consists of two pages. Press change the page. Figure 4.2.10-4 Offset Setup Function Menu Table 4.2.10-4 Offset Setup Function Menu Menu display Function Ch BW Sets a bandwidth of the Offset Channel. Sets a filter type of the Offset Channel. Filter Type Selects a filter type from Rectangular, Nyquist, and Root Nyquist.
  • Page 118 Chapter 4 Trace (1) Measuring the adjacent channel leakage power The leakage power of the adjacent channel is measured. The display items for the measurement results when Power Result Type is set to Offset are described below. Figure 4.2.10-5 Display items for measurement results Table 4.2.10-5 Display items for measurement results Display Descriptions...
  • Page 119 Spectrum The display items for the measurement results when Power Result Type is set to Carrier are described below. Figure 4.2.10-6 Display items for measurement results Table 4.2.10-6 Display items for measurement results Display Descriptions Displays the integral power in the screen display band.
  • Page 120 Chapter 4 Trace Channel Power function menu Pressing (Channel Power) on the Measure function menu displays the Channel Power function menu. Figure 4.2.10-7 Channel Power function menu Table 4.2.10-7 Channel Power function menu Menu Display Function Channel Power When it is set to On, other measure functions of (On/Off) the same trace are set to Off.
  • Page 121 Spectrum (2) Measuring the channel power The channel power is measured. The display items for the measurement results are described below. Figure 4.2.10-8 Display items for measurement results Table 4.2.10-8 Display items for measurement results Display Descriptions Displays the setting value of the Channel Center channel center frequency.
  • Page 122 Chapter 4 Trace OBW function menu Pressing (OBW) on the Measure function menu displays the OBW function menu. Figure 4.2.10-9 OBW function menu Table 4.2.10-9 OBW function menu Menu Display Function When this is set to On, other measure functions of OBW (On/Off) the same trace are set to Off.
  • Page 123 Spectrum (3) Measuring the occupied bandwidth The occupied bandwidth is measured. The display items for the measurement results are described below. Figure 4.2.10-10 Display items for measurement results Table 4.2.10-10 Display items for measurement results Display Description Displays the occupied bandwidth. Displays the center frequency of the OBW Center occupied bandwidth.
  • Page 124 (4) Example of adjacent channel leakage power measurement For measurement of the adjacent channel leakage power of the W-CDMA modulation method signal, the detection mode is set to Average. <Measurement block> Digital modulation 0 dBm MS2690A/MS2691A (W-CDMA) signal source Center frequency: 1.92 GHz Frequency span: 25 MHz...
  • Page 125 Spectrum 19. Press , and then press (Set) to set a Roll-Off factor. 20. Press to switch the function menu to page 2. 21. Press (Offset-1). 22. Press , and then press (MHz) to set Offset frequency-1. 23. Press (Offset-2). 24.
  • Page 126 Chapter 4 Trace Figure 4.2.10-12 Results of measurement example 4-64...
  • Page 127 Spectrum (5) Example of channel power measurement <Measurement block> Digital 0 dBm modulation MS2690A/MS2691A (W-CDMA) signal source Center frequency: 1.92 GHz Frequency span: 10 MHz RBW: 100 kHz Figure 4.2.10-13 Measurement block diagram <Procedure> Press , and then press (Preset).
  • Page 128 (6) Example of occupied frequency bandwidth measurement For a signal source of the W-CDMA modulation method, the detection mode is set to Average. <Measurement block> Digital modulation 0 dBm MS2690A/MS2691A (W-CDMA) signal source Center frequency: 1.92 GHz Frequency span: 10 MHz...
  • Page 129 Spectrum 1.92 GHz Occupied frequency bandwidth Figure 4.2.10-16 Measurement block diagram <Procedure> Press , and then press (Preset). Press Press , and then press (MHz) to set the frequency span. Press Press , and then press (GHz) to set the center frequency.
  • Page 130 Chapter 4 Trace Figure 4.2.10-17 Measurement results 4-68...
  • Page 131 Spectrum 4.2.11 Executing Return to Spectrogram After Analyze with Spectrum Trace has been executed on the Spectrogram trace, move on to the Spectrum trace, and press and, (Return to Spectrogram). Then you can return to the Spectrogram trace. If you move on to Spectrogram trace by executing Return to Spectrogram, then the current analysis length parameters are changed to the same as the analysis length parameters set before executing Analyze with Spectrum on Spectrogram trace.
  • Page 132 Chapter 4 Trace Table 4.2.11-2 Analysis Length Parameter Analysis Length Parameter The setting of Capture Time Auto/Manual was changed. Center Frequency was changed. The setting of Capture Time Length was changed when Capture Time = Manual. The setting of Span was changed. The setting of Terminal was changed.

  • Page 133: Power Vs Time

    Power vs Time 4.3 Power vs Time 4.3.1 What is Power vs Time trace? Power vs Time trace is a screen to observe the time fluctuations of power of the obtained measured signal. Figure 4.3.1-1 Display items for Power vs Time trace Table 4.3.1-1 Display items for Power vs Time trace Display Descriptions...
  • Page 134 Chapter 4 Trace 4.3.2 Setting Power vs Time parameters After selecting “Power vs Time” for Trace Mode, pressing (Trace) from the Main function menu or pressing displays the Trace function menu. The Trace function menu consists of two pages, which can be toggled by pressing 4.1 “Selecting Trace”...
  • Page 135 Power vs Time Table 4.3.2-1 Trace function menu Menu Display Function Sets the trace type. Trace Mode 4.1 “Selecting Trace” Used for setting related to the time. Analysis Time 4.3.3 “Setting analysis time” Used for setting related to the scale. Scale 4.3.4 “Setting scale”...
  • Page 136 Chapter 4 Trace 4.3.3 Setting analysis time Pressing (Analysis Time) from the Trace function menu, or pressing displays the Analysis Time function menu. Figure 4.3.3-1 Analysis Time function menu Table 4.3.3-1 Analysis Time function menu Menu Display Function Time Switches between auto setting and manual (Main Trace) setting for the analysis start time (Analysis (Auto/Manual)
  • Page 137 Power vs Time Setting the analysis time Analysis time is the time to be analyzed. The analysis time can be specified with the analysis start position (Analysis Start Time) and analysis time length (Analysis Time Length). Capture data start Analysis Time Length Analysis time Analysis Start Time Time...
  • Page 138 Chapter 4 Trace (2) Manual mode The analysis start time and analysis time length are set manually. This is an effective method to perform measurement of discontinuous signals such as burst. Analysis start time setting range Table 4.3.3-3 Analysis start time setting range in Manual mode Maximum Capture Time Minimum Value [s]...
  • Page 139 Power vs Time Analysis start time resolution Table 4.3.3-5 Frequency span and resolution Frequency Span Resolution 1 kHz 0.5 ms 2.5 kHz 0.2 ms 5 kHz 0.1 ms 10 kHz 50 µs 25 kHz 20 µs 50 kHz 10 µs 100 kHz 5 µs 250 kHz...
  • Page 140 Chapter 4 Trace 4.3.4 Setting scale Scale function menu Pressing and then (Scale) displays the Scale function menu. Figure 4.3.4-1 Scale function menu Table 4.3.4-1 Scale function menu Menu Display Function Used for setting related to the Vertical vertical axis (level axis) scale. 4-78...
  • Page 141 Power vs Time Vertical function menu Pressing (Vertical) on the Scale function menu displays the Vertical function menu. Figure 4.3.4-2 Vertical function menu Table 4.3.4-2 Vertical function menu Menu Display Function Sets the scale range (Log scale Log Scale Division range) of the vertical axis.
  • Page 142 Chapter 4 Trace (1) Vertical axis scale The scale range Log scale and Lin scale of the level axis are set. Example: To set the vertical axis scale range (Log scale) to 0.1 dB/Div <Procedure> Press Press (Scale). Press (Vertical), and then press (Log Scale Division).
  • Page 143 Power vs Time 4.3.5 Setting filter Pressing (Filter) on the Trace function menu, or pressing displays the Filter function menu. Figure 4.3.5-1 Filter function menu Table 4.3.5-1 Filter function menu Menu Display Function Type Selects the filter type. Roll-off Factor Sets the roll-off factor.
  • Page 144 Chapter 4 Trace Setting range and resolution for roll-off factor Setting range: 0.01 to 1 Minimum resolution: 0.01 Rotary knob resolution: 0.01 Step key resolution: Setting range and resolution for filter band Setting range: Refer to Table 4.3.5-2 (Rect). Refer to Table 4.3.5-3 (Gauss, Nyquist, Root Nyquist).
  • Page 145 Power vs Time Table 4.3.5-2 Filter band setting range (Rect) Frequency Span Minimum Value Maximum Value 1 kHz 2.5 kHz 1 kHz 2 kHz 5 kHz 1 kHz 4 kHz 10 kHz 1 kHz 9 kHz 25 kHz 1 kHz 23 kHz 50 kHz 2 kHz...
  • Page 146 Chapter 4 Trace Table 4.3.5-3 Filter band setting range (Gauss, Nyquist, Root Nyquist) Frequency Span Minimum Value Maximum Value 1 kHz 2.5 kHz 1 kHz 1 kHz 1 Hz (Gauss only) 5 kHz 1 kHz 2 kHz 10 kHz 1 kHz 4 kHz 25 kHz 1 kHz...
  • Page 147 Power vs Time (1) Gauss filter Example: To set the filter shape to Gaussian, filter bandwidth to 3.84 MHz, and filter frequency offset to 1 MHz <Procedure> Press Press (Type) and select Gaussian. Press (Band Width). Press , and then press (MHz) to set the filter band.
  • Page 148 Chapter 4 Trace (3) Nyquist filter Example: To set the filter shape to Nyquist, filter bandwidth to 3.84 MHz, filter frequency offset to 1 MHz, and roll-off factor to 0.22 <Procedure> Press Press (Type) and select Nyquist. Press (Band Width). Press , and then press (MHz) to set the filter...
  • Page 149 Power vs Time 4.3.6 Setting smoothing Pressing and then (View) displays the View function menu. Figure 4.3.6-1 View function menu Table 4.3.6-1 View function menu Menu Display Function Smoothing (On/Off) Sets smoothing to On/Off. Smoothing Time Sets the smoothing time length. Length 4-87...
  • Page 150 Chapter 4 Trace (1) Setting smoothing Smoothing processing is performed. To lower the trace noise, the Smoothing function is set to On. Example: To set the Smoothing function to On and smoothing time length to 50 µ s <Procedure> Press Press (View).
  • Page 151 Power vs Time 4.3.7 Setting storage mode Pressing and then (Storage) displays the Storage function menu. Figure 4.3.7-1 Storage function menu Table 4.3.7-1 Storage function menu Menu Display Function Used for setting related to Mode update and display of trace data. Count Sets the storage count.
  • Page 152 Chapter 4 Trace Storage mode types In a Power vs Time trace, the following four storage mode types can be selected. Table 4.3.7-2 Four storage mode types Mode Description Display Example At each capture, the trace data are updated and displayed.
  • Page 153 Power vs Time (1) Selecting the storage mode and storage count Example: To set the storage mode to Average and storage count to 100 <Procedure> Press Press (Storage). Press (Mode) and select Lin Average. Press (Count). Press , and then press (Set).
  • Page 154 Chapter 4 Trace Table 4.3.7-3 Averaging Capture Measureme Count nt Value Displayed Value Y(n) M(n) Y(1) = M(1) M(1) Y(2) M(2) ∗ Y(3) M(3) … … − ∗ − − N − 1 M(N − 1) − − − ∗ −...
  • Page 155 Power vs Time 4.3.8 Setting detection mode The detection mode can be selected by pressing and then (Detection). Detection mode types The detection mode in the analysis range (Detection) is set. The detection mode can be selected from the 4 types: Average, Positive, Negative, and Pos &...
  • Page 156 Chapter 4 Trace (1) Setting the detection mode Example: To set the detection mode to Positive <Procedure> Press Press (Detection), select Positive, and then press 4-94...
  • Page 157 Power vs Time 4.3.9 Setting markers This section describes various functions as well as the functions to improve measurement efficiency, such as marker search and parameter setting with marker values. Pressing (Marker) on page 2 of the Trace function menu, or pressing displays the Marker function menu.
  • Page 158 Chapter 4 Trace Table 4.3.9-1 Marker function menu Menu Display Function Sets whether to display time Marker1 (On/Off) marker 1. Marker1 Sets the time marker 1. Sets whether to display time Marker2 (On/Off) marker 2. Marker2 Sets time marker 2. Active Marker Selects the active marker.
  • Page 159 Power vs Time Table 4.3.9-2 Display items for marker results Display Description Displays the power at each marker time MKR1/MKR2 position. Displays the ratio of the power at the ∆(2 − 1) marker time positions (Marker 1 − Marker 2). 4-97...
  • Page 160 Chapter 4 Trace (1) Changing the marker position Note: The marker position of Power vs Time, Frequency vs Time, Phase vs Time synchronizes one another. The power in the specified time can be measured by using the marker displayed in Figure 4.3.9-3. Figure 4.3.9-3 Marker Example: To set 1.5 µ...
  • Page 161 Power vs Time (2) Selecting the active marker Note: This setting is enabled when both Markers 1 and 2 are On. The active marker is selected. The marker position of the active marker can be set with the rotary knob or step key. Example: To set Markers 1 and 2 to On and to select the active marker <Procedure>...
  • Page 162 Chapter 4 Trace As shown in Figure 4.3.9-4, when Zoom is performed after setting the range with Markers 1 and 2, the Analysis Start Time and Analysis Time Length are changed to the range of Markers 1 and 2. Markers 1, 2 Zoom Figure 4.3.9-4 Zoom 4-100...
  • Page 163 Power vs Time (4) Setting zooming out The analysis range can be zoomed out to the range from Marker 1 to Marker 2. <Procedure> Press Press (Zoom Out) to zoom out the displayed waveform data to the range enclosed with Markers 1 and 2. As shown in Figure 4.3.9-5, when Zoom Out is performed after setting the range with Markers 1 and 2, the range of Markers 1 and 2 is changed to the Analysis Start Time and Analysis Time Length.
  • Page 164 Chapter 4 Trace (5) Peak To Peak measurement The AM modulation degree of the measured signal is measured based on the displayed trace data in the marker range. The measurement start and stop points are the trace points of the marker position. When the marker is Off, the entire analysis range becomes the target.
  • Page 165 Power vs Time Table 4.3.9-3 Display items for measurement results Display Item Displays the positive peak AM modulation degree calculated from the following formula: − +Peak Plus where : +Peak [%] Plus : maximum voltage [V] : average voltage [V] Displays the negative peak AM modulation degree calculated from the following formula:...
  • Page 166 Chapter 4 Trace 4.3.10 Setting marker search The marker search functions include Peak search and Next Peak search. Signal Search function menu Pressing (Signal Search) on page 2 of the Trace function menu, or pressing displays the Signal Search function menu. Figure 4.3.10-1 Signal Search function menu 4-104...
  • Page 167 Power vs Time Table 4.3.10-1 Signal Search function menu Menu Display Function Moves the active marker to the maximum level point in the measurement band. If two or more such Peak Search points exist, the point with the lowest time (toward the left of the scale) is selected.
  • Page 168 Chapter 4 Trace Threshold function menu Pressing (Threshold) on the Signal Search function menu displays the Threshold function menu. Figure 4.3.10-2 Threshold function menu Table 4.3.10-2 Threshold function menu Menu Display Function Selects On/Off for the detection Threshold (On/Off) threshold function for peak point detection.
  • Page 169 Power vs Time (1) Executing Peak search The active marker is moved to the position where the marker value becomes maximal in the measurement band. If two or more marker values exist, the point with the lower marker time is selected. Example: To execute a Peak search <Procedure>...
  • Page 170 Chapter 4 Trace (4) Setting the search threshold The threshold to restrict marker values to be searched is set. A search is performed for marker values above or below the threshold. Example: To set threshold limitation to On and marker values below − 10 dBm as search targets <Procedure>...
  • Page 171 Power vs Time 4.3.11 Measure measurement Measure function menu Pressing (Measure) on page 2 of the Trace function menu, or pressing displays the Measure function menu. Figure 4.3.11-1 Measure function menu 4-109...
  • Page 172 Chapter 4 Trace Table 4.3.11-1 Measure function menu Menu Display Function Burst Average Measures the average power of the burst Power signal. AM Depth Measures the AM modulation degree. (On/Off) Parameters are automatically set, according to the communication method specified for the input signal.
  • Page 173 Power vs Time Burst Average Power function menu Press (Burst Average Power) on the Measure function menu to display the Burst Average Power function menu. Figure 4.3.11-2 Burst Average Power function menu Table 4.3.11-2 Burst Average Power function menu Menu Display Function The other measure functions of the same Burst Average Power...
  • Page 174 Chapter 4 Trace (1) Measuring the burst average power The average power of the burst signal displayed on the screen is measured. The measurement start and stop points are marker positions. When either of the markers is set to Off, the entire analysis range will be measured.
  • Page 175 Power vs Time Example: To obtain the effective average power within the range set by the marker <Measurement block> Digital modulation 0 dBm (PHS) MS2690A/MS2691A signal source Center frequency: 1.9 GHz Measurement interval Power level Start point Stop point Figure 4.3.11-4 Measurement block diagram...
  • Page 176 Chapter 4 Trace <Procedure> Press , and then select (Preset). Press Press , and then press (GHz) to set the center frequency. Press Press (Trace Mode), and then press (Power vs Time) to set the trace type. Set the Ref. Level 3 dB above the peak. Press , and then press (Trigger Source) to select Video.
  • Page 177 Power vs Time To obtain the average power between the burst frame, the measurement interval is set to the burst frame time for measurement. (Burst frame) Start point Stop point Figure 4.3.11-6 Measurement interval Figure 4.3.11-7 Measurement results (2) AM Depth Measurement Measures the AM modulation degree of the measured signal, based on the trace data within the marker range.
  • Page 178 Chapter 4 Trace The display items for measurement results are described below. Figure 4.3.11-8 AM Depth measurement result 4-116...
  • Page 179 Power vs Time Table 4.3.11-4 Explanation of Measurement Results Display Item The AM modulation in plus peak is displayed. It is calculated by the following formula. − Plus +Peak However; :+Peak [%] Plus : Max. voltage [V] : Average voltage [V] TheAM modulation in minus peak is displayed.

  • Page 180: Frequency Vs Time

    Chapter 4 Trace 4.4 Frequency vs Time 4.4.1 What is Frequency vs Time trace? Frequency vs Time trace is a screen that displays time fluctuations of the frequency from the obtained IQ digital data. The display items for a Frequency vs Time trace are described below. Figure 4.4.1-1 Display items for Frequency vs Time trace Table 4.4.1-1 Display items for Frequency vs Time trace Display...
  • Page 181 Frequency vs Time 4.4.2 Setting Frequency vs Time parameters After selecting Frequency vs Time for Trace Mode, pressing (Trace) from the main function menu or pressing displays the Trace function menu. The Trace function menu consists of two pages, which can be toggled by pressing 4.1 “Selecting Trace”...
  • Page 182 Chapter 4 Trace Table 4.4.2-1 Trace function menu Menu Display Function Sets the trace type. Trace Mode 4.1 “Selecting Trace” Used for setting related to the analysis time. Analysis Time 4.4.3 “Setting analysis time” Used for setting related to the scale. Scale 4.4.4 “Setting scale”...
  • Page 183 Frequency vs Time 4.4.3 Setting analysis time Pressing (Analysis Time) from the Trace function menu, or pressing displays the Analysis Time function menu. Figure 4.4.3-1 Analysis Time function menu Table 4.4.3-1 Analysis Time function menu Menu Display Function Switches between auto mode and manual Time mode for the analysis start time (Analysis (Main Trace)
  • Page 184 Chapter 4 Trace Setting the analysis time Analysis time is the time to be analyzed. The analysis time can be specified with the analysis start position (Analysis Start Time) and analysis time length (Analysis Time Length). Start point of Capture data Analysis Time Length Analysis time Analysis Start Time...
  • Page 185 Frequency vs Time (2) Manual mode The analysis start time and analysis time length are set manually. This is an effective method for measuring discontinuous signals such as burst. Analysis start time setting range Table 4.4.3-3 Analysis start time setting range in Manual mode Maximum Capture Time Minimum Value [s]...
  • Page 186 Chapter 4 Trace Analysis start time resolution Table 4.4.3-5 Frequency span and resolution Frequency Span Resolution 1 kHz 0.5 ms 2.5 kHz 0.2 ms 5 kHz 0.1 ms 10 kHz 50 µs 25 kHz 20 µs 50 kHz 10 µs 100 kHz 5 µs 250 kHz...
  • Page 187 Frequency vs Time 4.4.4 Setting scale Scale function menu Pressing and then (Scale) displays the Scale function menu. Figure 4.4.4-1 Scale function menu Table 4.4.4-1 Scale function menu Menu Display Function Used for setting related to the Vertical vertical axis (frequency axis) scale. 4-125...
  • Page 188 Chapter 4 Trace Vertical function menu Pressing (Vertical) on the Scale function menu displays the Vertical function menu. Figure 4.4.4-2 Vertical function menu Table 4.4.4-2 Vertical function menu Menu Display Function Scale Unit Sets the unit system of the vertical axis. Width Sets the scale range of the vertical axis.
  • Page 189 Frequency vs Time (1) Setting the vertical axis scale unit In a Frequency vs Time trace, there are the following two types of units (Frequency Scale Units) for the vertical axis scale. Measurement frequency data is displayed. Difference from the center frequency is displayed. ∆Hz: Example: To set the vertical axis scale unit to ∆...
  • Page 190 Chapter 4 Trace 4.4.5 Setting filter Pressing (Filter) on the Trace function menu, or pressing displays the Filter function menu. Figure 4.4.5-1 Filter function menu Table 4.4.5-1 Filter function menu Menu Display Function Sets the filter band auto setting function. Filter Auto/Manual When it is set to Auto, the maximum filter bandwidth available is selected.
  • Page 191 Frequency vs Time Setting range and resolution for filter band Setting range: Refer to Table 4.4.5-2. Rotary knob resolution: 1-3-10 sequence Step key resolution: 1-3-10 sequence Table 4.4.5-2 Filter band setting range Frequency Span Minimum Value Maximum Value 1 kHz 30 Hz 300 Hz 2.5 kHz...
  • Page 192 Chapter 4 Trace 4.4.6 Setting smoothing Pressing and then (View) displays the View function menu. Figure 4.4.6-1 View function menu Table 4.4.6-1 View function menu Menu Display Function Smoothing (On/Off) Sets the smoothing to On/Off. Smoothing Sets the smoothing time length. Time Length 4-130...
  • Page 193 Frequency vs Time (1) Setting the smoothing time length Smoothing processing is performed. To lower the trace noise, the Smoothing function is set to On. Example: To set the Smoothing function to On and smoothing value to 200 ns <Procedure> Press Press (View).
  • Page 194 Chapter 4 Trace 4.4.7 Setting storage mode Pressing and then (Storage) displays the Storage function menu. Figure 4.4.7-1 Storage function menu Table 4.4.7-1 Storage function menu Menu Display Function Used for setting related to update Mode and display of trace data. Count Sets the storage count.
  • Page 195 Frequency vs Time Storage mode types In a Frequency vs Time trace, the following three storage mode types can be selected. Table 4.4.7-2 Three types of storage modes Mode Description Display Example At each capture, the trace data are updated and displayed.
  • Page 196 Chapter 4 Trace Setting range and resolution for storage count Setting range: 2 to 9999 Minimum resolution: Rotary knob resolution: 1 step Step key resolution: 1 step at the highest 1st digit 4-134...
  • Page 197 Frequency vs Time 4.4.8 Setting detection mode The detection mode can be selected by pressing and then (Detection). Detection mode types The detection mode in the analysis range (Detection) is set. The detection mode can be selected from four types: Average, Positive, Negative, and Pos&Neg.
  • Page 198 Chapter 4 Trace (1) Setting the detection mode Example: To set the detection mode to Negative <Procedure> Press Press (Detection) and select Negative. 4-136...
  • Page 199 Frequency vs Time 4.4.9 Setting markers This section describes various Marker functions as well as the functions to improve measurement efficiency, such as marker search and parameter setting with marker values. Pressing (Marker) on page 2 of the Trace function menu, or pressing displays the Marker function menu.
  • Page 200 Chapter 4 Trace Table 4.4.9-1 Marker function menu Menu Display Function Marker 1 (On/Off) Sets whether to display time marker 1. Marker 1 Sets time marker 1. Marker 2 (On/Off) Sets whether to display time marker 2. Marker 2 Sets time marker 2. Active Marker Selects the active marker.
  • Page 201 Frequency vs Time Figure 4.4.9-2 Display items for marker results Table 4.4.9-2 Display items for marker results Display Description Displays the frequency at each MRK1 / MRK2 marker time position. Displays the frequency difference ∆(2 − 1) (Marker 2 − Marker 1) at the marker time position.
  • Page 202 Chapter 4 Trace (1) Changing the marker position Note: The marker position of Power vs Time, Frequency vs Time, Phase vs Time synchronizes one another. The frequency in the specified time can be measured by using the marker displayed in Figure 4.4.9-3. Figure 4.4.9-3 Marker Example: To set Marker 1 to 1.5 µ...
  • Page 203 Frequency vs Time (2) Selecting the active marker Note: This setting is enabled when both Markers 1 and 2 are On. The active marker is selected. The marker position of the active marker can be set with the rotary knob or step key. Example: To set the active marker <Procedure>...
  • Page 204 Chapter 4 Trace Markers 1, 2 Zoom Figure 4.4.9-4 Zoom 4-142...
  • Page 205 Frequency vs Time (4) Setting zooming out Note: This setting is enabled when both Markers 1 and 2 are On. Example: To reduce the analysis range to the range of Markers 1 and 2 <Procedure> Press Press (Zoom Out). The displayed waveform data is zoomed out to the range enclosed with Markers 1 and 2.
  • Page 206 Chapter 4 Trace (5) Peak To Peak measurement The maximum/minimum frequency is measured based on the displayed trace data in the marker range. The measurement start and stop points are the trace points of the marker position. When any of the markers is Off, the entire analysis range becomes the target.
  • Page 207 Frequency vs Time 4.4.10 Setting marker search The marker search functions include Peak search, Next Peak search, Dip search, and Next Dip search. Signal Search function menu Pressing (Signal Search) on page 2 of the Trace function menu, or pressing displays the Signal Search function menu.
  • Page 208 Chapter 4 Trace Table 4.4.10-1 Signal Search function menu Menu Display Function Moves the active marker to the maximum frequency point in the measurement time range. If two or more such points exist, Peak Search the point with the lowest time (toward the left of the scale) is selected.
  • Page 209 Frequency vs Time Threshold function menu Pressing (Threshold) on the Signal Search function menu displays the Threshold function menu. Figure 4.4.10-2 Threshold function menu Table 4.4.10-2 Threshold function menu Menu Display Function Sets the detection threshold function for Threshold (On/Off) peak point detection to On/Off .
  • Page 210 Chapter 4 Trace (1) Executing Peak search The active marker is moved to the position where the marker value becomes maximal in the analysis time range. If two or more marker values exist, the point with the lower marker frequency is selected. When the detection mode is Pos&Neg, a search is executed depending on the marker detection mode setting: Positive detection trace data is searched when Pos is set, and Negative detection trace data is searched when Neg...
  • Page 211 Frequency vs Time (4) Executing Next Dip search The second lowest local maximum point (Dip) next to the marker value of the current active marker is detected and the active marker is moved to that position. If two or more marker values exist, the point with the lower marker frequency is selected.
  • Page 212 Chapter 4 Trace 4.4.11 Measure measurement Measure function menu Press (Measure) on page 2 of Trace menu or press to display Measure function menu. Figure 4.4.11-1 Measure function menu Table 4.4.11-1 Measure function menu Menu display Function FM Deviation Executes FM Deviation measurement. (On/Off) FM CW Executes FM CW signal measurement.
  • Page 213 Frequency vs Time (1) FM Deviation measurement Measures the maximum and minimum frequency, based on the trace data within the marker range. The measurement range is between Marker 1 and 2 points on the trace. When either of Marker 1 and 2 is set to Off, the measurement is performed throughout the range on the trace.
  • Page 214 Chapter 4 Trace (2) FM CW measurement Measures the linearity of the time versus frequency slope of a signal in which the frequency increases or decreases with time (chirp signal) among the FM CW signals. In the FM CW measurement, the measurement range can be set by automatic detection or marker.
  • Page 215 Frequency vs Time If either of start or end of a slope is outside the analysis time length as the following figure, the slope is not detected automatically. Slope end is missing Slope start is missing Figure 4.4.11-4 Cases where a slope is not detected automatically 4-153...
  • Page 216 Chapter 4 Trace FM CW function menu Press (FM CW) on Measure function menu to display FM CW function menu. Table 4.4.11-3 FM CW function menu Function Menu display Function Sets the FM CW measurement function to On/Off. FM CW (On/Off) When it is set to On, other measure functions of the same trace are set to Off.
  • Page 217 Frequency vs Time When detecting slopes automatically with Meas Interval set to Auto, the target slope is shown on a blue background as the following figure. Except the target, downslopes are shown on a green background and upslopes on a purple one. Figure 4.4.11-5 Slopes on colored backgrounds at automatic detection 4-155...
  • Page 218 Chapter 4 Trace Table 4.4.11-4 Display items of measurement results Item Description Displays the RMS value of the frequency error FM Error (rms) between the ideal slope* and measured value. Displays the peak value of the frequency error FM Error (peak) between the ideal slope* and measured value.

  • Page 219: Phase Vs Time

    Phase vs Time 4.5 Phase vs Time 4.5.1 What is Phase vs Time trace? Phase vs Time trace is the display system to display the time fluctuation of phase from the acquired IQ digital data. Display items of Phase vs Time trace are as follows: Figure 4.5.1-1 Display items for Phase vs Time trace Table 4.5.1-1 Display items for Phase vs Time trace Display...
  • Page 220 Chapter 4 Trace 4.5.2 Setting Phase vs Time parameter After selecting Phase vs Time for Trace Mode, pressing (Trace) of the main function key or pressing displays the Trace function menu. Trace function menu consists of two pages, which can be toggled by pressing 4.1 “Selecting Trace”...
  • Page 221 Phase vs Time Table 4.5.2-1 Trace function menu Menu Display Function Sets the trace type. Trace Mode 4.1 ” Selecting Trace” Used for setting related to time. Analysis Time 4.5.3 ”Setting analysis time” Used for setting related to scale. Scale 4.5.4 ”Setting scale”...
  • Page 222 Chapter 4 Trace 4.5.3 Setting analysis time Pressing (Analysis Time) on the Trace function menu or pressing displays the Analysis Time function menu. Figure 4.5.3-1 Analysis Time function menu Table 4.5.3-1 Analysis Time function menu Menu Display Function Switches between auto setting and manual Time setting for the analysis start time (Analysis (Main Trace)
  • Page 223 Phase vs Time Setting analysis time Analysis time is time to be analyzed. The analysis time can be specified with the analysis start position (Analysis Start Time) and analysis time length (Analysis Time Length). Start point of Capture data Analysis Time Length ＊...
  • Page 224 Chapter 4 Trace (2) Manual mode The analysis start time and analysis time length are set manually. This is an effective method to perform measurement of discontinuous signals such as burst. Analysis start time setting range Table 4.5.3-3 Analysis start time setting range in Manual mode Capture Time Minimum Value [s] Maximum Value [s]...
  • Page 225 Phase vs Time Analysis start time resolution Table 4.5.3-5 Frequency span and resolution Frequency Span Resolution 1 kHz 0.5 ms 2.5 kHz 0.2 ms 5 kHz 0.1 ms 10 kHz 50 µs 25 kHz 20 µs 50 kHz 10 µs 100 kHz 5 µs 250 kHz...
  • Page 226 Chapter 4 Trace 4.5.4 Setting scale Scale function menu Pressing , and then (Scale) displays the Scale function menu. Figure 4.5.4-1 Scale function menu Table 4.5.4-1 Scale function menu Menu Display Function Used for setting related to the vertical axis Vertical (phase axis) scale.
  • Page 227 Phase vs Time Vertical function menu Pressing (Vertical) on the Scale function menu displays the Vertical function menu. Figure 4.5.4-2 Vertical function menu Table 4.5.4-2 Vertical function menu Menu Display Function Scale Division Sets the range of the vertical axis. (1) Setting the numeric range of the vertical axis For Phase vs Time trace, the vertical axis setting range (Phase Scale Division) is as follows:...
  • Page 228 Chapter 4 Trace 4.5.5 Setting detection mode Pressing , and then (Detection) selects the detection mode. Detection mode types The detection mode within analysis range (Detection) is set. The detection mode can be selected from four types: Average, Sample, Positive, and Negative.
  • Page 229 Phase vs Time 4.5.6 Setting markers This section describes various Marker functions as well as the functions to improve measurement efficiency, such as marker search and parameter setting with marker values. Pressing (Marker) on page 2 of the Trace function menu, or pressing displays the Marker function menu.
  • Page 230 Chapter 4 Trace Figure 4.5.6-2 Display items for marker results Table 4.5.6-2 Display items for marker results Display Description Displays the phase at each marker time MRK1 / MRK2 position. Displays the phase difference (Marker 2 – Δ( 2 – 1 ) Marker 1) at marker time position.
  • Page 231 Phase vs Time (1) Changing the marker position Note: The marker position of Power vs Time, Frequency vs Time, Phase vs Time synchronizes one another. The phase in the specified time can be measured by using the marker displayed in Figure 4.5.6-3. Figure 4.5.6-3 Marker Example: To set Marker 1 to 1.5 µ...
  • Page 232 Chapter 4 Trace (2) Selecting the active marker Note: This setting is enabled when both Marker 1 and 2 are On. The active marker is selected. The marker position of the active marker can be set with the rotary knob or step key. Example: To set the active marker <Procedure>...
  • Page 233 Phase vs Time Markers 1, 2 Zoom Figure 4.5.6-4 Zoom 4-171...
  • Page 234 Chapter 4 Trace (4) Setting zooming out Note: This setting is enabled when both Marker 1 and 2 are On. Example: To reduce the analysis range to the range of Markers 1 and 2 <Procedure> Press Press (Zoom Out). The displayed waveform data is zoomed out to the range enclosed with Markers 1 and 2.
  • Page 235 Phase vs Time 4.5.7 Setting methods Method function menu Pressing (Method) on page 1 of Trace function menu displays Method function menu. Figure 4.5.7-1 Method function menu Table 4.5.7-1 Method function menu Menu Display Function Phase Mode Sets wrap or unwrap. Sets the offset value of the Phase vs Time Phase Offset graph.
  • Page 236 Chapter 4 Trace (1) Setting vertical axis offset Vertical axis offset is set. The setting range is as follows: Setting range of phase offset: –100 M to +100 M Example: To set the offset of the vertical axis to 10 <Procedure>...

  • Page 237: Ccdf

    CCDF 4.6 CCDF 4.6.1 What is CCDF trace? CCDF trace is a screen that performs a CCDF (Complementary Cumulative Distribution Function) analysis of the obtained IQ digital data to display. The display items for a CCDF trace are as described below. [10] [11] Figure 4.6.1-1 Display items for CCDF trace...
  • Page 238 Chapter 4 Trace Table 4.6.1-1 Display items for CCDF trace Display Descriptions Analysis Start Time/ Displays the analysis start time and analysis Analysis Time time length. Length Displays the filter bandwidth. “Not Filtered” Filter BW is displayed when the filter is Off. Method Displays the measurement method.
  • Page 239 CCDF 4.6.2 Setting CCDF parameters After selecting CCDF for Trace Mode, pressing (Trace) on the main function menu or pressing displays the Trace function menu. 4.1 “Selecting Trace” Trace function menu consists of two pages, which can be toggled by pressing Figure 4.6.2-1 Trace function menu 4-177...
  • Page 240 Chapter 4 Trace Table 4.6.2-1 Trace function menu Menu Display Function Sets the trace type. Trace Mode 4.1 “Selecting Trace” Used for setting related to the analysis time. Analysis Time 4.6.4 “Setting analysis time” Sets the scale. Scale 4.6.6 “Setting display format” Used for setting related to cumulative data reset.
  • Page 241 CCDF 4.6.3 Selecting measurement method Pressing and then (Method) displays the Method function menu. Figure 4.6.3-1 Method function menu Table 4.6.3-1 Method function menu Menu Display Function Measure Method Selects the measurement method. (CCDF/APD) Enables/Disables the minimum level set for Threshold CCDF measurement.
  • Page 242 Chapter 4 Trace (1) Setting the measurement method Select the measurement method (Measure Method). There are the following two measurement method types. CCDF: Measures and displays CCDF (Complementary Cumulative Distribution Function). In this measurement, the cumulative distribution of instantaneous power deviation for the average power is measured and displayed.
  • Page 243 CCDF Note: This function cannot be set when Capture Time is Manual. For the Capture Time settings, refer to Section 4.6.4 “Setting analysis time”. Example: To set CCDF Meas Mode <Procedure> Press Press (Method). Press (CCDF Meas Mode) to select Time or Count. 4-181...
  • Page 244 Chapter 4 Trace 4.6.4 Setting analysis time Pressing (Analysis Time) on the Trace function menu, or pressing displays the Analysis Time function menu. Trace function menu consists of two pages, which can be toggled by pressing Figure 4.6.4-1 Analysis Time function menu 4-182...
  • Page 245 CCDF Table 4.6.4-1 Analysis Time function menu Menu Display Function Switches between auto mode and manual mode Time for the analysis start time (Analysis Start Time) (Main Trace) and analysis time length (Analysis Time (Auto/Manual) Length). Start Time Sets the analysis start time. (Main Trace) Time Length Sets the analysis time length.
  • Page 246 Chapter 4 Trace Setting the analysis time Analysis time is the target time for analysis. The analysis time can be specified with the analysis start position (Analysis Start Time) and analysis time length (Analysis Time Length). Start point of Capture data Analysis Time Length Analysis time Analysis Start Time...
  • Page 247 CCDF (2) Manual mode The analysis start time and analysis time length are set manually. This is an effective method for measuring discontinuous signals such as burst. Analysis start time setting range Table 4.6.4-3 Analysis start time setting range in Manual mode Capture Time Minimum Value [s] Maximum Value [s]...
  • Page 248 Chapter 4 Trace Analysis start time and analysis time length resolution Table 4.6.4-5 Frequency span and resolution Frequency Span Resolution 1 kHz 0.5 ms 2.5 kHz 0.2 ms 5 kHz 0.1 ms 10 kHz 50 µs 25 kHz 20 µs 50 kHz 10 µs 100 kHz...
  • Page 249 CCDF Setting procedure for analysis time Example: To set the analysis start time to 20 ms and analysis time length to 60 ms <Procedure> Press Press (Start Time). Press , and then press (ms) to set the analysis start time. Press (Time Length).
  • Page 250 Chapter 4 Trace Setting procedure for gate mode Example: To set the period to 6 ms <Procedure> Open the second page of the Analysis Time function menu, and press (Gate Mode) to set the gate mode to On. Press (Period). The period is set when pressing (ms).
  • Page 251 CCDF 4.6.5 Setting range When pressing (Analysis Time) and (Range Setup) after pressing , the Range Setup function menu is displayed. Figure 4.6.5-1 Range function menu Table 4.6.5-1 Explanation of Range function menu Menu Display Function Edit Range Number Edits the range number to be measured. Sets whether to execute the range Range (On/Off) measurement.
  • Page 252 Chapter 4 Trace 4.6.6 Setting display format Pressing and then (Scale) displays the Scale function menu. Figure 4.6.6-1 Scale function menu Table 4.6.6-1 Scale function menu Menu Display Function Horizontal Scale Changes the scale of the power axis. (1) Setting the Horizontal Scale The power axis scale is set.
  • Page 253 CCDF 4.6.7 Setting cumulative data reset Pressing and then (Storage) displays the Storage function menu. Figure 4.6.7-1 Storage function menu Table 4.6.7-1 Storage function menu Menu Display Function Reset Every Capture Sets whether to reset the results for each (On/Off) measurement.
  • Page 254 Chapter 4 Trace In a CCDF trace, the obtained IQ data is accumulated as cumulative data even after one measurement is finished, unless otherwise specified. (1) Setting Restart All the accumulated data is erased. Data Count is re-started from 0. Example: To set Restart <Procedure>...
  • Page 255 CCDF 4.6.8 Setting Trace Display This allows you to configure settings related to trace display for CCDF. Pressing (View) in the Trace function menu displays the View function menu. Figure 4.6.8-1 View function menu Table 4.6.8-1 View function menu description Menu Display Function Temporarily saves the currently displayed trace.
  • Page 256 Chapter 4 Trace 4.6.9 Setting filter The setting related to the filter is performed. Pressing (Filter) from the Trace function menu, or pressing displays the Filter function menu. Figure 4.6.9-1 Filter function menu Table 4.6.9-1 Filter function menu Menu Display Function Type Selects the filter type.
  • Page 257 CCDF (1) Rectangular filter Example: To set the filter shape to Rect, filter bandwidth to 6 MHz, and filter frequency offset to 1 kHz <Procedure> Press Press (Type) and select Rect. Press (Band Width). Press , and then press (MHz) to set the filter bandwidth. Press (Freq.
  • Page 258 Chapter 4 Trace 4.6.10 Setting markers This section describes various Marker functions. Pressing (Marker) on page 2 of the Trace function menu, or pressing displays the Marker function menu. Figure 4.6.10-1 Marker function menu Table 4.6.10-1 Marker function menu Menu Display Function Marker (On/Off) Sets the marker to On/Off .
  • Page 259 CCDF Figure 4.6.10-2 Display items for marker results Table 4.6.10-2 Display items for marker results Display Descriptions Displays the power deviation for the probability specified by the marker, or MKR/Meas. probability for the power deviation specified by the marker. Displays the marker result for the Gaussian waveform.
  • Page 260 Chapter 4 Trace Changing the marker position The power deviation with the specified probability or the probability of the specified power deviation can be measured depending on the displayed marker. (1) Setting the marker axis The marker axis can be selected from the following two types. Distribution: Sets the marker line to power Probability:...
  • Page 261 CCDF Example: Setting the Probability Position value to 10% <Procedure> Press Press (Probability Position). Press , and then press (%) to set the marker position on the probability distribution axis. Setting range and resolution for Probability Position Setting range: 0.0001 to 100 Minimum resolution: 0.0001% Rotary knob resolution:...

  • Page 262: Spectrogram

    Chapter 4 Trace 4.7 Spectrogram 4.7.1 What is Spectrogram Trace? Spectrogram trace analyzes the captured IQ data by using FFT (Fast Fourier Transform) and diagrams the changes in a spectrum over time. The display items of Spectrogram trace are described below: Figure 4.7.1-1 Spectrogram Trace Display Items Table 4.7.1-1 Spectrogram Trace Display Items Display...
  • Page 263 Spectrogram 4.7.2 Setting Spectrogram Parameter Press (Trace) or press on the main function menu of the Spectrogram trace to display Trace function menu. Trace function menu has 2 pages. Press to switch the pages. 4.1 “Selecting Trace” Figure 4.7.2-1 Trace function menu 4-201...
  • Page 264 Chapter 4 Trace Table 4.7.2-1 Trace function menu Menu Function Sets the trace mode. Trace Mode 4.1 “Selecting Trace” Sets the analysis time. Analysis Time 4.7.3 “Setting Analysis Time” Sets the scale. Scale 4.7.4 “Setting Scale” Configures the setting to update and display the trace data.
  • Page 265 Spectrogram 4.7.3 Setting Analysis Time Press (Analysis Time) on the Trace function menu or press display the Analysis Time function menu. Figure 4.7.3-1 Analysis Time function menu Table 4.7.3-1 Analysis Time function menu Menu Function Time Sets Auto/Manual for the analysis start time (Main Trace) (Analysis Start Time) and the analysis time (Auto/Manual)
  • Page 266 Chapter 4 Trace Setting the analysis time Analysis time is the time during which the analysis is performed. It is set by the analysis start time (Analysis Start Time) and the analysis time length (Analysis Time Length). Capture data start point Analysis Time Length Analysis Time Analysis Start Time...
  • Page 267 Spectrogram (2) Manual mode Manual mode allows you to set the analysis start time and the analysis time length manually. It is useful to measure a discontinuous signal such as burst. Setting range for Analysis Start Time Table 4.7.3-3 Setting range in Manual mode Capture Time Minimum[s] Maximum[s]...
  • Page 268 Chapter 4 Trace Setting resolution of Analysis Start Time Table 4.7.3-5 Frequency Span and Setting Resolution Frequency Span Setting Resolution 1 kHz 0.5 ms 2.5 kHz 0.2 ms 5 kHz 0.1 ms 10 kHz 50 µs 25 kHz 20 µs 50 kHz 10 µs 100 kHz...
  • Page 269 Spectrogram 4.7.4 Setting Scale Scale function menu On the main function menu, press (Trace) or press , and then press (Scale) to display the Scale function menu. Figure 4.7.4-1 Scale function menu Table 4.7.4-1 Scale function menu Menu Item Function Level Full Scale Sets the scale range of the level axis.
  • Page 270 Chapter 4 Trace 4.7.5 Setting Resolution Bandwidth (RBW) On the Trace function menu, press (RBW) or press to display the RBW function menu. Figure 4.7.5-1 RBW function menu Table 4.7.5-1 RBW function menu Menu Item Function Sets Auto/Manual for the resolution bandwidth RBW (Auto/Manual) (RBW).
  • Page 271 Spectrogram 4.7.6 Setting Storage Mode Press and then press (Storage) to display the Storage function menu. Figure 4.7.6-1 Storage function menu Table 4.7.6-1 Storage function menu Menu Item Function Sets the mode to update and display the trace Mode data. Count Sets the storage count.
  • Page 272 Chapter 4 Trace Storage Mode There are four storage modes in Spectrogram trace, as shown below: Table 4.7.6-2 Storage Mode Type Mode Descriptions At each capture, the trace data are updated and displayed. These data are used for normal measurement. Averages the data at each point and displays the result, each time it is captured.
  • Page 273 Spectrogram 4.7.7 Setting Detection Mode Press and then press (Detection) to select the detection mode. Type of detection mode The detection mode can be selected from three options: Average, Positive, and Negative. Table 4.7.7-1 Detection mode within analysis range Mode Descriptions Traces the average point in the frequency axis Average...
  • Page 274 Chapter 4 Trace 4.7.8 Setting Marker This section describes the functions to improve the measurement efficiency of the functions, such as parameter settings by a marker value. Press (Marker) on page 2 of the Trace function menu or press to display the Marker function menu. Figure 4.7.8-1 Marker function menu 4-212...
  • Page 275 Spectrogram Table 4.7.8-1 Marker function menu Menu display Function Selects the active marker. Marker (On/Off), Active Marker Frequency Zone Center, Frequency Zone (1/2) Width, Time1, and Time2 have their own values in both Marker 1 and 2. Displays/Hides the marker set in the active Marker(On/Off) marker.
  • Page 276 Chapter 4 Trace Marker Result function menu Press (Marker Result) on page 2 of the Marker function menu to display the Marker Result function menu. Figure 4.7.8-2 Marker Result function menu Table 4.7.8-2 Marker Result function menu Menu Function Integration Displays the total power in the zone band.
  • Page 277 Spectrogram Figure 4.7.8-3 Display items of marker result Table 4.7.8-3 Display item of marker result Display Descriptions Displays the frequency and time of the active marker. When Marker Result is set to Peak, MRK 1/MKR the peak point is displayed as □ on the trace. 2/MKR1□/MKR If the marker is set to active, the peak is 2□...
  • Page 278 Chapter 4 Trace Setting of Marker Result The settings of Marker Result are shown below: Integration: Displays the total power within the zone maker band. Density: Displays the power per 1 Hz within the zone marker width. Peak (Fast): Displays the peak power within the zone marker width quickly.
  • Page 279 Spectrogram Changing the marker position and width On Figure 4.7.8-4 below, the frequency markers are displayed as F on the vertical (frequency) axis, and the time markers are displayed as T on the horizontal (time) axis. When Marker Type is set to Zone, the time markers (T1 and T2) are displayed.
  • Page 280 Chapter 4 Trace (2) Changing the position of the time marker Example: To set the position of the time marker 1 to 0.6 ms <Procedure> 1. Press 2. Press (Time 1) on the Marker main function menu. 3. Press and then press (ms) to set the position of the time marker.
  • Page 281 Spectrogram (6) Executing Marker to Center Freq. Sets the marker frequency to the center frequency (Center Frequency). Example: To detect the peak power within the measurement bandwidth and set it to the center frequency <Procedure> 1. Press 2. Press (Marker to Center Freq.) on page 2 of the Marker function menu.
  • Page 282 Chapter 4 Trace After executed, the parameters on Spectrum trace are set to the setting values, as Table 4.7.8-4 shows: Table 4.7.8-4 Parameter values set after executing Analyze with Spectrum Trace Parameter on Spectrum trace Setting Value RBW Auto/Manual RBW Auto/Manual on Spectrogram trace RBW on Spectrogram trace Zone Width Type of Marker 1 Marker Type on Spectrogram trace...

  • Page 283: No Trace

    As analysis is not executed, Save Waveform function for saving waveform data cannot be used. For details of Save Waveform functions, refer to “3.6.1 Saving “MS2690A/MS2691A/MS2692A parameters and waveform data” in the Signal Analyzer Operation Manual (Mainframe Operation).”...
  • Page 284 Chapter 4 Trace 4.8.2 Setting No Trace parameters Press (Trace) or press on the main function menu of the No Trace to display Trace function menu. 4.1 “Selecting Trace” Figure 4.8.2-1 Trace function menu Table 4.8.2-1 Trace function menu Menu Function Sets the trace mode.
  • Page 285 No Trace 4.8.3 Setting Analysis Time Press (Analysis Time) on the Trace function menu or press display the Analysis Time function menu. Table 4.8.3-1 Analysis Time function menu Function key Menu Function Time Sets Auto/Manual for the analysis start time (Main Trace) (Analysis Start Time) and the analysis time (Auto/Manual)
  • Page 286 Chapter 4 Trace Setting the analysis time Analysis time is the time during which the analysis is performed. If No Trace is selected as the Trace mode, then analysis is not executed. Analysis time setting may, however, be required in outputting IQ data. It is set by the analysis start time (Analysis Start Time) and the analysis time length (Analysis Time Length).
  • Page 287 No Trace (2) Manual mode Manual mode allows you to set the analysis start time and the analysis time length manually. Setting range for Analysis Start Time Table 4.8.3-3 Setting range in Manual mode Capture Time Minimum[s] Maximum[s] x − Auto x −...
  • Page 288 Chapter 4 Trace Setting resolution of Analysis Start Time Table 4.8.3-5 Frequency Span and Setting Resolution Frequency Span Setting Resolution 1 kHz 0.5 ms 2.5 kHz 0.2 ms 5 kHz 0.1 ms 10 kHz 50 µs 25 kHz 20 µs 50 kHz 10 µs 100 kHz...

  • Page 289: Sub-Trace

    Sub-Trace 4.9 Sub-Trace 4.9.1 What is Sub Trace? A sub-trace can be displayed as an aid to the normal trace (main trace). Select either Power vs Time or Spectrogram as the sub-trace to display the trace data for any time range. Displaying the sub-trace allows the analysis range of the main trace to be confirmed and set while checking on two screens.
  • Page 290 Chapter 4 Trace 4.9.2 Setting parameters for Sub Trace Pressing (Trace) on the main function menu or pressing displays the Trace function menu. Pressing (Sub Trace Setting) on the Trace function menu displays the Sub Trace Setting function menu. This section describes how to set parameters for a sub-trace. Figure 4.9.2-1 Sub Trace Setting function menu 4-228...
  • Page 291 Sub-Trace Table 4.9.2-1 Sub Trace Setting function menu Menu Display Function Sets the sub-trace type. Trace Mode 4.9.3 “Selecting Sub Trace” Used for setting related to the analysis time. Analysis Time 4.9.4 “Setting analysis time” Used for setting related to the scale. Scale 4.9.5 “Setting scale”...
  • Page 292 Chapter 4 Trace 4.9.3 Selecting Sub Trace Pressing (Trace Mode) on the Sub Trace Setting function menu displays the Trace Mode function menu. This section describes how to set sub-trace types. Figure 4.9.3-1 Trace Mode function menu Table 4.9.3-1 Trace Mode function menu Menu Display Function Does not display a sub-trace.
  • Page 293 Sub-Trace 4.9.4 Setting analysis time Pressing (Analysis Time) on the Sub Trace Setting function menu displays the Analysis Time function menu. This section describes how to set the analysis time for a sub-trace. When the sub-trace is set to Power vs Time or Spectrogram, you can set the analysis time of the sub-trace.
  • Page 294 Chapter 4 Trace When both Analysis Time and Capture Time are set to Auto, the analysis start time and the analysis time length are the same as those of the main trace. When Capture Time is set to Manual and when Analysis Time is set to Auto, the analysis start time is set to the minimum value and the time length is set to the maximum value.
  • Page 295 Sub-Trace 4.9.5 Setting scale Pressing (Scale) on the Sub Trace Setting function menu displays the Scale function menu. This section describes how to set the scale range for a sub-trace. Figure 4.9.5-1 Scale function menu Table 4.9.5-1 Scale function menu Menu Display Function Sets the scale range of the level axis.
  • Page 296 Chapter 4 Trace Table 4.9.5-2 Setting Range Scale Setting range Log Scale 10, 20, 50, 100, 150 dB Lin Scale 10, 20, 50, 100 % 4.9.6 Setting resolution bandwidth (RBW) Pressing (RBW) on the Sub Trace Setting function menu displays the RBW (Sub Trace) function menu.
  • Page 297 Sub-Trace 4.9.7 Setting detection mode Pressing (Detection) on the Sub Trace Setting function menu displays the Detection function menu. This section describes the detection mode of a sub-trace. Figure 4.9.7-1 Sub Trace Setting function menu Table 4.9.7-1 Detection modes in analysis range Detection mode Descriptions Traces the average value within the analysis...
  • Page 298 Chapter 4 Trace 4-236.

  • Page 299: Chapter 5 Digitize Function

    Chapter 5 Digitize Function This chapter describes how to save IQ data to external memory and data file formats and how to replay the saved IQ data. Saving IQ Data.............. 5-2 5.1.1 Format of data information file ......5-7 5.1.2 Format of data file ..........5-9 Replay Function ............

  • Page 300: Saving Iq Data

    Chapter 5 Digitize Function 5.1 Saving IQ Data Pressing (Capture) from the main function menu and then pressing (Save Captured Data) displays the Save Captured Data function menu. Note: IQ data should be saved or digitized after a single sweeping has been executed and ended, even when trigger function is used.
  • Page 301 Saving IQ Data Table 5.1-1 Save Captured Data (Cont’d) Menu Display Function Sets the start time of the IQ data to be saved when Time Range is set to Manual. Full: Saves all IQ data that are obtained. Parts of IQ data that are obtained for calculation and are not displayed on the trace data are also saved.
  • Page 302 A 2-digit sequential number from 0 to 999 is added to the file name. Files are saved in the following directory of the saving target drive specified by (Device). \Anritsu Corporation\Signal Analyzer\User Data\Digitized Data\Signal Analyzer Up to 1000 files can be saved in the folder.
  • Page 303 Saving IQ Data The rate of the output data when Capture Time is set to Manual can be changed. The setting range of the output data rate and the resolution change according to the frequency span are as shown in Table 5.1-2. Table 5.1-2 Frequency span and setting resolution/setting range Setting Frequency span...
  • Page 304 Chapter 5 Digitize Function Example: To save W-CDMA signal (Chip Rate: 3.84 MHz) for 10 ms with an oversampling rate of 15.36 MHz, which is four times of the chip rate. <Procedure> 1. Press 2. Press , and then press (MHz) to set the frequency span to 10 MHz.
  • Page 305 Saving IQ Data 5.1.1 Format of data information file The information on the saved IQ data is recorded in the data information file. Table 5.1.1-1 shows the details of the recorded parameters. Table 5.1.1-1 Format of data information file Item Description Year/Month/Day of the captured data in CaptureDate...
  • Page 306 Chapter 5 Digitize Function Table 5.1.1-1 Format of data information file (Cont’d) Item Description Trigger source “Video”: Video trigger TriggerSource “WideIF”: Wide IF video trigger “External”: External trigger “SGMarker”: SG marker trigger Trigger level [dBm] Note that this value does not include the TriggerLevel reference level offset.
  • Page 307 Saving IQ Data 5.1.2 Format of data file The data file is created in binary format. From the beginning of the file, I-phase data and Q-phase data are recorded by 4 bytes. The I-phase data and Q-phase data are recorded as a float type (IEEE real*4). Beginning of the file I-phase data 1 (4 bytes)

  • Page 308: Replay Function

    Chapter 5 Digitize Function 5.2 Replay Function The Replay function allows you to replay the saved IQ data. Pressing (Capture) on the main function menu and then (Replay) displays the Replay function menu. Figure 5.2-1 Replay function menu Table 5.2-1 Description of Replay function menu Menu Display Function Device...
  • Page 309 Replay Function 5.2.1 Starting Replay function Start the Replay function using the following procedure. Example: To start the Replay function <Procedure> 1. Press (Capture) on the main function menu. 2. Press (Replay) on the Capture function menu. 3. Press (Device) on the Replay function menu to select the drive in which the target file is stored.
  • Page 310 Chapter 5 Digitize Function Reanalysis of Digitized File When the target IQ data is saved with Save Captured Data of this application, it can be analyzed in the same range as the analysis range when the data was saved, by setting the Capture Time to Manual. Note: IQ data files that have been saved with the previous version cannot be analyzed in the same range as the analysis range when...
  • Page 311 Replay Function 5.2.2 Display During Replay Function Execution appears if the IQ data file meets the following conditions: • Frequency reference is Unlocked when IQ data is saved • Level Over occurs when IQ data is saved 5.2.3 Restrictions During Replay Function Execution Since the signals to be analyzed are fixed during replay, the following functions are restricted.
  • Page 312 Chapter 5 Digitize Function Table 5.2.3-1 Functions Restricted During Replay (Cont’d) Function Erase Warm Up Message Terminal Change Target System AD Full Range I/Q Sign Measurement Channel Capture Sample Length Analysis Start Sample Analysis Sample Length Input Source Vertical Scale Center Smoothing Sample Length Marker Unit Also, during replay, the reference level setting range is as follows,...
  • Page 313 Replay Function The analysis range is set by using either of the following remote commands: :MMEMory:LOAD:IQData:INFormation? :MMEMory:LOAD:IQData:INFormation:LENGth?. 5.2.4 Condition of IQ Data File for Replay The condition of IQ data files for which replay analysis is possible is as follows. Format of waveform data file: I, Q (Binary format) Table 5.2.4-1 lists the combinations of frequency span and sampling rate for which analysis is possible.
  • Page 314 Chapter 5 Digitize Function Table 5.2.4-2 lists the minimum data length settings (Capture Sample) for which analysis is possible. Table 5.2.4-2 Minimum Data Length CaptureSample Frequency Span 74000 1 kHz 160000 2.5 kHz 310000 5 kHz 610000 10 kHz 730000 Other than the above Notes ：...
  • Page 315 Replay Function 5.2.5 Stopping Replay function Stop the Replay function using the following procedure. <Procedure> Press (Capture) on the main function menu. Press (Stop Replaying). 5-17...

  • Page 316: Playback Function

    Chapter 5 Digitize Function 5.3 Playback Function The Playback function converts the captured data into waveform patterns and outputs them by loading into the vector signal generator option. Press (Capture) in the Main function menu, and then press (Capture & Playback) in the Capture function menu to display the Playback function menu.
  • Page 317 Playback Function Package Default Playback Available characters Alphanumeric characters and the following symbols ! % & ( ) + = ‘ { } _ - ^ @ [ ] Character number 31 characters at maximum Pattern Name Default Same as Saving Files in 5.1 “Saving IQ Data”. Available characters Alphanumeric characters and the following symbols ! % &...
  • Page 318 Chapter 5 Digitize Function ： Note Time Length： The set value for F3 Time Length in Table 4.2.3-1 Analysis Time function menu is used here. Time Resolution： The value is decided as in Table 4.2.3-5 Frequency span and resolution. 5-20...
  • Page 319 • Frequency and level are below the limit : Rounded up to the lower limit. For the setting range of the vector signal generator option, refer to MS2690A/MS2691A/MS2692A Signal 1.3 “Specifications” in the Analyzer Option 020: Vector Signal Generator Operation Manual (Operation) Signal is output from the vector signal generator option.
  • Page 320 Chapter 5 Digitize Function 5.3.2 Display During Playback Function Execution While executing Playback function, the Capture & Playback function menu and the Capture & Playback dialog box are displayed. Table 5.3.2-1 Description of Capture & Playback function menu Function Menu Display Function Cancel Aborts the execution of Playback function.
  • Page 321 Playback Function Execute Capture & Playback Saving Captured Data Recording icon blinking Displays progress Converting into Waveform Patterns Playback icon blinking Displays progress Loading Waveform Patterns into Memory of Vector Signal Generator Option Playback icon blinking Displays progress Output Waveform Patterns (Select loaded...
  • Page 322 Chapter 5 Digitize Function 5.3.3 Aborting Playback function While executing Playback function, pressing (Cancel) in the Capture & Playback function menu can abort the operation. The processing of generated data files differs depending on the aborted timing of Playback function. Saving captured data in progress Aborts saving captured data.

  • Page 323: Chapter 6 System Setting

    Chapter 6 System Setting This chapter describes how to perform system setting for the Signal Analyzer function. Setting System .............. 6-2 Erasing Warm up Message .......... 6-3 Setting Title ..............6-4 Adjusting Internal Reference Clock Signal ....6-5 Input Source for Reference Clock Signal ..... 6-6 Pre-Amp On/Off Display ..........

  • Page 324: Setting System

    Chapter 6 System Setting 6.1 Setting System Pressing (Accessory) from the main function menu displays the Accessory function menu. Figure 6.1-1 Accessory function menu Table 6.1-1 Accessory function menu Menu Display Function Specifies the title. Title 6.3 “Setting Title” Sets whether to display the title. Title (On/Off) 6.3 “...

  • Page 325: Erasing Warm Up Message

    Erasing Warm up Message 6.2 Erasing Warm up Message If the warm up message ( ) indicating that the level and frequency are not stable is displayed upon power on, the message can be forcefully erased. Setting example: Erasing the warm up message <Procedure>...

  • Page 326: Setting Title

    Chapter 6 System Setting 6.3 Setting Title Settings related to the title displayed on the screen can be configured. For the Signal Analyzer function, a title of up to 32 characters can be displayed on the screen. (Character strings of up to 17 characters can be displayed on a function menu.) Example: To set the title <Procedure>...

  • Page 327: Adjusting Internal Reference Clock Signal

    Adjusting Internal Reference Clock Signal 6.4 Adjusting Internal Reference Clock Signal Pressing (Reference Clock) from the Accessory function menu displays the Reference Clock function menu. Figure 6.4-1 Reference Clock function menu Table 6.4-1 Reference Clock function menu Menu Display Function Adjusts the frequency of the internal reference Reference Clock clock signal.

  • Page 328: Input Source For Reference Clock Signal

    Chapter 6 System Setting 6.5 Input Source for Reference Clock Signal The reference clock signal used is displayed on the screen. Ref.Int: The internal reference clock signal is used. Ref.Int Unlock: The internal reference clock signal is unlocked. The internal hardware may be faulty. Ref.Ext: The external reference clock signal is used.

  • Page 329: Pre-Amp On/Off Display

    Pre-Amp On/Off Display 6.6 Pre-Amp On/Off Display If the Option 008 6 GHz Preamplifier is installed, whether the pre-amp is on or off is displayed at the lower left of the screen. 2.3.6 “Pre Amp” Figure 6.6-1 Pre-Amp display...

  • Page 330: Setting Preselector

    6 GHz. To eliminate the spurious responses to display only the real signal on the screen, the MS2691A/MS2692A uses a preselector. The preselector is a tunable band-pass filter that follows the reception frequency of the analyzer.
  • Page 331 Setting Preselector For preselector tuning, use an unmodulated signal. If a modulation signal is used, proper tuning may not be executed. Before the measurement of a modulation signal, input an unmodulated signal from the signal generator for preselector tuning in advance. 6.7.1 Preselector auto tuning Tunes the preselector peaking bias value automatically, and performs the preselector auto tuning.
  • Page 332 Chapter 6 System Setting 6-10.

  • Page 333: Chapter 7 Setting Digrf 3G

    Chapter 7 Setting DigRF 3G This chapter describes the detailed description of the DigRF 3G settings. DigRF 3G is unavailable when the Option 040/140 is not installed or the software package is Ver.6.00.00 or later. Display Description ............7-2 Setting Input ..............7-3 7.2.1 Setting terminal ..........

  • Page 334: Display Description

    Chapter 7 Setting DigRF 3G 7.1 Display Description Displays (Input) button on the main function menu on the main screen, when option 040 is installed. Figure 7.1-1 Main function Menu Table 7.1-1 Main function Menu Menu Display Function Sets the frequency. Frequency 7.3 “Setting Frequency”...

  • Page 335: Setting Input

    Setting Input 7.2 Setting Input Displays the Input function menu when press the (Input) button on the main function menu Figure 7.2-1 Input function menu Table 7.2-1 Input function menu Menu Display Function Sets the terminal. Terminal 7.2.1 “Setting terminal” Sets the DigRF 3G.
  • Page 336 Chapter 7 Setting DigRF 3G 7.2.1 Setting terminal Displays the Terminal function menu when press the (Terminal) button on the Input function menu. Figure 7.2.1-1 Terminal function menu Table 7.2.1-1 Terminal function menu Menu Display Function Sets RF for Terminal. Sets DigRF 3G for Terminal.
  • Page 337 Setting Input 7.2.2 Setting DigRF 3G Displays the DigRF 3G Setting function menu when press (DigRF 3G Setting) button on the Input function menu. Figure 7.2.2-1 DigRF 3G Setting function menu Table 7.2.2-1 DigRF 3G Setting function menu Menu Display Function Target System Sets the target system.
  • Page 338 Chapter 7 Setting DigRF 3G Setting target system Selects the communication method of input signal. (1) W-CDMA To set W-CDMA to the communication method of input signal. Sample bit for the W-CDMA is 8 bits (decimal number: –128 to 127). (2) GSM To set GSM to the communication method of input signal.
  • Page 339 Setting Input Setting I/Q sign Sets the I/Q sign. (1) Sign  Abs. Defined by “Sign bit  Absolute value”. (2) Two's Complement Defined by “Two's complement”. Example: To set the I/Q Sign to Two's Complement. <Procedure> Press (DigRF 3G Setting) on the Input function menu. Press (I/Q Sign).

  • Page 340: Setting Frequency

    Setting preselector auto tune Note: The settings of this function is only enable when the instrument is MS2691A or MS2692A, also Terminal is set RF. Settings for Preselector Auto Tune cannot be performed when the terminal is set to DigRF 3G.

  • Page 341: Setting Level

    Setting Level 7.4 Setting Level This section describes limited function of level settings when Terminal is set to DigRF 3G. Refer to Section 2.3 “Setting Level” for the settings not mentioned here, since they are the same as when terminal is RF. Figure 7.4-1 Amplitude function menu Table 7.4-1 Amplitude function menu Menu Display...
  • Page 342 Chapter 7 Setting DigRF 3G Setting Pre-Amp Note: The settings of this function are enabled only when option 008 is installed, and Terminal is set to RF. You cannot set the pre amp when Terminal is DigRF 3G. Setting scale The settings of scale are the same as when Terminal is RF.

  • Page 343: Setting Iq Data Capture Time Range

    Setting IQ Data Capture Time Range 7.5 Setting IQ Data Capture Time Range This section describes setting method of the IQ data capture time range by sample unit when Terminal is set to DigRF 3G. Refer to Section 2.4 “Setting IQ Data Capture Time Range” for the settings not mentioned here, since they are the same as when terminal is RF.
  • Page 344 Chapter 7 Setting DigRF 3G 7.5.1 Setting capture time Capture time length can be set in sample units. (1) Auto Setting values of capture time are the same as when Terminal is RF. Refer to Section 2.4.1 “Setting capture time” for settings. Manual Setting values of capture time are the same as when Terminal is RF.
  • Page 345 Setting IQ Data Capture Time Range 7.5.2 Parameters recaptured when Capture Time is Manual When the terminal is set to DigRF 3G, some parameters are recaptured when they are changed. The parameters are shown in Table 7.5.2-1. Table 7.5.2-1 Recaptured Parameters Unique to DigRF 3G Parameter Terminal Target System...

  • Page 346: Trigger Function

    Chapter 7 Setting DigRF 3G 7.6 Trigger Function This section describes limitations to Trigger functions when Terminal is set to DigRF 3G. Refer to Section 3.2 “Trigger Function” for the settings not mentioned here, since they are the same as when terminal is RF. Figure 7.6-1 Trigger function menu Table 7.6-1 Trigger function menu Menu Display...
  • Page 347 Trigger Function The Video trigger, the Wide IF video trigger, the SG marker trigger, and External trigger cannot be selected when Terminal is DigRF 3G. Setting trigger slope The settings of trigger slope are the same as when Terminal is RF. Refer to 3.2.2 “Trigger measurement”...

  • Page 348: Selecting Trace

    Chapter 7 Setting DigRF 3G 7.7 Selecting Trace This section describes limitations to Trace when Terminal is set to DigRF 3G. Press (Trace) on the main function menu and then press (Trace Mode) to display the Trace Mode function menu. Figure 7.7-1 Trace Mode function menu Table 7.7-1 Trace Mode function menu Menu Display...
  • Page 349 Selecting Trace Setting Frequency vs Time There are several limitations when Terminal is set to DigRF 3G. Refer to Section 7.7.3 “Frequency vs Time” for details. Setting CCDF You cannot set CCDF when Terminal is set to DigRF 3G. Setting Spectrogram You cannot set Spectrogram when Terminal is set to DigRF 3G.
  • Page 350 Chapter 7 Setting DigRF 3G 7.7.1 Spectrum This section describes the limitations to the Spectrum Trace when Terminal is set DigRF 3G. Refer to Section 4.2 “Spectrum” for the settings not mentioned here, since they are the same as when terminal is The display items for the spectrum trace are described below.
  • Page 351 Selecting Trace Table 7.7.1-1 Display items for spectrum trace Display Description DigRF 3G Displays current Terminal, Target System, W-CDMA and Input Source. Complex Analysis Start Displays the analysis start time and analysis Time/Analysis time length in sample units. Time Length Displays the Marker results and the Marker MKR1 time location in sample units.
  • Page 352 Chapter 7 Setting DigRF 3G Page 1 Page 2 Figure 7.7.1-2 Trace function menu Table 7.7.1-2 Trace function menu Menu Display Function Trace Mode Sets the trace type. Analysis Time Used for setting related to analysis time. Used for setting related to RBW. Sub Trace Setting Used for setting related to sub-trace.
  • Page 353 Selecting Trace Setting analysis time Sets either Auto or Manual setting of analysis time in sample units. Sets the analysis time and the analysis time length in sample units. Setting basis for analysis start time and analysis time length is the same as when the terminal is set to RF.
  • Page 354 Chapter 7 Setting DigRF 3G Example: To set Analysis Time Length to 10 Msample. <Procedure> Press (Trace) on the main function menu. Press (Analysis Time). Press (Analysis Time Length). Press , and then press (Msample) to set the analysis time length to 10 Msample. Table 7.7.1-4 explains the setting ranges of analysis time length by sample unit.
  • Page 355 Selecting Trace Setting resolution bandwidth (RBW) Setting ranges of the resolution bandwidth vary when Terminal is set to DigRF 3G. Setting ranges of the resolution bandwidth vary depending on the settings of Marker Result, in the same way as when Terminal is RF. Also, the setting ranges vary depending on the settings of Target System.
  • Page 356 Chapter 7 Setting DigRF 3G Refer to Section 4.2.9 “Setting marker search” for the settings. Setting Input Source Sets the analysis method of DigRF 3G signals. (1) Complex Analyze the multiple data of I phase and Q phase. (2) I Analyzes only the data of I phase.
  • Page 357 Selecting Trace 7.7.2 Power vs Time This section describes limitation of Power vs Time trace when Terminal is DigRF 3G. Refer to Section 4.3 “Power vs Time” for the setting not mentioned here, since it will be similar as when terminal is RF. The display items for a Power vs Time trace are described below.
  • Page 358 Chapter 7 Setting DigRF 3G Note: Under the following condition, result of following equation is displayed for the marker result value for Power vs Time trace.               ...
  • Page 359 Selecting Trace Page 1 Page 2 Figure 7.7.2-2 Trace function menu Table 7.7.2-2 Trace function menu Menu Display Function Trace Mode Sets the trace type. Analysis Time Used for setting related to the analysis time. Scale Used for setting related to the scale. Filter Selects the filter type.
  • Page 360 Chapter 7 Setting DigRF 3G Setting scale The settings of value of the centered vertical scale are enabled when Terminal is DigRF 3G. Example: To set the value of centered vertical scale to 100 mV. <Procedure> Press (Amplitude) on the main function menu. Press (Scale).
  • Page 361 Selecting Trace Table 7.7.2-4 Filter band setting range (Gauss, Nyquist, Root Nyquist) Target System Sampling Minimum Maximum Rate Value Value W-CDMA 7.68 MHz 120 kHz 1.536 MHz 541.666 kHz 9 kHz 109 kHz Setting smoothing Sets the Smoothing Time Length settings by sample unit when Terminal is DigRF 3G.
  • Page 362 Chapter 7 Setting DigRF 3G Setting markers The unit of Marker display value is selectable when Terminal is DigRF (1) sample Sets the unit of the Marker display value to sample. (2) second Sets the unit of the Marker display value to second. Example: To set the unit of the Marker display value to second.
  • Page 363 Selecting Trace 7.7.3 Frequency vs Time This section describes limitation of Frequency vs Time trace when Terminal is DigRF 3G. Refer to Section 4.4 “Frequency vs Time” for the setting not mentioned here, since they are the same as when terminal is The display items for a Frequency vs Time trace are described below.
  • Page 364 Chapter 7 Setting DigRF 3G Page 1 Page 2 Figure 7.7.3-2 Trace function menu Table 7.7.3-2 Trace function menu Menu Display Function Trace Mode Sets the trace type. Analysis Time Used for setting related to the analysis time. Scale Used for setting related to the scale. Filter Sets the filter.
  • Page 365 Selecting Trace Setting scale The settings of the frequency display range is enabled when Terminal is DigRF 3G. However, the display does not change by switching between Hz and ΔHz, since the center frequency is fixed to 0 Hz. Example: To set the frequency display range to Frequency Span/2. <Procedure>...
  • Page 366 Chapter 7 Setting DigRF 3G Setting smoothing Sets the Smoothing Time Length settings in sample units when Terminal is DigRF 3G. Example: To set the Smoothing function to On and to set the Smoothing Time Length to 1000. <Procedure> Press (Trace) on the main function menu.
  • Page 367 Selecting Trace Setting markers The unit of Marker display value is selectable when Terminal is DigRF (1) sample Sets the unit of the Marker display value to sample. (2) second Sets the unit of the Marker display value to second. Example: To set the unit of the Marker display value to second.

  • Page 368: Saving Iq Data

    Chapter 7 Setting DigRF 3G 7.8 Saving IQ Data This section describes limitations to saving IQ data when Terminal is DigRF 3G. Refer to Section 5.1 “Saving IQ Data” for the settings not mentioned here, since they are the same as when terminal is RF. Press (Capture) on the main function menu, and then press (Save Captured Data) to display the Save Captured Data function menu.
  • Page 369 Saving IQ Data Sampling rate W-CDMA : 7.68 MHz : 541.666 kHz Setting time range of IQ data to be saved Start Time and Time Length are set in sample units. Refer to Section 5.1 “Saving IQ data” for details. Setting file name Settings of the file names are the same as when Terminal is RF.
  • Page 370 Chapter 7 Setting DigRF 3G 7.8.1 Format of data information file Information regarding the saved IQ data is stored in the data information file when the terminal is set to DigRF 3G. Table 7.8.1-1 shows the details of the recorded parameters. Refer to Section 5.1.1 “Format of data information file”...
  • Page 371 Saving IQ Data 7.8.2 Format of data file The data file is created in binary format when Terminal is DigRF 3G. I phase data and Q phase data are recorded depending on the Target System, and those are recorded in either W-CDMA (Int8) or GSM (Int16). ...

  • Page 372: System Setting

    Chapter 7 Setting DigRF 3G 7.9 System Setting This section describes the limitations of setting system when Terminal is DigRF 3G. Refer to Chapter 6 “System Setting” for the settings not mentioned here, since they are the same as when terminal is RF. Press (Accessory) on the function menu to display the Accessory function menu.
  • Page 373 Refer to Section 6.4 “Adjusting Internal Reference Clock Signal” for details. Setting preselector Note: The settings of this function is only enabled when the instrument is MS2691A or MS2692A and when Terminal is set to RF. You cannot set Preselector when Terminal is DigRF 3G. 7-41...

  • Page 374: Default Value List

    Chapter 7 Setting DigRF 3G 7.10 Default Value List This section describes for the list of default values when Terminal is DigRF 3G. Refer to Appendix B “Default Value List” for the setting values not mentioned here, since they are the same as when Terminal is <Common parameters for all traces>...
  • Page 375 7.10 Default Value List Measure In Band Center 0 Hz Channel Power Channel Center 0 Hz Marker Zone Center 0 Hz Zone Width 765.0 kHz <Power vs Time trace> Analysis Time Start 0 sample Length 767998 sample Filter Band Width 3.657 MHz View Smoothing Time Length...
  • Page 376 Chapter 7 Setting DigRF 3G Marker Marker 1 On, 0 sample Marker 2 On, 767998 sample Signal Search Threshold Frequency 768.0 kHz Unit sample Vertical Center 7-44.
  • Page 377 Appendix Ａ Error Message Table A-1 Error Messages Message Description Out of range The settable range is exceeded. Not available if not Vector Signal Generator This operation is invalid when the vector signal option. generator option is not installed. Not available if Zone Width is same as Zoom This operation is invalid when Zone Width is equal Width.

  • Page 378: Appendix A Error Messages

    Appendix A Error Messages Table A-1 Error Messages (Cont’d) Message Description Not available if Main Trace is CCDF or No This operation is invalid when the main trace is Trace. CCDF or No Trace. Not available unless Main Trace is Spectrum This operation is invalid when the main trace is not or CCDF.
  • Page 379 Appendix A Error Messages Table A-1 Error Messages (Cont’d) Message Description Not available if not Pre-selector lower This operation is invalid when the preselector lower frequency expansion option. frequency extension option is not installed. Can not set under 4dB with Step Key and Use the numeric keypad when entering an Encoder.
  • Page 380 Appendix A Error Messages Table A-1 Error Messages (Cont’d) Message Description Not available when ACP Reference is set to It is not available when ACP Reference is set to Span Total. Span Total. Not available when Freq. Span is 50MHz or The setting is impossible when Freq.
  • Page 381 Appendix A Error Messages Table A-1 Error Messages (Cont’d) Message Description DGZ file error. Loading an IQ data file has failed. Selected item is empty. There is no selectable file in this folder. Unable to set Standard Parameter with Standard Parameter with a different span cannot be different span while replaying.
  • Page 382 Appendix A Error Messages A-6.

  • Page 383: Appendix B Default Value List

    Appendix B Default Value List <Common parameters for all traces> Frequency Center Frequency 6 GHz Frequency Span 31.25 MHz Start Frequency 5.984375 GHz Stop Frequency 6.015625 GHz Step Size 1 GHz Frequency Band Mode Normal Amplitude Reference Level 0 dBm Attenuator Auto, 10 dB Log Scale Unit...
  • Page 384 Appendix B Default Value List Capture & Playback Package Playback Pattern Name DigitizeYYYYMMDD_NNN Burst Burst Off Threshold –40 dB Minimum Burst Off Length Time Length×10 Ramp Ramp Length Time Length×10 Accessory Title On, “Signal Analyzer” Reference Clock Factory-adjusted value Preselector Factory-adjusted value...
  • Page 385 Appendix B Default Value List <Spectrum trace> Analysis Time Auto/Manual Auto Start Length Scale Vertical Log Scale Division 10 dB/Div Lin Scale Division 10%/Div Log Scale Line Horizontal Center 6 GHz Width 31.25 MHz Storage Mode Count Auto, 100 kHz Time Detection Average Measure...
  • Page 386 Appendix B Default Value List Channel Power On/Off Channel Center 6 GHz Channel Width 3.84 MHz Filter Type Root Nyquist Roll-off Factor 0.22 On/Off Method N% of Ratio XdB Value 25 dB Marker Active Marker Marker1 Zone Center 6 GHz Zone Width 3.125 MHz Marker Mode...
  • Page 387 Appendix B Default Value List <Power vs Time trace> Analysis Time Auto/Manual Auto Start Length 100 ms Scale Vertical Log Scale Division 10 dB/Div Lin Scale Division 10%/Div Log Scale Line Storage Mode Count Filter Type Roll-off Factor 0.22 Band Width 5 MHz Freq.
  • Page 388 Appendix B Default Value List Above/Below Above Level −50 dBm <Frequency vs Time trace> Analysis Time Auto/Manual Auto Start Length 100 ms Scale Vertical Scale Unit Width Span/5 Storage Mode Count Filter Auto/Manual Auto Filter Bandwidth 10 MHz View Smoothing Time Length Off, 2 μs Time Detection Pos&Neg...
  • Page 389 Appendix B Default Value List FM CW Measurement Interval Auto Meas Slope Auto <Phase vs Time trace> Analysis Time Auto/Manual Auto Start Length 100 ms Scale Vertical Scale Division 36.00 deg/Div Time Detection Sample Marker Marker 1 On, 0 s Marker 2 On, 100 ms Active Marker...
  • Page 390 Appendix B Default Value List <CCDF trace> Analysis Time Auto/Manual Auto Start Length 100 ms Gate Mode Period 100 ms Range Setup Edit Range Number 1 Range Start Time Stop Time 100 ms Edit Range Number 2 Range Start Time Stop Time 100 ms Edit Range Number 3...
  • Page 391 Appendix B Default Value List <Spectrogram trace> Analysis Time Auto/Manual Auto Start Length 100 ms Scale Level Full Scale 100 dB Storage Mode Count Auto, 100 kHz Time Detection Positive Marker Active Marker Marker On/Off Zone Center 6 GHz Zone Width 3.125 MHz Time Marker 1 Analysis Start Time...
  • Page 392 Appendix B Default Value List <Sub Trace common parameter> Trace Mode <Power vs Time sub trace> Analysis Time Auto/Manual Auto Start Length 100 ms Scale Level Full Scale 100 dB Time Detection Average <Spectrogram sub trace> Analysis Time Auto/Manual Auto Start Length 100 ms...

  • Page 393: Appendix C Standard Parameter List

    Appendix C Standard Parameter List The parameters set by the standard functions are listed below. ACP ................C-2 W-CDMA ..............C-2 Mobile WiMAX .............. C-5 LTE ................C-7 DSRC .................C-20 TD-SCDMA ..............C-21 CDMA2000 ..............C-27 EV-DO ................C-28 Channel Power ............C-29 W-CDMA ..............C-29 Mobile WiMAX ............C-30 LTE ................C-31 LTE TDD..............C-35...
  • Page 394 Appendix C Standard Parameter List C-1 ACP W-CDMA Table C-1 Standard parameters for ACP function Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Carrier-1 Carrier Number...
  • Page 395 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Carrier-1 Carrier Number...
  • Page 396 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 31.25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Both Sides of Carriers...
  • Page 397 Appendix C Standard Parameter List Mobile WiMAX Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 31.25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 5 ms Adjacent Channel Power ACP Reference Carrier-1 Carrier Number...
  • Page 398 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 5 ms Adjacent Channel Power ACP Reference Carrier-1 Carrier Number...
  • Page 399 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 10 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 400 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz 10 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 401 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz 10 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 402 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz 10 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 403 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 404 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 405 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 406 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 407 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 408 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 409 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 410 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 10 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 411 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 412 Appendix C Standard Parameter List DSRC Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Positive Capture Time Auto Analysis Start Time Analysis Time Length 7.032 ms Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 413 Appendix C Standard Parameter List TD-SCDMA Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Adjacent Channel Power ACP Reference Carrier Select Carrier Number Carrier BW 1.28 MHz...
  • Page 414 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Adjacent Channel Power ACP Reference Carrier Select Carrier Number Carrier BW 1.28 MHz Carrier Spacing...
  • Page 415 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Adjacent Channel Power ACP Reference Carrier Select Carrier Number Carrier BW 1.28 MHz Carrier Spacing...
  • Page 416 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Adjacent Channel Power ACP Reference Carrier Select Carrier Number Carrier BW 1.28 MHz Carrier Spacing...
  • Page 417 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Adjacent Channel Power ACP Reference Carrier Select Carrier Number Carrier BW 1.28 MHz Carrier Spacing...
  • Page 418 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Adjacent Channel Power ACP Reference Carrier Select Carrier Number Carrier BW 1.28 MHz Carrier Spacing...
  • Page 419 Appendix C Standard Parameter List CDMA2000 Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1.25 ms Adjacent Channel Power ACP Reference Carrier-1 Carrier Number...
  • Page 420 Appendix C Standard Parameter List EV-DO Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz 30 kHz Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length 1.666667 ms Adjacent Channel Power ACP Reference Carrier-1 Carrier Number...
  • Page 421 Appendix C Standard Parameter List C-2 Channel Power W-CDMA Table C-2 Standard parameters for channel power function Standard Parameter Name Setting Frequency Span 10 MHz Auto Time Detection Average Capture Time Auto W-CDMA Analysis Start Time Uplink/Downlink Analysis Time Length 10 ms (Mean Power) Channel Power...
  • Page 422 Appendix C Standard Parameter List Mobile WiMAX Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 31.25 MHz Auto Time Detection Average Capture Time Auto Mobile WiMAX Analysis Start Time DL / UL Analysis Time Length 5 ms 10 MHz BW Channel Power...
  • Page 423 Appendix C Standard Parameter List Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz Auto Time Detection Average Capture Time Auto Uplink/Downlink Analysis Start Time Analysis Time Length 10 ms Mean Power Channel Power 1.4 MHz BW Channel Center...
  • Page 424 Appendix C Standard Parameter List Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz Auto Time Detection Average Capture Time Auto Analysis Start Time Uplink/Downlink Analysis Time Length 10 ms Mean Power Channel Power 10 MHz BW Channel Center...
  • Page 425 Appendix C Standard Parameter List Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz Auto Time Detection Average Capture Time Auto LTE Uplink/ Analysis Start Time Downlink Analysis Time Length 10 ms Filtered Power Channel Power 1.4 MHz BW...
  • Page 426 Appendix C Standard Parameter List Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz Auto Time Detection Average Capture Time Auto LTE Uplink/ Analysis Start Time Downlink Analysis Time Length 10 ms Filtered Power Channel Power 10 MHz BW...
  • Page 427 Appendix C Standard Parameter List LTE TDD Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz Auto Time Detection Average Capture Time Auto LTE TDD Analysis Start Time Uplink/Downlink Analysis Time Length 1 ms Mean Power Channel Power...
  • Page 428 Appendix C Standard Parameter List Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz Auto Time Detection Average Capture Time Auto LTE TDD Analysis Start Time Uplink/Downlink Analysis Time Length 1 ms Mean Power Channel Power 10 MHz BW...
  • Page 429 Appendix C Standard Parameter List Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz Auto Time Detection Average Capture Time Auto LTE TDD Analysis Start Time Uplink/Downlink Analysis Time Length 1 ms Filtered Power Channel Power 1.4 MHz BW...
  • Page 430 Appendix C Standard Parameter List Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz Auto Time Detection Average Capture Time Auto LTE TDD Analysis Start Time Uplink/Downlink Analysis Time Length 1 ms Filtered Power Channel Power 10 MHz BW...
  • Page 431 Appendix C Standard Parameter List DSRC/TD-SCDMA Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz Auto Time Detection Average Capture Time Auto DSRC Analysis Start Time Analysis Time Length 7.032 ms π/4DQPSK Channel Power Channel Center Center Frequency...
  • Page 432 Appendix C Standard Parameter List XG-PHS Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz Auto Time Detection Average Capture Time Auto XG-PHS Analysis Start Time Mean Power Analysis Time Length 500 ms 10 MHz BW Channel Power Channel Center...
  • Page 433 Appendix C Standard Parameter List CDMA2000/EV-DO Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz Auto Time Detection Average Capture Time Auto Analysis Start Time CDMA2000 Analysis Time Length 1.25 ms Forward Link Channel Power Channel Center Center...
  • Page 434 Appendix C Standard Parameter List ISDB-Tmm Table C-2 Standard parameters for channel power function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 10 kHz Time Detection Average Capture Time Auto ISDB-Tmm Analysis Start Time 14.2 MHz BW Analysis Time Length 1 ms (Mean Power) Channel Power...
  • Page 435 Appendix C Standard Parameter List C-3 OBW W-CDMA/Mobile WiMAX Table C-3 Standard parameters for OBW function Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 10 MHz 30 kHz W-CDMA Uplink/Downlink Time Detection Average Capture Time Auto Analysis Start Time Analysis Time Length...
  • Page 436 Appendix C Standard Parameter List Table C-3 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power LTE Uplink/ N% Ratio 99.00% Downlink Frequency Span 5 MHz 1.4 MHz 10 kHz BandWidth Time Detection Average LTE TDD Capture Time Auto Uplink/Downlink...
  • Page 437 Appendix C Standard Parameter List Table C-3 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power LTE Uplink/ N% Ratio 99.00% Downlink Frequency Span 25 MHz 10 MHz BandWidth 100 kHz Time Detection Average LTE TDD Capture Time Auto Uplink/Downlink...
  • Page 438 Appendix C Standard Parameter List DSRC/TD-SCDMA Table C-3 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 10 MHz 30 kHz DSRC Time Detection Positive π/4DQPSK/ASK Capture Time Auto Analysis Start Time Analysis Time Length 7.032 ms Method...
  • Page 439 Appendix C Standard Parameter List XG-PHS Table C-3 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 25 MHz 100 kHz XG-PHS Storage Mode Max Hold 10 MHz Storage Count Bandwidth Time Detection Positive...
  • Page 440 Appendix C Standard Parameter List CDMA2000/EV-DO Table C-3 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 5 MHz 30 kHz CDMA2000 Time Detection Positive Forward Link Capture Time Auto Analysis Start Time Analysis Time Length 1.25 ms...
  • Page 441 Appendix C Standard Parameter List ISDB-Tmm Table C-3 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 25 MHz 10 kHz ISDB-Tmm Time Detection Average 14.2 MHz BW Capture Time Auto Analysis Start Time Analysis Time Length...
  • Page 442 Appendix C Standard Parameter List C-4 Burst Average Power W-CDMA/Mobile WiMAX Table C-4 Standard parameters for BurstAverage Power function Standard Parameter Name Setting Frequency Span 10 MHz Time Detection Pos & Neg Capture Time Auto Analysis Start Time W-CDMA Uplink/Downlink Analysis Time Length 10 ms (Mean Power)
  • Page 443 Appendix C Standard Parameter List Table C-4 Standard parameters for Burst Average Power function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz LTE Uplink/ Time Detection Average Downlink Capture Time Auto Mean Power Analysis Start Time 1.4 MHz BW Analysis Time Length 10 ms LTE TDD...
  • Page 444 Appendix C Standard Parameter List Table C-4 Standard parameters for Burst Average Power function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz LTE Uplink/ Time Detection Average Downlink Capture Time Auto Mean Power Analysis Start Time 10 MHz BW Analysis Time Length 10 ms LTE TDD...
  • Page 445 Appendix C Standard Parameter List Table C-4 Standard parameters for Burst Average Power function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz Time Detection Average LTE Uplink/ Downlink Capture Time Auto Filtered Power Analysis Start Time 1.4 MHz BW Analysis Time Length 10 ms Filter Type...
  • Page 446 Appendix C Standard Parameter List Table C-4 Standard parameters for Burst Average Power function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz Time Detection Average LTE Uplink/ Downlink Capture Time Auto Filtered Power Analysis Start Time 10 MHz BW Analysis Time Length 10 ms Filter Type...
  • Page 447 Appendix C Standard Parameter List DSRC/TD-SCDMA Table C-4 Standard parameters for Burst Average Power function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz Time Detection Average Capture Time Auto Analysis Start Time DSRC Analysis Time Length 782.00 µs Filter Type Rect Filter BW 4.4 MHz...
  • Page 448 Appendix C Standard Parameter List CDMA2000/EV-DO Table C-4 Standard parameters for Burst Average Power function (Cont’d) Standard Parameter Name Setting Frequency Span 5 MHz Time Detection Average Capture Time Auto Analysis Start Time CDMA2000 Forward Link Analysis Time Length 1.25 ms Filter Type Rect Filter BW...

  • Page 449: Appendix D Fft And Rbw

    Appendix D FFT and RBW The Spectrum, Spectrogram trace of the MS2690A/MS2691A/MS2692A performs spectrum analysis via FFT processing. Time-axis waveform Window function Length Windowed Windowing time-axis waveform Frequency-axis waveform Figure D-1 Generating a spectrum waveform Figure D-1 shows an overview of spectrum waveform generation. In FFT processing, part of a long signal is taken out for calculation.
  • Page 450 Appendix D FFT and RBW Time Capture data Window Function Length Analysis time length Figure D-2 Capture data length and window function length A value varies depending on the Marker Result settings. Table D-1 Marker Result Settings Integration Density Peak(Fast) Peak(Accuracy)
  • Page 451 Appendix D FFT and RBW Table D-2 RBW and window function length in Spectrum trace and [1] 1 Hz 3 Hz 10 Hz 30 Hz 100 Hz 300 Hz 1 kHz Span 100/125 MHz* /62.5* 25/31.25 MHz 524288 262144 10 MHz 262144 131072 5 MHz...
  • Page 452 Appendix D FFT and RBW Table D-2 RBW and window function length in Spectrum trace and [1] (Cont’d) 3 kHz 10 kHz 30 kHz 100 kHz 300 kHz 1 MHz 3 MHz 10 MHz Span 100/125 MHz* 262144 65536 32768 8192 2048 2048...
  • Page 453 Appendix D FFT and RBW Table D-3 RBW and Window Function Length in Spectrum trace and [2] 1 Hz 3 Hz 10 Hz 30 Hz 100 Hz 300 Hz 1 kHz Span 100/125 MHz * /62.5* 25/31.25 MHz 524288 10 MHz 524288 262144 5 MHz...
  • Page 454 Appendix D FFT and RBW Table D-3 RBW and Window Function Length in Spectrum trace and [2] (Cont’d) 3 kHz 10 kHz 30 kHz 100 kHz 300 kHz 1 MHz 3 MHz 10 MHz Span 100/125 MHz * 524288 131072 65536 16384 4096...
  • Page 455 Appendix D FFT and RBW Table D-4 RBW and Window Function Length in Spectrum trace and [3] 1 Hz 3 Hz 10 Hz 30 Hz 100 Hz 300 Hz 1 kHz Span 100/125 MHz* /62.5* 25/31.25 MHz 10 MHz 524288 5 MHz 524288 262144...
  • Page 456 Appendix D FFT and RBW Table D-4 RBW and Window Function Length in Spectrum trace and [3] (Cont’d) 3 kHz 10 kHz 30 kHz 100 kHz 300 kHz 1 MHz 3 MHz 10 MHz Span 100/125 MHz* 262144 131072 32768 8192 4096 2048...
  • Page 457 Appendix D FFT and RBW Table D-5 RBW and Window Function Length in Spectrogram trace and [1] 1 Hz 3 Hz 10 Hz 30 Hz 100 Hz 300 Hz 1 kHz Span 100/125 MHz* /62.5* 25/31.25 MHz 524288 262144 10 MHz 262144 131072 5 MHz...
  • Page 458 Appendix D FFT and RBW Table D-5 RBW and Window Function Length in Spectrogram trace and [1] (Cont’d) 3 kHz 10 kHz 30 kHz 100 kHz 300 kHz 1 MHz 3 MHz 10 MHz Span 100/125 MHz* 262144 65536 32768 8192 2048 1024...
  • Page 459 Appendix D FFT and RBW Table D-6 RBW and Window Function Length in Spectrogram trace and [2] 1 Hz 3 Hz 10 Hz 30 Hz 100 Hz 300 Hz 1 kHz Span 100/125 MHz* /62.5* 25/31.25 MHz 524288 10 MHz 524288 262144 5 MHz...
  • Page 460 Appendix D FFT and RBW Table D-6 RBW and Window Function Length in Spectrogram trace and [2] (Cont’d) 3 kHz 10 kHz 30 kHz 100 kHz 300 kHz 1 MHz 3 MHz 10 MHz Span 100/125 MHz* 524288 131072 65536 16384 4096 2048...
  • Page 461 Appendix D FFT and RBW Table D-7 RBW and Window Function Length in Spectrogram trace and [3] 1 Hz 3 Hz 10 Hz 30 Hz 100 Hz 300 Hz 1 kHz Span 100/125 MHz* /62.5* 25/31.25 MHz 10 MHz 524288 5 MHz 524288 262144...
  • Page 462 Appendix D FFT and RBW Table D-7 RBW and Window Function Length in Spectrogram trace and [3] (Cont’d) 3 kHz 10 kHz 30 kHz 100 kHz 300 kHz 1 MHz 3 MHz 10 MHz Span 100/125 MHz* 262144 131072 32768 8192 4096 1024...

  • Page 463: Appendix E Iq Data Time Actually Required

    Appendix E IQ Data Time Actually Required IQ data time actually required In FFT and filtering processing, additional IQ data time is required for calculation in addition to the specified capture time. The Signal Analyzer function automatically calculates the data length required for calculation to capture the data.
  • Page 464 Appendix E IQ Data Time Actually Required The minimum capture time for the Frequency vs Time trace is as shown below. IQ data time Analysis time Detection length Detection length Smoothing length Smoothing length Filter tap length Filter tap length Figure E-3 IQ data time for the Frequency vs Time trace The Frequency vs Time trace performs band limiting processing, so the data required for the calculation is captured, which is longer than the...
  • Page 465 Appendix E IQ Data Time Actually Required The minimum capture time for the Spectrogram trace is as shown below. IQ data time Analysis time Detection length Detectionlength Window function length Window function length Figure E-5 IQ data time for the Spectrogram trace The Spectrogram trace uses the FFT method for calculation, so data with window function length is captured as required data length for calculation in addition to the specified analysis time.
  • Page 466 Appendix E IQ Data Time Actually Required Auto mode and Manual mode for capture time When Capture Time is set to the Auto mode, the data length required for calculation is automatically set to the minimum data length. This makes the IQ data time actually captured the shortest, allowing the user to obtain analysis results in the shortest time.

  • Page 467: Appendix F Saving Waveform Csv Data

    Trace Mode trace data (trace data displayed on the screen) selected from Spectrum/Power vs Time/Freq. vs Time/Spectrogram/CCDF If Sub-Trace is displayed, Sub-Trace data is saved at the same time. Default file name WaveDataYYYYMMDD_NNN.csv: YYYYMMDD is a date and NNN is a suffix number. Save folder \Anritsu Corporation\Signal Analyzer\User Data\Trace Data\Signal Analyzer...

  • Page 468: Index

    Appendix F Saving Waveform CSV DATA Table F-1 Spectrum trace file information Line Recorded Information Remarks number “Main-Trace”, “Start Freq (Hz)”, “Stop Freq (Hz)”, Data title “Center Freq (Hz)”, “Span Freq (Hz)” The data for the above Main-Trace: “Spectrum” Blank “Analysis Start Time (ms)”, “Analysis Time Length Data title (ms)”, “Capture Time (ms)”, “ATT (dB)”...
  • Page 469 Appendix F Saving Waveform CSV DATA Table F-1 Spectrum trace file information (Continued) Line Recorded Information Remarks number Blank “Storage Mode” Data title The data for the above Storage Mode: “Lin Average” or “Max Hold” or “Min Hold” or “Off” Blank When Scale = Log When Scale = Lin...
  • Page 470 Appendix F Saving Waveform CSV DATA Table F-2 Power vs Time trace file information Line Recorded Information Remarks number “Main-Trace”, “Center Freq (Hz)”, “Span Freq Data title (Hz)” The data for the above Main-Trace: “Power vs Time” Blank “Analysis Start Time (ms)”, “Analysis Time Data title Length (ms)”, “Capture Time (ms)”, “ATT (dB)”...
  • Page 471 Appendix F Saving Waveform CSV DATA Table F-2 Power vs Time trace file information (Continued) Line Recorded Information Remarks number “Storage Mode” Data title The data for the above Storage Mode: “Lin Average” or “Max Hold” or “Min Hold” or “Off” Blank When Scale = Log When Scale = Lin...
  • Page 472 Appendix F Saving Waveform CSV DATA Table F-3 Freq vs Time trace file information Line Recorded Information Remarks number “Main-Trace”, “Center Freq (Hz)”, “Span Freq Data title (Hz)” The data for the above Main-Trace: “Frequency vs Time” Blank “Analysis Start Time (ms)”, Data title “Analysis Time Length (ms)”, “Capture Time (ms)”, “ATT (dB)”...
  • Page 473 Appendix F Saving Waveform CSV DATA Table F-3 Freq vs Time trace file information (Continued) Line Recorded Information Remarks number When Scale Unit = When Scale Unit = Δ Hz Data title “Wave Data (Hz)”, “Wave Data (Delta Hz)”, “(neg)” “(neg)”...
  • Page 474 Appendix F Saving Waveform CSV DATA Table F-4 Phase vs Time trace file information Line Recorded Information Remarks number “Main-Trace”, “Center Freq (Hz)”, “Span Freq Data title (Hz)” The data for the above Main-Trace: “Phase vs Time” Blank “Analysis Start Time (ms)”, Data title “Analysis Time Length (ms)”, “Capture Time (ms)”, “ATT (dB)”...
  • Page 475 Appendix F Saving Waveform CSV DATA Table F-4 Phase vs Time trace file information (Continued) Line Recorded Information Remarks number “Phase Offset” Data title The data for the above Blank “Wave Data (degree)” Data title Trace data at the Trace Point – 0 position Trace data (degree): 0.001 degree (degree) resolution...
  • Page 476 Appendix F Saving Waveform CSV DATA Table F-5 Spectrogram trace file information Line Recorded Information Remarks number “Main-Trace”, “Start Freq (Hz)”, “Stop Freq Data title (Hz)”,”Center Freq (Hz)”, “Span Freq (Hz)” The data for the above Main-Trace: “Spectrogram” Blank “Analysis Start Time (ms)”, “Analysis Time Data title Length (ms)”, “Capture Time (ms)”, “ATT (dB)”...
  • Page 477 Appendix F Saving Waveform CSV DATA Table F-5 Spectrogram trace file information (Continued) Line Recorded Information Remarks number “Wave Data Time Trace 0 (dBm)”, Data title “Wave Data Time Trace 1 (dBm)”, NT is the number of trace points in the time direction.
  • Page 478 Appendix F Saving Waveform CSV DATA Table F-6 CCDF trace file information Line Recorded Information Remarks number “Main-Trace”, “Center Freq (Hz)”, “Span Freq Data title (Hz)” The data for the above Main-Trace: “CCDF” Blank “Analysis Start Time (ms)”, “Analysis Time Data title (ms)”, “Capture Time (ms)”, “ATT (dB)”...
  • Page 479 Appendix F Saving Waveform CSV DATA Table F-6 CCDF trace file information (Continued) Line Recorded Information Remarks number “Wave Data (%)”, “(Reference)” Data title When Reference Trace = Off, “(Reference)” is not recorded. When Method = APD When Method = CCDF Trace data (Log): 0.0001% resolution Accumulated...
  • Page 480 Appendix F Saving Waveform CSV DATA When a sub-trace is displayed, the information below is recorded after the last main trace line. Table F-7 Additional Power vs Time trace file information when Sub-Trace is displayed Line Recorded Information Remarks number Blank “Sub-Trace”...
  • Page 481 Appendix F Saving Waveform CSV DATA When a sub-trace is displayed, the information below is recorded after the last main trace line. Table F-8 Additional Spectrogram trace file information when Sub-Trace is displayed Line Recorded Information Remarks number Blank “Sub-Trace” Data title “Spectrogram”...
  • Page 482 Appendix F Saving Waveform CSV DATA F-16.
