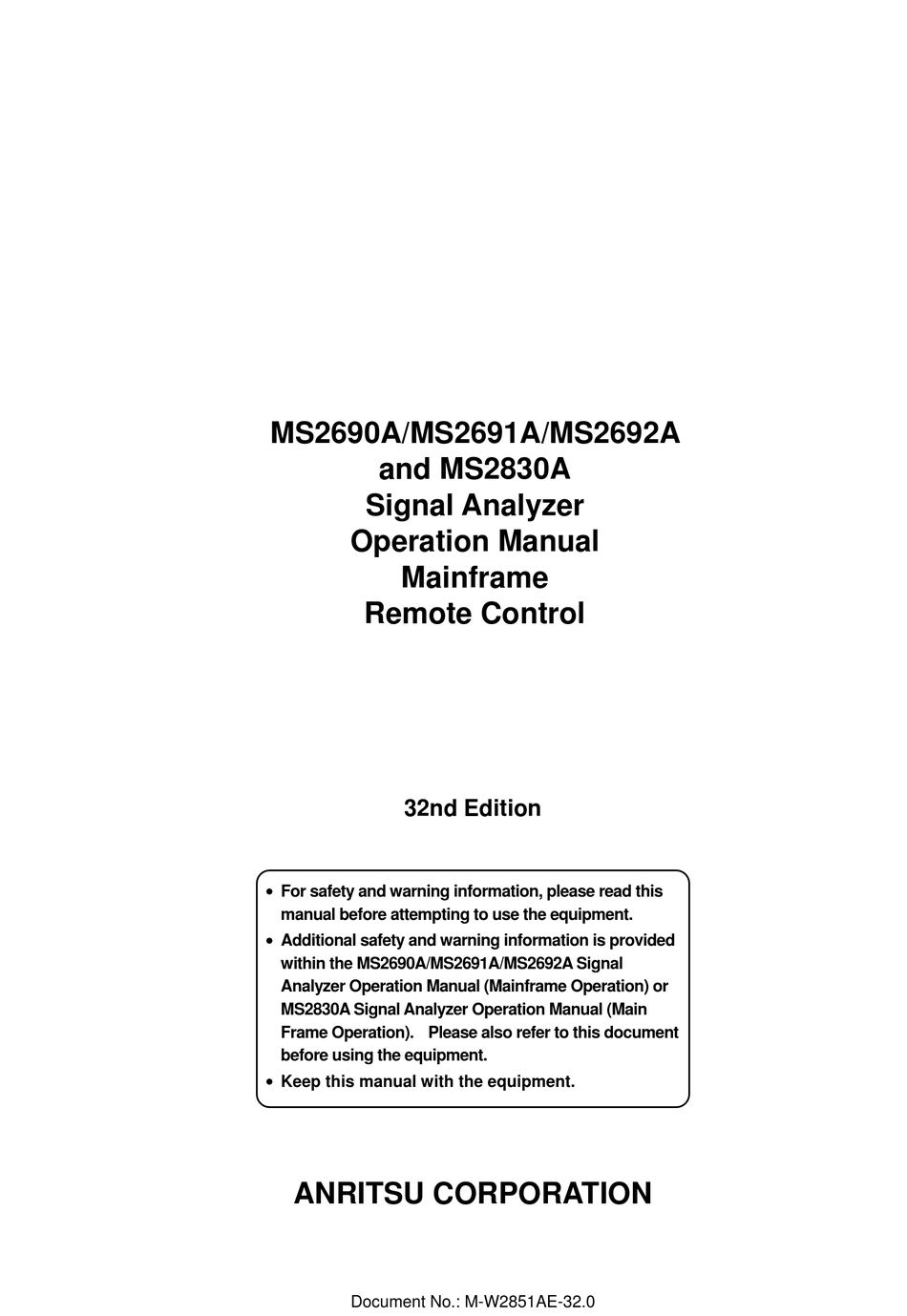

Page 1: Operation Manual
 For safety and warning information, please read this manual before attempting to use the equipment.  Additional safety and warning information is provided within the MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Mainframe Operation) or MS2830A Signal Analyzer Operation Manual (Main Frame Operation).
Page 2 Ensure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.
Page 3 Notes on Export Management This product and its manuals may require an Export License/Approval by the Government of the product's country of origin for re-export from your country. Before re-exporting the product or manuals, please contact us to confirm whether they are export-controlled items or not. When you dispose of export-controlled items, the products/manuals need to be broken/shredded so as not to be unlawfully used for military purpose.
Page 5: About This Manual
About This Manual  Associated Documents The operation manual configuration of the MS2690A/MS2691A/MS2692A or MS2830A Signal Analyzer is shown below. MS2690A/MS2691A/MS2692A MS2830A Signal Analyzer Signal Analyzer Operation Manual Operation Manual (Main Frame Operation) (Main Frame Operation) MS2690A/MS2691A/MS2692A and MS2830A Signal Analyzer Operation Manual (Main Frame Remote Control)
Page 6 • Signal Analyzer Operation Manual (Mainframe Operation) • Signal Analyzer Operation Manual (Mainframe Remote Control) <This document> Description of basic operations, maintenance procedures, common functions and common remote functions of the mainframe • Signal Analyzer Operation Manual (Signal Analyzer Function Operation) •...
Page 7: Table Of Contents
Table of Contents About This Manual ........Chapter 1 Basics of Remote Control ..Overview ..............1-3 Connection .............. 1-4 Interface Settings ............. 1-8 Interface Selection/Changing ........1-17 Initialization .............. 1-18 Language Mode ............1-19 SCPI Device Message Details ........1-24 Native Device Message Details ........
Page 8 Chapter 4 SCPI Device Message Details .. Application Common Device Messages....4-7 Config Function Device Messages ......4-64 Power Meter Device Messages ........ 4-123 BER Settings ............4-150 Chapter 5 Native Device Message List ..Application Common Device Messages....5-2 Config Function Device Messages ......
Page 9 Chapter 1 Basics of Remote Control This chapter provides an overview of the remote control of the MS2690A/MS2691A/MS2692A or MS2830A Signal Analyzer (hereinafter, referred to as “equipment”). Overview ............... 1-3 Connection ..............1-4 1.2.1 GPIB connection ..........1-5 1.2.2 Ethernet connection .......... 1-6 1.2.3 USB connection ..........
Page 10 Chapter 1 Basics of Remote Control 1.9.13 Extended End Event Status register (Main Application) ......... 1-67 1.9.14 Extended Error Event Status register (Sub Applications) .......... 1-68 1.9.15 Extended End Event Status register (Sub Applications) .......... 1-70 1.9.16 Extended Event Status register operation ..1-72 1.10 Synchronization ............
Page 11: Overview
Interrupt functions and serial port operation are not supported at Raw Socket connection. (3) USB The USB interface of the MS2690A/MS2691A/MS2692A or MS2830A can be used as a remote control interface conforming to the USBTMC-USB488 protocol. Control programs can be described using VISA software supporting the USBTMC-USB488 protocol.
Page 12: Connection
Chapter 1 Basics of Remote Control 1.2 Connection Connect the MS2690A/MS2691A/MS2692A or MS2830A and an external controller (PC) to be used for remote control using the dedicated connector for the applicable interface on the rear panel. Connection cables are provided as additional parts with the MS2690A/MS2691A/MS2692A or MS2830A.
Page 13: Gpib Connection
Connection 1.2.1 GPIB connection Connect the GPIB connector on the rear panel of the MS2690A/MS2691A /MS2692A and an external device using a GPIB cable. Note: Be sure to connect the GPIB cable before turning power on to the MS2690A/MS2691A/MS2692A or MS2830A. Connecting it while the power is on may damage internal circuits.
Page 14: Ethernet Connection
Check the network settings before LAN connection. The destination LAN may be affected depending on settings. Use a LAN crossover cable to connect the MS2690A/MS2691A/MS2692A or MS2830A and an external device. Use a network hub when connecting to multiple external devices.
Page 15: Usb Connection
Connection 1.2.3 USB connection Connect the USB (Remote) connector on the rear panel and external devices using USB cables. The external controller (PC) can be connected to multiple devices via a USB hub, etc. External controller (PC) Connect using an USB cable. Figure 1.2.3-1 Sample connection with one external device External controller (PC) USB hub...
Page 16: Interface Settings
Chapter 1 Basics of Remote Control 1.3 Interface Settings This section describes setting methods for the MS2690A/MS2691A/MS2692A or MS2830A and the external controller (PC) for remote control. Connecting a mouse or keyboard may be required to perform settings. 1.3.1 GPIB interface settings <Procedure>...
Page 17 Interface Settings Figure 1.3.1-1 Interface Settings tab window...
Page 18: Ethernet Interface Settings
Chapter 1 Basics of Remote Control 1.3.2 Ethernet interface settings <Procedure> Press to display the Configuration screen. Then press (Interface Settings) to display the Interface Settings tab window. The equipment network settings can be checked and set. Check IP Address, Subnet Mask, and Host Name in the Ethernet Settings field.
Page 19 Interface Settings Figure 1.3.2-1 Interface Settings tab window 1-11...
Page 20 Chapter 1 Basics of Remote Control <How to change IP Address and Subnet Mask on Windows> When the OS on MS2690A/MS2691A/MS2692A/MS2830A is Windows XP Connect a keyboard. Press the Windows key to open the Start menu and then click Control Panel. (Or connect a mouse and move the pointer to the bottom of the screen by using it to open the Start menu.) The Control Panel window is displayed.
Page 21 Interface Settings On the Local Area Connection Properties window, click Internet Protocol (TCP/IP) to display the Internet Protocol (TCP/IP) Properties window. Change the settings according to the connection conditions. Check the changed settings on the Configuration screen. 1-13...
Page 22 Chapter 1 Basics of Remote Control When the OS on MS2690A/MS2691A/MS2692A/MS2830A is Windows Embedded Standard 7 On the keyboard, press the Windows logo key, and then the Start button, and click Control Panel. In Control Panel, click Network and Sharing Center, and then click Change adapter settings.
Page 23 Interface Settings In the Local Area Connection Properties dialog box, click Internet Protocol Version 4 (TCP/IP), and then click Properties. In the Internet Protocol Version 4 (TCP/IP) Properties dialog box, change the settings according to the connection conditions. In the Configuration screen, check that the settings have changed. 1-15...
Page 24: Usb Interface Settings
Chapter 1 Basics of Remote Control 1.3.3 USB interface settings <Procedure> Press to display the Configuration screen. Then press (Interface Settings) to display the Interface Settings tab window. Check Vendor ID, Product ID, and Serial Number displayed in the USB(B) Settings field. The Resource Name used during control program description by VISA is as shown below: When Vendor ID = 0x0B5B, Product ID = 0x0006, Serial Number =...
Page 25: Interface Selection/Changing
Local status and lights up in Remote status. To change the interface, the MS2690A/MS2691A/MS2692A or MS2830A must enter Local status again. Press on the front panel to enter Local status, then send a command via the desired interface.
Page 26: Initialization
Chapter 1 Basics of Remote Control 1.5 Initialization Initialization types and targets for the MS2690A/MS2691A/MS2692A or MS2830A are shown in the table below. Table 1.5-1 Initialization level Item DCL/SDC Power On *RST *CLS Interface bus initialization  –  –...
Page 27: Language Mode
Language Mode 1.6 Language Mode SCPI mode You can select a remote control command from , which is the command format defined by the Standard Commands for Programmable Native mode Instrumentation (SCPI) Consortium, and , which is our unique format. ...
Page 28: Language Mode Switching
Chapter 1 Basics of Remote Control 1.6.1 Language mode switching The language mode can be switched by the configuration tab window or a remote command. Follow the procedure below in order to switch the mode on the Configuration screen. <Procedure> Press to display the Configuration display.
Page 29: How To Use Scpi Command By Native Mode
Language Mode 1.6.2 How to use SCPI command by Native mode Some functions of the applications of this instrument only support the SCPI commands. In order to enable remote control of the functions, convert the corresponding SCPI commands into the Native commands. The conversion rule is shown below.
Page 30 Chapter 1 Basics of Remote Control CALC:MARK:CENT <integer>,<freq> Example 2 Convert “:DISPlay:WINDow[1]:TRACe]Y[:SCALe]:PDIVision <percent>” into a Native command. (1) Put a numeric parameter of the program header at the head of the argument. In this example, the numeric parameter should be deleted, since there is only one numeric parameter.
Page 31 Language Mode Example 3 Convert [:SENSe]:BPOWer|:TXPower[:STATe]? into a Native command. (1) Use the leading one if multiple nodes can be selected. [:SENSe]:BPOWer|:TXPower[:STATe]? ↓ [:SENSe]:BPOWer[:STATe]? (2) Delete the layers that can be deleted. [:SENSe]:BPOWer[:STATe]? ↓ :BPOWer? (3) Alter all long forms into short forms. :BPOWer? ↓...
Page 32: Scpi Device Message Details
1.7.1 SCPI Program message formats Among all device messages, those that are transmitted from the external controller (PC) to the MS2690A/MS2691A/MS2692A or MS2830A are called “program messages”. Program messages fall into two groups: program commands, which set or specify instrument parameters, and program queries, which request parameters and measurement results.
Page 33 SCPI Device Message Details Program message Program message unit <Example> PRINT @1; “CONF:ACP；READ:ACP?” Multiple commands can be transmitted separately by separating them with semicolons (“;”). Program message unit Program header Program data Program header Control header Common command header 1-25...
Page 34 Chapter 1 Basics of Remote Control Control header Short Form data Numeric data Long Form data Short Form data corresponds to the short form of SCPI. Long Form data corresponds to the long form of SCPI. Refer to the character program data for each specification.
Page 35 SCPI Device Message Details Character program data Defined strings of data are composed of any of the lowercase and uppercase alphanumeric characters A to Z and 0 to 9, and the underscore (“_”). <Examples> LOAD SIGANA ....Loads the Signal Analyzer. SOUND OFF ....
Page 36 Chapter 1 Basics of Remote Control Fixed-point decimal (NR2) (Integer part) (Fraction part) Decimal point  <0 to 9> <0 to 9>  – <0 to 9> <0 to 9> The decimal The digits in the point cannot be integer part can omitted.
Page 37 SCPI Device Message Details Floating-point decimal (NR3) (Mantissa part)  <0 to 9> <0 to 9>  – <0 to 9> <0 to 9> (Exponent part) <0 to 9> –  E denotes the power of 10, or the exponent. ...
Page 38 Chapter 1 Basics of Remote Control Hexadecimal data <0 to 9> Binary data 0 / 1 ＃ 1-30...
Page 39 SCPI Device Message Details Suffix data The table below lists the suffix data that is used in the MS2690A/MS2691A/MS2692A or MS2830A. The suffix codes available vary depending on the function. Table 1.7.1-1. Suffix codes Category Suffix Code Unit GHZ or GZ...
Page 40 Chapter 1 Basics of Remote Control String program data An arbitrary character string is enclosed by one pair of double quotation marks (“ ”) or single quotation marks (‘ ’). The characters that can be used vary depending on their function. ’...
Page 41: Scpi Response Message Formats
SCPI Device Message Details 1.7.2 SCPI Response message formats The formats in which the external controller (PC) transmits response messages from the MS2690A/MS2691A/MS2692A or MS2830A by way of INPUT and other statements are described below. Response message Response message terminator...
Page 42 Chapter 1 Basics of Remote Control Response data Character response data Numeric response data String response data Character response data Defined strings of data are composed of any of the lowercase and uppercase alphanumeric characters A to Z and the digits 0 to 9, and the underscore (“_”).
Page 43 SCPI Device Message Details Fixed-point decimal (NR2) <0 to 9> <0 to 9> – –  The leading digit must be non-zero.  A fixed-point decimal number having a value of 0 in its decimal place is output as an integer. <Examples>...
Page 44 Chapter 1 Basics of Remote Control String response data <Inserted> ” ” ” ASCII character other than a double quotation mark 1-36...
Page 45: Structure Of Scpi Command
SCPI Device Message Details 1.7.3 Structure of SCPI command The SCPI commands are based on a layered structure. The commands are grouped according to their related functions, and each of them has a layer structure called a “sub-system”. SENSe FREQuency CENTer <freq>...
Page 46: Command Definition Method
Chapter 1 Basics of Remote Control 1.7.4 Command definition method :SENSe:FREQuency:CENTer <freq> :SENSe:FREQuency:CENTer? :SENSe:FREQuency:SPAN <freq> :SENSe:FREQuency:SPAN? Example of SCPI command The command tree in the previous page comprises the SCPI commands listed above. Overviews of the SCPI command definitions are shown below.
Page 47: Composition Of Commands
SCPI Device Message Details <Header Separator> There must be at least one space between a command and a parameter. Furthermore, if there is more than one parameter, they need to be separated by commas. 1.7.5 Composition of commands As in the following examples, commands can be combined by a semi-colon (“;”).
Page 48: Native Device Message Details
1.8.1 Native Program message formats Among all device messages, those that are transmitted from the external controller (PC) to the MS2690A/MS2691A/MS2692A or MS2830A are called “program messages”. Program messages fall into two groups: program commands, which set or specify instrument parameters, and program queries, which request parameters and measurement results.
Page 49 Native Device Message Details Program message Program message unit <Example> PRINT @1;”CNF 1GHZ;RLV 0DBM” Multiple commands can be transmitted separately by separating them with semicolons (;). Program message unit Program header Program data The program header of each IEEE488.2 common command begins with an asterisk ( ...
Page 50 Chapter 1 Basics of Remote Control Numeric program data Numeric program data is grouped into four types: integral (NR1), fixed-point decimal (NR2), floating-point decimal (NR3), and hexadecimal. Integral (NR1) <0 to 9>   Integral data can have leading zeroes (e.g., 005, +005). ...
Page 51 Native Device Message Details Floating-point decimal (NR3) (Mantissa part)  <0 to 9> <0 to 9>  – <0 to 9> <0 to 9> (Exponent part) <0 to 9> –  E denotes the power of 10, or the exponent. ...
Page 52 Chapter 1 Basics of Remote Control Hexadecimal data <0 to 9> Binary data 0 / 1 ＃ 1-44...
Page 53 Native Device Message Details Suffix data The table below lists the suffix data that is used. The suffix codes available vary depending on the function. Table 1.8.1-1 Suffix codes Category Suffix Code Unit GHZ or GZ MHZ or MZ Frequency KHZ or KZ DBM or DM dBmV...
Page 54 Chapter 1 Basics of Remote Control String program data Arbitrary character string enclosed by one pair of “ ” (double quotation marks) or ‘ ’ (single quotation marks). The characters that can be used vary depending on the function. ’ <Inserted>...
Page 55: Native Response Message Formats
Native Device Message Details 1.8.2 Native Response message formats The formats in which the external controller (PC) transmits response messages from the MS2690A/MS2691A/MS2692A or MS2830A by way of INPUT and other statements are described below. Response message Response message terminator...
Page 56 Chapter 1 Basics of Remote Control Response data Character response data Numeric response data String response data Character response data Defined strings of data are composed of any of the alphabetical lower case and upper case characters A to Z, the digits 0 through 9, and the underscore (_).
Page 57 Native Device Message Details Fixed-point decimal (NR2) <0 to 9> <0 to 9> – –  The leading digit must be non-zero.  A fixed-point decimal number having a value of 0 in its decimal place is output as an integer. <Examples>...
Page 58 Chapter 1 Basics of Remote Control String response data <Inserted> ” ” ” ASCII character other than ” 1-50...
Page 59: Status Structure
Status Structure 1.9 Status Structure The Status Byte (STB) that is transmitted to the external controller (PC) complies with the IEEE488.1 standard. Its bit string, called a “status summary message,” provides summary information about the current data placed in a register or queue. 1.9.1 IEEE488.2 standard status model The standard model of the status structure defined by IEEE488.2 is shown below.
Page 60 Chapter 1 Basics of Remote Control In the status model, an IEEE488.1 status byte is used as the lowest-level status, which consists of seven summary message bits that are supplied from an upper status structure. The status data structure is organized into a register model and a queue model to generate these summary message bits.
Page 61: Status Byte (Stb) Register
Status Structure 1.9.2 Status Byte (STB) register The STB register consists of an STB device and an RQS (or MSS) message. (1) ESB and MAV summary messages The ESB and MAV summary messages are described below. ESB summary message The ESB (Event Summary Bit) summary message is a message defined by IEEE488.2.
Page 62: Scpi Device-Dependent Summary Messages
Chapter 1 Basics of Remote Control 1.9.3 SCPI Device-dependent summary messages The structure of the status byte register is as shown below when the SCPI mode is selected. OPERation Status Register OPER QUES QUEStionable Status Register Status Summary Error/Event Que Message Figure 1.9.3-1 Status byte register in SCPI mode 1-54...
Page 63: Native Device-Dependent Summary Messages
Extended Event Status registers. EESB 3 and EESB 2 correspond to the extended event status of the main applications of the MS2690A/MS2691A/MS2692A (Signal Analyzer, Spectrum Analyzer, etc.) while EESB 1 and EESB 0 correspond to the extended event status of other sub applications (Signal Generator, etc.).
Page 64 Chapter 1 Basics of Remote Control Figure 1.9.4-1 Status byte register in Native mode 1-56...
Page 65: Reading And Clearing Stb Register
Status Structure 1.9.5 Reading and clearing STB register The STB register is read by serial polling or by using an  STB? query. Either way, an STB message as defined by IEEE488.1 is read, but the value that is transmitted to bit6 (position) varies with each method used. The STB register can be cleared using the ...
Page 66: Service Request (Srq) Enable Operation
Chapter 1 Basics of Remote Control 1.9.6 Service Request (SRQ) enable operation Bits 0 to 7 of the Service Request Enable (SRE) register control whether the corresponding bits of the STB register will generate an SRQ. The SRB register bits are associated with the STB register bits. If the STB register bit associated with a SRE register bit that is 1 is set to 1, the device sets the RQS bit to 1, issuing a service request to the external controller (PC).
Page 67: Standard Event Status Register Model
Attempt to read data from the output queue when it is Query error (QYE) empty or queued data lost before it is read  Not used Set to 1 when the MS2690A/MS2691A/MS2692A or Operation complete (OPC) MS2830A has processed the *OPC command. 1-59...
Page 68: Standard Event Status Register Operation
Chapter 1 Basics of Remote Control 1.9.8 Standard Event Status register operation The operation methods for the Standard Event Status registers and Standard Event Status Enable registers are shown in the table below. Table 1.9.8-1 Standard Event Status register operation Register Operation Read...
Page 69 Status Structure The SCPI specification status register has the following configuration. Condition Transition Event Event Enable Register Filter Register Register      Logic ＯＲ Summary Message Figure 1.9.9-1 Configuration of SCPI Specification Status Register Table 1.9.9-2 SCPI Specification Status register configurations Register･Filter Operation Monitors device status and changes depending on the device...
Page 70: Scpi Specification Status Register Operation
Chapter 1 Basics of Remote Control 1.9.10 SCPI specification status register operation How to operate the SCPI specification status register and error/event queue is shown below. Table 1.9.10-1 SCPI Status register operation Register Operation :STATus:...:EVENt? Read This register is read using a query. Write This register cannot be written externally.
Page 71 Status Structure Table 1.9.10-2 SCPI Status register operation (Cont’d) Register Operation :STATus:...:PTRansition? :STATus:...:NTRansition? Read This register is read using a query :STATus:...:PTRansition Write :STATus:...:NTRansition SCPI Transition Filter This register is written using a command. (Main Application) This register is cleared when. (1) :STATus:PRESet command is received.
Page 72: Extended Event Status Register
1.9.11 Extended Event Status register When language mode is Native, each application operating on the MS2690A/MS2691A/MS2692A or MS2830A has a unique Extended Event Status register and Extended Event Status Enable register. Only the statuses specified to be controllable in the Application Switch menu can be read.
Page 73 Status Structure Figure 1.9.11-1 Extended event status register model 1-65...
Page 74: Extended Error Event Status Register
Chapter 1 Basics of Remote Control 1.9.12 Extended Error Event Status register (Main Application) The operation model of the Extended Error Event Status registers for the Main Applications is shown below. Main Application indicates an application mainly with RF signal analysis functionality (Signal Analyzer, Spectrum Analyzer, etc.).
Page 75 Status Structure 1.9.13 Extended End Event Status register (Main Application) The operation model of the Extended End Event Status registers of Main Applications is shown below. Main application indicates an application mainly with RF signal analysis functionality (Signal Analyzer, Spectrum Analyzer, etc.). Only the Extended End Event Status register and the Extended End Event Status Enable register of the applications specified as control targets in the Application Switch menu can be read.
Page 76 Chapter 1 Basics of Remote Control 1.9.14 Extended Error Event Status register (Sub Applications) The operation model of the Extended Error Event Status registers for Sub Applications (an example with Application a) is shown below. Sub Application indicates an application other than the Main Applications (Signal Generator, etc.).
Page 77 Status Structure The specifications of the Extended Error Event Status register (on the right in the figure above) vary depending on the application. Refer to the Operation Manual (Remote Control) of each application for details. The summary message of this register is transmitted to EESB 1 of the Status Byte register.
Page 78 Chapter 1 Basics of Remote Control 1.9.15 Extended End Event Status register (Sub Applications) The operation model of the Extended End Event Status registers of Sub Applications (an example with Application a) is shown below. Sub Application indicates an application other than the main applications (Signal Generator, etc.).
Page 79 Status Structure The specifications of the Extended End Event Status register (on the right in the figure above) vary depending on the application. Refer to the Operation Manual (Remote Control) of each application for details. The summary message of this register is transmitted to EESB 0 of the Status Byte register.
Page 80: (Main Application)
Chapter 1 Basics of Remote Control 1.9.16 Extended Event Status register operation The operation methods for the Extended Event Status registers and Extended Event Status Enable registers are shown in the table below. Table 1.9.16-1 Extended Event Status register operation Register Operation Read...
Page 81: (Sub Applications)
Status Structure Table 1.9.16-1 Extended Event Status register operation (Cont’d) Register Operation Read This register is read using an ESR1? query. Write This register cannot be written externally. This register is cleared when: Extended Error Event <1> The *CLS command is received. Status Summary Register <2>...
Page 82: Extended End Event Status Register
Chapter 1 Basics of Remote Control Table 1.9.16-1 Extended Event Status register operation (Cont’d) Register Operation Read This register is read using an ESRERR? query. Write This register cannot be written externally. This register is cleared when: Extended Error Event <1>...
Page 83: Synchronization
1.10 Synchronization 1.10 Synchronization This section describes synchronized control of the MS2690A/MS2691A/MS2692A or MS2830A (completing processing of a command message before proceeding to the next one). Synchronized control methods are shown below: Using sequential commands Using the *WAI command Using the *OPC command...
Page 84 Chapter 1 Basics of Remote Control (3) Using the *OPC command Transmitting the common IEEE488.2 command *OPC (Operation Complete) is a method for waiting until bit0 (OPC) of the Standard Event Status register indicating that the processing being executed completes is enabled. To wait for the event, read the Standard Event Status register directly or use a service request.
Page 85 1.10 Synchronization (5) Using the status query Queries the processing status and waits until the response indicating completion is returned. <Program example> To query the marker level after measurement using the Spectrum Analyzer function completes: (The measurement status query SWP? is used in this example.) ;...
Page 86 Chapter 1 Basics of Remote Control 1-78.
Page 87: Chapter 2 Ieee488.2 Common Device Message
Chapter 2 IEEE488.2 Common Device Message List This chapter describes IEEE488.2 Common Device Message for executing MS2690A/MS2691A/MS2692A or MS2830A functions (hereinafter, referred to as “this application”) using a list organized by function. Refer to Chapter 3 “IEEE488.2 Common Device Message Details” for detailed specifications for each command.
Page 88 IEEE488.2 common device messages available in this application are shown in Table 2.1-1. Table 2.1-1 IEEE488.2 Common Device messages Function Command Query Response Remarks model : Main unit model name ANRITSU,model,serial *IDN? serial : Main unit serial number Identification Query number,firmware version : Software package version result : Self test result result...
Page 89 Table 2.1-1 IEEE488.2 Common Device messages (Cont’d) Function Command Query Response Remarks bit7: EESB7 bit6: Not used bit5: ESB Service Request Enable Register *SRE? bit4: MAV *SRE n Command/Query bit3: EESB3 bit2: EESB2 (END Event) bit1: EESB1 bit0: EESB0 bit7: EESB7 bit6: MSS/RQS bit5: ESB Read Status Byte Query...
Page 91: Chapter 3 Ieee488.2 Common Device Message Details
Chapter 3 IEEE488.2 Common Device Message Details This chapter describes detailed specifications on IEEE488.2 common device message remote control commands executing MS2690A/MS2691A/MS2692A or MS2830A functions in alphabetical order. *CLS ..................3-2 *ESE/*ESE? ................3-3 *ESR? ..................3-4 *IDN? ..................3-5 *OPC/*OPC? ................3-6 *RST ..................3-7 *SRE/*SRE? ................
Page 92: Cls
Chapter 3 IEEE488.2 Common Device Message Details *CLS Clear Status Command Function Clears the status byte resister, standard event status register, extended event status register and output queue data, and disables the wait for operation completion set by *OPC / *OPC? This is a common IEEE488.2 command.
Page 93: Ese/*Ese
Chapter 3 IEEE488.2 Common Device Message Details *ESE/*ESE? Standard Event Status Enable Command/Query Function Sets the standard event status enable register. The standard event status enable register value is returned for the query. This is a common IEEE488.2 command/query. Command *ESE n Query *ESE?
Page 94: Esr
Chapter 3 IEEE488.2 Common Device Message Details *ESR? Standard Event Status Register Query Function Returns the standard event status register value. The standard event status register value is cleared after readout. This is a common IEEE488.2 query. Query *ESR? Response Parameter Standard event status register Value...
Page 95: Idn
Identification Query Function Queries device information. This is a common IEEE488.2 query. Query *IDN? Response ANRITSU,model,serialnumber,firmware Parameter Product model (7-character alphanumeric) model Serial number (10-digit number) serialnumber Firmware and software versions firmware Example of Use To query device information: *IDN? >ANRISTU,MS2690A,6000000000,1.00.00...
Page 96: Opc/*Opc
Chapter 3 IEEE488.2 Common Device Message Details *OPC/*OPC? Operation Complete Command/Query Function *OPC / *OPC? is a command/query to synchronize between the device and the external controller (PC). This is a common IEEE488.2 command/ query. If a *OPC command is received, the operation completion bit (bit 0) is set to 1 once all active processes are complete.
Page 97: Rst
Chapter 3 IEEE488.2 Common Device Message Details *RST Reset Command Function Initializes the device. This is a common IEEE488.2 command. Command *RST Details Initializes the settings and status of all loaded applications. Example of Use To initialize the device: *RST...
Page 98: Sre/*Sre
Chapter 3 IEEE488.2 Common Device Message Details *SRE/*SRE? Service Request Enable Command/Query Function Sets the service request enable register. The service request enable register value is returned for the query. This is a common IEEE488.2 command/query. Command *SRE n Query *SRE? Response Parameter...
Page 99: Stb
Chapter 3 IEEE488.2 Common Device Message Details *STB? Status Byte Register Query Function Returns the status byte register value. This is a common IEEE488.2 query. Query *STB? Response Parameter Status byte register Value = bit0 + bit1 + bit2 + bit3 + bit4 + bit5 + bit6 + bit7 bit0: 2 Extended event status (EESB0) bit1: 2...
Page 100: Tst
Chapter 3 IEEE488.2 Common Device Message Details *TST? Self-Test Query Function Returns the result of the self test executed at system activation. This is a common IEEE488.2 query. Query *TST? Response result Parameter result Self test result Normal termination Error occurred Example of Use To query the self test result: *TST?
Page 101: Wai
Chapter 3 IEEE488.2 Common Device Message Details *WAI Wait-to-Continue Command Function Waits until all active processes are complete before executing the next command. This is a common IEEE488.2 command. Command *WAI Example of Use To wait for completion of measurement: SNGLS;*WAI POWER? 3-11...
Page 102 Chapter 3 IEEE488.2 Common Device Message Details 3-12.
Page 103: Chapter 4 Scpi Device Message Details
Chapter 4 SCPI Device Message Details This chapter describes the detailed specifications of SCPI remote control commands for executing the functions of this equipment. The device messages are listed according to function. Application Common Device Messages .................. 4-7 :INSTrument[:SELect] SIGANA|SPECT|PNOISE|CONFIG|SG|BER|WIMAX|WCDMADL |WCDMAUL |GSM|ETC_DSRC|TDSCDMA|XGPHS|VMA|AMA|3GLTE_DL |3GLTE_UL| LTETDDDL|LTETDDUL|CDMA2KFWD|EVDOFWD|WDEVICE |WLAN| WCDMA_BS|RNC|MEDIAFLO|ISDBTMM|UMTS|BBIF|EXTDIG|PA...
Page 104 Chapter 4 SCPI Device Message Details :CALibration:FREQuency:BAND:EXTRa? ................4-33 :CALibration:TIME:BAND:EXTRa? ..................4-34 :SYSTem:RESult:MODE A|B ....................4-35 :SYSTem:RESult:MODE? ....................4-36 :SYSTem:ERRor? ....................... 4-37 :SYSTem:LANGuage SCPI|NATive ..................4-39 :SYSTem:LANGuage? ......................4-40 [:SENSe]:ROSCillator:STATus?................... 4-41 [:SENSe]:ROSCillator:SOURce? ..................4-42 [:SENSe]:POWer[:RF]:ATTenuation:MODE COMBined|MECHanical| ........4-43 [:SENSe]:POWer[:RF]:ATTenuation:MODE? ............... 4-44 [:SENSe]:CORRection[:STATe] ON|OFF|1|0 ...............
Page 105 Chapter 4 SCPI Device Message Details :SYSTem:COMMunicate:GPIB[1][:SELF]:DELimiter? ............4-70 :SYSTem:BEEPer ON|OFF|0|1 .................... 4-71 :SYSTem:BEEPer? ......................4-71 :MMEMory:STORe:SCReen:THEMe NORMal|REVerse|MONOchrome|MREVerse ..... 4-72 :MMEMory:STORe:SCReen:THEMe? ................. 4-72 [:SENSe]:ROSCillator:SOURce:AUTO ON|OFF|1|0 ............. 4-73 [:SENSe]:ROSCillator:SOURce:AUTO? ................4-73 :MMEMory:MOVE:STATe <filename>,<device> ..............4-74 :MMEMory:COPY:STATe <filename>,<device> ..............4-75 :MMEMory:DELete:STATe <filename>,<device> ..............4-76 :MMEMory:PROTection:STATe[:STATe] <filename>,ON|OFF|0|1,<device>......
Page 106 Chapter 4 SCPI Device Message Details :SYSTem:SOFTware:CATalog?..................4-107 :SYSTem:SOFTware:CATalog:ALL? ................. 4-108 :SYSTem:APPLication:VERSion? <apl_name>..............4-109 :SYSTem:FPGA:VERSion? <hardware> ................4-110 :SYSTem:FPGA:VERSion:CATalog? ................. 4-112 :SYSTem:HARDware:REVision? <hardware> ..............4-114 :SYSTem:HARDware:REVision:CATalog? ................. 4-115 :SYSTem:TEMPerature:RF?....................4-116 [:SENSe]:ROSCillator:EXTernal:FREQuency <freq> ............4-117 [:SENSe]:ROSCillator:EXTernal:FREQuency? ..............4-118 :CALibration:ALERt:MODE NONE|TEMPerature|TIME|BOTH ..........4-119 :CALibration:ALERt:MODE? ....................
Page 107 Chapter 4 SCPI Device Message Details :SYSTem:PMETer:SENSe:RANGe AUTO|LOW|HIGH ............4-139 :SYSTem:PMETer:SENSe:RANGe? .................. 4-140 :SYSTem:PMETer:DEVice:ERRor? ................... 4-141 :SYSTem:PMETer:APERture:TIME <aper_time> ............... 4-142 :SYSTem:PMETer:APERture:TIME? ................. 4-142 :SYSTem:PMETer:APERture:MODE LAT|HAT ..............4-143 :SYSTem:PMETer:APERture:MODE? ................4-143 4.3.3 OPERation Status Register ................... 4-144 :STATus:OPERation[:EVENt]? ..................4-146 :STATus:OPERation:CONDition? ..................4-146 :STATus:OPERation:ENABle <integer>...
Page 108 Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:RSYNc[:STATe] ON|OFF|1|0 ..........4-174 [:SENSe]:BERT[:BASeband]:RSYNc[:STATe]?..............4-175 [:SENSe]:BERT[:BASeband]:STATe ON|OFF|1|0 .............. 4-176 [:SENSe]:BERT[:BASeband]:STATe? ................4-177 [:SENSe]:BERT[:BASeband]:STOP:CRITeria:EBIT <bit> ........... 4-178 [:SENSe]:BERT[:BASeband]:STOP:CRITeria:EBIT? ............4-179 [:SENSe]:BERT[:BASeband]:STOP:CRITeria[:SELect] EBIT|NONE........4-180 [:SENSe]:BERT[:BASeband]:STOP:CRITeria[:SELect]? ............ 4-181 [:SENSe]:BERT[:BASeband]:TBITs <bit> ................4-182 [:SENSe]:BERT[:BASeband]:TBITs? ................. 4-183 [:SENSe]:BERT[:BASeband]:MODE SINGle|CONTinuous|ENDLess ......... 4-184 [:SENSe]:BERT[:BASeband]:MODE? ................
Page 109: Application Common Device Messages
Application Common Device Messages 4.1 Application Common Device Messages Application common device messages available in this application are shown in Table 4.1-1. Table 4.1-1 Application Common Device Messages Function Device Messages :INSTrument[:SELect] SIGANA|SPECT|PNOISE|CONFIG|SG|BER|WIMAX|WCDMADL|WCDMAUL |GSM|ETC_DSRC|TDSCDMA|XGPHS|VMA|AMA|3GLTE_DL|3GLTE_UL Application Switch |LTETDDDL|LTETDDUL|CDMA2KFWD|EVDOFWD|WDEVICE|WLAN|WCDMA_BS |RNC|MEDIAFLO|ISDBTMM|UMTS|BBIF|EXTDIG|PA|TRXSC|PMETer :INSTrument[:SELect]? :INSTrument:SYSTem SIGANA|SPECT|PNOISE|CONFIG|PMETer|BER,[ACTive]|INACtive|MINimum Application Status :INSTrument:SYSTem?
Page 110 Chapter 4 SCPI Device Message Details Table 4.1-1 Application Common Device Messages (Cont’d) Function Device Messages Local Leak Calibration Time :CALibration:TIME:LOLeak? Query Local Leak Calibration :CALibration:TEMPerature:LOLeak? Temperature Query Bandwidth :CALibration:BAND Calibration Bandwidth Calibration :CALibration:TIME:BAND? Time Query Bandwidth Calibration :CALibration:TEMPerature:BAND? Temperature Query Extra Bandwidth :CALibration:BAND:EXTRa Calibration...
Page 111 Application Common Device Messages Table 4.1-1 Application Common Device Messages (Cont’d) Function Device Messages Correction File :MMEMory:LOAD:CORRection <filename>[,<device>] Recall Correction Data [:SENSe]:CORRection:DATA? Read [:SENSe]:FREQuency:SYNThesis:LPHase ON|OFF|1|0 Low Phase Noise [:SENSe]:FREQuency:SYNThesis:LPHase? :DISPlay:WINDow[1]:ANNotation[:ALL] ON|OFF|1|0 Display Annotation :DISPlay:WINDow[1]:ANNotation[:ALL]? Status of Calibration :CALibration:ALERt:STATe? Alert...
Page 112: Instrument[:Select]
Chapter 4 SCPI Device Message Details :INSTrument[:SELect] SIGANA|SPECT|PNOISE|CONFIG|SG|BER|WIMAX|WCDMADL|WCDMAUL |GSM|ETC_DSRC|TDSCDMA|XGPHS|VMA|AMA|3GLTE_DL|3GLTE_UL| LTETDDDL|LTETDDUL|CDMA2KFWD|EVDOFWD|WDEVICE|WLAN| WCDMA_BS|RNC|MEDIAFLO|ISDBTMM|UMTS|BBIF|EXTDIG|PA|TRXSC| PMETer Application Switch Function This command switches the target application for control. Command :INSTrument[:SELect] <apl_name> Parameter Target application name <apl_name> Signal Analyzer SIGANA Spectrum Analyzer SPECT Phase Noise PNOISE Config CONFIG Signal Generator...
Page 113 Application Common Device Messages UMTS Measurement Software UMTS Digital I/F Control Software BBIF Extended Digitizing EXTDIG PA Measurement TRX Sweep Calibration TRXSC Power Meter PMETer Details This function is used to switch the operation/control target application. An application that has not been loaded cannot be switched to. Before using this command, load the application by using the SYSTem:APPLication:LOAD command.
Page 114 Chapter 4 SCPI Device Message Details :INSTrument[:SELect]? Application Switch Query Function This command queries the controlled application. Query :INSTrument[:SELect]? Response <apl_name> Parameter Target application name <apl_name> Signal Analyzer SIGANA Spectrum Analyzer SPECT Phase Noise PNOISE Config CONFIG Signal Generator BER Test WiMAX WIMAX W-CDMA/HSPA Downlink...
Page 115: Instrument:system
Application Common Device Messages Power Meter PMETer Details This function is used to switch the operation/control target application. The software version V6.00.00 or later does not support the commands of the UMTS Measurement Software and Digital I/F Control Software. Example of Use To query the control target INST? >...
Page 116 Chapter 4 SCPI Device Message Details :INSTrument:SYSTem? Application Status Query Function This command queries the status of the specified application. Query :INSTrument:SYSTem? <apl_name> Response <status>,<window> Parameter Target application name <apl_name> Signal Analyzer SIGANA Spectrum Analyzer SPECT Phase Noise PNOISE Config CONFIG Power Meter PMETer...
Page 117: System:reboot
Application Common Device Messages :SYSTem:REBoot System Re-boot Function This command reboots the system. Command :SYSTem:REBoot Details If this command is received, remote control communication is disabled until all applications are rebooted. Example of Use To reboot the system. SYST:REB :INSTrument:DEFault Preset Current Application Function This command initializes the settings and status of the currently selected...
Page 118: System:preset
Chapter 4 SCPI Device Message Details :SYSTem:PRESet Preset Current Application Function This command initializes the settings and status of the currently selected application. Command :SYSTem:PRESet Example of Use To initialize the settings and status of the currently selected application SYST:PRES :DISPlay:ENABle ON|OFF|1|0 LCD Power Function...
Page 119: Display:enable
Application Common Device Messages :DISPlay:ENABle? LCD Power Query Function This command queries the ON/OFF status of the LCD backlight. Query :DISPlay:ENABle? Response <switch> Parameter LCD backlight status <switch> On (Default) Details When the Local key is pressed, the LCD backlight automatically turns Example of Use To query the ON/OFF status of the LCD backlight DISP:ENAB?
Page 120: Display:screen
Files are saved to the following directory in the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\Copy Files When file name is omitted, up to 1000 files can be saved in a folder. When file name is specified, it is possible to save more than 1000 files.
Page 121: Mmemory:store:screen:mode Bmp|Png
Application Common Device Messages :MMEMory:STORe:SCReen:MODE BMP|PNG Hard Copy Mode Function This command sets the screen hardcopy file format. Command :MMEMory:STORe:SCReen:MODE <mode> Parameter File format <mode> BMP format (Default) PNG format Example of Use To save hardcopies in the PNG format MMEM:STOR:SCR:MODE PNG :MMEMory:STORe:SCReen:MODE? Hard Copy Mode Query...
Page 122: Mmemory:store:state [[,]]
Files are saved to the following directory in the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\Parameter Setting When file name is omitted, up to 1000 files can be saved in a folder. When file name is specified, it is possible to save more than 1000 files.
Page 123: Mmemory:load:state [,[,]]
Application Common Device Messages :MMEMory:LOAD:STATe <filename>[,<device>[,<mode>]] Recall Parameter Setting file Function This command recalls the application settings and status into a parameter setting file. Command :MMEMory:LOAD:STATe <filename>[,<device>[,<mode>]] Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 124: Display:error:mode Normal|Remain|Last
Chapter 4 SCPI Device Message Details :DISPlay:ERRor:MODE NORMal|REMain|LAST Error Message Display Mode Function Selects the error message display mode when an error occurs during remote control. Command :DISPlay:ERRor:MODE <mode> Parameter Error message display mode <mode> Deletes the error message display once the next NORMal command is received.
Page 125: Display:error:mode
Cal, SG I/Q External Cal. Command :CALibration:ALL Details For SG I/Q Cal and SG I/Q External Cal, refer to Section 2.8 “CAL Setting” in MS2690A/MS2691A/MS2692A Signal Analyzer Option 020 Vector Signal Generator Operation Manual (Remote Control). Example of Use To execute all calibrations CAL:ALL...
Page 126: Calibration:time:all
Chapter 4 SCPI Device Message Details :CALibration:TIME:ALL? All Calibration Time Query Function This command queries the time elapsed since the last All Calibration Time Command. Query :CALibration:TIME:ALL? Response <time> Parameter Time elapsed since calibration was performed <time> No suffix code. Value is returned in s units. Details This can be used as a criterion for whether to execute calibration.
Page 127: Calibration:temperature:all
Application Common Device Messages :CALibration:TEMPerature:ALL? All Calibration Temperature Query Function This command queries the temperature when the last time all the calibrations were performed. Query :CALibration:TEMPerature:ALL? Response <temperature> Parameter Temperature of the RF unit at the time of the <temperature> calibration Resolution 0.01°C...
Page 128: Calibration:level
Chapter 4 SCPI Device Message Details :CALibration:LEVel Level Calibration Function This command executes Level Calibration. Command :CALibration:LEVel Example of Use To executes Level Calibration CAL:LEV :CALibration:TIME:LEVel? Level Calibration Time Query Function This command queries the time elapsed since the last Level Calibration. Query :CALibration:TIME:LEVel? Response...
Page 129: Calibration:temperature:level
Application Common Device Messages :CALibration:TEMPerature:LEVel? Level Calibration Temperature Query Function This command queries the temperature at the last Level Calibration. Query :CALibration:TEMPerature:LEVel? Response <temperature> Parameter Temperature of the RF unit at the time of the <temperature> calibration Resolution 0.01°C Returns a value in Celsius (°C) units. Details This command is available only for MS2830A.
Page 130: Calibration:time:loleak
Chapter 4 SCPI Device Message Details :CALibration:TIME:LOLeak? Local Leak Calibration Time Query Function This command queries the time elapsed since the last Local Leak calibration. Query :CALibration:TIME:LOLeak? Response <time> Parameter Time elapsed since calibration was performed <time> Returns the time in minutes, without a suffix code.
Page 131: Calibration:temperature:loleak
Application Common Device Messages :CALibration:TEMPerature:LOLeak? Local Leak Calibration Temperature Query Function This command queries the temperature at the last Local Leak Calibration. Query :CALibration:TEMPerature:LOLeak? Response <temperature> Parameter Temperature of the RF unit at the time of the <temperature> calibration Resolution 0.01°C Returns a value in Celsius (°C) units.
Page 132: Calibration:band
Chapter 4 SCPI Device Message Details :CALibration:BAND Bandwidth Calibration Function This command executes Bandwidth Calibration. Command :CALibration:BAND Example of Use To execute Bandwidth Calibration CAL:BAND :CALibration:TIME:BAND? Bandwidth Calibration Time Query Function This command queries the time elapsed since the last Bandwidth Calibration.
Page 133: Calibration:temperature:band
Application Common Device Messages :CALibration:TEMPerature:BAND? Bandwidth Calibration Temperature Query Function This command queries the temperature at the last Bandwidth Calibration. Query :CALibration:TEMPerature:BAND? Response <temperature> Parameter Temperature of the RF unit at the time of the <temperature> calibration Resolution 0.01°C Returns a value in Celsius (°C) units. Details This command is available only for MS2830A.
Page 134: Calibration:band:extra
Chapter 4 SCPI Device Message Details :CALibration:BAND:EXTRa Extra Bandwidth Calibration Function This command executes band calibration within the current central frequency. Command :CALibration:BAND:EXTRa Details MS269xA If this command is executed when MS269xA holds 100 values obtained by calibration, the oldest value is discarded and replaced by the newly obtained one.
Page 135: Calibration:frequency:band:extra
Application Common Device Messages :CALibration:FREQuency:BAND:EXTRa? Extra Bandwidth Calibration Frequency Query Function This command queries a list of center frequencies of values that are obtained by Extra Band Cal and held by MS269xA/MS2830A. Query :CALibration:FREQuency:BAND:EXTRa? Response <freq>,<freq>,... Parameter Center frequency of value obtained by Extra Band <freq>...
Page 136: Calibration:time:band:extra
Chapter 4 SCPI Device Message Details :CALibration:TIME:BAND:EXTRa? Extra Bandwidth Calibration Time Query Function This command queries a list of the elapsed time of each Extra Band Cal. Query :CALibration:TIME:BAND:EXTRa? Response <time>,<time>,... Parameter Elapsed time of Extra Band Cal <time> No suffix code. Value is returned in s units.
Page 137: System:result:mode A|B
Application Common Device Messages :SYSTem:RESult:MODE A|B Result Mode Function This command sets the output mode of the measured result. Command :SYSTem:RESult:MODE <mode> Parameter Output mode <mode> Mode A (Default) Mode B Details The Result Mode is initialized to Mode A through the following operation.
Page 138: System:result:mode
Chapter 4 SCPI Device Message Details :SYSTem:RESult:MODE? Result Mode Query Function This command queries the output mode of the measured result. Query :SYSTem:RESult:MODE? Response <mode> Parameter Output mode <mode> Mode A (Default) Mode B Details The Result Mode is initialized to Mode A through the following operation.
Page 139: System:error
Application Common Device Messages :SYSTem:ERRor? System Error Query Function This command queries the error messages that exist in errors and the event queue. A description consisting of numbers and characters related to the error or event is saved to the error or event queue. Query :SYSTem:ERRor? Response...
Page 140 Chapter 4 SCPI Device Message Details Table 4.1-2 Error Messages List Error/event_description Error/event_number Description Indicates that the command is incorrect –100 Command error or invalid. Indicates that the number of parameters –108 Parameter not allowed does not match. Indicates that the number of parameters does not match.
Page 141: System:language Scpi|Native
Application Common Device Messages :SYSTem:LANGuage SCPI|NATive Language mode switching Function This command switches the language mode. Command :SYSTem:LANGuage <mode> Parameter Language mode <mode> SCPI mode SCPI Native mode (Default) NATive Details The language mode is initialized to the Native mode through the following operation.
Page 142: System:language
Chapter 4 SCPI Device Message Details :SYSTem:LANGuage? Language mode switching Query Function This command queries the language mode. Query :SYSTem:LANGuage? Response <mode> Parameter Language mode <mode> SCPI mode SCPI Native mode (Default) Details The language mode is initialized to the Native mode through the following operation.
Page 143: [:Sense]:Roscillator:status
Application Common Device Messages [:SENSe]:ROSCillator:STATus? Reference Clock Status Query Function This command queries the status of the frequency reference signal source. Query [:SENSe]:ROSCillator:STATus? Response <status> Parameter Status of frequency reference signal source <status> Frequency reference signal source is in the locked status.
Page 144: [:Sense]:Roscillator:source
Chapter 4 SCPI Device Message Details [:SENSe]:ROSCillator:SOURce? Reference Signal Query Function This command queries the frequency reference signal source. Query [:SENSe]:ROSCillator:SOURce? Response <source> Parameter Language mode <source> Internal reference signal source Internal reference signal source (Unlock state) INTU External reference signal source External reference signal source (Unlock state) EXTU Details...
Page 145: [:Sense]:Power[:Rf]:Attenuation:mode Combined|Mechanical
[:SENSe]:POWer[:RF]:ATTenuation:MODE COMBined|MECHanical| Attenuation Mode Function This command sets Attenuation Mode. Command [:SENSe]:POWer[:RF]:ATTenuation:MODE <mode> Parameter Attenuator mode <mode> For MS2690A/MS2691A/MS2692A: This command is not available. For MS2830A: Uses mechanical attenuator. MECHanical Switches between electronic and mechanical COMBined attenuator according to frequencies. Default...
Page 146: [:Sense]:Power[:Rf]:Attenuation:mode
Function This command queries Attenuation Mode. Query [:SENSe]:POWer[:RF]:ATTenuation:MODE? Response <mode> Parameter Attenuator mode <mode> For MS2690A/MS2691A/MS2692A : This command is not available. For MS2830A: Uses mechanical attenuator. MECH Switches between electronic and mechanical COMB attenuator according to frequencies. Details This sets the attenuator operation mode to be used.
Page 147: [:Sense]:Correction[:State] On|Off|1|0
Application Common Device Messages [:SENSe]:CORRection[:STATe] ON|OFF|1|0 Correction (On/Off) Function This command switches on/off the level frequency correction of the signal analyzer. Command [:SENSe]:CORRection[:STATe] <switch> Parameter Correction processing On/Off <switch> Sets Correction processing On. ON|1 Sets Correction processing Off. (Default) OFF|0 Example of Use To switch on the level frequency correction of the signal analyzer CORR ON...
Page 148: [:Sense]:Correction:make ,
Chapter 4 SCPI Device Message Details [:SENSe]:CORRection:MAKE <freq>,<real> Correction Make Up Function This command adds data to the level frequency correction table of the signal analyzer. Command [:SENSe]:CORRection:MAKE <freq>,<real> Parameter Frequency to be corrected <freq> Range –1 to 400 GHz Resolution 1 Hz Suffix code...

Page 149: Mmemory:store:correction [[,]]
Application Common Device Messages :MMEMory:STORe:CORRection [<filename>[,<device>]] Correction File Save Function This command saves the level frequency correction table of the signal analyzer. Command :MMEMory:STORe:CORRection [<filename>[,<device>]] Parameter Target file name <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 150: Mmemory:load:correction [,]
Chapter 4 SCPI Device Message Details :MMEMory:LOAD:CORRection <filename>[,<device>] Correction File Recall Function This command queries the level frequency correction table of the signal analyzer. Command :MMEMory:LOAD:CORRection <filename>[,<device>] Parameter Target file name <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 151: [:Sense]:Correction:data
Application Common Device Messages [:SENSe]:CORRection:DATA? Correction Data Read Function This command queries the level frequency correction table data of the signal analyzer. Query [:SENSe]:CORRection:DATA? Response <number>,<freq_1>,<real_1>,<freq_2>,<real_2>,... Parameter Number of data <number> Range 0 to 4096 Frequency to be corrected <freq> Range –1 to 400 GHz Resolution...
Page 152: [:Sense]:Frequency:synthesis:lphase On|Off|1|0
Chapter 4 SCPI Device Message Details [:SENSe]:FREQuency:SYNThesis:LPHase ON|OFF|1|0 Low Phase Noise Function This command enables/disables Low Phase Noise function. Command [:SENSe]:FREQuency:SYNThesis:LPHase[:STATe] <switch_n> Parameter Low Phase Noise switch <switch_n> Enables Low Phase Noise switch. ON|1 Disables Low Phase Noise switch. OFF|0 Default Details This command is available only for MS2830A.
Page 153: [:Sense]:Frequency:synthesis:lphase
Application Common Device Messages [:SENSe]:FREQuency:SYNThesis:LPHase? Low Phase Noise Query Function This command queries the On/Off status of Low Phase Noise function. Query [:SENSe]:FREQuency:SYNThesis:LPHase[:STATe]? Response <switch_n> Parameter Low Phase Noise switch <switch_n> Low Phase Noise switch enabled. Low Phase Noise switch disabled. Details This command is available only for MS2830A.
Page 154: Display:window[1]:Annotation[:All] On|Off|1|0
Chapter 4 SCPI Device Message Details :DISPlay:WINDow[1]:ANNotation[:ALL] ON|OFF|1|0 Display Annotation Function This command turns On/Off Display Annotation. When set to Off, the frequency and level of the measurement target are hidden from the screen. Command :DISPlay:WINDow[1]:ANNotation[:ALL] <switch_n> Parameter Display Annotation <switch_n>...
Page 155: Display:window[1]:Annotation[:All]
Application Common Device Messages :DISPlay:WINDow[1]:ANNotation[:ALL]? Display Annotation Query Function This command queries On/Off Display Annotation. When set to Off, the frequency and level of the measurement target are hidden from the screen. Query :DISPlay:WINDow[1]:ANNotation[:ALL]? Response <switch_n> Parameter Display Annotation <switch_n> Display Hide Details...
Page 156: Questionable Status Register
Chapter 4 SCPI Device Message Details 4.1.1 QUEStionable Status Register The figure below shows the layer structure of the QUEStionable status register. VOLTage (NOT USED) CURRent (NOT USED) Status Byte Register DB3 TIME (NOT USED) POWer (NOT USED) TEMPerature (NOT USED) FREQuency (NOT USED) PHASe (NOT USED) MODulation (NOT USED)
Page 157 Application Common Device Messages Table 4.1.1-3 Device messages for QUEStionable Status Register Function Device Messages Questionable Status :STATus:QUEStionable[:EVENt]? Register Event Questionable Status :STATus:QUEStionable:CONDition? Register Condition :STATus:QUEStionable:ENABle <integer> Questionable Status Register Enable :STATus:QUEStionable:ENABle? Questionable Status :STATus:QUEStionable:NTRansition <integer> Register Negative :STATus:QUEStionable:NTRansition? Transition Questionable Status :STATus:QUEStionable:PTRansition <integer>...
Page 158: Status:questionable[:Event]
Chapter 4 SCPI Device Message Details :STATus:QUEStionable[:EVENt]? Questionable Status Register Event Function This command queries the event register of the QUEStionable status register. Query :STATus:QUEStionable[:EVENt]? Response <integer> Parameter Total bytes of event register <integer> Range Resolution 0 to 65535 Details This command is available only in the SCPI mode.
Page 159: Status:questionable:enable
Application Common Device Messages :STATus:QUEStionable:ENABle <integer> Questionable Status Register Enable Function This command sets the event enable register of the QUEStionable status register. Command :STATus:QUEStionable:ENABle <integer> Parameter Total bytes of event enable register <integer> Range Resolution 0 to 65535 Details This command is available only in the SCPI mode.

Page 160: Status:questionable:ntransition
Chapter 4 SCPI Device Message Details :STATus:QUEStionable:NTRansition <integer> Questionable Status Register Negative Transition Function This command sets the transition filter (negative direction change) of the QUEStionable status register. Command :STATus:QUEStionable:NTRansition <integer> Parameter Total bytes of transition filter (negative direction <integer> change) Range Resolution...

Page 161: Status:questionable:ptransition
Application Common Device Messages :STATus:QUEStionable:PTRansition <integer> Questionable Status Register Positive Transition Function This command sets the transition filter (positive direction change) of the QUEStionable status register. Command :STATus:QUEStionable:PTRansition <integer> Parameter Total bytes of transition filter (positive direction <integer> change) Range Resolution 0 to 65535 Details...

Page 162: Status:questionable:calibration[:Event]
Chapter 4 SCPI Device Message Details :STATus:QUEStionable:CALibration[:EVENt]? Questionable Calibration Register Event Function This command queries the event register of the QUEStionable Calibration register. Query STATus:QUEStionable:CALibration[:EVENt]? Response <integer> Parameter Total bytes of event register <integer> Range Resolution 0 to 65535 Example of Use To query the contents of the event register of the QUEStionable Calibration register.
Page 163: Status:questionable:calibration:enable
Application Common Device Messages :STATus:QUEStionable:CALibration:ENABle <integer> Questionable Calibration Register Enable Function This command sets the event enable register of the QUEStionable Calibration register. Command :STATus:QUEStionable:CALibration:ENABle <integer> Parameter Total bytes of event enable register <integer> Range Resolution 0 to 65535 Details This command is available only in the SCPI mode.

Page 164: Status:questionable:calibration:ntransition
Chapter 4 SCPI Device Message Details :STATus:QUEStionable:CALibration:NTRansition <integer> Questionable Calibration Register Negative Transition Function This command sets the transition filter (negative direction change) of the QUEStionable Calibration register. Command :STATus:QUEStionable:CALibration:NTRansition <integer> Parameter Total bytes of transition filter (negative direction <integer> change) Range Resolution...

Page 165: Status:questionable:calibration:ptransition
Application Common Device Messages :STATus:QUEStionable:CALibration:PTRansition <integer> Questionable Calibration Register Positive Transition Function This command sets the transition filter (positive direction change) of the QUEStionable Calibration register. Command :STATus:QUEStionable:CALibration:PTRansition <integer> Parameter Total bytes of transition filter (positive direction <integer> change) Range Resolution 0 to 65535 Details...

Page 166: Config Function Device Messages
Chapter 4 SCPI Device Message Details 4.2 Config Function Device Messages Config Function device messages available in this application are shown in Table 4.2-1. Table 4.2-1 Config Function Device Messages Function Device Messages Load Application :SYSTem:APPLication:LOAD <apl_name> Unload Application :SYSTem:APPLication:UNLoad <apl_name> :SYSTem:COMMunicate:GPIB[1][:SELF]:DELimiter LF|CRLF|NONE Delimiter (Terminator)
Page 167 Config Function Device Messages Table 4.2-1 Config Function Device Messages (Cont’d) Function Device Messages Hard Copy File List :MMEMory:CATalog:SCReen? <device> Query Move Trace File :MMEMory:MOVE:TRACe <filename>,<apl_name>,<device> (HDD to Device) Copy Trace File :MMEMory:COPY:TRACe <filename>,<apl_name>,<device> (Device to HDD) Delete Trace File :MMEMory:DELete:TRACe <filename>,<apl_name>,<device>...
Page 168 Chapter 4 SCPI Device Message Details Table 4.2-1 Config Function Device Messages (Cont’d) Function Device Messages Attenuator :SYSTem:INFormation:SWITch? Switching Times Option Information :SYSTem:HARDware:OPTion:CATalog? Query Software License :SYSTem:SOFTware:CATalog? Information Query Software License and Option :SYSTem:SOFTware:CATalog:ALL? Information Query Software Version :SYSTem:APPLication:VERSion? <apl_name> Query FPGA, PLD, DSP :SYSTem:FPGA:VERSion? <hardware>...
Page 169: System:application:load
Config Function Device Messages :SYSTem:APPLication:LOAD <apl_name> Load Application Function Activates an application. Command :SYSTem:APPLication:LOAD <apl_name> Parameter Target application name <apl_name> Signal Analyzer SIGANA Spectrum Analyzer SPECT Phase Noise PNOISE Power Meter PMETer BER Test Details This function activates an installed application and registers it to the Application Switch menu.

Page 170: System:application:unload
Chapter 4 SCPI Device Message Details :SYSTem:APPLication:UNLoad <apl_name> Unload Application Function Exits an application. Command :SYSTem:APPLication:UNLoad <apl_name> Parameter Target application name <apl_name> Signal Analyzer SIGANA Spectrum Analyzer SPECT Phase Noise PNOISE Power Meter PMETer BER Test Details This function exits an activated application and deletes it from the Application Switch menu.

Page 171: System:communicate:gpib[1][:Self]:Delimiter Lf|Crlf|None
Config Function Device Messages :SYSTem:COMMunicate:GPIB[1][:SELF]:DELimiter LF|CRLF|NONE Delimiter (Terminator) Function Sets a delimiter (termination code) for remote control. Command :SYSTem:COMMunicate:GPIB[1][:SELF]:DELimiter <mode> Parameter Delimiter type <mode> CR/LF (Default) CRLF None (EOI only) NONE Example of Use To set the delimiter to CR/LF SYST:COMM:GPIB:DEL CRLF 4-69...
Page 172: System:communicate:gpib[1][:Self]:Delimiter
Chapter 4 SCPI Device Message Details :SYSTem:COMMunicate:GPIB[1][:SELF]:DELimiter? Delimiter (Terminator) Query Function This command queries a delimiter (termination code) for remote control. Query :SYSTem:COMMunicate:GPIB[1][:SELF]:DELimiter? Response <mode> Parameter Delimiter type <mode> CR/LF (Default) CRLF None (EOI only) NONE Example of Use To query a delimiter (termination code) for remote control SYST:COMM:GPIB:DEL? >...
Page 173: System:beeper On|Off|0|1
Config Function Device Messages :SYSTem:BEEPer ON|OFF|0|1 Sound On/Off Function This command turns the sound ON/OFF. Command :SYSTem:BEEPer <switch> Parameter Sound ON/OFF <switch> On (Default) ON|1 OFF|0 Example of Use To set sound to ON SYST:BEEP ON :SYSTem:BEEPer? Sound On/Off Query Function This command queries the sound ON/OFF status.
Page 174: Mmemory:store:screen:theme Normal|Reverse|Monochrome|Mreverse
Chapter 4 SCPI Device Message Details :MMEMory:STORe:SCReen:THEMe NORMal|REVerse|MONOchrome|MREVerse Screen Hard Copy Color Function Sets the screen hardcopy color image. Command :MMEMory:STORe:SCReen:THEMe <mode> Parameter Color image setting <mode> Displays color image (Default) NORMal Reverse displays color image. REVerse Displays monochrome image. MONochrome Reverse displays monochrome image.
Page 175: [:Sense]:Roscillator:source:auto On|Off|1|0
Config Function Device Messages [:SENSe]:ROSCillator:SOURce:AUTO ON|OFF|1|0 Frequency Reference Function This command selects the frequency reference signal source. Command [:SENSe]:ROSCillator:SOURce:AUTO <switch> Parameter Frequency reference signal source <switch> Uses internal reference signal source. OFF|0 Synchronizes with the external reference signal ON|1 source if an external reference signal is input. Synchronizes with the internal reference signal source if no input is detected.
Page 176: Mmemory:move:state ,
Chapter 4 SCPI Device Message Details :MMEMory:MOVE:STATe <filename>,<device> Move Parameter File (HDD to Device) Function Moves a parameter file saved in the internal hard disk to the specified device. Command :MMEMory:MOVE:STATe <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 177: Mmemory:copy:state ,
Config Function Device Messages :MMEMory:COPY:STATe <filename>,<device> Copy Parameter File (Device to HDD) Function Copies a parameter file from the specified storage device to the internal hard disk. Command :MMEMory:COPY:STATe <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 178: Mmemory:delete:state ,
Chapter 4 SCPI Device Message Details :MMEMory:DELete:STATe <filename>,<device> Delete Parameter File Function Deletes a parameter file saved in the specified device. Command :MMEMory:DELete:STATe <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...

Page 179: Mmemory:protection:state[:State] ,On|Off|0|1,
Config Function Device Messages :MMEMory:PROTection:STATe[:STATe] <filename>,ON|OFF|0|1,<device> Protect Parameter File Function Protects a parameter file saved in the specified drive. Protected files cannot be deleted. Command :MMEMory:PROTection:STATe[:STATe] <filename>,<switch>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...

Page 180: Mmemory:protection:state[:State]? ,
Chapter 4 SCPI Device Message Details :MMEMory:PROTection:STATe[:STATe]? <filename>,<device> Protect Parameter File Query Function This command queries the protection of parameter files saved in the specified drive. Protected files cannot be deleted. Query :MMEMory:PROTection:STATe[:STATe]? <filename>,<device> Response <switch> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 181: Mmemory:catalog:state?
Config Function Device Messages :MMEMory:CATalog:STATe? <device> Parameter File List Query Function Queries a list of parameter files saved in the specified device. Query :MMEMory:CATalog:STATe? <device> Response <number>,<filename_1>,<filename_2> ･･･ Parameter Drive name <device> A,B,D,E,F,... Number of files <number> Range 0 to 1000 File Name <filename>...

Page 182: Mmemory:move:screen ,
Chapter 4 SCPI Device Message Details :MMEMory:MOVE:SCReen <filename>,<device> Move Hard Copy File (HDD to Device) Function Moves a screen hardcopy file saved in the internal hard disk to the specified device. Command :MMEMory:MOVE:SCReen <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 183: Mmemory:copy:screen ,
Config Function Device Messages :MMEMory:COPY:SCReen <filename>,<device> Copy Hard Copy file (Device to HDD) Function Copies a screen hardcopy file from the specified storage device to the internal hard disk. Command :MMEMory:COPY:SCReen <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 184: Mmemory:delete:screen ,
Chapter 4 SCPI Device Message Details :MMEMory:DELete:SCReen <filename>,<device> Delete Hard Copy File Function This command deletes a screen hardcopy file saved in the specified drive. Command :MMEMory:DELete:SCReen <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...

Page 185: Mmemory:protection:screen[:State] ,On|Off|0|1,
Config Function Device Messages :MMEMory:PROTection:SCReen[:STATe] <filename>,ON|OFF|0|1,<device> Protect Hard Copy File Function This command protects a screen hardcopy file saved in the specified drive. Protected files cannot be deleted. Command :MMEMory:PROTection:SCReen[:STATe] <filename>,<switch>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 186: Mmemory:protection:screen[:State]? ,
Chapter 4 SCPI Device Message Details :MMEMory:PROTection:SCReen[:STATe]? <filename>,<device> Protect Hard Copy File Query Function This command queries the protection status of a screen hardcopy file saved in the specified drive. Protected files cannot be deleted. Query :MMEMory:PROTection:SCReen[:STATe]? <filename>,<device> Response <switch> Parameter Target filename <filename>...

Page 187: Mmemory:catalog:screen?
Config Function Device Messages :MMEMory:CATalog:SCReen? <device> Hard Copy File List Query Function Queries a list of screen hardcopy files saved in the specified device. Query :MMEMory:CATalog:SCReen? <device> Response <number>,<filename_1>,<filename_2>... Parameter Drive name <device> A,B,D,E,F,... Number of files <number> Range 0 to 1000 File Name <filename>...

Page 188: Mmemory:move:trace ,,
Chapter 4 SCPI Device Message Details :MMEMory:MOVE:TRACe <filename>,<apl_name>,<device> Move Trace File (HDD to Device) Function Moves a trace file saved in the internal hard disk to the specified device. Command :MMEMory:MOVE:TRACe <filename>,<apl_name>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 189: Mmemory:copy:trace ,,
Config Function Device Messages :MMEMory:COPY:TRACe <filename>,<apl_name>,<device> Copy Trace Data (Device to HDD) Function Copies a trace file from the specified storage device to the internal hard disk. Command :MMEMory:COPY:TRACe <filename>,<apl_name>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 190: Mmemory:delete:trace ,,
Chapter 4 SCPI Device Message Details :MMEMory:DELete:TRACe <filename>,<apl_name>,<device> Delete Trace File Function This command deletes the trace file saved in the specified drive. Command :MMEMory:DELete:TRACe <filename>,<apl_name>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...

Page 191: Mmemory:protection:trace[:State] ,On|Off|0|1,,
Config Function Device Messages :MMEMory:PROTection:TRACe[:STATe] <filename>,ON|OFF|0|1,<apl_name>,<device> Protect Trace File Function This command saves a trace file saved in the specified drive. Protected files cannot be deleted. Command :MMEMory:PROTection:TRACe[:STATe] <filename>,<switch>,<apl_name>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...

Page 192: Mmemory:protection:trace[:State]? , ,
Chapter 4 SCPI Device Message Details :MMEMory:PROTection:TRACe[:STATe]? <filename>, <apl_name>, <device> Protect Trace File Query Function This command queries the protection of a trace file saved in the specified drive. Protected files cannot be deleted. Query :MMEMory:PROTection:TRACe[:STATe]? <filename>, <apl_name>, <device> Response <switch>...

Page 193: Mmemory:catalog:trace? ,
Config Function Device Messages :MMEMory:CATalog:TRACe? <apl_name>,<device> Trace File List Query Function Queries a list of trace files saved in the specified device. Query :MMEMory:CATalog:TRACe? <apl_name>,<device> Response <number>,<filename_1>,<filename_2>,... Parameter Drive name <device> A,B,D,E,F,... Number of files <number> Range 0 to 1000 File Name <filename>...

Page 194: Mmemory:move:digitize ,,
Chapter 4 SCPI Device Message Details :MMEMory:MOVE:DIGitize <filename>,<apl_name>,<device> Move Digitize file (HDD to Device) Function Moves a digitized file saved in the internal hard disk to the specified device. Command :MMEMory:MOVE:DIGitize <filename>,<apl_name>,<device> Parameter Target filename <filename> Character string within 128 characters enclosed by double quotes (“...

Page 195: Mmemory:copy:digitize ,,
Config Function Device Messages :MMEMory:COPY:DIGitize <filename>,<apl_name>,<device> Copy Digitize File (Device to HDD) Function Copies a digitized file from the specified storage device to the internal hard disk. Command :MMEMory:COPY:DIGitize <filename>,<apl_name>,<device> Parameter Target filename <filename> Character string within 128 characters enclosed by double quotes (“...

Page 196: Mmemory:delete:digitize ,,
Chapter 4 SCPI Device Message Details :MMEMory:DELete:DIGitize <filename>,<apl_name>,<device> Delete Digitize File Function Deletes a digitized file saved in the specified device. Command :MMEMory:DELete:DIGitize <filename>, <apl_name>, <device> Parameter Target filename <filename> Character string within 128 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...

Page 197: Mmemory:protection:digitize[:State] ,On|Off|0|1,,
Config Function Device Messages :MMEMory:PROTection:DIGitize[:STATe] <filename>,ON|OFF|0|1,<apl_name>,<device> Protect Digitize File Function This command saves a digitize file saved to the specified drive. Protected files cannot be deleted. Command :MMEMory:PROTection:DIGitize[:STATe] <filename>,<switch>,<apl_name>,<device> Parameter Target filename <filename> Character string within 128 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...

Page 198: Mmemory:protection:digitize[:State]? ,,
Chapter 4 SCPI Device Message Details :MMEMory:PROTection:DIGitize[:STATe]? <filename>,<apl_name>,<device> Protect Digitize File Query Function This command queries the protection of a digitize file saved to the specified drive. Protected files cannot be deleted. Query :MMEMory:PROTection:DIGitize[:STATe]? <filename>,<apl_name>,<device> Response <switch> Parameter Target filename <filename>...

Page 199: Mmemory:catalog:digitize? ,
Config Function Device Messages :MMEMory:CATalog:DIGitize? <apl_name>,<device> Digitize File List Query Function Queries a list of digitized files saved in the specified device. Query :MMEMory:CATalog:DIGitize? <apl_name>,<device> Response <number>,<filename_1>,<filename_2>,... Parameter Drive name <device> A,B,D,E,F,... Number of files <number> Range 0 to 1000 File Name <filename>...

Page 200: Mmemory:move:sysinfo ,
Chapter 4 SCPI Device Message Details :MMEMory:MOVE:SYSinfo <filename>,<device> Move System Information File (HDD to Device) Function Moves a system information file saved in the internal hard disk to the specified device. Command :MMEMory:MOVE:SYSinfo <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 201: Mmemory:copy:sysinfo ,
Config Function Device Messages :MMEMory:COPY:SYSinfo <filename>,<device> Copy System Information File (Device to HDD) Function Copies a system information file from the specified storage device to the internal hard disk. Command :MMEMory:COPY:SYSinfo <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 202: Mmemory:delete:sysinfo ,
Chapter 4 SCPI Device Message Details :MMEMory:DELete:SYSinfo <filename>,<device> Delete System Information File Function Deletes a system information file saved in the specified device. Command :MMEMory:DELete:SYSinfo <filename>,<device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...

Page 203: Mmemory:protection:sysinfo[:State] ,On|Off|0|1,
Config Function Device Messages :MMEMory:PROTection:SYSinfo[:STATe] <filename>,ON|OFF|0|1,<device> Protect System Information File Function This command protects a system information file saved to the specified drive. Protected files cannot be deleted. Command :MMEMory:PROTection:SYSinfo[:STATe] <filename>, <switch>, <device> Parameter Target filename <filename> Character string within 32 characters enclosed by double quotes (“...

Page 204: Mmemory:protection:sysinfo[:State]? ,
Chapter 4 SCPI Device Message Details :MMEMory:PROTection:SYSinfo[:STATe]? <filename>,<device> Protect System Information File Query Function This command queries the protection of the system information file saved in the specified drive. Protected files cannot be deleted. Query :MMEMory:PROTection:SYSinfo[:STATe]? <filename>,<device> Response <switch> Parameter Target filename <filename>...

Page 205: Mmemory:catalog:sysinfo?
Function Queries system information. Query :SYSTem:INFormation:CATalog? Response <type>,<model>,<serial>,<time> Parameter Model <type> Name <model> Serial number <serial> Running time <time> Returns the time in minutes, without a suffix code. Example of Use To query all system information SYST:INF:CAT? >Signal Analyzer,MS2690A,610000000,100 4-103...

Page 206: System:information:model
This command queries the product model name. Query :SYSTem:INFormation:MODel? Response <model> Parameter Name <model> Example of Use To query the product model name SYST:INF:MOD? >MS2690A :SYSTem:INFormation:TYPE? Product Type Query Function This command queries the product type name. Query :SYSTem:INFormation:TYPE? Response <type> Parameter Product Type <type>...
Page 207: System:information:serial
Config Function Device Messages :SYSTem:INFormation:SERial? Serial Number Query Function This command queries the serial number. Query :SYSTem:INFormation:SERial? Response <serial> Parameter Serial number <serial> Example of Use To query the serial number SYST:INF:SER? >610000000 :SYSTem:INFormation:RTIMe? Running Time Query Function This command queries the running time. Query :SYSTem:INFormation:RTIMe? Response...
Page 208: System:information:switch
Chapter 4 SCPI Device Message Details :SYSTem:INFormation:SWITch? Attenuator Switching Times Function This command queries the number of switch times of the attenuators. Query :SYSTem:INFormation:SWITch? Response <number>,<switch_times1>,<switch_times2>,... Parameter Number of attenuators <number> Number of switch times <switch_times> Queries the number of switch times of all the attenuators that are mounted.
Page 209: System:software:catalog
Config Function Device Messages :SYSTem:SOFTware:CATalog? Software License Information Query Function Queries licensed software information. Query :SYSTem:SOFTware:CATalog? Response <total>,<license_name>,<name>,<license_name2>,... Parameter Total number of licensed software <total> Software license name (Model Name) <license_name> Software name <name> Details Queries the license information of installed software. When sending this command to the MS2830A, the licensed software information for which license expiry date is specified is not returned.
Page 210: System:software:catalog:all
Chapter 4 SCPI Device Message Details :SYSTem:SOFTware:CATalog:ALL? Software License and Option Information Query Function Queries licensed software information including options. Query :SYSTem:SOFTware:CATalog:ALL? Response <total>,<license_name>,<option_num>,<switch>,<name>,<lic ense_name2>,... Parameter Total number of licensed software including <total> options Software license name (Model name) <license_name> Option number <option_num>...
Page 211: System:application:version?
Config Function Device Messages :SYSTem:APPLication:VERSion? <apl_name> Software Version Query Function Queries the application version. Query :SYSTem:APPLication:VERSion? <apl_name> Response version Parameter Target application name <apl_name> Signal Analyzer SIGANA Spectrum Analyzer SPECT Phase Noise PNOISE Power Meter PMETer BER Test Details For parameters to specify an application other than the standard ones, refer to the operation manual (remote control) for each application.

Page 212: System:fpga:version?
This command queries the version number of the FPGA, PLD, and DSP Query :SYSTem:FPGA:VERSion? <hardware> Response <version> Parameter Type of FPGA, PLD, DSP <hardware> For MS2690A/MS2691A/MS2692A : Hardware Controller FPGA Control PLD And Panel CNTR_KEY IF/Local FPGA LOCAL RF/Micro FPGA MICRO...

Page 213 Config Function Device Messages Details Queries the version number of the specified FPGA, PLD, or DSP. “–” is returned when reading a version number of hardware not installed. To acquire in batch the version numbers of all the FPGAs, use :SYSTem:FPGA:VERSion:CATalog?.
Page 214: System:fpga:version:catalog
This command queries the version numbers of all the FPGA, PLD, and DSPs. Query :SYSTem:FPGA:VERSion:CATalog? Response <hardware1>,<version1>,<hardware2>,... Parameter Type of FPGA, PLD, DSP <hardware> For MS2690A/MS2691A/MS2692A: Hardware Controller FPGA Control PLD And Panel CNTR_KEY IF/Local FPGA LOCAL RF/Micro FPGA MICRO PCI FPGA on Measure Unit...
Page 215 Config Function Device Messages Details Queries the version number of the specified FPGA, PLD, or DSP. “–” is returned when reading a version number of hardware not installed. Example of Use To query the version number of FPGA SYST:FPGA:VERS:CAT? >HWC,5,CNTR_KEY,5,LOCAL,3,MICRO,3,MEAS_PCI,12,MEAS_CORE, 68, MEAS_COM ,68,MEAS_HS_CORE,-,SGBB,2, SGRF,5,BBIFIF,-,BBIFMAIN,- 4-113...
Page 216: System:hardware:revision?
:SYSTem:HARDware:REVision? <hardware> Hardware Revision Query Function Queries the hardware revision number. Query :SYSTem:HARDware:REVision? <hardware> Response <revision> Parameter Hardware type <hardware> For MS2690A/MS2691A/MS2692A : IF Unit IF/Local Unit LOCAL RF/Micro Unit MICRO Measure Unit MEAS Measure Option Unit WBAND SG Unit...

Page 217: System:hardware:revision:catalog
All Hardware Revision Query Function This command queries the revision number of all the hardware. Query :SYSTem:HARDware:REVision:CATalog? Response <hardware1>,<revision1>,<hardware2>,... Parameter Hardware type <hardware> For MS2690A/MS2691A/MS2692A : IF Unit IF/Local Unit LOCAL RF/Micro Unit MICRO Measure Unit MEAS Measure Option Unit WBAND...
Page 218: System:temperature:rf
Chapter 4 SCPI Device Message Details Example of Use To query all the revision numbers SYST:HARD:REV:CAT? >IF,1,LOCAL,1,MICRO,1,MEAS,1,WBAND,1,SG,1,CPU,1,BBIF,- :SYSTem:TEMPerature:RF? RF Temperature Query Function This command returns the reading for the temperature of the RF unit in the signal analyzer. Query :SYSTem:TEMPerature:RF? Response <temperature>...
Page 219: [:Sense]:Roscillator:external:frequency
This command sets the frequency of the reference frequency signal. Command [:SENSe]:ROSCillator:EXTernal:FREQuency <freq> Parameter Frequency of reference frequency signal <freq> For MS2690A/MS2691A/MS2692A: Range Either value of 10 MHz or 13 MHz For MS2830A: Range Either value of 5 MHz, 10 MHz, or 13 MHz...

Page 220: [:Sense]:Roscillator:external:frequency
Chapter 4 SCPI Device Message Details [:SENSe]:ROSCillator:EXTernal:FREQuency? External Reference Frequency Query Function This command queries the frequency of the reference frequency signal. Query [:SENSe]:ROSCillator:EXTernal:FREQuency? Response <freq> Parameter Frequency of reference frequency signal <freq> Resolution 1 Hz No suffix code. Value is returned in Hz units. Details Queries signal frequency, when using external reference signal as the signal source for reference frequency.
Page 221: Calibration:alert:mode None|Temperature|Time|Both
Config Function Device Messages :CALibration:ALERt:MODE NONE|TEMPerature|TIME|BOTH Calibration Alert Mode Function This command sets the alert mode of Calibration Alert. Command :CALibration:ALERt:MODE <mode> Parameter Alert mode <mode> No alert occurs. (Default) NONE alert occurs according TEMPerature MS269xA/MS2830A’s internal temperature change from the last automatic calibration (SIGANA All).
Page 222: Calibration:alert:mode
Chapter 4 SCPI Device Message Details :CALibration:ALERt:MODE? Calibration Alert Mode Query Function This command queries the alert mode of Calibration Alert. Query :CALibration:ALERt:MODE? Response <mode> Parameter Alert mode <mode> No alert occurs. (Default) NONE alert occurs according TEMP MS269xA/MS2830A’s internal temperature change from the last automatic calibration (SIGANA All).
Page 223: Calibration:alert:temperature
Config Function Device Messages :CALibration:ALERt:TEMPerature Calibration Alert Temperature Function This command sets the temperature thresholds to trigger an alert of Calibration Alert. Command :CALibration:ALERt:TEMPerature <temperature> Parameter Temperature thresholds <temperature> Range 0.5 to 50.0°C Resolution 0.5°C Suffix code None，set a value in °C. Default 2.0°C Example of Use...
Page 224: Calibration:alert:time
Chapter 4 SCPI Device Message Details :CALibration:ALERt:TIME Calibration Alert Time Function This command sets the elapsed time conditions to trigger an alert of Calibration Alert. Command :CALibration:ALERt:TIME <time> Parameter Elapsed time conditions <time> Resolution 1 to 200 h (hours) Resolution 1 h (hour) Suffix code None, set a value in hours.
Page 225: Power Meter Device Messages
Power Meter Device Messages 4.3 Power Meter Device Messages 4.3.1 Application Common Device Messages Application common device messages available in the power meter application are shown below. Table 4.3.1-1 Power Meter Device Messages Function Device Messages Current Measurement :CONFigure? Query Power Meter :CONFigure:PMETer:POWer Configure...
Page 226: Configure
Chapter 4 SCPI Device Message Details :CONFigure? Current Measurement Query Function This command queries the current measurement function. Query :CONFigure? Response <mode> Parameter Measurement function <mode> ACP measurement Burst Average Power measurement BPOW OBW measurement Channel Power measurement Spectrum Emission Mask measurement Spurious Emission measurement SPUR Power Meter measurement...
Page 227: Display:annotation:title[:State] On|Off|1|0
Power Meter Device Messages :DISPlay:ANNotation:TITLe[:STATe] ON|OFF|1|0 Display Title Function This command enables/disables the title display. Command :DISPlay:ANNotation:TITLe[:STATe] <switch> Parameter Title display On/Off <switch> Enables the title display. ON|1 Disables the title display. OFF|0 Default Example of Use To display the title. DISP:ANN:TITL ON :DISPlay:ANNotation:TITLe[:STATe]? Display Title Query...
Page 228: Display:annotation:title:data
Chapter 4 SCPI Device Message Details :DISPlay:ANNotation:TITLe:DATA <string> Title Entry Function This command registers the title character string. Command :DISPlay:ANNotation:TITLe:DATA <string> Parameter Character string within 32 characters enclosed <string> by double quotes (“ ”) or single quotes (‘ ’) Example of Use To set the title character string.

Page 229: Status:error
Power Meter Device Messages :STATus:ERRor? Measurement Status Query Function This command queries the measurement status. Query :STATus:ERRor? Response <status> Parameter Measurement status <status> = bit0 + bit1 + bit2 + bit3 + bit4 + bit5 + bit6 Value + bit7 + bit8 + bit9 + bit10 + bit11 + bit12 + bit13 + bit14 + bit15 •...
Page 230 Chapter 4 SCPI Device Message Details bit6 : 2 = 64 (Not used) bit7 : 2 = 128 (Not used) bit8 : 2 = 256 (Not used) bit9 : 2 = 512 (Not used) bit10 : 2 = 1024 (Not used) bit11 : 2 = 2048 (Not used) bit12 : 2...
Page 231: Power Meter
Power Meter Device Messages 4.3.2 Power Meter Power meter device messages available in the power meter application are shown below. Table 4.3.2-1 Power Meter Device Messages Function Device Messages Average Power :SYSTem:PMETer:MEASure? [DBM]|WATT|DB Query Zeroing :SYSTem:PMETer:ZERoset Sensor Connected :SYSTem:PMETer:CONNection? Query Current Com Port :SYSTem:PMETer:COMMunicate:USB:PORT? Number Query...
Page 232: System:pmeter:measure? [Dbm]|Watt|Db
Chapter 4 SCPI Device Message Details :SYSTem:PMETer:MEASure? [DBM]|WATT|DB Average Power Query Function This command queries the measurement power in specified units. Query :SYSTem:PMETer:MEASure? [<unit>] Response <real> Parameter Unit <unit> Query the measurement power value in dBm units. Query the measurement power value in W WATT units .
Page 233: System:pmeter:zeroset
Power Meter Device Messages :SYSTem:PMETer:ZERoset Zeroing Function Executes the zeroing for the power sensor. Command :SYSTem:PMETer:ZERoset Details Do not execute calibration during the zeroing. Failure to do so will not guarantee the response to the following query command: STATus:OPERation:CONDition? Example of Use To execute the zeroing for the power sensor.
Page 234: System:pmeter:communicate:usb:port
Chapter 4 SCPI Device Message Details :SYSTem:PMETer:COMMunicate:USB:PORT? Current Com Port Number Query Function Query the number of the COM Port to which the USB Power Sensor is connected. Query :SYSTem:PMETer:COMMunicate:USB:PORT? Response <integer> Parameter COM Port number <integer> Resolution When not connected.: –999 Example of Use To query the number of the COM Port to which the USB Power Sensor is connected.
Page 235: System:pmeter:sense:frequency[:Cw|:Fixed]
Power Meter Device Messages :SYSTem:PMETer:SENSe:FREQuency[:CW|:FIXed] <freq> Frequency Function The setting range is determined by that of USB power sensors. Command :SYSTem:PMETer:SENSe:FREQuency[:CW|:FIXed] <freq> Parameter <freq> The center frequency of the signal Range USB Power Sensor. Resolution USB Power Sensor. Default 1 GHz Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ HZ when omitted.

Page 236: [:Sense]:Frequency:center
Chapter 4 SCPI Device Message Details [:SENSe]:FREQuency:CENTer <freq> Frequency Function This command sets the center frequency of the signal to be measured. The setting range is determined by that of USB power sensors. Command [:SENSe]:FREQuency:CENTer <freq> Parameter The center frequency of the signal <freq>...

Page 237: System:pmeter:sense:correction:gain2:State
Power Meter Device Messages Example of Use To query the center frequency setting . FREQ:CENT? > 2500000000 :SYSTem:PMETer:SENSe:CORRection:GAIN2:STATe <boolean> Level Offset State Function This commands enables and disables the addition of the level offset value. Command :SYSTem:PMETer:SENSe:CORRection:GAIN2:STATe <boolean> Parameter Enables and disables the addition of the level <boolean>...

Page 238: System:pmeter:sense:correction:gain2[:Input][:Magnitude]
Chapter 4 SCPI Device Message Details Example of Use To query whether the addition of the level offset value is enabled or disabled. SYST:PMET:SENS:CORR:GAIN2:STAT? > 1 :SYSTem:PMETer:SENSe:CORRection:GAIN2[:INPut][:MAGNitude] <rel_ampl> Level Offset Value Function This command sets the level offset value in dB units. Command :SYSTem:PMETer:SENSe:CORRection:GAIN2[:INPut] [:MAGNitude] <rel_ampl>...

Page 239: System:pmeter:sense:average[:State]
Power Meter Device Messages Example of Use To query the level offset value setting. SYST:PMET:SENS:CORR:GAIN2? > 10.00 :SYSTem:PMETer:SENSe:AVERage[:STATe] <boolean> Average State Function This command enables or disables averaging of the measurement power. Command :SYSTem:PMETer:SENSe:AVERage[:STATe] <boolean> Parameter Averaging status <boolean> Enables averaging. ON|1 Disables averaging.

Page 240: System:pmeter:sense:average:count
Chapter 4 SCPI Device Message Details :SYSTem:PMETer:SENSe:AVERage:COUNt <ext_integer> Average Count Function This command sets the number of times the measurement power is averaged. Command :SYSTem:PMETer:SENSe:AVERage:COUNt <ext_integer> Parameter Number of averaging times <ext_integer> Range 2 to 1000 Resolution Default Suffix code None Example of Use To set the number of averaging times to 100.

Page 241: System:pmeter:sense:relativeset
Power Meter Device Messages :SYSTem:PMETer:SENSe:RELativeset Reference Level Set Function This command sets the displayed average power as the reference relative value. Command :SYSTem:PMETer:SENSe:RELativeset Example of Use To set the average power as the reference. SYST:PMET:SENS:REL :SYSTem:PMETer:SENSe:RANGe AUTO|LOW|HIGH Range Function This command sets the measurement range of the power sensor. Command :SYSTem:PMETer:SENSe:RANGe <range>...
Page 242: System:pmeter:sense:range
Chapter 4 SCPI Device Message Details :SYSTem:PMETer:SENSe:RANGe? Range Query Function This command queries the setting measurement range of the power sensor. Query :SYSTem:PMETer:SENSe:RANGe? Response <range> Parameter Measurement range <range> Automatic setting AUTO When the model is MA24108A, MA24118A, or MA24126A: Input range: –40 dBm to –7 dBm When the model is MA24105A: Input range: +3 dBm to +38 dBm...
Page 243: System:pmeter:device:error
0 to 65535 Normal (Success) –999 Not connected Resolution Details the User For the response value, refer to Chapter 13-3 “STATUS?” in Guide, Anritsu Power Xpert and USB Power Sensors Example of Use To query Device Status Error. SYST:PMET:DEV:ERR? > 0 4-141...
Page 244: System:pmeter:aperture:time
Chapter 4 SCPI Device Message Details :SYSTem:PMETer:APERture:TIME <aper_time> Aperture Time Function This command sets Aperture Time for MA24108A, MA24118A, and MA24126A. Command :SYSTem:PMETer:APERture:TIME <aper_time> Parameter Aperture Time <aper_time> Range 0.01 to 300.00 ms Resolution 0.01 ms Default 20.00 ms Unit Suffix code None Example of Use...

Page 245: System:pmeter:aperture:mode Lat|Hat
Power Meter Device Messages :SYSTem:PMETer:APERture:MODE LAT|HAT Aperture Mode Function This command sets Aperture Mode for MA24104A and MA24106A. Command :SYSTem:PMETer:APERture:MODE <mode> Parameter Aperture Mode <mode> Low Aperture Time mode High Aperture Time mode Default Example of Use To set Aperture Mode to LAT. SYST:PMET:APER:MODE LAT :SYSTem:PMETer:APERture:MODE? Aperture Mode Query...
Page 246: Operation Status Register
Chapter 4 SCPI Device Message Details 4.3.3 OPERation Status Register The figure below shows the layer structure of the OPERation Status Register. Zeroing SETTling (NOT USED) Status Byte Register DB7 RANGing (NOT USED) SWEeping (NOT USED) MEASuring (NOT USED) Wainting for TRIG (NOT USED) Waiting for ARM (NOT USED) CORRecting (NOT USED) NOT USED...
Page 247 Power Meter Device Messages Table 4.3.3-2 Device messages for OPERation status register Function Device message Operation Status Register :STATus:OPERation[:EVENt]? Event Operation Status Register :STATus:OPERation:CONDition? Condition Operation :STATus:OPERation:ENABle <integer> Status Register Enable :STATus:OPERation:ENABle? Operation :STATus:OPERation:NTRansition <integer> StatusRegister Negative :STATus:OPERation:NTRansition? Transition Operation :STATus:OPERation:PTRansition <integer>...
Page 248: Status:operation[:Event]
Chapter 4 SCPI Device Message Details :STATus:OPERation[:EVENt]? Operation Status Register Event Function This command queries the event register of the OPERation Status Register. Query :STATus:OPERation[:EVENt]? Response <integer> Parameter Total bytes of event register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
Page 249: Status:operation:enable
Power Meter Device Messages :STATus:OPERation:ENABle <integer> Operation Status Register Enable Function This command sets the event enable register of the OPERation status register. Command :STATus:OPERation:ENABle <integer> Parameter Total bytes of event enable register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.

Page 250: Status:operation:ntransition
Chapter 4 SCPI Device Message Details :STATus:OPERation:NTRansition <integer> Operation Status Register Negative Transition Function This command sets the transition filter (negative direction change) of the OPERation status register. Command :STATus:OPERation:NTRansition <integer> Parameter Total bytes of transition filter(negative direction <integer> change) Resolution Range 0 to 65535...

Page 251: Status:operation:ptransition
Power Meter Device Messages :STATus:OPERation:PTRansition <integer> Operation Status Register Positive Transition Function This command sets the transition filter (positive direction change) of the OPERation status register. Command :STATus:OPERation:PTRansition <integer> Parameter Total bytes of transition filter (positive direction <integer> change) Resolution Range 0 to 65535 Details...

Page 252: Ber Settings
Chapter 4 SCPI Device Message Details 4.4 BER Settings Table 4.4-1 shows device messages for setting functions for BER. Table 4.4-1 Device messages for setting BER Function Device Message Bit Error Rate Query :CALCurate:BERT[:BASeband]:BER? EP|ER Received Bit Query :CALCurate:BERT[:BASeband]:DATA:COUNt? Result and Status :DATA:DATA? ER|EP Query Error Bit Query...
Page 253 BER Settings Table 4.4-1 Device messages for setting BER (Cont’d) Function Device Message [:SENSe]:BERT[:BASeband]:STATe ON|OFF|1|0 BER – On/Off [:SENSe]:BERT[:BASeband]:STATe? Measurement Error [:SENSe]:BERT[:BASeband]:STOP:CRITeria:EBIT <bit> [:SENSe]:BERT[:BASeband]:STOP:CRITeria:EBIT? [:SENSe]:BERT[:BASeband]:STOP:CRITeria[:SELect] EBIT|NONE Count Mode [:SENSe]:BERT[:BASeband]:STOP:CRITeria[:SELect]? [:SENSe]:BERT[:BASeband]:TBITs <bit> Measurement Bit [:SENSe]:BERT[:BASeband]:TBITs? [:SENSe]:BERT[:BASeband]:MODE SINGle|CONTinuous|ENDLelss Measurement Mode [:SENSe]:BERT[:BASeband]:MODE? PN Fix Pattern [:SENSe]:BERT[:BASeband]:PRBS:PNFix:LENGth <bit>...
Page 254: Calcurate:bert[:Baseband]:Ber? Ep|Er
Chapter 4 SCPI Device Message Details :CALCurate:BERT[:BASeband]:BER? EP|ER Bit Error Rate Query Function Queries the bit error rate of BER measurement. Query :CALCurate:BERT[:BASeband]:BER? <format> Response <bit> Parameter Response format <format> Returns the bit error rate as a percentage. Returns the bit error rate as an exponent. Bit error rate <bit>...
Page 255: Calcurate:bert[:Baseband]:Data:count
BER Settings :CALCurate:BERT[:BASeband]:DATA:COUNt? Received Bit Query Function Queries the reception bit count value of BER measurement. Query :CALCurate:BERT[:BASeband]:DATA:COUNt? Response <bit> Parameter Number of count bits <bit> Range 0 to (2 Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 256: Data:data? Er|Ep
Chapter 4 SCPI Device Message Details :DATA:DATA? ER|EP Result and Status Query Function Queries the bit error rate and status information of BER measurement. Query :DATA:DATA? <format> Response <per>,<countbit>,<errorbit>,<status>,<error> (when format is EP) <exp>,<countbit>,<errorbit>,<status>,<error> (when format is ER) Parameter Bit error rate (percentage) <per>...
Page 257: Data:data:bec
BER Settings :DATA:DATA:BEC? Error Bit Query Function Queries the number of error bits of BER measurement. Query :DATA:DATA:BEC? Response <bit> Parameter Number of error bits <bit> Range 0 to 2 –1 bit Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 258: Initiate:mode:continuous
Chapter 4 SCPI Device Message Details :INITiate:MODE:CONTinuous Start Measurement by Continuous Mode Function Starts the BER measurement in Continuous mode. Command :INITiate:MODE:CONTinuous Details When executing this command for BER measurement function, switch the application to BER Test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 259: Initiate:mode:single
BER Settings :INITiate:MODE:SINGle Start Measurement by Single Mode Function Starts the BER measurement in Single mode. Command :INITiate:MODE:SINGle Details When executing this command for BER measurement function, switch the application to BER Test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 260: Input:bert[:Baseband]:Cgate:polarity Positive|Negative|Disable
Chapter 4 SCPI Device Message Details :INPut:BERT[:BASeband]:CGATe:POLarity POSitive|NEGative|DISable Enable Polarity Function Sets or disables the polarity of the Enable signal for BER measurement. Command :INPut:BERT[:BASeband]:CGATe:POLarity <polarity> Parameter Enable signal polarity <polarity> Positive logic (high active) POSitive Negative logic (low active) NEGative Disables the signal polarity DISable...
Page 261: Input:bert[:Baseband]:Cgate:polarity
BER Settings :INPut:BERT[:BASeband]:CGATe:POLarity? Enable Polarity Query Function Queries the polarity of the Enable signal for BER measurement. Query :INPut:BERT[:BASeband]:CGATe:POLarity? Response <polarity> Parameter Enable signal polarity <polarity> Positive logic (active high) Negative logic (active low) Disables the signal polarity Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 262: Input:bert[:Baseband]:Cgate[:State] On|Off|1|0
Chapter 4 SCPI Device Message Details :INPut:BERT[:BASeband]:CGATe[:STATe] ON|OFF|1|0 Enable Polarity – On/Off Function Enables/disables the Enable signals of BER measurement. Command :INPut:BERT[:BASeband]:CGATe[:STATe] <on_off> Parameter Enables/disables Enable signal <on_off> Enabled ON|1 Disabled OFF|0 Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 263: Input:bert[:Baseband]:Cgate[:State]
BER Settings :INPut:BERT[:BASeband]:CGATe[:STATe]? Enable Polarity – On/Off Query Function Queries whether the Enable signal is enabled or disabled for BER measurement. Query :INPut:BERT[:BASeband]:CGATe[:STATe]? Response <on_off> Parameter Enable signal status <on_off> Enabled ON|1 Disabled OFF|0 Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 264: Input:bert[:Baseband]:Clock:polarity Positive|Negative
Chapter 4 SCPI Device Message Details :INPut:BERT[:BASeband]:CLOCk:POLarity POSitive|NEGative Clock Polarity Function Sets the polarity of the clock signal for BER measurement. Command :INPut:BERT[:BASeband]:CLOCk:POLarity <polarity> Parameter Clock signal polarity <polarity> Data is detected at the rising edge. POSitive Data is detected at the falling edge. NEGative Details Unusable unless the measurement screen is set for BER test.
Page 265: Input:bert[:Baseband]:Clock:polarity
BER Settings :INPut:BERT[:BASeband]:CLOCk:POLarity? Clock Polarity Query Function Queries the polarity of the clock signal of BER measurement. Query :INPut:BERT[:BASeband]:CLOCk:POLarity? Response <polarity> Parameter Clock signal polarity <polarity> Data is detected at the rising edge. Data is detected at the falling edge. Details Unusable unless the measurement screen is set for BER test.
Page 266: Input:bert[:Baseband]:Data:polarity Positive|Negative
Chapter 4 SCPI Device Message Details :INPut:BERT[:BASeband]:DATA:POLarity POSitive|NEGative Data Polarity Function Sets the logic (positive or negative) of the Data signal for BER measurement. Command :INPut:BERT[:BASeband]:DATA:POLarity <polarity> Parameter Data signal logic <polarity> Positive logic POSitive Negative logic NEGative Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 267: Input:bert[:Baseband]:Data:polarity
BER Settings :INPut:BERT[:BASeband]:DATA:POLarity? Data Polarity Query Function Queries the logic (positive or negative) of the data signal for BER measurement. Query :INPut:BERT[:BASeband]:DATA:POLarity? Response <polarity> Parameter Data signal logic <polarity> Positive logic Negative logic Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 268: Mmemory:list:pattern
Chapter 4 SCPI Device Message Details :MMEMory:LIST:PATTern? Display BER User Pattern File List Query Function Queries the list of the user pattern files for BER measurement. Query :MMEMory:LIST:PATTern? Response <s1>,<s2>,<s3>…………,<s99>,<s100> Parameter Existing user pattern file names (within 32 <s1>,………,<s100> characters) Range up to 100 files Details...
Page 269: Mmemory:msis
BER Settings :MMEMory:MSIS <drive> Drive to load User Pattern Function Sets the name of the drive to load the user-defined pattern file for BER measurement. Command :MMEMory:MSIS <drive> Parameter Load source drive name <drive> Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.

Page 270: Mmemory:load:pattern
Chapter 4 SCPI Device Message Details :MMEMory:LOAD:PATTern <pattern> Load User Pattern Function Loads the user-defined pattern for BER measurement from a file. Command :MMEMory:LOAD:PATTern <pattern> Parameter User-defined pattern to be loaded <pattern> Specify a character string within 32 characters, obtained by removing an extension (bpn) from the target user defied pattern file name.

Page 271: Status:bert:measure
BER Settings :STATus:BERT:MEASure? BER Measurement Status Query Function Queries the measurement status for BER measurement. Query :STATus:BERT:MEASure? Response <status> Parameter Measurement Status <status> During halt During measurement Synchronization is being built up. Stopped due to the occurrence of measurement error. Stopped because SyncLoss count exceeded the maximum.
Page 272: [:Sense]:Bert[:Baseband]:Prbs[:Data] Pn9|Pn11|Pn15|Pn20|Pn23|All0|All1|Alt|Fpn9|Fpn11|Fpn15|Fpn20|Fpn23|User
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:PRBS[:DATA] PN9|PN11|PN15|PN20|PN23|ALL0|ALL1|ALT|FPN9|FPN11|FPN15|FPN20|F PN23|USER Data Pattern Type Function Sets the data pattern type for BER measurement. Command [:SENSe]:BERT[:BASeband]:PRBS[:DATA] <pattern> Parameter Data pattern type <pattern> PN11 PN11 PN15 PN15 PN20 PN20 PN23 PN23 All 0 (00...0) ALL0 All 1 (11...1) ALL1...
Page 273 BER Settings [:SENSe]:BERT[:BASeband]:PRBS[:DATA]? Data Pattern Type Query Function Queries the data pattern type for BER measurement. Query [:SENSe]:BERT[:BASeband]:PRBS[:DATA]? Response <pattern> Parameter Data pattern type <pattern> PN11 PN11 PN15 PN15 PN20 PN20 PN23 PN23 All 0 (00...0) ALL0 All 1 (11...1) ALL1 Repetition of “01”...
Page 274: [:Sense]:Bert[:Baseband]:Rsync:threshold , 500|5000|50000
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:RSYNc:THReshold <n>, 500|5000|50000 Sync Loss Threshold Function Sets the Sync Loss judgment condition for the BER measurement. Command [:SENSe]:BERT[:BASeband]:RSYNc:THReshold <n>,<a> Parameter Numerator of Sync Loss threshold <n> Range 1 to (a/2) bits Dominator of Sync Loss threshold 500 bits 5000 bits 5000...
Page 275: [:Sense]:Bert[:Baseband]:Rsync:threshold
BER Settings [:SENSe]:BERT[:BASeband]:RSYNc:THReshold? Sync Loss Threshold Query Function Queries the Sync Loss judgment condition for the BER measurement. Query [:SENSe]:BERT[:BASeband]:RSYNc:THReshold? Response <n>,<a> Parameter Numerator of Sync Loss threshold <n> Range 1 to (a/2) bits Dominator of Sync Loss threshold 500 bits 5000 bits 5000 50000 bits...
Page 276: [:Sense]:Bert[:Baseband]:Rsync[:State] On|Off|1|0
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:RSYNc[:STATe] ON|OFF|1|0 Auto Re-sync Function Enables (ON) or disables (OFF) the automatic resynchronization for BER measurement. Command [:SENSe]:BERT[:BASeband]:RSYNc[:STATe] <on_off> Parameter Automatic resynchronization ON/OFF <on_off> Enables automatic resynchronization ON|1 Disables automatic resynchronization OFF|0 Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 277: [:Sense]:Bert[:Baseband]:Rsync[:State]
BER Settings [:SENSe]:BERT[:BASeband]:RSYNc[:STATe]? Auto Re-sync Query Function Queries the ON/OFF status of the automatic resynchronization for BER measurement. Query [:SENSe]:BERT[:BASeband]:RSYNc[:STATe]? Response <on_off> Parameter Automatic resynchronization ON/OFF status <on_off> Automatic resynchronization is enabled. Automatic resynchronization is disabled. Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 278: [:Sense]:Bert[:Baseband]:State On|Off|1|0
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:STATe ON|OFF|1|0 BER- On/Off Function Starts or stops BER measurement. Command [:SENSe]:BERT[:BASeband]:STATe <on_off> Parameter Start/stop of BER measurement <on_off> Start ON|1 Stop OFF|0 Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 279: [:Sense]:Bert[:Baseband]:State
BER Settings [:SENSe]:BERT[:BASeband]:STATe? BER- On/Off Query Function Queries the measurement status of BER measurement. Query [:SENSe]:BERT[:BASeband]:STATe? Response <on_off> Parameter BER measurement status <on_off> During measurement During halt Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 280: [:Sense]:Bert[:Baseband]:Stop:criteria:ebit
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:STOP:CRITeria:EBIT <bit> Measurement Error Bit Function Sets the number of measurement error bits for BER measurement. Command [:SENSe]:BERT[:BASeband]:STOP:CRITeria:EBIT <bit> Parameter Number of measurement error bits <bit> Range 1 to 2 Gbits 1 to 2147 Mbits 1 to 2147483 Kbits 1 to 2147483647 bits Suffix Code...

Page 281: [:Sense]:Bert[:Baseband]:Stop:criteria:ebit
BER Settings [:SENSe]:BERT[:BASeband]:STOP:CRITeria:EBIT? Measurement Error Bit Query Function Queries the number of measurement error bits for BER measurement. Query [:SENSe]:BERT[:BASeband]:STOP:CRITeria:EBIT? Response <bit> Parameter Number of measurement error bits <bit> Range 1 to 2 Gbits 1 to 2147 Mbits 1 to 2147483 Kbits 1 to 2147483647 bits Details Unusable unless the measurement screen is set for BER test.
Page 282: [:Sense]:Bert[:Baseband]:Stop:criteria[:Select] Ebit|None
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:STOP:CRITeria[:SELect] EBIT|NONE Count Mode Function Sets the BER measurement end condition. Command [:SENSe]:BERT[:BASeband]:STOP:CRITeria[:SELect] <mode> Parameter BER measurement end condition <mode> BER measurement ends when the specified EBIT number of error bits is reached. BER measurement ends when the specified NONE number of count bits is reached.
Page 283: [:Sense]:Bert[:Baseband]:Stop:criteria[:Select]
BER Settings [:SENSe]:BERT[:BASeband]:STOP:CRITeria[:SELect]? Count Mode Query Function Queries the measurement end condition of BER measurement. Query [:SENSe]:BERT[:BASeband]:STOP:CRITeria[:SELect]? Response <mode> Parameter BER measurement end condition <mode> BER measurement ends when the specified EBIT number of error bits is reached. BER measurement ends when the specified NONE number of count bits is reached.
Page 284: [:Sense]:Bert[:Baseband]:Tbits
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:TBITs <bit> Measurement Bit Function Sets the number of measurement bits for BER measurement. Command [:SENSe]:BERT[:BASeband]:TBITs <bit> Parameter Number of measurement bits <bit> Range 1 to 4 Gbits 1 to 4294 Mbits 1 to 4294967 Kbits 1000 to 4294967295 bits Suffix Code GBIT,MBIT,KBIT,BIT...

Page 285: [:Sense]:Bert[:Baseband]:Tbits
BER Settings [:SENSe]:BERT[:BASeband]:TBITs? Measurement Bit Query Function Queries the number of measurement bits for BER measurement. Query [:SENSe]:BERT[:BASeband]:TBITs? Response <bit> Parameter Number of measurement bits <bit> Range 1 to 4 Gbits 1 to 4294 Mbits 1 to 4294967 Kbits 1000 to 4294967295 bits Details Unusable unless the measurement screen is set for BER test.
Page 286: [:Sense]:Bert[:Baseband]:Mode Single|Continuous|Endless
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:MODE SINGle|CONTinuous|ENDLess Measurement Mode Function Sets the BER measurement mode. Command [:SENSe]:BERT[:BASeband]:MODE <mode> Parameter Measurement mode mode Single mode SINGle Continuous mode CONTinuous Endless mode ENDLess Details Unusable unless the measurement screen is set for BER test. If set to the endless mode, the other settings will be changed as follows: •...
Page 287: [:Sense]:Bert[:Baseband]:Mode
BER Settings [:SENSe]:BERT[:BASeband]:MODE? Measurement Mode Query Function Queries the measurement mode of BER measurement. Query [:SENSe]:BERT[:BASeband]:MODE? Response <mode> Parameter Measurement mode <mode> Single mode SING Continuous mode CONT Endless mode ENDL Details Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 288: [:Sense]:Bert[:Baseband]:Prbs:pnfix:length
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:PRBS:PNFix:LENGth <bit> PN Fix Pattern Length Function Sets the length of PN Fix pattern for BER measurement. Command [:SENSe]:BERT[:BASeband]:PRBS:PNFix:LENGth <bit> Parameter Bit length of PN Fix pattern <bit> Range 96 to 134217728 bits Suffix Code None Details Unusable unless the measurement screen is set for BER test.

Page 289: [:Sense]:Bert[:Baseband]:Prbs:pnfix:length
BER Settings [:SENSe]:BERT[:BASeband]:PRBS:PNFix:LENGth? PN Fix Pattern Length Query Function Queries the length of PN Fix pattern for BER measurement. Query [:SENSe]:BERT[:BASeband]:PRBS:PNFix:LENGth? Response <bit> Parameter Bit length of PN Fix pattern <bit> Range 96 to 134217728 bits Suffix Code None Details Unusable unless the measurement screen is set for BER test.
Page 290: [:Sense]:Bert[:Baseband]:Prbs:pnfix:initial
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:PRBS:PNFix:INITial <n> PN Fix Pattern Initial Value Function Sets the initial value of PN Fix pattern in binary, for BER measurement. Command [:SENSe]:BERT[:BASeband]:PRBS:PNFix:INITial <n> Parameter PN Fix pattern initial value (binary) <n> Range 00…0 to 11…1 [9 bits] (for PN9 Fix) 00…0 to 11…1 [15 bits] (for PN15 Fix) 00…0 to 11…1 [20 bits] (for PN20 Fix) 00…0 to 11…1 [23 bits] (for PN23 Fix)

Page 291: [:Sense]:Bert[:Baseband]:Prbs:pnfix:initial
BER Settings [:SENSe]:BERT[:BASeband]:PRBS:PNFix:INITial? PN Fix Pattern Initial Value Query Function Queries the initial value of PN Fix pattern in binary, for BER measurement. Query [:SENSe]:BERT[:BASeband]:PRBS:PNFix:INITial? Response <n> Parameter PN Fix pattern initial value (binary) <n> Range 00…0 to 11…1 [9 bits] (for PN9 Fix) 00…0 to 11…1 [15 bits] (for PN15 Fix) 00…0 to 11…1 [20 bits] (for PN20 Fix) 00…0 to 11…1 [23 bits] (for PN23 Fix)
Page 292: [:Sense]:Bert[:Baseband]:Prbs:user:sync:length
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:PRBS:USER:SYNC:LENGth <bit> Length for Sync on User Pattern Function Sets the length of the partial bit string, which is used for synchronization judgment, in the user-defined pattern for BER measurement. Command [:SENSe]:BERT[:BASeband]:PRBS:USER:SYNC:LENGth <n> Parameter Length of synchronization judgment bit string <bit>...

Page 293: [:Sense]:Bert[:Baseband]:Prbs:user:sync:length
BER Settings [:SENSe]:BERT[:BASeband]:PRBS:USER:SYNC:LENGth? Length for Sync on User Pattern Query Function Queries the length of the partial bit string, which is used for synchronization judgment, in the user-defined pattern for BER measurement. Query [:SENSe]:BERT[:BASeband]:PRBS:USER:SYNC:LENGth? Response <bit> Parameter Length of synchronization judgment bit string <bit>...
Page 294: [:Sense]:Bert[:Baseband]:Synloss:count
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:SYNLoss:COUNt? Sync Loss Count Query Function Queries the number of Sync Loss (out of synchronization) errors having occurred during the BER measurement. Query [:SENSe]:BERT[:BASeband]:SYNLoss:COUNt? Response <count> Parameter Number of Sync Loss errors occurred <count> Range 0 to 65535 Details...
Page 295: [:Sense]:Bert[:Baseband]:Rsync:count:action Clear|Keep
BER Settings [:SENSe]:BERT[:BASeband]:RSYNc:COUNt:ACTion CLEar|KEEP Count Action at Sync Loss Function Sets the action when Sync Loss occurs during BER measurement. Command [:SENSe]:BERT[:BASeband]:RSYNc:COUNt:ACTion <a> Parameter Action when Sync Loss occurs <a> Clears current count value CLEar Keeps current count value KEEP Details Unusable unless the measurement screen is set for BER test.
Page 296: [:Sense]:Bert[:Baseband]:Rsync:count:action
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:RSYNc:COUNt:ACTion? Count Action at Sync Loss Query Function Queries the action when Sync Loss occurs during BER measurement. Query [:SENSe]:BERT[:BASeband]:RSYNc:COUNt:ACTion? Response <a> Parameter Action against Sync Loss <a> Clears current count value. Keeps current count value. KEEP Details Unusable unless the measurement screen is set for BER test.
Page 297: [:Sense]:Bert[:Baseband]:Prbs:user:sync:start
BER Settings [:SENSe]:BERT[:BASeband]:PRBS:USER:SYNC:STARt <bit> Sync Start Position on User Pattern Function Sets the start position of the partial bit string, which is used for synchronization judgment, in the user-defined pattern for BER measurement. Command [:SENSe]:BERT[:BASeband]:PRBS:USER:SYNC:STARt <bit> Parameter Start position of synchronization judgment bit <bit>...

Page 298: [:Sense]:Bert[:Baseband]:Prbs:user:sync:start
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:PRBS:USER:SYNC:STARt? Sync Start Position on User Pattern Query Function Queries the start position of the partial bit string, which is used for synchronization judgment, in the user-defined pattern for BER measurement. Query [:SENSe]:BERT[:BASeband]:PRBS:USER:SYNC:STARt? Response <bit>...
Page 299: [:Sense]:Bert[:Baseband]:Prbs:user:pattern
BER Settings [:SENSe]:BERT[:BASeband]:PRBS:USER:PATTern? User Pattern File Name Query Function Queries the user-defined pattern name for BER measurement. Query [:SENSe]:BERT[:BASeband]:PRBS:USER:PATTern? Response <pattern>,<drive> Parameter Character string within 32 characters, obtained <pattern> by removing the extension (bpn) from the loaded user-defined pattern file name. The name of the drive from which the <drive>...
Page 300: [:Sense]:Bert[:Baseband]:Prbs:user:length
Chapter 4 SCPI Device Message Details [:SENSe]:BERT[:BASeband]:PRBS:USER:LENGth? User Pattern Length Query Function Queries the bit length of the user-defined pattern for BER measurement. Query [:SENSe]:BERT[:BASeband]:PRBS:USER:LENGth? Response <bit> Parameter Bit length of user-defined pattern <bit> Range 8 to 1024 bits (for MS269xA) 8 to 4096 bits (for MS2830A) Details Unusable unless the measurement screen is set for BER test.
Page 301: Initiate[:Immediate]
BER Settings :INITiate[:IMMediate] Start Measurement Function Starts the BER measurement. Command :INITiate[:IMMediate] Details When executing this command for BER measurement function, switch the application to BER Test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 302: Abort
Chapter 4 SCPI Device Message Details :ABORt Stop Measurement Function Stops the BER measurement. Command :ABORt Details When executing this command for BER measurement function, switch the application to BER Test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 303: Chapter 5 Native Device Message List
Chapter 5 Native Device Message List This section describes Native remote control commands for executing MS269x Series and/or MS2830A functions (hereinafter, referred to as “this application”) using a list organized by function. Refer to Chapter 6 “Device Message Details” for detailed specifications for each command. Application Common Device Messages .......
Page 304: Application Common Device Messages
5.1 Application Common Device Messages Application common device messages available in this application are shown in Table 5.1-1. Table 5.1-1 Application common device messages Function Command Query Response Remarks apl: Application name = SIGANA | SPECT | CONFIG | … window: Window status SYS apl,window SYS? apl...
Page 305 Table 5.1-1 Application common device messages (Continued) Function Command Query Response Remarks RCPRM file,device,apl --- file : File name device : Drive name Recall Parameter Setting file = A | B | D | E | … RCPRM file,device apl : Target application = ALL | CURR mode : Display mode REMDISP mode...
Page 306 Table 5.1-1 Application common device messages (Continued) Function Command Query Response Remarks mode : Attenuator mode POW:ATT:MODE <mode> POW:ATT:MODE? mode Attenuation Mode = MECH | COMB switch_com : CORR switch_com CORR? switch_res Correction (On/Off) = ON|OFF|1|0 CORR:MAKE freq,real Correction Make Up CORR:MAKE:CLE Correction Make Up All Clear MMEM:STOR:CORR...
Page 307 Table 5.1-1 Application common device messages (Continued) Function Command Query Response Remarks byte = Status bit bit7 : Not used Extended END Event Status Enable Register ESE0 n ESE0? byte bit6 : Not used (Signal Generator/BER function) bit5 : Not used bit4 : Not used bit3 : Not used Extended END Event Status Register...
Page 308 Table 5.1-1 Application common device messages (Continued) Function Command Query Response Remarks byte = Status bit bit7 : Measurement end END Event Status Enable Register ESEEND n ESEEND? byte bit6 : Not used (BER Measurement function) bit5 : Not used bit4 : Not used bit3 : Not used END Event Status Register...
Page 309: Config Function Device Messages
5.2 Config Function Device Messages Device messages for setting Config function are shown in Table 5.2-1. Table 5.2-1 Config function setting messages Function Command Query Response Remarks LOAD apl Load Application apl: Application name = SIGANA | SPECT | … UNLOAD apl Unload Application TRM code...
Page 310 Table 5.2-1 Config function setting messages (Continued) Function Command Query Response Remarks MVRCDAT file,device Move Parameter File (HDD to Device) CPRCDAT file,device Copy Parameter File (Device to HDD) DELRCDAT file,device Delete Parameter File PRTRCDAT PRTRCDAT? on_off Protect Parameter File file,on_off,device file,device LISTRCDAT? number,file1,file2,...
Page 311 Table 5.2-1 Config function setting messages (Continued) Function Command Query Response Remarks MVTRCEDAT Move Trace File (HDD to Device) file,apl,device CPTRCEDAT Copy Trace File (Device to HDD) file,apl,device DELTRCEDAT Delete Trace File file,apl,device PRTTRCEDAT PRTTRCEDAT? file,on_off,apl,devi on_off Protect Trace File file,apl,device file: Target filename LISTTRCEDAT?
Page 312 Table 5.2-1 Config function setting messages (Continued) Function Command Query Response Remarks MVSYSINFO Move System Information File (HDD to Device) file,device file : Target filename Copy System Information File CPSYSINFO device : Drive name (Device to HDD) file,device = A | B | D | E | … DELSYSINFO Delete System Information File apl : Application name...
Page 313: Power Meter Device Messages
5.3 Power Meter Device Messages Device messages for setting Power Meter are shown in Table 5.3-1. Table 5.3-1 Power Meter setting messages Function Command Query Response Remarks CNF freq CNF? freq Center Frequency POWER? DBM|WATT|DB real Average Power Query Zero Set ZEROSET ROFFSETMD on_off ROFFSETMD?
Page 314: Ber Measurement Settings
5.4 BER Measurement Settings Device messages for setting the bit error rate (BER) measurement function are shown in Table 5.4-1. Table 5.4-1 BER measurement setting messages Function Command Query Response Remarks mode: Measurement mode MODE mode MODE? mode Measurement Mode = SINGLE | CONTINUOUS | ENDLESS START Start Measurement...
Page 315 Table 5.4-1 BER measurement setting messages (Cont’d) Function Command Query Response Remarks pattern: Data pattern type = PN9 | PN11 | PN15 | PN20 | TYPE pattern TYPE? pattern PN23 | ALL0 | ALL1 | ALT | Data Pattern Type PN9FIX | PN11FIX | PN15FIX | PN20FIX | PN23FIX | USER PNINITIAL n...
Page 316 Table 5.4-1 BER measurement setting messages (Cont’d) Function Command Query Response Remarks per,countbit,errorb RESULT? EP it,status,error : Error rate (%) exp,countbit,errorb : Error rate (exponent) RESULT? ER it,status,error countbit : Number of count bits per,countbit,errorb errorbit : Number of error bits Result and Status Query RESULT? EP_WSYNCLOSS it,syncloss,status,...
Page 317: Chapter 6 Native Device Message Details
Chapter 6 Native Device Message Details This chapter describes detailed specifications on Native remote control commands for executing MS2690A/MS2691A/MS2692A and/or MS2830A functions in alphabetical order. AUTORESYNC/AUTORESYNC? ........... 6-4 BER? ..................6-5 BERBIT/BERBIT? ..............6-6 BITERR? ................. 6-7 CAL ..................6-7 CAL:TEMP:ALL? ..............
Page 318 Chapter 6 Native Device Message Details ENBL/ENBL? ................ 6-39 ENDLS .................. 6-39 ERRORBIT/ERRORBIT? ............6-40 ESE0/ESE0? ................. 6-41 ESE1/ESE1? ................. 6-42 ESEEND/ESEEND?.............. 6-43 ESEERR/ESEERR?.............. 6-45 ESR0? ................... 6-47 ESR1? ................... 6-48 ESREND? ................6-49 ESRERR? ................6-51 FPGAVER? ................6-53 FREQREF/FREQREF? ............
Page 319 Chapter 6 Native Device Message Details PRTSYSINFO/PRTSYSINFO? ..........6-86 PRTTRCEDAT/PRTTRCEDAT? ........... 6-87 RCPRM ................. 6-88 RCVBIT? ................6-89 REBOOT ................6-89 REMDISP/REMDISP? ............6-90 RESULT? ................6-91 RFLVLOFS/RFLVLOFS? ............6-92 ROFFSET/ROFFSET?............6-93 ROFFSETMD/ROFFSETMD? ..........6-94 ROSC:EXT:FREQ/ROSC:EXT:FREQ? ........ 6-95 ROSC:SOUR? ..............6-96 ROSC:STAT? ................
Page 320: Autoresync/Autoresync
Chapter 6 Native Device Message Details AUTORESYNC/AUTORESYNC? Auto Re-sync Function Enables (ON) or disables (OFF) the automatic resynchronization for BER measurement. Command AUTORESYNC on_off Query AUTORESYNC? Response on_off Parameter Automatic resynchronization ON/OFF on_off ON|1 Enables automatic resynchronization Disables automatic resynchronization OFF|0 Detail Unusable unless the measurement screen is set for BER test.
Page 321: Ber
Chapter 6 Native Device Message Details BER? Bit Error Rate Query Function This command returns the bit error rate of the BER measurement function. Query BER? a Response Where a is EP (in percentage) Where a is ER (in exponents) Parameter Bit error rate format The bit rate is returned in percentage.
Page 322: Berbit/Berbit
Chapter 6 Native Device Message Details BERBIT/BERBIT? Measurement Bit Function Sets the number of measurement bits for BER measurement. Command BERBIT bit Query BERBIT? Response Integer in bit units, unitless Parameter Number of measurement bits Range 1 to 4 Gbits 1 to 4294 Mbits 1 to 4294967 Kbits 1000 to 4294967295 bits...
Page 323: Biterr
Chapter 6 Native Device Message Details BITERR? Error Bit Query Function Queries the number of error bits in the BER measurement. Query BITERR? Response Number of error bits Range 0 to 2 bits Detail Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 324: Cal:temp:all
Chapter 6 Native Device Message Details CAL:TEMP:ALL? All Calibration Temperature Query Function This command queries the temperature when the last time all the calibrations were performed. Query CAL:TEMP:ALL? Response temperature Parameter temperature Temperature of the RF unit at the time of the calibration Resolution 0.01°C...
Page 325: Cal:temp:band
Chapter 6 Native Device Message Details CAL:TEMP:BAND? Bandwidth Calibration Temperature Query Function This command queries the temperature and time at the last Bandwidth Calibration. Query CAL:TEMP:BAND? Response temperature Parameter Temperature of the RF unit at the time of the temperature calibration Resolution 0.01°C...
Page 326: Cal:temp:lev
Chapter 6 Native Device Message Details CAL:TEMP:LEV? Level Calibration Temperature Query Function This command queries the temperature at the last Level Calibration. Query CAL:TEMP:LEV? Response temperature Parameter Temperature of the RF unit at the time of the temperature calibration Resolution 0.01 °C No suffix code.
Page 327: Cal:temp:lol
Chapter 6 Native Device Message Details CAL:TEMP:LOL? Local Leak Calibration Temperature Query Function This command queries the temperature at the last Local Leak Calibration. Query CAL:TEMP:LOL? Response temperature Parameter Temperature of the RF unit at the time of the temperature calibration Resolution 0.01°C...
Page 328: Cal:time:all
Chapter 6 Native Device Message Details CAL:TIME:ALL? All Calibration Time Query Function This command queries the time elapsed since the last All Calibration Command. Query CAL:TIME:ALL? Response time Parameter Time elapsed since calibration was performed time No suffix code. Value is returned in s units. Details This command is available only for MS2830A.
Page 329: Cal:time:band
Chapter 6 Native Device Message Details CAL:TIME:BAND? Bandwidth Calibration Time Query Function This command queries the time elapsed since the last Bandwidth Calibration. Query CAL:TIME:BAND? Response time Parameter time Time elapsed since calibration was performed No suffix code. Value is returned in s units. Details This command is available only for MS2830A.
Page 330: Cal:time:lev
Chapter 6 Native Device Message Details CAL:TIME:LEV? Level Calibration Time Query Function This command queries the time elapsed since the last Level Calibration. Query CAL:TIME:LEV? Response time Parameter time Time elapsed since calibration was performed No suffix code. Value is returned in s units. Details This command is available only for MS2830A.
Page 331: Cal:time:lol
Chapter 6 Native Device Message Details CAL:TIME:LOL? Local Leak Calibration Time Query Function This command queries the time elapsed since the last Local Leak calibration. Query CAL:TIME:LOL? Response time Parameter time Time elapsed since calibration was performed No suffix code. Value is returned in s units. Details This command is available only for MS2830A.
Page 332: Clk/Clk
Chapter 6 Native Device Message Details CLK/CLK? Clock Polarity Function Sets the polarity of the clock signal for BER measurement. Command CLK polarity Query CLK? Response polarity Parameter Clock signal polarity polarity RISE Data is detected at the rising edge Data is detected at the falling edge FALL Detail...
Page 333: Cnf/Cnf
Chapter 6 Native Device Message Details CNF/CNF? Center Frequency Function This command sets the measurement center frequency for the power sensor. The setting range and resolution are determined by that of USB power sensor. Command CNF freq Query CNF? Response freq No suffix code.
Page 334: Color/Color
Chapter 6 Native Device Message Details COLOR/COLOR? Screen Hard Copy Color Function Sets the screen hardcopy color image. Command COLOR flag Query COLOR? Response flag Parameter Color image setting flag NORMAL Displays color image (Default) Reverses color image REVERSE MONOCHROME Converts color image to gray scale MREVERSE Converts color image to reverse gray scale...
Page 335: Conts
Chapter 6 Native Device Message Details CONTS Start Measurement by Continuous Mode Function Starts the BER measurement in Continuous mode. Command CONTS Detail When executing this command for BER measurement function, switch the application to BER Test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed Note:...
Page 336: Cord
Chapter 6 Native Device Message Details CORD Correction Make Up Function This command adds some data to the level frequency correction table. This is the same function as CORR:MAKE Command CORD n,freq,real Parameter Table Number (Parameter provided for backward compatibility. Setting will be ignored.) Range 0 to 149 Resolution...
Page 337 Chapter 6 Native Device Message Details CORR/CORR? Correction (On/Off) Function This command sets whether to perform the level frequency correction processing. Command CORR switch_com Query CORR? Response switch_res Parameter switch_com Correction processing On/Off ON|1 Sets Correction processing On. OFF|0 Sets Correction processing Off. (Default) Switch_res Correction processing On/Off Correction processing On...
Page 338: Corr:data
Chapter 6 Native Device Message Details CORR:DATA? Correction Data Read Function This command queries the level frequency correction table data of the signal analyzer. Query CORR:DATA? Response number,freq_1,real_1,freq_2,real_2,... Parameter number Number of data Range 0 to 4096. Frequency to be corrected freq Range –1 GHz to 400 GHz...
Page 339: Corr:make
Chapter 6 Native Device Message Details CORR:MAKE Correction Make Up Function This command adds some data to the level frequency correction table. Command CORR:MAKE freq,real Parameter Frequency to be corrected freq Range – 1 GHz to 400 GHz Resolution 1 Hz Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ Default...
Page 340: Corr:make:cle
Chapter 6 Native Device Message Details CORR:MAKE:CLE Correction Make Up All Clear Function This command initializes the data on the level frequency correction table. Command CORR:MAKE:CLE Example of Use To initialize the data on the level frequency correction table CORR:MAKE:CLE COUNTCLR Count Clear Function...
Page 341: Countmode/Countmode
Chapter 6 Native Device Message Details COUNTMODE/COUNTMODE? Count Mode Function Sets the BER measurement end condition. Command COUNTMODE mode Query COUNTMODE? Response mode Parameter mode BER measurement end condition DATABIT BER measurement ends when the specified number of count bits is reached. ERRORBIT BER measurement ends when the specified number of error bits is reached.
Page 342: Cpcopydat
Chapter 6 Native Device Message Details CPCOPYDAT Copy Hard Copy file (Device to HDD) Function Copies a screen hardcopy file from the specified storage device to the internal hard disk. Command CPCOPYDAT file,device Parameter Target filename file Character string within 32 characters enclosed by double quotes (“...
Page 343: Cpdgtzdat
Chapter 6 Native Device Message Details CPDGTZDAT Copy Digitize File (Device to HDD) Function Copies a digitized file from the specified storage device to the internal hard disk. Command CPDGTZDAT file,apl,device Parameter file Target filename Character string within 128 characters enclosed by double quotes (“...
Page 344: Cprcdat
Chapter 6 Native Device Message Details CPRCDAT Copy Parameter File (Device to HDD) Function Copies a parameter file from the specified storage device to the internal hard disk. Command CPRCDAT file,device Parameter Target filename file Character string within 32 characters enclosed by double quotes (“...
Page 345: Cpsysinfo
Chapter 6 Native Device Message Details CPSYSINFO Copy System Information File (Device to HDD) Function Copies a system information file from the specified storage device to the internal hard disk. Command CPSYSINFO file,device Parameter file Target filename Character string within 32 characters enclosed by double quotes (“...
Page 346: Cptrcedat
Chapter 6 Native Device Message Details CPTRCEDAT Copy Trace Data (Device to HDD) Function Copies a trace file from the specified storage device to the internal hard disk. Command CPTRCEDAT file,apl,device Parameter Target filename file Character string within 32 characters enclosed by double quotes (“...
Page 347: Data/Data
Chapter 6 Native Device Message Details DATA/DATA? Data Polarity Function Sets the logic (positive or negative) of the Data signal for BER measurement. Command DATA polarity Query DATA? Response polarity Parameter Data signal logic polarity Positive logic Negative logic Detail Unusable unless the measurement screen is set for BER test.
Page 348: Delcopydat
Chapter 6 Native Device Message Details DELCOPYDAT Delete Hard Copy File Function This command deletes a screen hardcopy file saved in the specified drive. Command DELCOPYDAT file,device Parameter Target filename file Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 349: Deldgtzdat
Chapter 6 Native Device Message Details DELDGTZDAT Delete Digitize File Function Deletes a digitized file saved in the specified device. Command DELDGTZDAT file,apl,device Parameter file Target filename Character string within 128 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 350: Delm/Delm
Chapter 6 Native Device Message Details DELM/DELM? Delimiter (Terminator) Function Sets a delimiter (termination code) for remote control. Command DELM code Query DELM? Response code Parameter Delimiter type code CR/LF (Default) CRLF NONE None (EOI only) Example of Use To set the delimiter to CR/LF DELM CRLF 6-34...
Page 351: Delrcdat
Chapter 6 Native Device Message Details DELRCDAT Delete Parameter File Function Deletes a parameter file saved in the specified device. Command DELRCDAT file,device Parameter file Target filename Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 352: Delsysinfo
Chapter 6 Native Device Message Details DELSYSINFO Delete System Information File Function Deletes a system information file saved in the specified device. Command DELSYSINFO file,device Parameter Target filename file Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 353: Deltrcedat
Chapter 6 Native Device Message Details DELTRCEDAT Delete Trace File Function This command deletes the trace file saved in the specified drive. Command DELTRCEDAT file,apl,device Parameter file Target filename Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 354: Display/Display
Chapter 6 Native Device Message Details DISPLAY/DISPLAY? LCD Power Function This command turns the LCD backlight ON/OFF. Command DISPLAY on_off Query DISPLAY? ResponseResponse on_off Parameter LCD backlight status on_off On (Default) Details When the Local key is pressed, the LCD backlight automatically turns Example of Use To turn the LCD backlight OFF DISPLAY OFF...
Page 355: Enbl/Enbl
Chapter 6 Native Device Message Details ENBL/ENBL? Enable Polarity Function Sets or disables the polarity of the Enable signal for BER measurement. Command ENBL polarity Query ENBL? Response polarity Parameter polarity Enable signal polarity Positive logic (high active) HIGH Negative logic (low active) Disables the signal polarity DISABLE Detail...
Page 356: Errorbit/Errorbit
Chapter 6 Native Device Message Details ERRORBIT/ERRORBIT? Measurement Error Bit Function Sets the number of measurement error bits for BER measurement. Command ERRORBIT bit Query ERRORBIT? Response Integer in bit units, unitless Parameter Number of measurement bits Range 1 to 2 Gbits 1 to 2147 Mbits 1 to 2147483 Kbits 1 to 2147483647 bits...
Page 357 Chapter 6 Native Device Message Details ESE0/ESE0? Extended End Event Status Enable Register Function Sets the extended end event status enable register. When an end event occurs in the specified application, the end summary bit (ESB) value of the corresponding status byte register is set to 1 (true). Command ESE0 n Query...
Page 358 Chapter 6 Native Device Message Details ESE1/ESE1? Extended Error Event Status Enable Register Function Sets the extended error event status enable register. When an error event occurs in the specified application, the error summary bit (ESB) value in the corresponding status byte register is set to 1 (true). Command ESE1 n Query...
Page 359 Chapter 6 Native Device Message Details ESEEND/ESEEND? End Event Status Enable Register Function Sets the end event status enable register that can be used for the Signal Generator and BER measurement functions. When a specified end event occurs, the end summary bit (ESB) value corresponding to the event is set to 1 (true).
Page 360 Chapter 6 Native Device Message Details Details Set the sum of the values for bits to be enabled to the parameter, from the values 2 = 1, 2 = 2, 2 = 4, 2 = 8, 2 = 16, 2 = 32, 2 = 64, and 2 128, corresponding to the end event status enable register bits 0, 1, 2, 3,...
Page 361 Chapter 6 Native Device Message Details ESEERR/ESEERR? Error Event Status Enable Register Function Sets the error event status enable register that can be used for the Signal Generator and BER measurement functions. When a specified error event occurs, the error summary bit (ESB) value corresponding to the event is set to 1 (true).
Page 362 Chapter 6 Native Device Message Details Details Set the sum of the values for bits to be enabled to the parameter, from the values 2 = 1, 2 = 2, 2 = 4, 2 = 8, 2 = 16, 2 = 32, 2 = 64, and 2 128, corresponding to the error event status enable register bits 0, 1, 2, 3,...
Page 363: Esr0
Chapter 6 Native Device Message Details ESR0? Extended End Event Status Register Query Function Queries the extended end event status. Query ESR0? Response Parameter Extended end event status register Value = bit0 + bit1 + ... + bit7 bit7 = 2 = 128 Bit 7: Not used...
Page 364: Esr1
Chapter 6 Native Device Message Details ESR1? Extended Error Event Status Register Query Function Queries the extended error event status. Query ESR1? Response Parameter Extended error event status register Value = bit0 + bit1 + ... + bit7 bit7 = 2 = 128 Bit 7: Not used...
Page 365: Esrend
Chapter 6 Native Device Message Details ESREND? Event Status Register Query Function Queries the end event status that is used for the Signal Generator and BER measurement functions. This command can be used for the currently active function. Query ESREND? Response Parameter End event status register...
Page 366 Chapter 6 Native Device Message Details Details Unusable unless the measurement screen is set for Signal Generator or BER test. The response is the sum of the values 2 = 1, 2 = 2, 2 = 4, 2 = 8, 2 = 16, = 32, 2 = 64, and 2...
Page 367: Esrerr
Chapter 6 Native Device Message Details ESRERR? Error Event Status Register Query Function Queries the error event status that is used for the Signal Generator and BER functions. This command can be used for the currently active function. Query ESRERR? Response Parameter Error event status register...
Page 368 Chapter 6 Native Device Message Details Details Unusable unless the measurement screen is set for Signal Generator or BER test. The response is the sum of the values 2 = 1, 2 = 2, 2 = 4, 2 = 8, 2 = 16, = 32, 2 = 64, and 2...
Page 369: Fpgaver
Function Queries the FPGA version. Query FPGAVER? hardware FPGAVER? ALL Response version Parameter hardware FPGA type For MS2690A/MS2691A/MS2692A: Hardware Controller FPGA CNTR_KEY Control PLD And Panel IF/Local FPGA LOCAL RF/Micro FPGA MICRO PCI FPGA on Measure Unit MEAS_PCI Core FPGA on Measure Unit...
Page 370 Chapter 6 Native Device Message Details All FPGA FPGA version number version Details All FPGA names and their versions are returned when FPGAVER? ALL is executed. “－” is returned when reading a version number of hardware not installed. Example of Use To query the HWC FPGA version FPGAVER? HWC >...
Page 371: Freqref/Freqref
Chapter 6 Native Device Message Details FREQREF/FREQREF? Frequency Reference Function This command selects the frequency reference signal source. Command FREQREF source Query FREQREF? Response source Parameter Frequency reference signal source source Uses internal reference signal source. Synchronizes with the external reference signal AUTO source if an external reference signal is input.
Page 372: Freq:synt:lph/Freq:synt:lph
Chapter 6 Native Device Message Details FREQ:SYNT:LPH/FREQ:SYNT:LPH? Low Phase Noise Function This command enables/disables Low Phase Noise function. Command FREQ:SYNT:LPH switch_n Query FREQ:SYNT:LPH? Response on_off Low Phase Noise switch status Parameter Low Phase Noise switch switch_n Enables Low Phase Noise switch. Enables Low Phase Noise switch.
Page 373: Hardrev
Hardware Revision Query Function Queries the hardware revision number. Query HARDREV? hardware HARDREV? ALL Response revision Parameter Hardware type hardware For MS2690A/MS2691A/MS2692A: IF Unit IF/Local Unit LOCAL RF/Micro Unit MICRO Measure Unit MEAS Measure Option Unit WBAND SG Unit CPU Unit...
Page 374: Ini
Chapter 6 Native Device Message Details Preset Current Application Function This command initializes the settings and status of the currently selected application. Command Example of Use To initialize settings of the Spectrum Analyzer SYS SPECT LISTCOPYDAT? Hard Copy File List Query Function Queries a list of screen hardcopy files saved in the specified device.
Page 375: Listdgtzdat
Chapter 6 Native Device Message Details LISTDGTZDAT? Digitize File List Query Function Queries a list of digitized files saved in the specified device. Query LISTDGTZDAT? apl,device Response number,file1,file2,... number Number of files Range 0 to 1000 file File name If the number of files exceeds 1000, the first 1000 files are returned, sorted by filename.
Page 376: Listrcdat
Chapter 6 Native Device Message Details LISTRCDAT? Parameter File List Query Function Queries a list of parameter files saved in the specified device. Query LISTRCDAT? device Response number,file1,file2,... Number of files number Range 0 to 1000 File name file If the number of files exceeds 1000, the first 100 0 files are returned, sorted by filename.
Page 377: Listsysinfo
Chapter 6 Native Device Message Details LISTSYSINFO? System Information File List Query Function Queries a list of system information files saved in the specified device. Query LISTSYSINFO? device Response number,file1,file2,... number Number of files Range 0 to 1000 file File name If the number of files exceeds 1000, the first 100 0 files are returned, sorted by filename.
Page 378: Listtrcedat
Chapter 6 Native Device Message Details LISTTRCEDAT? Trace File List Query Function Queries a list of trace files saved in the specified device. Query LISTTRCEDAT? apl,device Response number,file1,file2,... Number of files number Range 0 to 1000 File name file If the number of files exceeds 1000, the first 1000 files are returned, sorted by filename.
Page 379: Load
Chapter 6 Native Device Message Details LOAD Load Application Function Activates an application. Command LOAD apl Parameter Target application name SIGANA Signal Analyzer SPECT Spectrum Analyzer PNOISE Phase Noise PMET Power Meter BER Test Details This function activates an installed application and registers it to the Application Switch menu.
Page 380: Loadmedia/Loadmedia
Chapter 6 Native Device Message Details LOADMEDIA/LOADMEDIA? Drive to load User Pattern Function Sets the name of the drive to load the user-defined pattern file for BER measurement. Command LOADMEDIA drive Query LOADMEDIA? Response drive Parameter drive Load source drive name Detail Unusable unless the measurement screen is set for BER test.
Page 381: Loaduserpat
Chapter 6 Native Device Message Details LOADUSERPAT Load User Pattern Function Loads the user-defined pattern for BER measurement from a file. Command LOADUSERPAT pattern Parameter pattern User-defined pattern to be loaded Specify a character string within 32 characters, obtained by removing an extension (bpn) from the target user defied pattern file name.
Page 382: Measerror
Chapter 6 Native Device Message Details MEASERROR? Error Query Function Queries BER measurement error status. Query MEASERROR? Response error Parameter Error status error NONE No error Sync Loss status SYNCLOSS Clock signal error CLOCKERROR ENABLEERROR Enable signal error Details Error status query is executed in the following priority: Enable signal error >...
Page 383: Mmem:load:corr
Chapter 6 Native Device Message Details MMEM:LOAD:CORR Recall Correction File Function This command loads a level frequency correction table. Command MMEM:LOAD:CORR filename,device Parameter Target filename filename Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 384: Mmem:stor:corr
Chapter 6 Native Device Message Details MMEM:STOR:CORR Save Correction File Function This command initializes the data on the level frequency correction table. Command MMEM:STOR:CORR filename,device Parameter filename Target filename Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 385: Mode/Mode
Chapter 6 Native Device Message Details MODE/MODE? Measurement Mode Function Selects the BER measurement mode. Command MODE mode Query MODE? Response mode Parameter mode Measurement mode Single mode SINGLE Continuous mode CONTINUOUS Endless mode ENDLESS Details Unusable unless the measurement screen is set for BER test. When the measurement mode is set to Endless, other settings are changed as below.
Page 386: Mvcopydat
Chapter 6 Native Device Message Details MVCOPYDAT Move Hard Copy File (HDD to Device) Function Moves a screen hardcopy file saved in the internal hard disk to the specified device. Command MVCOPYDAT file,device Parameter Target filename file Character string within 32 characters enclosed by double quotes (“...
Page 387: Mvdgtzdat
Chapter 6 Native Device Message Details MVDGTZDAT Move Digitize file (HDD to Device) Function Moves a digitized file saved in the internal hard disk to the specified device. Command MVDGTZDAT file,apl,device Parameter file Target filename Character string within 128 characters enclosed by double quotes (“...
Page 388: Mvrcdat
Chapter 6 Native Device Message Details MVRCDAT Move Parameter File (HDD to Device) Function Moves a parameter file saved in the internal hard disk to the specified device. Command MVRCDAT file,device Parameter Target filename file Character string within 32 characters enclosed by double quotes (“...
Page 389: Mvsysinfo
Chapter 6 Native Device Message Details MVSYSINFO Move System Information File (HDD to Device) Function Moves a system information file saved in the internal hard disk to the specified device. Command MVSYSINFO file,device Parameter file Target filename Character string within 32 characters enclosed by double quotes (“...
Page 390: Mvtrcedat
Chapter 6 Native Device Message Details MVTRCEDAT Move Trace File (HDD to Device) Function Moves a trace file recorded in the internal hard disk to the specified device. Command MVTRCEDAT file,apl,device Parameter file Target filename Character string within 32 characters enclosed by double quotes (“...
Page 391: Optinfo
Chapter 6 Native Device Message Details OPTINFO? Option Information Query Function Queries option information. Query OPTINFO? [format] Response num1,sw1,model1,num2,sw2,model2,... (when format is ALL) num1,sw1,model1,num2,sw2,model2,... (when format is HARD) num1,type1,sw1,model1,type2,num2,sw2,model2,... (whwn format is SOFT) Option number (000 to 999) Switch (On/Off) Option name model Application type...
Page 392: Pmod/Pmod
Chapter 6 Native Device Message Details PMOD/PMOD? Hard Copy Mode Function This command sets the screen hardcopy file format. Command PMOD format Query PMOD? Response format Parameter File format format BMP format (Default) PNG format When omitted. BMP format Example of Use To save hardcopies in the PNG format PMOD PNG 6-76...
Page 393: Pnfixleng/Pnfixleng
Chapter 6 Native Device Message Details PNFIXLENG/PNFIXLENG? PN Fix Pattern Length Function Sets the length of PN Fix pattern for BER measurement. Command PNFIXLENG bit Query PNFIXLENG? Response Integer in bit units, unitless Parameter Bit length of PN Fix pattern Range 96 to 134217728 bits Suffix Code...
Page 394: Pninitial/Pninitial
Chapter 6 Native Device Message Details PNINITIAL/PNINITIAL? PN Fix Pattern Initial Value Function Sets the initial value of PN Fix pattern in binary, for BER measurement. Command PNINITIAL n Query PNINITIAL? Response Parameter PN Fix pattern initial value (binary) Range 00…0 to 11…1 [9 bits] (for PN9 Fix) 00…0 to 11…1 [15 bits] (for PN15 Fix) 00…0 to 11…1 [20 bits] (for PN20 Fix)
Page 395: Power
Chapter 6 Native Device Message Details POWER? Average Power Query Function This command queries the measurement power in specified units. Query POWER? [unit] Response real Parameter Unit unit Query the measurement power value in dBm units. Query the measurement power value in W units. WATT Query the relative power value in dB units.
Page 396: Pow:att:mode/Pow:att:mode
Function This command sets Attenuation Mode. Command POW:ATT:MODE mode Query POW:ATT:MODE? Parameter <mode> Attenuator mode For MS2690A/MS2691A/MS2692A: This command is not available. For MS2830A: Uses mechanical attenuator. MECH COMB Switches between electronic and mechanical attenuator according to frequencies. Default MECH Details This sets the attenuator operation mode to be used.
Page 397: Pre
Chapter 6 Native Device Message Details Preset Current Application Function This command initializes the settings and status of the currently selected application. Command Example of Use To initialize settings of the Spectrum Analyzer SYS SPECT 6-81...
Page 398: Print
Files are saved to the following directory in the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\Copy Files When file name is omitted, up to 1000 files can be saved in a folder. When file name is specified, it is possible to save more than 1000 files.
Page 399: Prtcopydat/Prtcopydat
Chapter 6 Native Device Message Details PRTCOPYDAT/PRTCOPYDAT? Protect Hard Copy File Function This command protects a screen hardcopy file saved in the specified drive. Protected files cannot be deleted. Command PRTCOPYDAT file,on_off,device Query PRTCOPYDAT? file,device Response on_off Parameter file Target filename Character string within 32 characters enclosed by double quotes (“...
Page 400: Prtdgtzdat/Prtdgtzdat
Chapter 6 Native Device Message Details PRTDGTZDAT/PRTDGTZDAT? Protect Digitize File Function This command saves a digitize file saved to the specified drive. Protected files cannot be deleted. Command PRTDGTZDAT file,on_off,apl,device Query PRTDGTZDAT? file,apl,device Response on_off Parameter file Target filename Character string within 128 characters enclosed by double quotes (“...
Page 401: Prtrcdat/Prtrcdat
Chapter 6 Native Device Message Details PRTRCDAT/PRTRCDAT? Protect Parameter File Function Protects a parameter file saved in the specified drive. Protected files cannot be deleted. Command PRTRCDAT file,on_off,device Query PRTRCDAT? file,device Response on_off Parameter file Target filename Character string within 32 characters enclosed by double quotes (“...
Page 402: Prtsysinfo/Prtsysinfo
Chapter 6 Native Device Message Details PRTSYSINFO/PRTSYSINFO? Protect System Information File Function This command protects a system information file saved to the specified drive. Protected files cannot be deleted. Command PRTSYSINFO file,on_off,device Query PRTSYSINFO? file,device Response on_off Parameter file Target filename Character string within 32 characters enclosed by double quotes (“...
Page 403: Prttrcedat/Prttrcedat
Chapter 6 Native Device Message Details PRTTRCEDAT/PRTTRCEDAT? Protect Trace File Function This command saves a trace file saved in the specified drive. Protected files cannot be deleted. Command PRTTRCEDAT file,on_off,apl,device Query PRTTRCEDAT? file,apl,device Response on_off Parameter file Target filename Character string within 32 characters enclosed by double quotes (“...
Page 404: Rcprm
Chapter 6 Native Device Message Details RCPRM Recall Parameter Setting file Function This command recalls the application settings and status into a parameter setting file. Command RCPRM file,dev,apl Parameter Target filename file Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’) (excluding extension) The following characters cannot be used: \ / : * ? “...
Page 405: Rcvbit
Chapter 6 Native Device Message Details RCVBIT? Received Bit Query Function This command returns the received bit count during BER measurement. Query RCVBIT? Response Parameter Bit count Range 0 to (2  1) Detail Unusable unless the measurement screen is set for BER test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 406: Remdisp/Remdisp
Chapter 6 Native Device Message Details REMDISP/REMDISP? Error Message Display Mode Function Selects the error message display mode when an error occurs during remote control. Command REMDISP mode Query REMDISP? Response mode Parameter mode Error message display mode Deletes the error message display once the next NORMAL command is received.
Page 407: Result
Chapter 6 Native Device Message Details RESULT? Result and Status Query Function Queries the bit error rate and status information of BER measurement. Query RESULT? format Response per,countbit,errorbit,status,error (when format is EP) exp,countbit,errorbit,status,error (when format is ER) per,countbit,errorbit,syncloss,status,error (when format is EP_WSYNCLOSS) exp,countbit,errorbit,syncloss,status,error (when format is ER_WSYNCLOSS) Bit error rate (percentage)
Page 408: Rflvlofs/Rflvlofs
Chapter 6 Native Device Message Details RFLVLOFS/RFLVLOFS? Level Offset Value Function This command sets the level offset value in dB units. Command RFLVLOFS rel_ampl Query RFLVLOFS? Response rel_ampl Parameter rel_ampl Offset value Range –100.00 to +100.00 Resolution 0.01 Default 0.00 Suffix code DB when omitted.
Page 409: Roffset/Roffset
Chapter 6 Native Device Message Details ROFFSET/ROFFSET? Ref.Level Offset Value Function This command sets the reference level offset function On/Off and sets the offset value. Command ROFFSET level ROFFSET on_off Query ROFFSET? Response level When the reference level offset function is ON When the reference level offset function is OFF Parameter level...
Page 410: Roffsetmd/Roffsetmd
Chapter 6 Native Device Message Details ROFFSETMD/ROFFSETMD? Reference Level Offset Mode Function This command sets the reference level offset function On/Off. Command ROFFSETMD on_off Query ROFFSETMD? Response on_off Parameter on_off Reference level offset function On/Off Sets the reference level offset function to On. Sets the reference level offset function to Off.
Page 411: Rosc:ext:freq/Rosc:ext:freq
Chapter 6 Native Device Message Details ROSC:EXT:FREQ/ROSC:EXT:FREQ? External Reference Frequency Function This command sets the frequency of the reference frequency signal. Command ROSC:EXT:FREQ freq Query ROSC:EXT:FREQ? Response freq No suffix code. Value is returned in Hz units. Parameter Frequency of reference frequency signal freq Range [MS269xA]...
Page 412: Rosc:sour
Chapter 6 Native Device Message Details ROSC:SOUR? Reference Signal Query Function This command queries the frequency reference signal source. Query ROSC:SOUR? Response source Parameter source Language mode Internal reference signal source INTU Internal reference signal source (Unlock state) External reference signal source External reference signal source (Unlock state) EXTU Details...
Page 413: Rosc:stat
Chapter 6 Native Device Message Details ROSC:STAT? Reference Clock Status Query Function This command queries the status of the frequency reference signal source. Query ROSC:STAT? Response status Parameter Status of frequency reference signal source status Frequency reference signal source is in the locked status.
Page 414: Setrel
Chapter 6 Native Device Message Details SETREL Reference Level Set Function This command sets the power in the Power Meter display as the reference in relative value. Command SETREL Example of Use To set the power in the Power Meter display as the reference. SETREL SNGLS Start Measurement by Single Mode...
Page 415: Softver
Chapter 6 Native Device Message Details SOFTVER? Software Version Query Function Queries the application version. Query SOFTVER? apl Response version Parameter Target application name SIGANA Signal Analyzer SPECT Spectrum Analyzer PNOISE Phase Noise PMET Power Meter BER Test Details For parameters to specify an application other than the standard ones, refer to the operation manual (remote control) for each application.
Page 416: Sound/Sound
Chapter 6 Native Device Message Details SOUND/SOUND? Sound On/Off Function Sets the sound file ON/OFF. Command SOUND on_off Query SOUND? Response on_off Parameter Sound ON/OFF on_off On (Default) Example of Use To set sound to ON SOUND ON 6-100...
Page 417: Start
Chapter 6 Native Device Message Details START Start Measurement Function Starts the BER measurement. Command START Details When executing this command for BER measurement function, switch the application to BER Test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 418: Status
Chapter 6 Native Device Message Details STATUS? Status Query Function Queries the BER measurement status. Query STATUS? Response Measurement status status During measurement EXEC SYNCHRONIZING Synchronization is established. Measurement is stopped with no error. STOP ERROR Measurement is stopped and an error has occurred.
Page 419: Stop
Chapter 6 Native Device Message Details STOP Stop Measurement Function Stops the BER measurement. Command STOP Detail When executing this command for BER measurement function, switch the application to BER Test. This command is available when MS269xA Option 020/120 Vector Signal Generator or MS2830A Option 026/126 BER Measurement Function is installed.
Page 420: Stopstatus
Chapter 6 Native Device Message Details STOPSTATUS? Stop Status Query Function Queries the BER measurement stop status. Query STOPSTATUS? Response Measurement stop status status Measurement is stopped normally. STOP_NORMAL STOP_OVERFLOW_DATACOUNT The number of count bits exceeds the upper limit. The number of Sync Loss errors STOP_OVERFLOW_SYNCLOSS exceeds the upper limit.
Page 421: Svprm
Files are saved to the following directory in the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\Parameter Setting When file name is omitted, up to 1000 files can be saved in a folder. When file name is specified, it is possible to save more than 1000 files.
Page 422: Swkeyinst
Installs the software license key from the specified file in the specified drive. Searches the specified file in the following directory in the specified drive. \Anritsu Corporation\Signal Analyzer\Install Example of Use To install the software license from MX269006.xml file in the USB memory device(E:\).
Page 423: Swkeyname
Chapter 6 Native Device Message Details SWKEYNAME? Software License Name Query Function Queries the software license key corresponding to the specified index number. Command None Query SWKEYNAME? index Response license License name License number corresponding to index number. Parameter index Index number Range 1 to 100...
Page 424: Syncleng/Syncleng
Chapter 6 Native Device Message Details SYNCLENG/SYNCLENG? Length for Sync on User Pattern Function Sets the length of the partial bit string, which is used for synchronization judgment, in the user-defined pattern for BER measurement. Command SYNCLENG bit Query SYNCLENG? Response Parameter Length of synchronization judgment bit string...
Page 425: Syncloss
Chapter 6 Native Device Message Details SYNCLOSS? Sync Loss Count Query Function Queries the number of Sync Loss (out of synchronization) errors having occurred during the BER measurement. Query SYNCLOSS? Response count Number of Sync Loss errors occurred Range 0 to 65535 Detail Unusable unless the measurement screen is set for BER test.
Page 426: Synclossact/Synclossact
Chapter 6 Native Device Message Details SYNCLOSSACT/SYNCLOSSACT? Count Action at Sync Loss Function Sets the action when Sync Loss occurs during BER measurement. Command SYNCLOSSACT a Query SYNCLOSSACT? Response Parameter Action when Sync Loss occurs COUNT_CLEAR Clears current count value Keeps current count value COUNT_KEEP Details...
Page 427: Synclossthld/Synclossthld
Chapter 6 Native Device Message Details SYNCLOSSTHLD/SYNCLOSSTHLD? Sync Loss Threshold Function Sets the Sync Loss judgment condition for the BER measurement. Command SYNCLOSSTHLD n,a Query SYNCLOSSTHLD? Response Parameter Numerator of Sync Loss threshold Range 1 to (a/2) bits Dominator of Sync Loss threshold 500 bits 5000 5000 bits...
Page 428: Syncstartpos/Syncstartpos
Chapter 6 Native Device Message Details SYNCSTARTPOS/SYNCSTARTPOS? Sync Start Position on User Pattern Function Sets the start position of the partial bit string, which is used for synchronization judgment, in the user-defined pattern for BER measurement. Command SYNCSTARTPOS bit Query SYNCSTARTPOS? Response Parameter...
Page 429: Sys/Sys
Chapter 6 Native Device Message Details SYS/SYS? Application Switch/Status Function Switches the target application for operation/control. Also queries the status of the specified application. Command SYS apl,window Query SYS? apl Response status,window Parameter Target application name Signal Analyzer SIGANA SPECT Spectrum Analyzer PNOISE Phase Noise...
Page 430 Chapter 6 Native Device Message Details PA Measurement Power Meter PMET Any optional installed software other than those above can be specified. Refer to the Operation Manual (Remote Control) of each application for details. window Application window status Operation enabled (displayed on top screen) INACT Inactive Minimized...
Page 431: Sysinfo
All system information is returned when ALL is specified. Parameter Information type info Product Model MODEL Product type TYPE SERIAL Serial number RTIME Running time (minutes) Example of Use To query all system information SYSINFO? ALL > Signal Analyzer,MS2690A,610000000,100, 6-115...
Page 432: Syst:err
Chapter 6 Native Device Message Details SYST:ERR? System Error Query Function This command queries the error messages that exist in errors and the event queue. A description consisting of numbers and characters related to the error or event is saved to the error or event queue. Query SYST:ERR? Response...
Page 433: Syst:lang/Syst:lang
Chapter 6 Native Device Message Details Table 6-1 Error messages (Continued) Error/event_number Error/event_description Description This indicates that a set parameter is incorrect –220 Parameter error or invalid. This indicates that this is setting disabled state. –221 Setting conflict This indicates that the settable range has been –222 Data out of range exceeded.
Page 434: Syst:res:mode/Syst:res:mode
Chapter 6 Native Device Message Details SYST:RES:MODE/SYST:RES:MODE? Result Mode Function This command sets the output mode of the measured result. Command SYST:RES:MODE A SYST:RES:MODE B Query SYST:RES:MODE? Parameter Output mode mode Mode A (Default) Mode B Details The Result Mode is initialized to Mode A through the following operation. ...
Page 435: Syst:temp:rf
Chapter 6 Native Device Message Details SYST:TEMP:RF? RF Temperature Query Function This command returns the reading for the temperature of the RF unit in the signal analyzer. Query SYST:TEMP:RF? Response temperature Parameter temperature Measured temperature of RF unit in the signal analyzer Resolution 0.01°C...
Page 436: Trm/Trm
Chapter 6 Native Device Message Details TRM/TRM? Delimiter (Terminator) Function Sets a delimiter (termination code) for remote control. Command TRM code Query TRM? Response code Parameter Delimiter type code CR/LF (Default) CRLF NONE None (EOI only) Example of Use To set the delimiter to CR/LF TRM CRLF 6-120...
Page 437: Type/Type
Chapter 6 Native Device Message Details TYPE/TYPE? Data Pattern Type Function Sets the data pattern type for BER measurement. Command TYPE pattern Query TYPE? Response pattern Parameter pattern Data pattern type PN11 PN11 PN15 PN15 PN20 PN20 PN23 PN23 All 0 (00…0) ALL0 All 1 (11…1) ALL1...
Page 438: Unload
Chapter 6 Native Device Message Details UNLOAD Unload Application Function Exits an application. Command UNLOAD apl Parameter Target application name Signal Analyzer SIGANA SPECT Spectrum Analyzer Phase Noise PNOISE PMET Power Meter BER Test Details This function exits an activated application and deletes it from the Application Switch menu.
Page 439: Userpat
Chapter 6 Native Device Message Details USERPAT? User Pattern File Name Query Function Queries the user-defined pattern name for BER measurement. Query USERPAT? Response pattern,drive Parameter Character string within 32 characters, obtained pattern by removing the extension (bpn) from the loaded user-defined pattern file name.
Page 440: Userpatleng
Chapter 6 Native Device Message Details USERPATLENG? User Pattern Length Query Function Queries the bit length of the user-defined pattern for BER measurement. Query USERPATLENG? Response Bit length of user-defined pattern Range 8 to 1024 bits (for MS269xA) 8 to 4096 bits (for MS2830A) Detail Unusable unless the measurement screen is set for BER test.
Page 441: Userpatlst
Chapter 6 Native Device Message Details USERPATLST? Display BER User Pattern File List Query Function This command returns the list of user-defined pattern files for BER measurement. Query USERPATLST? Response s1,s2,s3,….,s99,s100 Parameter User-defined pattern file name (within 32 s1,………,s100 characters) Range up to 100 files Details...
Page 442: Zaj
Chapter 6 Native Device Message Details Zero Set Function Executes the zeroing of the power sensor. This command is the same as ZEROSET command. Command Details This function cannot be executed, when the display is other than the Power Meter. Do not execute calibration during the zeroing.
