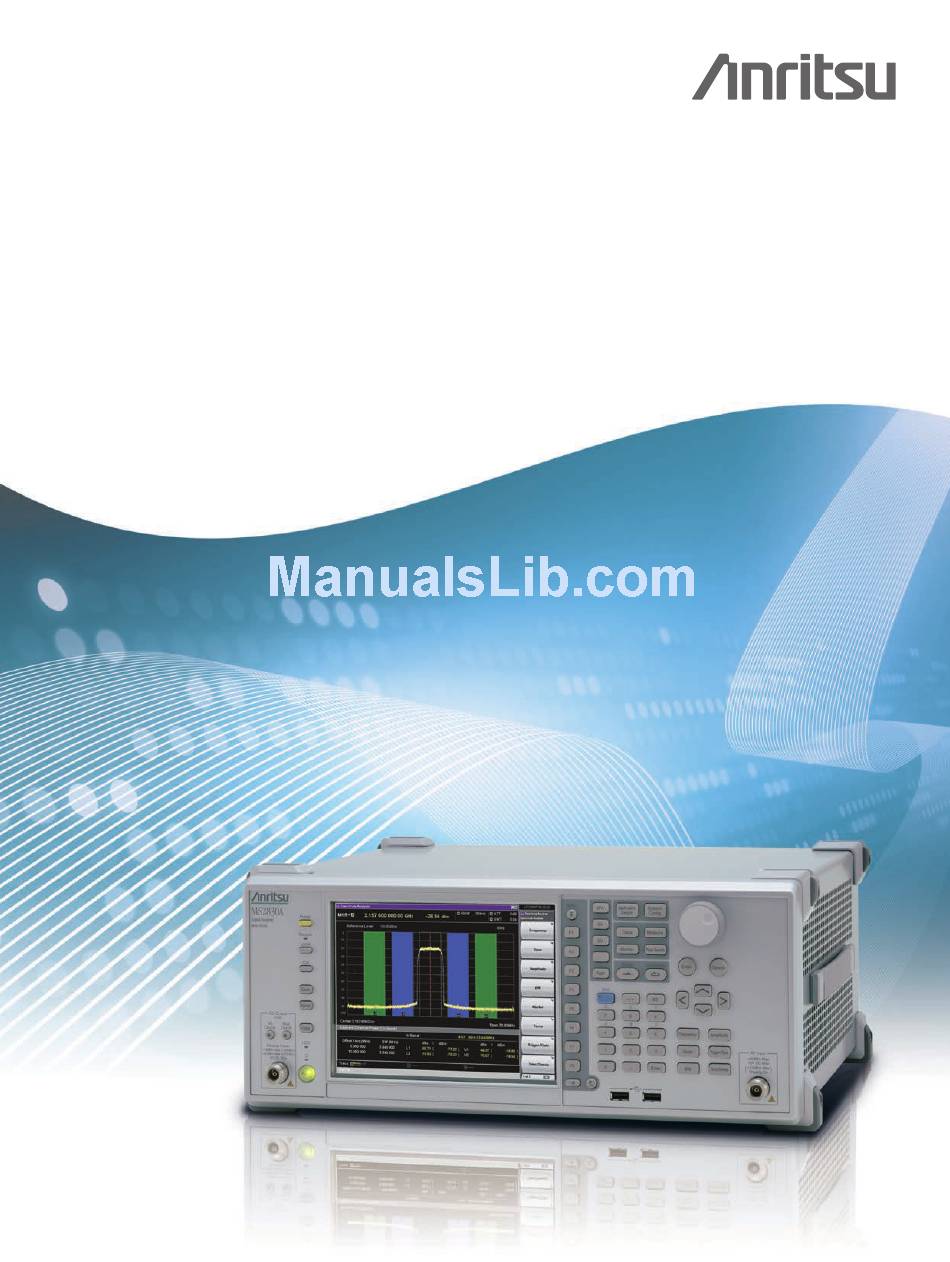

  • Page 1 Configuration Guide MS2830A Signal Analyzer Configuration Guide...

  • Page 2: Ms2830A

    MS2830A Signal Analyzer This explains how to order the new MS2830A and MS2830A retrofit options and measurement software. Follow the steps below to select the MS2830A configuration. Functions marked “standard” are built-in. Options and measurement software can be added as necessary.

  • Page 3: Ms2830A

    Add MS2830A-066 when required by the specifications. : Retrofit not supported. Dedicated option for MS2830A-040/041/043. Cannot be installed simultaneously with MS2830A-043, MS2830A-066 and MS2830A-020/021/088. Step 7. Add measurement software (Requires MS2830A-006. Requires MS2830A-005/009/077/078 depending on software.) Outline Option No. Additional information...

  • Page 4: Ms2830A

    MX269028A-001 Opt. 077 installed   MS2830A (Only for MS2830A) Opt. 005/009 installed   3-1: Measurement required for each carrier signal (80-MHz bandwidth) 3-2: Measurement is only possible when the carrier signal (80-MHz bandwidth) is input due to the effect of the image response.

  • Page 5: Ms2830A

    MX705110A Supports Wi-SUN protocol analysis. The wireless signals between communicating wireless equipments are captured as I/Q data using the MS2830A digitize function and data analysis is performed by the MX705110A. Data analysis displays the PHY/MAC frame format, Tx timing, etc.

  • Page 6: Ms2830A

    Outputs analog signals by combining with MX269018A Analog Measurement Software and includes low power expansion (equivalent to MS2830A-022). Can calibrate lower limit frequency up to 100 kHz (MS2830A-020 lower limit frequency is 250 kHz). : Requires MX269018A. Cannot be installed simultaneously with MS2830A-022.

  • Page 7: Table Of Contents

    Retrofit to Current MS2830A Hardware Option Retrofit The following hardware options can be retrofitted. Order the Z1345A Installation Kit as well. The MS2830A must be returned to the Anritsu plant for hardware retrofitting. Model/Order No. Name Reference steps MS2830A-101 Rubidium Reference Oscillator Retrofit...

  • Page 8: Ms2830A

    Installation Kit (Required when retrofitting options or installing software) – 1: Can be retrofitted to MS2830A with installed MS2830A-062 or MS2830A-066 option but requires separate A0086A USB Audio. 2: MX283027A-001 includes MX269911A WLAN IQproducer (Cannot order MX283027A-001 and MX269911A at same time).

  • Page 9: Ms2830A

    7: The MS2830A-018 can be installed with MS2830A-043 but cannot be installed simultaneously with a signal generator (MS2830A-088/020/021/029) because MS2830A-066 is required. Consequently, analog wireless Rx tests cannot be performed using the same main frame when the MS2830A-018 and MS2830A-043 are combined.

  • Page 10: Ms2830A

    2: MS2830A-043 can implement only either MS2830A-020/021 or MS2830A-066. By the system that MS2830A-066 is necessary, MS2830A-020/021 is not added to MS2830A-043. 3: By the measurement of the narrowband signal, add MS2830A-066. (Channel bandwidth: x kHz to 100 kHz) MS2830A-044/045 cannot be installed MS2830A-066.

  • Page 11: Ms2830A

    (Application software, instruction manual CD-ROM): 1 pc MX269017A Vector Modulation Analysis Software MX269018A Analog Measurement Software – Options – MS2830A-040 3.6 GHz Signal Analyzer (Requires MS2830A-066 and A0086A USB Audio) MS2830A-041 6 GHz Signal Analyzer MX269020A LTE Downlink Measurement Software MS2830A-043 13.5 GHz Signal Analyzer MX269020A-001...

  • Page 12: Ms2830A

    • Phone: +45-7211-2200 Fax: +852-2301-3545 Mexico • Fax: +45-7211-2210 Japan Anritsu Company, S.A. de C.V. • Russia Anritsu Corporation Av. Ejército Nacional No. 579 Piso 9, Col. Granada Anritsu EMEA Ltd. 11520 México, D.F., México 8-5, Tamura-cho, Atsugi-shi, Kanagawa, 243-0016 Japan...
