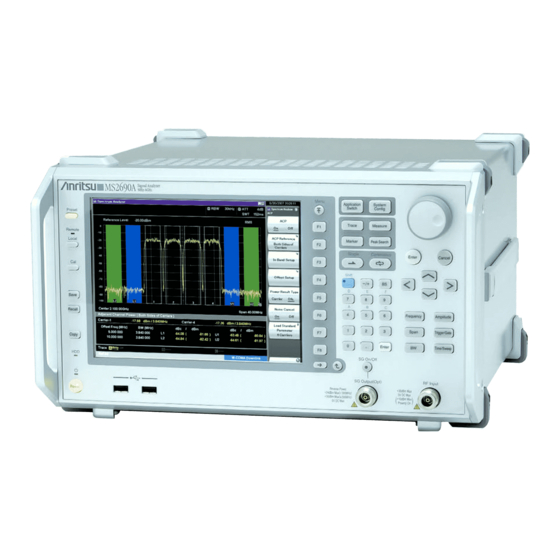

MS2690A/MS2691A/MS2692A
Signal Analyzer
Operation Manual
Spectrum Analyzer Function
Operation
40th Edition
• For safety and warning information, please read this
manual before attempting to use the equipment.
• Additional safety and warning information is provided
within the MS2690A/MS2691A/MS2692A Signal
Analyzer Operation Manual (Mainframe Operation).
Please also refer to this document before using the
equipment.
• Keep this manual with the equipment.
ANRITSU CORPORATION
Document No.: M-W2854AE-40.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS2690A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anritsu MS2690A

Summary of Contents for Anritsu MS2690A

  • Page 1 • For safety and warning information, please read this manual before attempting to use the equipment. • Additional safety and warning information is provided within the MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Mainframe Operation). Please also refer to this document before using the equipment.

  • Page 2: Safety Symbols

    Ensure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.
  • Page 3 Cautions against computer virus infection • Copying files and data Only files that have been provided directly from Anritsu or generated using Anritsu equipment should be copied to the instrument. All other required files should be transferred by means of USB or CompactFlash media after undergoing a thorough virus check.

  • Page 5: About This Manual

    About This Manual  Operation manual configuration The operation manual configuration of the MS2690A/MS2691A/MS2692A Signal Analyzer is shown below. MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Main Frame Operation) MS2830A Signal Analyzer Operation Manual (Main Frame Operation) MS2840A Signal Analyzer Operation Manual...
  • Page 6 • Signal Analyzer Operation Manual (Mainframe) • Signal Analyzer Operation Manual (Mainframe Remote Control) Description of basic operations, maintenance procedures, common functions and common remote functions of the mainframe • Signal Analyzer Operation Manual (Signal Analyzer Function) • Signal Analyzer Operation Manual (Signal Analyzer Function Remote Control) Description of basic operations, functions and remote functions of the signal analyzer...
  • Page 7 • Signal Analyzer Operation Manual (Spectrum Analyzer Function Remote Control) Description of basic operations, functions and remote functions of the spectrum analyzer • Signal Analyzer Operation Manual (Phase Noise Measurement Function Operation) • Signal Analyzer Operation Manual (Phase Noise Measurement Function Remote Control) Description of basic operations, functions and remote functions of the phase noise measurement function.

  • Page 8: Table Of Contents

    Table of Contents About This Manual ........Chapter 1 Overview ........Overview of Spectrum Analyzer ........ 1-2 Features of Spectrum Analyzer ......... 1-3 Chapter 2 Basic Operation ......Display Description ............ 2-2 Single/Continuous Sweep .......... 2-4 Setting Frequency ............2-5 Setting Level ..............
  • Page 9 Chapter 7 Measure Function ....Selecting Measure Function ........7-2 Adjacent Channel Leakage Power Measurement (ACP) ................. 7-4 Burst Average Power Measurement ......7-12 Channel Power Measurement (Channel Power) ..7-15 Occupied Bandwidth Measurement (Occupied Bandwidth) ..........7-17 Spectrum Emission Mask Measurement (Spectrum Emission Mask) ........

  • Page 11: Chapter 1 Overview

    Chapter 1 Overview This chapter provides an overview of the Spectrum Analyzer function. Overview of Spectrum Analyzer ........1-2 Features of Spectrum Analyzer ........1-3...

  • Page 12: Overview Of Spectrum Analyzer

    Chapter 1 Overview 1.1 Overview of Spectrum Analyzer The MS2690A/MS2691A/MS2692A Signal Analyzer (hereinafter, referred to as “MS2690A/MS2691A/MS2692A”) is a device used for the quick, highly accurate, and simple measurement of the transmission characteristics of various wireless devices and systems. The spectrum analyzer function enables full-span analysis of a broad...

  • Page 13: Features Of Spectrum Analyzer

    Features of Spectrum Analyzer 1.2 Features of Spectrum Analyzer A spectrum analyzer is a measuring device for analyzing the frequency components of an input signal. The relative values of the various frequency components are displayed in graph form, with the horizontal axis representing the frequency and the vertical axis the signal level.
  • Page 14 Chapter 1 Overview The real-time method, which is characterized by a small time lag, is suitable for measurement in a narrow frequency range of several tens of MHz maximum. Compared to the real-time method, the sweep method requires a long time to draw a screen, but since it allows observation of a wide frequency range on the order of several GHz at one time, it is a powerful method for high-order harmonic level measurement and the detection of unknown frequency components.
  • Page 15 IF filter used to separate only the target frequency, an IF amplifier with a gain stabilized across a wide level range, and a logarithmic amplifier with excellent linearity. The MS2690A/MS2691A/ MS2692A employs a digital IF method in its IF stage to obtain superior...
  • Page 16 Chapter 1 Overview 1-6.

  • Page 17: Chapter 2 Basic Operation

    Chapter 2 Basic Operation This chapter describes the basic operation of the Spectrum Analyzer function. Display Description ............2-2 Single/Continuous Sweep ..........2-4 Setting Frequency ............2-5 2.3.1 Setting center frequency ........2-9 2.3.2 Setting frequency span ........2-10 2.3.3 Setting start frequency........2-11 2.3.4 Setting stop frequency ........

  • Page 18: Display Description

    Chapter 2 Basic Operation 2.1 Display Description This section describes the main screen and main function menus of the Spectrum Analyzer function. Figure 2.1-1 Main screen of Spectrum Analyzer function...
  • Page 19 Display Description Pressing the when the Spectrum Analyzer function is selected in the Application Switch menu displays the main function menu. The main function menu consists of two pages, which can be toggled by pressing Table 2.1-1 Main function menu Function Menu Display Function...

  • Page 20: Single/Continuous Sweep

    Chapter 2 Basic Operation 2.2 Single/Continuous Sweep There are two types of sweep, single and continuous. (1) Single sweep Press to execute sweep once. When the trigger function or gate function is on, only 1 sweep is executed when the sweep start conditions are met.

  • Page 21: Setting Frequency

    Setting Frequency 2.3 Setting Frequency The Spectrum Analyzer function can set the following four measurement frequencies.  Center frequency  Frequency span  Start frequency  Stop frequency Pressing (Frequency) on page 1 of the main function menu, or pressing displays the Frequency function menu.
  • Page 22 Chapter 2 Basic Operation Frequency function menu Figure 2.3-2 Frequency function menu Table 2.3-1 Frequency function menu Menu Display Function Sets the center frequency. Center 2.3.1 “Setting center frequency” Sets the start frequency. Start 2.3.3 “Setting start frequency” Sets the stop frequency. Stop 2.3.4 “Setting stop frequency”...
  • Page 23 Setting Frequency Span function menu Figure 2.3-3 Span function menu Table 2.3-2 Span function menu Menu Display Function Sets the frequency span. Span 2.3.2 “Setting frequency span” Sets full span. Full Span 2.3.2 “Setting frequency span” Sets zero span. Zero Span 2.3.2 “Setting frequency span”...
  • Page 24 Chapter 2 Basic Operation The display items related to the frequency parameters are described below. Figure 2.3-4 Display items related to frequency parameters Table 2.3-3 Display items related to frequency parameters Display Description Displays the center frequency or start Center or Start frequency.

  • Page 25: Setting Center Frequency

    The center frequency of the frequency range to be swept can be set. Setting range and resolution for center frequency Setting range: 100 MHz to 6.05 GHz (MS2690A) 100 MHz to 13.6 GHz (MS2691A) 100 MHz to 26.6 GHz (MS2692A) *: The setting range is limited by the other frequency settings.

  • Page 26: Setting Frequency Span

    = frequency), and if it is 0 Hz, it is called the time domain mode (horizontal axis = time). Setting range and resolution for frequency span Setting range: 300 Hz to 6.15 GHz (MS2690A) 300 Hz to 13.7 GHz (MS2691A) 300 Hz to 26.7 GHz (MS2692A) 0 Hz (time domain mode) *: The setting range is limited by the other frequency settings.

  • Page 27: Setting Start Frequency

    The start frequency of the frequency range to be swept can be set. Setting range and resolution for start frequency Setting range: 100 MHz to 6.0499997 GHz (MS2690A) 100 MHz to 13.5999997 GHz (MS2691A) 100 MHz to 26.5999997 GHz (MS2692A) *: The setting range is limited by the other frequency settings.

  • Page 28: Setting Frequency Offset

    Chapter 2 Basic Operation 2.3.5 Setting frequency offset The offset value for the frequency display can be set. Setting range and resolution for frequency offset Setting range: 100 to 100 GHz Resolution: 1 Hz Example: To set the frequency offset to 1 GHz <Procedure>...

  • Page 29: Setting Whether To Couple Time Domain

    The step size of the center, start and stop frequency can be set. Setting range and resolution for step size Setting range: 1 Hz to 6.0 GHz (MS2690A) 1 Hz to 13.5 GHz (MS2691A) 1 Hz to 26.5 GHz (MS2692A)

  • Page 30: Setting Level

    Chapter 2 Basic Operation 2.4 Setting Level Pressing (Amplitude) on the main function menu, or pressing displays the Amplitude function menu. The Marker function menu consists of 2 pages that are toggled by pressing Figure 2.4-1 Amplitude key 2-14...
  • Page 31 Setting Level Page1 Page2 Figure 2.4-2 Amplitude function menu Table 2.4-1 Amplitude function menu Menu Display Function Sets the reference level. Reference Level 2.4.1 “Setting reference level” Selects automatic setting or manual setting of Attenuator the input attenuator. (Auto/Manual) 2.4.2 “Setting input attenuator” Sets the input attenuator.
  • Page 32 Chapter 2 Basic Operation The display items related to the level parameters are described below. Figure 2.4-3 Display items related to level parameters Table 2.4-2 Display items related to level parameters Display Description Reference level Displays the reference level. Reference level Displays the reference level addition offset offset value.
  • Page 33 Setting Level The reference level (upper end of amplitude scale) range is described below. Setting range and resolution for reference level Setting range: Refer to Tables 2.4-3 and 2.4-4. Resolution: 0.01 dB (dB unit system) Effective number of digits: 3 (W unit) Effective number of digits: 3 (V unit) Table 2.4-3 Reference level setting range (When Pre-amp is set to Off).
  • Page 34 Chapter 2 Basic Operation Table 2.4-4 Reference level setting range (When Pre-amp is set to On). Scale Mode Unit Reference Level Range 120 to +30 dBm 13.01 to +136.99 dBV (Impedance = 50 ) dBV –11.25 to +138.75 dB  V ( Impedance = 75 ...

  • Page 35: Setting Reference Level

    Setting Level 2.4.1 Setting reference level The reference level (upper end of amplitude scale) can be set. Example: To set the reference level to  10 dBm <Procedure> Press Press (Reference Level). After pressing , press (dBm) to set the reference level.

  • Page 36: Setting Input Attenuator

    Chapter 2 Basic Operation 2.4.2 Setting input attenuator (1) Auto mode The input attenuator is automatically set according to the set reference level. When a signal of the same level as the reference level is input, the input level to the internal mixer is set so as become 10 dBm or lower.
  • Page 37 Setting Level Table 2.4.2-2 Input attenuators set in Auto mode (When Pre-amp is set to On) N = Reference Level (dBm) Attenuator Auto (dB) 120 20 20 18 18 16 16 14 14 12 12 10 10 8 8 6 6...
  • Page 38 Chapter 2 Basic Operation (2) Manual mode To measure extremely low level signals such as non-harmonic spurious signals or spurious signals adjustment to the signal, set the input attenuator manually. The setting range of the input attenuator in Manual setting is as follows.

  • Page 39: Setting Scale

    Setting Level Example: To set the input attenuator to 20 dB <Procedure> Press Press (Attenuator). After pressing , press (dB) to set the input attenuator. For measurement of second and third harmonic spurious, the mixer input level must be lowered to eliminate the effect of internal distortion. Internal distortion is below –...
  • Page 40 Chapter 2 Basic Operation Table 2.4.3-1 Scale function menu Menu Display Function Scale Selects the scale mode (Log/Lin). (Log/Lin) Log Scale Division Sets the scale range (Log scale range). Lin Scale Division Sets the scale range (Lin scale range). Log Scale Line Selects the number of scale lines during log (10/12) scale.

  • Page 41: Setting Reference Level Unit

    Setting Level 2.4.4 Setting reference level unit The level display unit for the Log scale mode can be set. In the case of Lin scale, the level display unit is fixed to V. Reference level display unit dBm, dBV, dBmV, V, W, dBV (emf), dBV/m Example: To set the reference level to 10 dBmV <Procedure>...

  • Page 42: Setting Reference Level Offset

    Chapter 2 Basic Operation 2.4.5 Setting reference level offset The waveform trace can be displayed with an arbitrary offset value added. Setting range and resolution for reference level offset Setting range: 100 to 100 dB Resolution: 0.01 dB Set offset value to +10 dB Figure 2.4.5-1 Adding an offset value Example: To set the reference offset value to 10 dB...

  • Page 43: Pre-Amp

    Setting Level 2.4.6 Pre-amp Note: This function can be set only when Option 008 6GHz Pre-amp is installed. The level sensitivity can be increased by setting Pre-amp to On. Example: To set Pre-amp to On <Procedure> Press Press (Pre-Amp) to set to On. 2.4.7 Setting impedance Sets 50 /75...

  • Page 44: Microwave Preselector Bypass

    Chapter 2 Basic Operation 2.4.8 Microwave Preselector Bypass Note: This function is available when installing Option 067 Microwave Preselector Bypass. The frequency characteristics can be improved at 6 GHz or more of the preselector band when setting preselector Bypass to On. Example: To set Preselector Bypass to On <Procedure>...

  • Page 45: Setting Rbw/Vbw

    Setting RBW/VBW 2.5 Setting RBW/VBW The resolution bandwidth (RBW) and video bandwidth (VBW) can be selected either automatically or arbitrarily. Pressing (BW) on the main function menu, or pressing displays the BW function menu. Figure 2.5-1 BW key Figure 2.5-2 BW function menu 2-29...
  • Page 46 Chapter 2 Basic Operation Table 2.5-1 BW function menu Menu Display Function Selects automatic or manual setting of the resolution bandwidth (RBW). (Auto/Manual) 2.5.1 “Setting resolution bandwidth (RBW)” Selects the resolution bandwidth (RBW). RBW Value 2.5.1 “Setting resolution bandwidth (RBW)” Selects automatic or manual setting of the video bandwidth (VBW).

  • Page 47: Setting Resolution Bandwidth (Rbw)

    Setting RBW/VBW 2.5.1 Setting resolution bandwidth (RBW) (1) Auto The resolution bandwidth is automatically set according to the frequency span setting. (2) Manual Select an arbitrary resolution bandwidth (RBW). When monitoring two adjacent signals, the frequency resolution can be increased by reducing the resolution bandwidth (RBW).

  • Page 48: Setting Video Bandwidth (Vbw)

    Chapter 2 Basic Operation 2.5.2 Setting video bandwidth (VBW) (1) Auto The video bandwidth is set to the same as the resolution bandwidth (RBW) or the nearest value. When the detection mode (Detection) is “RMS,” “Auto” is set to off. (2) Manual By setting the video bandwidth to a value that is smaller than the resolution bandwidth (RBW), noise averaging is made more efficient.

  • Page 49: Setting Video Vbw/Power Vbw

    Setting RBW/VBW 2.5.3 Setting Video VBW/Power VBW The Spectrum Analyzer function allows selection of either Video VBW or Power VBW as the video filter for the better and smooth screen display. Two VBM Modes Video: Performs smoothing and averaging with a video filter after logarithmic compression (logarithmic mean).
  • Page 50 Chapter 2 Basic Operation 2-34.

  • Page 51: Chapter 3 Display Mode Selection

    Chapter 3 Display Mode Selection This chapter describes the trace, storage mode, and wave detection mode. Setting Storage Mode ........... 3-2 3.1.1 Storage mode types ......... 3-4 3.1.2 Averaging function ..........3-5 3.1.3 Max Hold/Min Hold function ......3-6 3.1.4 Setting wave detection mode ......3-7 3.1.5 Displaying and updating Trace ......

  • Page 52: Setting Storage Mode

    Chapter 3 Display Mode Selection 3.1 Setting Storage Mode Pressing (Trace) on the main function menu, or pressing displays the Trace function menu. Figure 3.1-1 Trace key Figure 3.1-2 Trace function menu...
  • Page 53 Setting Storage Mode Table 3.1-1 Trace function menu Menu Display Function Selects trace to be set. Trace Type and Storage Active Trace Mode can be set for each trace. Used for setting related to update and display of trace data. Trace Type 3.1.5 Displaying/Updating Trace Sets the storage mode type.

  • Page 54: Storage Mode Types

    Chapter 3 Display Mode Selection 3.1.1 Storage mode types The following storage modes can be selected for trace A, trace B, trace C, trace D, trace E, and trace F. Table 3.1.1-1 Storage Mode Types Mode Display Description Display Example In the Log display mode, averaging is executed for linear values, and the...

  • Page 55: Averaging Function

    Setting Storage Mode 3.1.2 Averaging function This function displays the averaged trace results. Example: To set trace A to Average and the storage count to 100 <Procedure> Press Press (Active Trace) and then press (A). Press (Storage Mode) and select (Average).

  • Page 56: Max Hold/Min Hold Function

    Chapter 3 Display Mode Selection 3.1.3 Max Hold/Min Hold function This function holds and displays the maximum value (Max Hold) or minimum value (Min Hold) of the trace data. Example: To set trace A to Max Hold, trace B to Min Hold, and simultaneous display <Procedure>...

  • Page 57: Setting Wave Detection Mode

    Setting Storage Mode 3.1.4 Setting wave detection mode The wave detection mode can be selected from the modes listed in Table 3.1.4-1. When Couple Time/Frequency Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.
  • Page 58 Chapter 3 Display Mode Selection Example: To set the wave detection mode to Negative <Procedure> Press Press (Detection) and then press (Negative). Wave detection mode Trace Parameter Figure 3.1.4-2 Wave detection mode selection...

  • Page 59: Displaying And Updating Trace

    Setting Storage Mode 3.1.5 Displaying and updating Trace You can configure Trace Type display settings here. Table 3.1.5-1 lists the available options. Table 3.1.5-1 Trace Type Writing Modes Trace Type Display Description Writing Modes Write Updates the display per measurement. Keeps the current display;...

  • Page 60: Setting Limit Line

    Chapter 3 Display Mode Selection 3.2 Setting Limit Line You can evaluate trace data by drawing Limit Line. Notes:  The limit line function is not available when Measure function is set to ON.  Limit Test (evaluation of trace data) is not performed when, on the Amplitude function menu, the Scale menu is set to Lin.

  • Page 61: Setting Limit Function Parameters

    Setting Limit Line 3.2.1 Setting Limit function parameters Pressing (Trace) in the main function menu or pressing displays the Trace function menu. Selecting (Limits) on the Trace function menu displays the Limit function menu. Example: To draw –20 dBm Limit Line between 1 and 2 GHz in order to determine data as Fail when it exceeds Limit Line <Procedure>...

  • Page 62: Setting Limits

    Chapter 3 Display Mode Selection 3.2.2 Setting Limits Selecting (Limits) on the Trace function menu displays the Limits function menu. You can set six types of Limit Line. Table 3.2.2-1 Limits function menu Function Menu Display Function Sets Limit Line 1. Limit1 3.2.3 “Setting Limit1 to 6”...

  • Page 63: Setting Limit1 To 6

    Setting Limit Line 3.2.3 Setting Limit1 to 6 Selecting ( Limit1) to (Limit6) on the Limits function menu displays the Limit1 to Limit6 function menu. Table 3.2.3-1 Limit1 to 6 function menus Function Menu Display Function Press (Limit1) to (Limit6) on the Limits function Page 1 Limit1 to Limit6 menu.
  • Page 64 Chapter 3 Display Mode Selection Table 3.2.3-1 Limit1 to 6 function menus (Cont’d) Function Menu Display Function Press (Limit1) to (Limit6) on the Limits function Page 2 Limit1 to Limit6 menu and then press to display page 2. Sets the mode of setting the frequency axis of the Limit Line.
  • Page 65 Setting Limit Line Press Press (Limits). Press (Limit1). Press (Margin) to set it to On. Press (Margin Value). Press and then press (dB) to set Margin Value. 3-15...

  • Page 66: Edit Parameters

    Chapter 3 Display Mode Selection 3.2.4 Edit parameters Selecting (Edit) on the Limit1 to 6 function menu displays the Edit-Limit x function menu. Table 3.2.4-1 Edit-Limit x function menu Function Menu Display Function Point Sets the Limit Point you want to edit. Adds a Limit Point with the same frequency and Add Point level as the selected Limit Point, on the right of the...
  • Page 67 Setting Limit Line (1) Setting Point Point Setting range: 1 to Limit Points (Max: 100) Minimum resolution: Rotary knob resolution: Step key resolution: (2) Setting Frequency Example: To set Frequency to 1 GHz <Procedure> Press Press (Limits). Press (Limit1). Press (Edit).
  • Page 68 Chapter 3 Display Mode Selection (3) Setting Amplitude Example: To set Amplitude to –10 dBm <Procedure> Press Press (Limits). Press (Limit1). Press (Edit). Press (Amplitude). Press and then press (dBm) to set Amplitude. Amplitude When Limit Line Type (Amplitude) is Abs. Setting range: –300 to 300 dBm Default:...
  • Page 69 Setting Limit Line (4) Connected to Previous Pt Pass/Fail evaluation between Limit Points is performed by making linear interpolation between the current Limit Point and the other Limit Point that is located on the nearest left of the current Limit Point.
  • Page 70 Chapter 3 Display Mode Selection (6) Creating a new Limit Line <Procedure> Press (Edit). Press (Add Point). Set the Frequency. Set the Amplitude. Press (Connected to Previous Pt) and set to On/Off. Set the Previous Pt Level Offset. Repeat steps 3 to 6 until the Limit Points are set. (7) Adding a new Limit Point to an existing Limit Line <Procedure>...

  • Page 71: Limit Envelope Function

    Setting Limit Line 3.2.5 Limit Envelope Function Selecting (Envelope) on the Limit1 to 6 function menu displays the Envelope-Limit x function menu. Set the values of the following: (Points), (Offset) and (Shape). Then, clicking (Create Envelope) automatically creates Limit Point(s) and Limit Line from the Trace data of the measurement results.
  • Page 72 Chapter 3 Display Mode Selection Create Envelope Example: When executing the Create Envelope menu with the following menu settings: Type: Upper, Trace Points: 15, Points: 3, Offset: 5 dB, Shape: Slope The following figure shows a Limit Line (—) and Limit Points (○) that are automatically created with respect to Trace Points (●), peak values for Trace Point values (←→) and offset values (↑).
  • Page 73 Setting Limit Line Points Setting range: When Shape is set to Slope: 2 to (Trace Points–2)×2+2, (Max: 100) When Shape is set to Square: 2 to Trace Points, (Max: 100) Default: Resolution: 1 (Slope), 2 (Square) Shape When Shape is set to Slope: The number of Limit Points (○) is equal to that of Envelope Points set (Points).

  • Page 74: Saving A Limit File

    ON. Table 3.4-1 Save on Event function menu Saves the displayed waveform data (Trace). Save Waveform MS2690A/MS2691A/MS2692A Signal Analyzer CSV DATA Operation Manual (Mainframe Operation) Chapter 3 Common Operations Saves the parameter setting conditions of all the launched applications.
  • Page 75 Pressing the function key displays the dialog box where you can save the Limit Line settings to a file with a specified name. Save destination for Limit Line files < D:¥Anritsu Corporation¥Signal Analyzer¥User Data¥Limit> Limit Line file Name Limit“Date”_“Sequential Number”.xml (Sequential number from 000 to 999.

  • Page 76: Loading A Limit File

    This function is used when recalling the parameter setting conditions to only the target application. Recall Current Application MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Mainframe Operation) Chapter 3 Common Operations Displays the Parameter Save Data List. This function is used when recalling the parameter Recall all setting conditions to all the loaded applications.
  • Page 77 Setting Limit Line Load source directory of Limit Line file < D:¥Anritsu Corporation¥Signal Analyzer¥User Data¥Limit> < D:¥Anritsu Corporation¥Signal Analyzer¥User Data¥Parameter Setting> Limit Line file formats that can be recalled csv, lim, xml On the Recall Limit1 to 6 function menu, you can select Limit Line file(s) you want to load or delete.
  • Page 78 Chapter 3 Display Mode Selection On the Recall Waveform File function menu, you can select Waveform files you want to delete. Table 3.2.7-6 Recall Waveform File function menu Function Menu Display Function Selects a device that resides in the folder where the Device target file is stored.

  • Page 79: Setting Time/Sweep

    Setting Time/Sweep 3.3 Setting Time/Sweep Pressing (Time/Sweep) on the main function menu, or pressing displays the Time/Sweep function menu. Figure 3.3-1 Time/Sweep key 3-29...
  • Page 80 Chapter 3 Display Mode Selection Figure 3.3-2 Time/Sweep function menu Table 3.3-1 Time/Sweep function menu Menu Display Function Sets the Auto mode/Manual mode for the sweep Sweep Time time. (Auto/Manual) 3.3.1 “Setting sweep time” Sets the sweep time. Sweep Time 3.3.1 “Setting sweep time”...

  • Page 81: Setting Sweep Time

    Setting Time/Sweep 3.3.1 Setting sweep time Set the sweep time. When Auto is set, the optimum value is set automatically. Each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Setting range and resolution for Sweep Time Setting range: 2 ms to 1000 s (in frequency domain) 1 ...

  • Page 82: Setting Trace Point

    Chapter 3 Display Mode Selection 3.3.2 Setting trace point Trace point refers to the number of waveform data points. When Couple Time/Frequency Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.

  • Page 83: Save On Event

    Save on Event 3.4 Save on Event The Save on Event function menu is displayed by pressing (Save on Event) when the Spectrum Analyzer screen is active. For details on the functions, refer to Table 3.4.1-1. 3.4.1 Setting Save on Event The Save on Event function saves a waveform upon occurrence of any of the trigger events set by (Event Type).
  • Page 84 Chapter 3 Display Mode Selection File Name This menu is used to set the Filename (underlined part of the following) that is internal data of a Waveform file to be saved as Folder.csv when performing the Save on Event function. Filename,Date,999.500001 MHz,999.501819 MHz,…,1000.500001 MHz LIM20140416163123000_R.spa, 4/16/2014 4:31:23 PM, -98.292000, -98.268000,…,-103.104000 LIM20140416163134000_R.spa,4/16/2014 4:31:34 PM,-102.664000,-102.688000,…,-106.108000...

  • Page 85: Waveform Files For Save On Event

    Example: When starting measurement on April 16 at 15:29, a file save destination is as follows: < D:¥Anritsu Corporation¥Signal Analyzer¥User Data¥Waveform¥04161529_1> The number of the end of "04161529_1" is incremented automatically in order of "04161529_1", "04161529_2", and "04161529_3." It will be set to "04161530_1"...
  • Page 86 Chapter 3 Display Mode Selection Meaning of description in file format _P: Positive detection, _N: Negative detection, _R: RMS detection, _S: Sample detection 3-36.

  • Page 87: Chapter 4 Marker Function

    Chapter 4 Marker Function This chapter describes the marker functions. Setting Marker ............... 4-2 4.1.1 Setting normal marker ........4-5 4.1.2 Setting delta marker ......... 4-5 4.1.3 Setting zone marker ......... 4-6 4.1.4 Setting marker trace ......... 4-7 4.1.5 Setting active marker ........4-8 4.1.6 Setting Fixed marker ........

  • Page 88: Setting Marker

    Chapter 4 Marker Function 4.1 Setting Marker Pressing (Marker) on the main function menu, or pressing displays the Marker function menu. The Marker function menu consists of two pages, which can be toggled by pressing Figure 4.1-1 Marker key Page1 Page2 Page3 Figure 4.1-2 Marker function menu...
  • Page 89 Setting Marker Table 4.1-1 Marker function menu Menu Function Sets the active marker. Active Marker 4.1.5 “Setting active marker” Sets the marker mode to Normal. Normal 4.1.1 “Setting normal marker” Sets the marker mode to Delta. Delta 4.1.2 “Setting delta marker” Sets the marker mode to Fixed.
  • Page 90 Chapter 4 Marker Function Zone Width function menu Pressing (Zone Width) on the Marker function menu displays the Zone Width function menu. Figure 4.1-3 Zone Width function menu Table 4.1-2 Zone Width function menu Menu Function Switches between the spot marker and the Type zone marker.

  • Page 91: Setting Normal Marker

    Setting Marker 4.1.1 Setting normal marker ▼ Normal markers are displayed as and display the frequency (time) and level on the screen. <Procedure> Press Press (Normal) to display the normal markers. Press (Off) to stop displaying the markers. Example: To set all the markers to Off. <Procedure>...

  • Page 92: Setting Zone Marker

    Chapter 4 Marker Function 4.1.3 Setting zone marker The area enclosed by the dashed lines in Figure 4.1.3-1 is called a zone marker. The current marker exists within this zone marker and moves to the maximum level point within the range indicated by the zone marker. The frequency (or time) and level at the current marker are displayed on the top part of the screen.

  • Page 93: Setting Marker Trace

    Setting Marker Example: To set the zone marker width to 10 MHz <Procedure> Press Press (Zone Width) to open the Zone Width function menu. After pressing , press (MHz) and set the zone marker width. Example: To set the spot marker. <Procedure>...

  • Page 94: Setting Active Marker

    Chapter 4 Marker Function 4.1.5 Setting active marker Select an active marker. You can set the position of the active marker by using the rotary knob and step key. Example: To set the active marker to 2. <Procedure> Press Press (Active Marker).

  • Page 95: Setting Type Of Result Display

    Setting Marker 4.1.7 Setting Type of Result Display The Marker Result function is used to select a type of a marker result. Marker Result function menu Press (Marker Result) on page 2 of the Marker function menu to display the Marker Result function menu. At time domain At frequency domain Figure 4.1.7-1 Marker Result function menu...
  • Page 96 Chapter 4 Marker Function This function allows you to select the power (total power, total density, and peak power) displayed in the zone marker. Example: To display the power per 1 Hz in the zone band. <Procedure> Press Press to move to page 2 of the Marker function menu, and then press (Marker Result).

  • Page 97: Setting Freq. Count

    Setting Marker 4.1.8 Setting Freq. Count The Freq.Count function menu is used to set up frequency counter measurement. Freq. Count function menu Press (Freq.Count) in page 2 of Marker function menu to display the Freq.Count function menu. Figure 4.1.8-1 Freq. Count function menu Table 4.1.8-1 Freq.
  • Page 98 Chapter 4 Marker Function Frequency counter Figure 4.1.8-2 Frequency counter 4-12...

  • Page 99: Setting Peak Search Function

    Setting Peak Search Function 4.2 Setting Peak Search Function Four types of peak search function are available, Peak, Next Peak, Min, and Next Min search. Peak Search function menu Pressing (Peak Search) on page 2 of the main function menu, or pressing displays the Peak Search function menu.
  • Page 100 Chapter 4 Marker Function Table 4.2-1 Peak Search function menu Menu Display Function Moves the marker so that the maximum level point in the measurement band becomes the Peak Search center frequency of the zone marker. 4.2.1 “Executing Peak search” Searches for the next peak of the active marker and moves the marker so that it becomes the Next Peak...
  • Page 101 Setting Peak Search Function Threshold function menu Pressing (Threshold) on the Peak Search function menu displays the Threshold function menu. Figure 4.2-3 Threshold function menu Table 4.2-2 Threshold function menu Menu Display Function Switches on/off the detection threshold value function for Peak, Next Peak, Min, and Next Threshold Min search.
  • Page 102 Chapter 4 Marker Function Marker Search Function menu Press (Marker Search Function) on the Peak Search function menu to display the Marker Search function menu. Figure 4.2-4 Marker Search function menu Table 4.2-3 Marker Search function menu Menu Function Sorts the markers by level in relation to the peaks on the trace of the number specified in Search Peaks Sort Y Search Peaks Number.

  • Page 103: Executing Peak Search

    Setting Peak Search Function 4.2.1 Executing Peak search Detects the maximum level point from the trace in the display and moves the marker. If there are several peak points, the marker moves to the point with smallest frequency (or time) (left side of scale). The Peak search execution procedure is as follows: <Procedure>...

  • Page 104: Setting Search Threshold Value

    Chapter 4 Marker Function 4.2.4 Setting search threshold value Specify the threshold value with the Peak detection level. This also become the threshold value for the Min search. The threshold value is displayed on the screen, and search upward or downward from this level can be specified.

  • Page 105: Executing Marker To Center Freq./Marker To Ref. Level

    Setting Peak Search Function 4.2.5 Executing Marker to Center Freq./Marker to Ref. Level The center frequency and reference level of the trace can be adjusted to match the frequency and level of the active marker.  Marker to Center Freq. Sets the marker frequency to the center frequency.

  • Page 106: Executing Marker Search Function

    Chapter 4 Marker Function 4.2.6 Executing Marker Search Function Sorts the markers set by Search Peaks Number by frequency (time) or level. Note: Marker Search Function can be executed when Marker Result is set to Peak. 4.1.7 “Setting Type of Result Display” Example: To sort three markers by level.

  • Page 107: Executing Power Peak Search

    Setting Peak Search Function 4.2.7 Executing Power Peak search This command moves the active marker to the position where the peak power of the zone width of the active marker becomes maximum in the measurement band. If there are several peak points, the marker moves to the point with lowest frequency (left side of scale).

  • Page 108: Executing Min Search

    Chapter 4 Marker Function 4.2.9 Executing Min search This command moves the marker so that the minimum level point in the measurement band becomes the center frequency of the zone marker. Execute Min search as follows: <Procedure> Press Press to display Page 2 of the Peak Search function menu. Press (Min Search) to conduct Min search.

  • Page 109: Displaying Marker List

    Displaying Marker List 4.3 Displaying Marker List Displays the marker result list. The marker frequency and power are displayed on the list. Example: To set the marker display to On. <Procedure> Press After pressing to move to page 2 of the Marker function menu, press (Marker List) to set to On.
  • Page 110 Chapter 4 Marker Function 4-24.

  • Page 111: Chapter 5 Trigger Function And Gate Function

    Chapter 5 Trigger Function and Gate Function This chapter describes the trigger function and the gate function. Setting Trigger Function ..........5-2 5.1.1 Trigger sweep ........... 5-4 Setting Gate Function ........... 5-7 5.2.1 Gate sweep ............5-7 5.2.2 Gate View ............5-11...

  • Page 112: Setting Trigger Function

    Chapter 5 Trigger Function and Gate Function 5.1 Setting Trigger Function Pressing (Trigger/Gate) from the main function menu, or pressing displays the Trigger function menu. The Trigger function menu consists of two pages, which can be toggled by pressing Figure 5.1-1 Trigger/Gate key Page 2 Page 1 Figure 5.1-2 Trigger function menu...
  • Page 113 Setting Trigger Function Table 5.1-1 Trigger function menu Menu Display Function Enables the trigger function. Trigger Switch (On/Off) 5.1.1 “Trigger sweep” Selects the trigger source. Trigger Source 5.1.1 “Trigger sweep” Selects the trigger detection method (rise or Trigger Slope fall). (Rise/Fall) 5.1.1 “Trigger sweep”...

  • Page 114: Trigger Sweep

    Chapter 5 Trigger Function and Gate Function 5.1.1 Trigger sweep Trigger sweep executes sweep using the specified trigger condition as the start point. A delay time until sweep start can be set through trigger delay. Trigger delay can be set only in the time domain mode. The trigger source can be selected from the following: ...
  • Page 115 Setting Trigger Function (2) Wide IF video trigger An IF signal with a wide passing band of about 50 MHz is detected, and sweep starts in synchronization with either the rise or fall of the detected signal. Setting range and resolution for trigger level (wide IF video trigger) Setting range: 60 to +50 dBm Resolution:...
  • Page 116 Sweep starts in synchronization with the rise or fall of the marker signal output of the Option 020. This function allows measurement in synchronization with the output signal of the Option 020. For the marker signal settings, refer to the MS2690A/MS2691A/MS2692A Option 020 Vector Signal Generator Operation Manual (Operation). <Procedure>...

  • Page 117: Setting Gate Function

    Setting Gate Function 5.2 Setting Gate Function 5.2.1 Gate sweep Gate sweep executes sweep only for the length of time specified with the gate length. The sweep start point is determined by adding a delay time specified with the gate delay to the time when the trigger condition is met.
  • Page 118 Chapter 5 Trigger Function and Gate Function (1) Wide IF video trigger An IF signal with a wide passing band of approximately 50 MHz is detected and sweep starts in synchronization with either the rise or fall of that signal. Example: To set the gate delay to 100 ns, gate length to 500 ...
  • Page 119 Option 020. Measurement can be done in synchronization with the output signal through this function. For the marker signal settings, refer to the MS2690A/MS2691A/MS2692A Option 020 Vector Signal Generator Operation Manual (Operation). Example: To set the gate delay to 200  s, gate length to 100 ms, and gate slope to Rise.
  • Page 120 Chapter 5 Trigger Function and Gate Function (4) BBIF trigger Note: This function is unavailable when the Option 040 is not installed or the software package is Ver.6.00.00 or later. Using a BBIF trigger enables the starting of a gate sweep synchronized with the rising or falling of the trigger output signal from Option 040.

  • Page 121: Gate View

    Setting Gate Function 5.2.2 Gate View This section describes the gate view. An assistant view (the gate view) for setting up the gate sweep segment is displayed on the lower part of the screen when Gate View is set to On. By using the gate view, you can set up the gate sweep segment while checking the spectrum.
  • Page 122 Chapter 5 Trigger Function and Gate Function Pressing (Gate View Setting) on page 2 of the Trigger function menu displays the Gate View Setting function menu. This menu consists of two pages that are toggled by pressing Page 2 Page 1 Figure 5.2.2-2 Gate View Setting function menu Table 5.2.2-2 Gate View Setting function menu Menu Display...
  • Page 123 Setting Gate Function Table 5.2.2-2 Gate View Setting function menu (Cont’d) Menu Display Function Selects auto setting or manual setting for the video bandwidth (VBW). The value that is the same as or closest to the resolution bandwidth (RBW) is set when Auto (the auto setting) is selected.
  • Page 124 Chapter 5 Trigger Function and Gate Function Table 5.2.2-2 Gate View Setting function menu (Cont’d) Menu Display Function Sets the attenuator when Spurious Emission is set to On. Attenuator The attenuator for the frequency domain is set and this menu item is disabled when Spurious Emission is set to Off.

  • Page 125: Chapter 6 Preselector Tuning Function

    Chapter 6 Preselector Tuning Function This chapter describes the preselector tuning function of the MS2691A/ MS2692A. Preselector Tuning Function........6-2...

  • Page 126: Preselector Tuning Function

    Chapter 6 Preselector Tuning Function 6.1 Preselector Tuning Function Note: This function can be executed only in the MS2691A/MS2692A. This cannot be set when MS2692A-067 is installed and Preselector Bypass is set to On. The MS2691A/MS2692A uses a preselector to remove unwanted responses such as image response and multiple responses, so that only the true signal is represented on the screen display.

  • Page 127: Chapter 7 Measure Function

    Chapter 7 Measure Function This chapter describes the Measure function of the Spectrum Analyzer function. Selecting Measure Function ......... 7-2 Adjacent Channel Leakage Power Measurement (ACP) ................7-4 Burst Average Power Measurement ......7-12 Channel Power Measurement (Channel Power) ..7-15 Occupied Bandwidth Measurement (Occupied Bandwidth) ..........

  • Page 128: Selecting Measure Function

    Chapter 7 Measure Function 7.1 Selecting Measure Function Pressing (Measure) on page 2 of the main function menu, or pressing displays the Measure function menu. Figure 7.1-1 Measure key Figure 7.1-2 Measure function menu...
  • Page 129 Selecting Measure Function Table 7.1-1 Measure function menu Menu Display Function Page 1 Measure Measures the leakage power of the adjacent channels. Measures a power of the specified Frequency Band. Channel Power Sets channel center frequency, channel bandwidth, and filter. Measures Occupied bandwidth.

  • Page 130: Adjacent Channel Leakage Power Measurement (Acp)

    Chapter 7 Measure Function 7.2 Adjacent Channel Leakage Power Measurement (ACP) Pressing (ACP) on the Measure function menu displays the ACP function menu. Figure 7.2-1 ACP function menu...
  • Page 131 Adjacent Channel Leakage Power Measurement (ACP) Table 7.2-1 ACP function menu Menu Display Function The other Measure functions are set to off when ACP is (On/Off) set to On. Sets the reference power. Span Total: Uses the integral power on the entire screen as a reference.
  • Page 132 Chapter 7 Measure Function Figure 7.2-2 In Band Setup function menu Table 7.2-2 In Band Setup function menu Menu Display Function Carrier Number Sets the number of carriers. In Band Center Sets the center frequency of In Band. Carrier Spacing Sets an interval between carriers.
  • Page 133 Adjacent Channel Leakage Power Measurement (ACP) The Offset Setup function menu consists of two pages. Press change the page. Page 1 Page 2 Figure 7.2-3 Offset Setup function menu Table 7.2-3 Offset Setup function menu Menu Display Function Ch BW Sets a bandwidth of Offset Channel.
  • Page 134 Chapter 7 Measure Function The Offset Setup (Advanced) function menu consists of 8 pages that are toggled by pressing Figure 7.2-4 Offset Setup (Advanced) function menu...
  • Page 135 Adjacent Channel Leakage Power Measurement (ACP) Table 7.2-4 Offset Setup (Advanced) function menu Menu display Function Selects the Offset Number to be edited. Edit Offset Number 1 through 8 can be selected. Offset (On/Off) Enables/disables the selected Offset Channel. Sets the offset frequency of selected Offset Offset Channel.
  • Page 136 Chapter 7 Measure Function The display items for the measurement results when Power Result Type is set to Offset are described below. Figure 7.2-5 Display items for measurement result Table 7.2-5 Display items for measurement result Display Description Displays the integral power in the screen display band when “ACP Reference”...
  • Page 137 Adjacent Channel Leakage Power Measurement (ACP) The display items for the measurement results when Power Result Type is set to Carrier are described below. Figure 7.2-6 Display items for the measurement results Table 7.2-6 Display items for the measurement results Display Description Displays the integral power in the screen...

  • Page 138: Burst Average Power Measurement

    Chapter 7 Measure Function 7.3 Burst Average Power Measurement Pressing (Burst Average Power) on the Measure function menu displays the Burst Average Power function menu. Figure 7.3-1 Burst Average Power function menu 7-12...
  • Page 139 Sets the stop position (time) of the Stop Time measurement interval. Sets the noise canceling function On/Off. Measures the internal noise of the MS2690A/MS2691A/MS2692A and deducts the measured noise from the measurement result, when executed. Noise Cancel (On/Off) This function is available only when Standard Parameter is set.
  • Page 140 Chapter 7 Measure Function Figure 7.3-2 Display items for measurement result Table 7.3-2 Display items for measurement result Display Description Displays the start position (time) of the Start Time measurement interval. Displays the stop position (time) of the Stop Time measurement interval.

  • Page 141: Channel Power Measurement (Channel Power)

    Channel Power Measurement (Channel Power) 7.4 Channel Power Measurement (Channel Power) Press (Channel Power) on the Measure function menu to display the Channel Power function menu. Figure 7.4-1 Channel Power function menu Table 7.4-1 Channel Power function menu Menu Display Function Channel Power The other Measure functions are set to Off when...
  • Page 142 Chapter 7 Measure Function Figure 7.4-2 Display items for measurement results Table 7.4-2 Display items for measurement results Display Description Displays the setting value of the channel Channel Center center frequency. Displays the setting value of the channel Channel Width bandwidth.

  • Page 143: Occupied Bandwidth Measurement (Occupied Bandwidth)

    Occupied Bandwidth Measurement (Occupied Bandwidth) 7.5 Occupied Bandwidth Measurement (Occupied Bandwidth) Press (Occupied Bandwidth) on the Measure function menu to display the Occupied Bandwidth function menu. Figure 7.5-1 Occupied Bandwidth function menu 7-17...
  • Page 144 Chapter 7 Measure Function Table 7.5-1 Occupied Bandwidth function menu Menu Display Function The other Measure functions are set to Off when OBW (On/Off) OBW is set to On. Selects a measurement method. Selects X dB Down mode or N% of Power mode. ...
  • Page 145 Occupied Bandwidth Measurement (Occupied Bandwidth) Figure 7.5-2 Display items for measurement results Table 7.5-2 Display items for measurement results Display Description Displays the occupied bandwidth. Displays the center frequency of the occupied OBW Center bandwidth. Displays the frequency on the left of the OBW Lower occupied bandwidth.

  • Page 146: Spectrum Emission Mask Measurement (Spectrum Emission Mask)

    Chapter 7 Measure Function 7.6 Spectrum Emission Mask Measurement (Spectrum Emission Mask) On the Measure function menu, pressing (Spectrum Emission Mask) displays the Spectrum Emission Mask function menu. Figure 7.6-1 Spectrum Emission Mask function menu 7-20...
  • Page 147 Spectrum Emission Mask Measurement (Spectrum Emission Mask) Table 7.6-1 Spectrum Emission Mask function menu Menu Function Spectrum Emission The other Measure functions are set to Off when Mask (On/Off) Spectrum Emission Mask is set to On. Reference Setup Sets the reference carrier. Offset Setup Sets the offset.
  • Page 148 Chapter 7 Measure Function The Reference Setup function menu consists of three pages. Press change the page. Page1 Page2 Page3 Figure 7.6-2 Reference Setup function menu 7-22...
  • Page 149 Spectrum Emission Mask Measurement (Spectrum Emission Mask) Table 7.6-2 Reference Setup function menu Menu Function Selects how to calculate the reference power. Channel Uses the integral power within the range set in Channel BW for reference. Peak Reference Mode Uses the peak power within the range set in Channel BW for reference.
  • Page 150 Chapter 7 Measure Function The Offset Setup function menu consists of four pages. Press change the page. Page 1 Page 2 Page 3 Page 4 Figure 7.6-3 Offset Setup function menu 7-24...
  • Page 151 Spectrum Emission Mask Measurement (Spectrum Emission Mask) Table 7.6-3 Offset Setup function menu Menu Function Edit Offset Number Selects Offset to be set. Offset On/Off Sets On/Off of Offset. Sets the start frequency of Offset. Sets the offset Start Freq value from Center Freq.
  • Page 152 Chapter 7 Measure Function On the Spectrum Emission Mask function menu, pressing (Limit Setup) displays the Limit Setup function menu. Figure 7.6-4 Limit Setup function menu 7-26...
  • Page 153 Spectrum Emission Mask Measurement (Spectrum Emission Mask) Table 7.6-4 Limit Setup function menu Menu Function Edit Offset Number Selects the offset to be set. Specifies how to judge Pass/Fail. ABS1 Executes a judgment with the absolute level upper 1. Executes a judgment with the relative level upper.
  • Page 154 Chapter 7 Measure Function The display items for the measurement results are described below. Figure 7.6-5 Display items for Measurement results Table 7.6-5 Display items for measurement results Display Description Displays the result of Pass/Fail judgment. Result “PASS” is displayed, if all the results are Pass.
  • Page 155 Spectrum Emission Mask Measurement (Spectrum Emission Mask) Table 7.6-5 Display items for measurement results (Cont’d) Displays storage mode, storage times, and trace type writing mode. Trace Displays storage times in % for Spectrum parameter Emission Mask 3.1.2 Averaging function The measurement result is initialized (*** is displayed in Result) when a parameter that requires recapture is changed while measurement stops.
  • Page 156 Chapter 7 Measure Function An error occurs between the IBW setting value and the actual integral width, according to the frequency resolution of trace point. The error (Error [Hz]) is calculated by the following formula:  StopFreq StartFreq  Error ...

  • Page 157: Spurious Emission Measurement

    Spurious Emission Measurement 7.7 Spurious Emission Measurement Once Spurious Emission measurement has been executed, the segments set in Segment Setup are swept. After the measurement has finished, the result is displayed. Furthermore, the spurious detected by the limit line set in each segment is judged as Pass/Fail. Pressing (Spurious Emission) on the Measure function menu displays the Spurious Emission function menu.
  • Page 158 Chapter 7 Measure Function Table 7.7-1 Description of Spurious Emission Function Menu Menu Display Function Spurious Emission When set to On, the other Measure functions (On/Off) are set to Off. Segment Setup Sets the segment to sweep. Limit Setup Sets the limit line. Sets the number of the segment to display on Displayed Segment the trace.
  • Page 159 Spurious Emission Measurement Table 7.7-1 Description of Spurious Emission Function Menu (Cont’d) Menu Display Function Saves the parameters of Spurious Emission measurement. Register 1 to 8 are available to save the parameters. The date and time when Save Spurious the parameters were saved are displayed with a Emission Parameter parameter which contains the parameter.
  • Page 160 Chapter 7 Measure Function Table 7.7-2 Parameters to save/query (Cont’d) Parameter Gate Slope Gate Level (Wide IF Video) VBW Mode Auto Sweep Time Select Storage Mode Pressing (Segment Setup) on page 1 of the Spurious Emission function menu displays the Segment Setup function menu. Segment Setup function menu consists of three pages.
  • Page 161 Spurious Emission Measurement Table 7.7-3 Descriptions of Segment Setup function menu Menu Display Function Edit Segment Sets the segment number. Number Segment Sets the segment to On/Off. Start Freq Sets the start frequency. Stop Freq Sets the stop frequency. Reference Level Sets the reference level.
  • Page 162 Uses the common correction table. Correction Table Recall Correction Selects the level frequency correction table used Table in the set segment by specifying a file. For details of a correction table, see “3.4.10 Correction” of MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Main unit Operation). 7-36...
  • Page 163 Spurious Emission Measurement Pressing (Limit Setup) on page 1 of the Spurious Emission function menu displays the Limit Setup function menu. Figure 7.7-4 Limit Setup function menu Table 7.7-5 Descriptions of Limit Setup function menu Menu Display Function Edit Segment Sets the segment.
  • Page 164 Chapter 7 Measure Function Pressing (Time Domain Setup) on page 2 of the Spurious Emission function menu displays the Time Domain Setup function menu. Figure 7.7-5 Time Domain Setup function menu 7-38...
  • Page 165 Spurious Emission Measurement Table 7.7-6 Descriptions of Time Domain Setup function menu Menu Display Function Edit Segment Sets the segment. Number Sets whether to share the RBW value set in Couple Segment Time Domain Setup. When set to On, the same as the value set in Segment Setup is (On/Off) automatically set to RBW value in Time Domain...
  • Page 166 Chapter 7 Measure Function When Time Domain Measurement is set to On, Time Domain measurement is executed, as Figure 7.7-6 shows. Start Executing the sweep based on parameters in Segment Setup. Repeating the sweep if Storage On If Storage On Spurious Frequency rounded up to the closest integer is F [Hz] Frequency Span is A [Hz] A ≤...
  • Page 167 Spurious Emission Measurement From Previous Page Executing Time Domain measurement by the following parameters: Center Frequency: F [Hz] Frequency Span: 0 [Hz] Trace Point: 1001 RBW: Time Domain RBW VBW: Time Domain VBW Sweep Time: Time Domain Sweep Time Detection Mode: Time Domain Detection When Gate Sweep is set to On, each Gate Sweep function is used, Instead of each Trigger function, as shown below: Gate Sweep→Trigger Switch...
  • Page 168 Chapter 7 Measure Function Pressing (Trace) on the main function menu or displays the Trace function menu. During Spurious Emission measurement, the Trace function menu changes, as shown below: Figure 7.7-7 Trace function menu 7-42...
  • Page 169 Spurious Emission Measurement Table 7.7-7 Descriptions of Trace function menu Menu Display Function Sets Displayed Segment Mode to Auto/Manual. Displayed Segment When set to Auto, the setting of Displayed Mode Segment is automatically switched to display (Auto/Manual) the segment which is being swept. Sets the segment to display on the trace.
  • Page 170 Chapter 7 Measure Function Display items of the measurement results are described below: When Result Type is set to Worst, the summary page displays the spurious with the least margin from the limit line set in Limit Setup. Figure 7.7-8 Display items of Spurious Emission measurement result (When Result Type is set to Worst.) 7-44...
  • Page 171 Spurious Emission Measurement Table 7.7-8 Descriptions of Display Items for Spurious Emission measurement results Item Description Displays the trace of the segment. Displays the summary page. Five measurement results are displayed per one page. One page displays the following result: No: Spurious number Segment: Segment number of the detected spurious...
  • Page 172 Chapter 7 Measure Function When Result Type is set to Peaks, the spurious detected by Search Resolution and Search Threshold set in each segment is displayed on the summary page. Up to 10 spurious can be displayed per one segment. Figure 7.7-9 Display items of Spurious Emission measurement result (When Result Type is set to Peaks) 7-46...
  • Page 173 Spurious Emission Measurement Table 7.7-9 Descriptions of Spurious Emission display items Item Description Displays the trace of the segment. Displays the summary page. Five measurement results are displayed per one page. Up to 10 spurious can be displayed per one segment. Each page displays the following result: No: Spurious number Segment: Segment number of the detected...

  • Page 174: Two-Tone Third Order Intermodulation Distortion

    Chapter 7 Measure Function 7.8 Two-tone Third Order Intermodulation Distortion By inputting two different frequency CW signals (desired waves), two-tone third order intermodulation distortion is generated close to the desired waves according to non-linear characteristics of DUT. Then, TOI (Third Order Intercept) is calculated from the two-tone third order intermodulation distortion.
  • Page 175 Two-tone Third Order Intermodulation Distortion Table 7.8-1 Description of the TOI function menu Function Menu display Function Appears when pressing (TOI) in Page 1 the Measure function menu. Turns off the other measurement functions if (On/Off) set to On. Frequency Auto Executes the TOI frequency auto tune.
  • Page 176 Chapter 7 Measure Function Figure 7.8-2 Display items for measurement results 7-50...
  • Page 177 Two-tone Third Order Intermodulation Distortion Table 7.8-2 Description of display items for measurement results Item Description Displays the calculated TOI. The Worst TOI (dBm) value (lower) between two calculated values (lower and upper) is displayed. Displays the level ratio of two-tone third-order intermodulation distortion to the Amplitude (dBc) desired wave.
  • Page 178 Chapter 7 Measure Function 7-52.

  • Page 179: Chapter 8 Other Functions

    Chapter 8 Other Functions This chapter describes the other functions of the Spectrum Analyzer function. Selecting Other Function ..........8-2 Setting Title ..............8-3 Deleting Warmup Message ......... 8-4 Setting Uncal Message ..........8-5 Adjusting Internal Reference Frequency Signal ... 8-5 Input Source for Reference Frequency Signal .....

  • Page 180: Selecting Other Function

    Chapter 8 Other Functions 8.1 Selecting Other Function Pressing (Accessory) on page 2 of the main function menu displays the Accessory function menu. Figure 8.1-1 Accessory function menu Table 8.1-1 Accessory function menu Menu Display Function Sets the title character string. Title 8.2 “Setting Title”...

  • Page 181: Setting Title

    Setting Title 8.2 Setting Title A title of up to 32 characters can be displayed on the screen. (Character strings of up to 17 characters can be displayed on a function menu.) <Procedure> Press (Accessory) on page 2 of the main function menu. Press (Title) to display the character string input screen.

  • Page 182: Deleting Warmup Message

    Chapter 8 Other Functions 8.3 Deleting Warmup Message If the warmup message ( ) indicating that the level and frequency are not stable is displayed upon power on, the message can be deleted. <Procedure> Press (Accessory) on page 2 of the main function menu. Press (Erase Warm Up Message) to delete the warmup message.

  • Page 183: Setting Uncal Message

    Setting Uncal Message 8.4 Setting Uncal Message The Spectrum Analyzer function can also execute measurements when values for which the results cannot be guaranteed are set. In this case, the Uncal message is displayed on the screen. Display of the Uncal message can be switched on/off.
  • Page 184 Chapter 8 Other Functions Example: Adjusting the reference clock <Procedure> Press (Accessory) on the page 1 of main function menu. Press (Reference Clock) and then press (Reference Clock) to adjust the frequency of the internal reference frequency signal.

  • Page 185: Input Source For Reference Frequency Signal

    Input Source for Reference Frequency Signal 8.6 Input Source for Reference Frequency Signal The reference frequency signal used is displayed on the screen. Ref. Int : The internal reference frequency signal is used. Ref. Int Unlock : The internal reference frequency signal is unlocked. The internal hardware may be faulty.
  • Page 186 Chapter 8 Other Functions 8-8.

  • Page 187: Appendix A Error Messages

    Appendix A Error Messages Table A-1 Error Messages Message Explanation Out of range. The settable range is exceeded. This operation is invalid during frequency domain Not available in Frequency Domain. display. This operation is invalid during time domain Not available in Time Domain. display.
  • Page 188 Appendix A Error Messages Table A-1 Error Messages (Cont’d) Message Explanation This operation is invalid when SG Marker Trigger is Not available in SG Marker Trigger. used. Not available if not Vector Signal Generator This operation is invalid when Option 020 Vector option.
  • Page 189 Displayed Segment Mode is set to Auto. when Displayed Segment Mode is set to Auto. Available in remote control state with This command can use only when the Spurious Emission paused. MS2690A/MS2691A/MS2692A is set to remote control state and Spurious Emission is paused.
  • Page 190 Appendix A Error Messages Table A-1 Error Messages (Cont’d) Message Explanation Not available when Gate View is set to Off. The operation is invalid when Gate View is set to Off. Not available when all traces are set to The operation is invalid when all traces are set to Blank.
  • Page 191 Appendix B Default Value List Frequency Center 3 GHz (MS2690A) 6.75 GHz (MS2691A) 13.25 GHz (MS2692A) Start 0 Hz Stop 6 GHz (MS2690A) 13.5 GHz (MS2691A) 26.5 GHz (MS2692A) Offset Off, 0 Hz Step Size 1 GHz Span Span 6 GHz (MS2690A) 13.5 GHz...
  • Page 192 Appendix B Default Value List Marker List Frequency Count Gate Time 100 ms Relative to Marker2 (Active Marker is 1) Marker3 (Active Marker is 2) Marker4 (Active Marker is 3) Marker5 (Active Marker is 4) Marker6 (Active Marker is 5) Marker7 (Active Marker is 6) Marker8 (Active Marker is 7) Marker9 (Active Marker is 8)
  • Page 193 Appendix B Default Value List Shape Square Limit Line Type (Frequency) Limit Line Type (Amplitude) Mirror Limit Detection Pos & Neg Trigger/Gate Trigger Switch Trigger Source Video Trigger Slope Rise Trigger Level (Video) 40 dBm Trigger Level (Wide IF Video) 20 dBm Trigger Delay Gate Sweep Gate View...
  • Page 194 100 ms Auto, 3 MHz Auto, 3 MHz Detection Pos & Neg Trace Point 10001 Gate View Frequency Auto, 3 GHz (MS2690A) Auto, 6.75 GHz (MS2691A) Auto, 13.25 GHz(MS2692A) Reference Level 0 dBm Attenuator Auto, 10 dB Pre-Amp Time/Sweep Sweep Time (Frequency Domain)
  • Page 195 Appendix B Default Value List Reference Both Sides of Carriers Offset Ch BW 3.84 MHz Carrier BW 3.84 MHz In Band Center Center Frequency Carrier Spacing 5 MHz Offset-1 On, 5 MHz Offset-2 On, 10 MHz Offset-3 Off, 15 MHz In Band Filter Type Root Nyquist Offset Ch Filter Type Root Nyquist...
  • Page 196 Appendix B Default Value List Channel Power On/Off Channel Center Center Frequency Channel Width 3.84 MHz Filter Type Root Nyquist Roll-off Factor 0.22 On/Off Method N% of Ratio XdB Value 25 dB Spectrum Emission Mask On/Off Limit Side Both Result Type Peak Reference Mode Channel...
  • Page 197 Appendix B Default Value List Trace Point 1001 Integrate BW Auto, 30 kHz ABS1 Start Level 12.5 dBm ABS1 Stop Level 12.5 dBm REL Start Level 0 dB REL Stop Level 0 dB ABS2 Start Level 15 dBm ABS2 Stop Level 15 dBm Fail Logic ABS1 Offset-2...
  • Page 198 Appendix B Default Value List ABS1 Start Level 24.5 dBm ABS1 Stop Level 24.5 dBm REL Start Level 0 dB REL Stop Level 0 dB ABS2 Start Level 15 dBm ABS2 Stop Level 15 dBm Fail Logic ABS1 Offset-4 Offset Start Freq 4 MHz Stop Freq...
  • Page 199 Appendix B Default Value List REL Start Level 0 dB REL Stop Level 0 dB ABS2 Start Level 13 dBm ABS2 Stop Level 13 dBm Fail Logic ABS1 Offset-6 Offset Start Freq 12.5 MHz Stop Freq 15 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB...
  • Page 200 Appendix B Default Value List Spurious Emission On/Off Displayed Segment Page of Summary Auto Result Type Worst Time Domain Measurement Off Fail Stop Displayed Segment Mode Auto Displayed Summary Table Result Segment-1 Segment Setup Segment Start Freq 9 kHz Stop Freq 150 kHz Reference Level 0 dBm...
  • Page 201 Appendix B Default Value List Manual, 10 kHz Auto, 10 kHz Sweep Time Auto Trace Point 5001 Couple Storage Count Storage Count Pause before Sweep Correction Common Preamp Limit Setup Start Level 13 dBm Stop Level Auto, 13 dBm Search Resolution 6 dB Threshold Level 90 dBm Time Domain Setup...
  • Page 202 Appendix B Default Value List Sweep Time 100 ms Detection Segment-4 Segment Setup Segment Start Freq 1 GHz Stop Freq 2 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection Positive Manual, 1 MHz Auto, 1 MHz Sweep Time Auto Trace Point 10001...
  • Page 203 Appendix B Default Value List Correction Common Preamp Limit Setup Start Level 13 dBm Stop Level Auto, 13 dBm Search Resolution 6 dB Threshold Level 90 dBm Time Domain Setup Couple Segment RBW Couple Segment VBW Sweep Time 100 ms Detection Segment-6 Segment Setup...
  • Page 204 Appendix B Default Value List Reference Level 0 dBm Attenuator Auto, 10 dB Detection Positive Manual 1 MHz Auto Sweep Time Auto Trace Point 10001 Couple Storage Count Storage Count Pause before Sweep Correction Common Preamp Limit Setup Start Level 13 dBm Stop Level Auto, 13 dBm...
  • Page 205 Segment-9 Segment Setup Segment (For MS2690A, it is set to Off) Start Freq 6 GHz (For MS2690A, it is set to 1 GHz) Stop Freq 7 GHz (For MS2690A, it is set to 6 GHz) Reference Level 0 dBm Attenuator...
  • Page 206 Segment-11 Segment Setup Segment (For MS2690A, it is set to Off) Start Freq 8 GHz (For MS2690A, it is set to 1 GHz) Stop Freq 9 GHz (For MS2690A, it is set to 6 GHz) Reference Level 0 dBm Attenuator...
  • Page 207 Segment-12 Segment Setup Segment (For MS2690A, it is set to Off) Start Freq 9 GHz (For MS2690A, it is set to 1 GHz) Stop Freq 10 GHz (For MS2690A, it is set to 6 GHz) Reference Level 0 dBm Attenuator...
  • Page 208 Appendix B Default Value List Segment (For MS2690A, it is set to Off) Start Freq 10 GHz (For MS2690A, it is set to 1 GHz) Stop Freq 11 GHz (For MS2690A, it is set to 6 GHz) Reference Level 0 dBm...
  • Page 209 Segment-15 Segment Setup Segment (For MS2690A, it is set to Off) Start Freq 12 GHz (For MS2690A, it is set to 1 GHz) Stop Freq 12.75 GHz (For MS2690A, it is set to 6 GHz) Reference Level 0 dBm Attenuator...
  • Page 210 Sweep Time 100 ms Detection Segment-16 to 20 Segment Setup Segment Start Freq 1 GHz Stop Freq 12.75 GHz (For MS2690A, it is set to 6 GHz) Reference Level 0 dBm Attenuator Auto, 10 dB Detection Positive Auto Auto Sweep Time...
  • Page 211 Appendix B Default Value List Segment-16 to 20 Segment Setup Segment Start Freq 1 GHz Stop Freq 12.75 GHz (For MS2690A, it is set to 6 GHz) Reference Level 0 dBm Attenuator Auto, 10 dB Detection Positive Auto Auto Sweep Time...
  • Page 212 Appendix B Default Value List B-22.

  • Page 213: Appendix C Standard Parameter List

    Appendix C Standard Parameter List The parameters set by the standard functions are listed below. ACP ................C-3 W-CDMA ..............C-3 Mobile WiMAX .............. C-8 LTE ................C-10 DSRC .................C-54 TD-SCDMA ..............C-56 CDMA2000 ..............C-68 EV-DO ................C-69 TELEC-T403 ..............C-70 TELEC-T405 ..............C-74 BPSK ................C-76 GFSK ................C-77 APCO .................C-86 NXDN .................C-90...
  • Page 214 Appendix C Standard Parameter List LTE/LTE TDD Uplink ..........C-204 TD-SCDMA ..............C-256 XG-PHS ..............C-286 CDMA2000 ...............C-289 EV-DO ..............C-325 ISDB-Tmm ..............C-338 ISDB-T ..............C-345 ISDB-T ..............C-347 SEM 802.11a ............C-350 SEM 802.11b ............C-352 SEM 802.11g ............C-354 SEM 802.11j .............C-360 SEM 802.11p ............C-362 SEM 802.11n ............C-364 SEM 802.11ac ............C-372 ETSI EN 301 893 .............C-380 O-QPSK..............C-392...

  • Page 215: Acp

    Appendix C Standard Parameter List C-1 ACP W-CDMA Table C-1 Standard parameters for ACP function Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 3.84 MHz Carrier Spacing 5 MHz...

  • Page 216: W-Cdma

    Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 3.84 MHz Carrier Spacing 5 MHz W-CDMA...
  • Page 217 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 30 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number Carrier BW 3.84 MHz Carrier Spacing...
  • Page 218 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number Carrier BW 3.84 MHz Carrier Spacing...
  • Page 219 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 40 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number Carrier BW 3.84 MHz Carrier Spacing...

  • Page 220: Mobile Wimax

    Appendix C Standard Parameter List Mobile WiMAX Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 50 MHz 30 kHz 100 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 9.5 MHz Mobile WiMAX...
  • Page 221 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz 100 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 4.75 MHz Mobile WiMAX DL / UL...

  • Page 222: Lte

    Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 21.4 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz (DL)
  • Page 223 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 7.8 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz (DL)
  • Page 224 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 7 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz (DL)
  • Page 225 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 7 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz (DL)
  • Page 226 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 10 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz...
  • Page 227 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 1.095 MHz BW Offset-2 1.095 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 1.28 MHz BW Offset-6 1.28 MHz BW Offset-7 1.28 MHz BW Offset-8...
  • Page 228 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 23 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz (DL)
  • Page 229 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 9.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz (DL)
  • Page 230 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 15 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz (DL)
  • Page 231 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 15 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz (DL)
  • Page 232 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 20 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz...
  • Page 233 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 4.515 MHz BW Offset-2 4.515 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 1.28 MHz BW Offset-6 1.28 MHz BW Offset-7 1.28 MHz BW Offset-8...
  • Page 234 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz (DL)
  • Page 235 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 11.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz (DL)
  • Page 236 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz...
  • Page 237 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 45 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz...
  • Page 238 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz (DL)
  • Page 239 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz (DL)
  • Page 240 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 45 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz...
  • Page 241 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 4.515 MHz BW Offset-2 4.515 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 3.84 MHz BW Offset-6 3.84 MHz BW Offset-7 7.68 MHz BW Offset-8...
  • Page 242 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 30 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz (DL)
  • Page 243 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 16.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz (DL)
  • Page 244 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 30 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz...
  • Page 245 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 50 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz...
  • Page 246 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 50 MHz 100 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz (DL)
  • Page 247 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 50 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz (DL)
  • Page 248 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 50 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz...
  • Page 249 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 9.015 MHz BW Offset-2 9.015 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 3.84 MHz BW Offset-6 3.84 MHz BW Offset-7 7.68 MHz BW Offset-8...
  • Page 250 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 35 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz (DL)
  • Page 251 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 21.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz (DL)
  • Page 252 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 35 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz...
  • Page 253 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 55 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz...
  • Page 254 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 75 MHz 100 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz (DL)
  • Page 255 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 75 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz (DL)
  • Page 256 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 75 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz...
  • Page 257 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 13.515 MHz BW Offset-2 13.515 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 3.84 MHz BW Offset-6 3.84 MHz BW Offset-7 7.68 MHz BW Offset-8...
  • Page 258 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 40 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz (DL)
  • Page 259 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 26.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz (DL)
  • Page 260 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 40 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz...
  • Page 261 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 60 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz...
  • Page 262 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 100 MHz 100 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz (DL)
  • Page 263 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 100 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz (DL)
  • Page 264 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 100 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz...
  • Page 265 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 18.015 MHz BW Offset-2 18.015 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 3.84 MHz BW Offset-6 3.84 MHz BW Offset-7 7.68 MHz BW Offset-8...

  • Page 266: Dsrc

    Appendix C Standard Parameter List DSRC Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz 100 kHz VBW Mode Power Detection Positive Sweep Time Freq. Domain 7.1 s Auto Sweep Time Select Normal ACP Reference...
  • Page 267 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz 100 kHz VBW Mode Power Detection Positive Sweep Time Freq. Domain 7.1 s Auto Sweep Time Select Normal ACP Reference Carrier Select...

  • Page 268: Td-Scdma

    Appendix C Standard Parameter List TD-SCDMA Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 8 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 269 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 10 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 270 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 12 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 271 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 13 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 272 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 15 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 273 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 16 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 274 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 18 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 275 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 20 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 276 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 21 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 277 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 23 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 278 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 279 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 26 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...

  • Page 280: Cdma2000

    Appendix C Standard Parameter List CDMA2000 Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 4.05 MHz 30 kHz Detection Sweep Time Freq. Domain 1.25 s Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...

  • Page 281: Ev-Do

    Appendix C Standard Parameter List EV-DO Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 4.05 MHz 30 kHz Detection Sweep Time Freq. Domain 1.667 s Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...

  • Page 282: Telec-T403

    Appendix C Standard Parameter List TELEC-T403 Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 MHz 300 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 18 MHz TELEC-T403 18MHz SPAN...
  • Page 283 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 MHz 300 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 19 MHz TELEC-T403 19MHz SPAN...
  • Page 284 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 200 MHz 300 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 38 MHz TELEC-T403 38MHz SPAN...
  • Page 285 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 400 MHz 300 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 78 MHz TELEC-T403 78MHz SPAN...

  • Page 286: Telec-T405

    Appendix C Standard Parameter List TELEC-T405 Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 MHz 30 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 18 MHz TELEC-T405 20MHz BW...
  • Page 287 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 200 MHz 30 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 38 MHz TELEC-T405 40MHz BW...

  • Page 288: Bpsk

    Appendix C Standard Parameter List BPSK Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 600 kHz BPSK 950MHz...

  • Page 289: Gfsk

    Appendix C Standard Parameter List GFSK Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 200 kHz GFSK 50ksps 950MHz...
  • Page 290 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 400 kHz GFSK 100ksps 950MHz Carrier Spacing...
  • Page 291 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 800 kHz GFSK 200ksps 950MHz Carrier Spacing...
  • Page 292 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 200 kHz GFSK 50ksps 920MHz Carrier Spacing...
  • Page 293 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 400 kHz GFSK 100ksps 920MHz Carrier Spacing...
  • Page 294 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 800 kHz GFSK 200ksps 920MHz Carrier Spacing...
  • Page 295 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 75 kHz GFSK 50ksps 802.15.4gd7 Carrier Spacing...
  • Page 296 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 150 kHz GFSK 100ksps 802.15.4gd7 Carrier Spacing...
  • Page 297 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 3 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 300 kHz GFSK 200ksps 802.15.4gd7 Carrier Spacing...

  • Page 298: Apco

    Appendix C Standard Parameter List APCO Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 299 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number...
  • Page 300 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 250 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number...
  • Page 301 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 1 MHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number...

  • Page 302: Nxdn

    Appendix C Standard Parameter List NXDN Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 30 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Both Sides of Carriers...
  • Page 303 Appendix C Standard Parameter List Table C-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 70 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW...

  • Page 304: Burst Average Power

    Appendix C Standard Parameter List C-2 Burst Average Power W-CDMA/Mobile WiMAX/LTE/DSRC Table C-2 Standard parameters for Burst Average Power Standard Parameter Name Setting 20 MHz Detection W-CDMA 10 ms Uplink/Downlink Trace Point 1001 Burst Average Power 20 MHz Detection Mobile WiMAX DL / UL 5 ms 5ms Frame...

  • Page 305: Td-Scdma/Lte Tdd/Cdma2000/Ev-Do

    Appendix C Standard Parameter List TD-SCDMA/LTE TDD/CDMA2000/EV-DO Table C-2 Standard parameters for Burst Average Power(Cont’d) Standard Parameter Name Setting 20 MHz Detection TD-SCDMA 5 ms 5ms Subframe Trace Point 1001 Burst Average Power 20 MHz LTE TDD Detection Uplink/Downlink 10 ms Mean Power Trace Point 1001...

  • Page 306: Channel Power

    Appendix C Standard Parameter List C-3 Channel Power W-CDMA Table C-3 Standard parameters for Channel Power function Standard Parameter Name Setting Frequency Span 10 MHz Auto Detection W-CDMA Auto, Normal Uplink/Downlink Trace Point 1001 Channel Power (Mean Power) Channel Center Center Frequency Channel Width 5 MHz...

  • Page 307: Mobile Wimax

    Appendix C Standard Parameter List Mobile WiMAX Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal Mobile WiMAX DL / UL Trace Point 1001 10MHz BW Channel Power Channel Center Center Frequency Channel Width...

  • Page 308: Lte

    Appendix C Standard Parameter List Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.8 MHz Auto Detection Auto, Normal Uplink/Downlink Trace Point 1001 Mean Power Channel Power 1.4MHz BW Channel Center Center Frequency Channel Width 1.4 MHz Filter Type...
  • Page 309 Appendix C Standard Parameter List Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal Uplink/Downlink Trace Point 1001 Mean Power Channel Power 10MHz BW Channel Center Center Frequency Channel Width 10 MHz Filter Type...
  • Page 310 Appendix C Standard Parameter List Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.8 MHz Auto Detection Auto, Normal Trace Point 1001 Uplink/Downlink Filtered Power Channel Power 1.4MHz BW Channel Center Center Frequency Channel Width 1.095 MHz (DL) 1.08 MHz (UL)
  • Page 311 Appendix C Standard Parameter List Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal Trace Point 1001 Uplink/Downlink Filtered Power Channel Power 10MHz BW Channel Center Center Frequency Channel Width 9.015 MHz (DL) 9 MHz (UL)

  • Page 312: Lte Tdd

    Appendix C Standard Parameter List LTE TDD Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.8 MHz Auto Detection LTE TDD Auto, Normal Uplink/Downlink Trace Point 1001 Mean Power Channel Power 1.4MHz BW Channel Center Center Frequency Channel Width...
  • Page 313 Appendix C Standard Parameter List Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection LTE TDD Auto, Normal Uplink/Downlink Trace Point 1001 Mean Power Channel Power 10MHz BW Channel Center Center Frequency Channel Width 10 MHz...
  • Page 314 Appendix C Standard Parameter List Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.8 MHz Auto Detection Auto, Normal LTE TDD Trace Point 1001 Uplink/Downlink Filtered Power Channel Power 1.4MHz BW Channel Center Center Frequency Channel Width 1.095 MHz (DL)
  • Page 315 Appendix C Standard Parameter List Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal LTE TDD Trace Point 1001 Uplink/Downlink Filtered Power Channel Power 10MHz BW Channel Center Center Frequency Channel Width 9.015 MHz (DL)

  • Page 316: Dsrc

    Appendix C Standard Parameter List DSRC Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz Auto Detection Sweep Time Switch Manual Sweep Time Freq. Domain 7.1 s DSRC Auto Sweep Time Select Normal π/4DQPSK Trace Point...

  • Page 317: Td-Scdma/Xg-Phs/Cdma2000/Ev-Do

    Appendix C Standard Parameter List TD-SCDMA/XG-PHS/CDMA2000/EV-DO Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz Auto Detection Gate Length 662.5 µs Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms TD-SCDMA Auto Sweep Time Select Normal Trace Point...
  • Page 318 Appendix C Standard Parameter List Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 40 MHz Auto Detection Gate Sweep Sweep Time Switch Manual XG-PHS Mean Power Sweep Time Freq. Domain 5000 ms 20MHz BW Trace Point 1001 Channel Power...

  • Page 319: Isdb-Tmm/Isdb-T

    Appendix C Standard Parameter List ISDB-Tmm/ISDB-T Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal ISDB-Tmm 14.2MHz BW Trace Point 1001 (Mean Power) Channel Power Channel Center Center Frequency Channel Width 14.2 MHz Filter Type...

  • Page 320: Isdb-Tsb

    Appendix C Standard Parameter List ISDB-T Table C-3 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal ISDB-T 3.9MHz BW Trace Point 1001 (Mean Power) Channel Power Channel Center Center Frequency Channel Width 3.9 MHz Filter Type...

  • Page 321: Obw

    Appendix C Standard Parameter List C-4 OBW W-CDMA/Mobile WiMAX Table C-4 Standard parameters for OBW function Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 10 MHz 30 kHz W-CDMA Uplink/Downlink Detection Auto, Normal Trace Point 1001 Method N% of Power...

  • Page 322: Lte

    Appendix C Standard Parameter List Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 2.8 MHz 10 kHz Uplink/Downlink 1.4MHz Detection Bandwidth Auto, Normal Trace Point 1001 Method N% of Power N% Ratio 99.00%...
  • Page 323 Appendix C Standard Parameter List Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 20 MHz 100 kHz Uplink/Downlink 10MHz Detection Bandwidth Auto, Normal Trace Point 1001 Method N% of Power N% Ratio 99.00%...

  • Page 324: Lte Tdd

    Appendix C Standard Parameter List LTE TDD Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 2.8 MHz LTE TDD 10 kHz Uplink/Downlink Detection 1.4MHz Auto, Normal Bandwidth Trace Point 401 (DL) 1001 (UL)
  • Page 325 Appendix C Standard Parameter List Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 20 MHz LTE TDD 100 kHz Uplink/Downlink 10MHz Detection Bandwidth Auto, Normal Trace Point 1001 Method N% of Power...

  • Page 326: Dsrc

    Appendix C Standard Parameter List DSRC Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 10 MHz 30 kHz 30 kHz VBW Mode Power DSRC Detection Positive π/4DQPSK Sweep Time Switch Manual Sweep Time Freq.

  • Page 327: Td-Scdma/Xg-Phs/Cdma2000/Ev-Do

    Appendix C Standard Parameter List TD-SCDMA/XG-PHS/CDMA2000/EV-DO Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 5 MHz 30 kHz Detection TD-SCDMA Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 328 Appendix C Standard Parameter List Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 40 MHz 100 kHz 300 kHz Storage Mode Max Hold XG-PHS Storage Count 20MHz Detection Positive Bandwidth...

  • Page 329: Isdb-Tmm/Isdb-T/Isdb-Tsb

    Appendix C Standard Parameter List ISDB-Tmm/ISDB-T/ISDB-T Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 20 MHz 10 kHz ISDB-Tmm 14.2MHz BW Detection Auto, Normal Trace Point 1001 Method N% of Power N% Ratio...

  • Page 330: Telec-T401/Telec-T403

    Appendix C Standard Parameter List TELEC-T401/TELEC-T403 Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 60 MHz 300 kHz TELEC-T401 DSSS/CCK 300 kHz (WLAN) Detection Positive Auto, Normal Trace Point 1001 Method...
  • Page 331 Appendix C Standard Parameter List Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 80 MHz 300 kHz TELEC-T403 300 kHz 40MHz (WLAN) Detection Positive Auto, Normal Trace Point 1001 Method N% of Power...

  • Page 332: Telec-T405

    Appendix C Standard Parameter List TELEC-T405 Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 60 MHz 30 kHz TELEC-T405 30 kHz 20MHz (WLAN) Detection Positive Auto, Normal Trace Point 1001 Method...

  • Page 333: Etsi En 301 893

    Appendix C Standard Parameter List ETSI EN 301 893 Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting ETSI EN 301 Method xdB Down 893 V1.5.1 XdB Value OFDM 5MHZ Frequency Span 10 MHz (WLAN) 100 kHz 100 kHz Detection Positive...
  • Page 334 Appendix C Standard Parameter List Table C-4 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting ETSI EN 301 Method xdB Down 893 V1.5.1 XdB Value OFDM 40MHZ Frequency Span 80 MHz (WLAN) 100 kHz 100 kHz Detection Positive Auto, Normal Trace Point 1001...

  • Page 335: Sem

    Appendix C Standard Parameter List C-5 SEM W-CDMA Table C-5 Standard parameters for Spectrum Emission Mask Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3.84 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...

  • Page 336: W-Cdma

    Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select...
  • Page 337 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –69.6 dBm Limit-2 ABS1 Start Level –54.3 dBm Limit-3 ABS1 Start Level –54.3 dBm...
  • Page 338 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3.84 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 339 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 340 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS2 Stop Level –15 dBm Limit-2 ABS2 Stop Level –13 dBm Limit-3 ABS2 Stop Level –13 dBm Limit-4 ABS2 Stop Level –13 dBm Limit-1 REL Start Level –33.73 dB...
  • Page 341 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 342 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 343 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –12.5 dBm Limit-2 ABS1 Start Level –12.5 dBm Limit-3 ABS1 Start Level –24.5 dBm...
  • Page 344 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 345 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 RBW 30 kHz Offset-2 RBW 30 kHz Offset-3 RBW 30 kHz Offset-4 RBW 100 kHz Offset-5 RBW 1 MHz Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto...
  • Page 346 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW 1 MHz Offset-5 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off...
  • Page 347 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 348 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 349 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –12.5 dBm Limit-2 ABS1 Start Level –12.5 dBm Limit-3 ABS1 Start Level –24.5 dBm...
  • Page 350 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 351 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 352 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –12.5 dBm Limit-2 ABS1 Start Level –12.5 dBm Limit-3 ABS1 Start Level –24.5 dBm...
  • Page 353 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 354 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 355 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –15 dBm Limit-2 ABS1 Start Level –15 dBm Limit-4 ABS1 Start Level –13 dBm...
  • Page 356 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 357 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 358 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –15 dBm Limit-2 ABS1 Start Level –15 dBm Limit-4 ABS1 Start Level –13 dBm...
  • Page 359 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 360 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 361 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –20.5 dBm Limit-2 ABS1 Start Level –20.5 dBm Limit-3 ABS1 Start Level –32.5 dBm...

  • Page 362: Mobile Wimax

    Appendix C Standard Parameter List Mobile WiMAX Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 363 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 1 MHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Positive...
  • Page 364 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –20.0 dBm Limit-4 ABS1 Start Level –25.0 dBm Limit-5 ABS1 Start Level –25.03 dBm...
  • Page 365 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 366 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 1 MHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Positive...
  • Page 367 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm Limit-4 ABS1 Start Level –25.0 dBm Limit-5 ABS1 Start Level –28.57 dBm...

  • Page 368: Lte/Lte Tdd Downlink

    Appendix C Standard Parameter List LTE/LTE TDD Downlink Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 369 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level 0.5 dBm Downlink Limit-2 ABS1 Start Level –9.5 dBm (CategoryA <...
  • Page 370 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 371 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –3.5 dBm Downlink Limit-2 ABS1 Start Level –13.5 dBm (CategoryA <...
  • Page 372 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 373 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryA <...
  • Page 374 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 375 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryA <...
  • Page 376 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 377 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryA <...
  • Page 378 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 379 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryA <...
  • Page 380 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 381 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level 0.5 dBm Downlink Limit-2 ABS1 Start Level –9.5 dBm (CategoryA >...
  • Page 382 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 383 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –3.5 dBm Downlink Limit-2 ABS1 Start Level –13.5 dBm (CategoryA >...
  • Page 384 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 385 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryA >...
  • Page 386 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 387 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryA >...
  • Page 388 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 389 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryA >...
  • Page 390 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 391 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryA >...
  • Page 392 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 393 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level 0.5 dBm Downlink Limit-2 ABS1 Start Level –9.5 dBm (CategoryB <...
  • Page 394 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 395 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –3.5 dBm Downlink Limit-2 ABS1 Start Level –13.5 dBm (CategoryB <...
  • Page 396 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 397 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryB <...
  • Page 398 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 399 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryB <...
  • Page 400 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 401 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryB <...
  • Page 402 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 403 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryB <...
  • Page 404 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 405 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level 0.5 dBm Downlink Limit-2 ABS1 Start Level –9.5 dBm (CategoryB >...
  • Page 406 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 407 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –3.5 dBm Downlink Limit-2 ABS1 Start Level –13.5 dBm (CategoryB >...
  • Page 408 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 409 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryB >...
  • Page 410 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 411 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryB >...
  • Page 412 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 413 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryB >...
  • Page 414 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 415 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink Limit-2 ABS1 Start Level –12.5 dBm (CategoryB >...

  • Page 416: Lte/Lte Tdd Uplink

    Appendix C Standard Parameter List LTE/LTE TDD Uplink Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 417 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –8.5 dBm (General Limit-2 ABS1 Start Level –8.5 dBm 1.4MHz) Limit-3 ABS1 Start Level...
  • Page 418 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 419 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –11.5 dBm Uplink Limit-2 ABS1 Start Level –8.5 dBm (General 3MHz) Limit-3 ABS1 Start Level...
  • Page 420 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 421 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.5 dBm Uplink Limit-2 ABS1 Start Level –8.5 dBm (General 5MHz) Limit-3 ABS1 Start Level...
  • Page 422 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 423 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –16.5 dBm (General 10MHz) Limit-2 ABS1 Start Level –8.5 dBm LTE TDD Limit-3 ABS1 Start Level...
  • Page 424 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 300 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 425 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –18.5 dBm Uplink Limit-2 ABS1 Start Level –8.5 dBm (General 15MHz) Limit-3 ABS1 Start Level...
  • Page 426 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 300 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 427 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –19.5 dBm Uplink Limit-2 ABS1 Start Level –8.5 dBm (General 20MHz) Limit-3 ABS1 Start Level...
  • Page 428 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 429 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –8.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-03 1.4MHz) Limit-3 ABS1 Start Level...
  • Page 430 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 431 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –11.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-03 3MHz) Limit-3 ABS1 Start Level...
  • Page 432 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 433 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –11.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-03 5MHz) Limit-3 ABS1 Start Level...
  • Page 434 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 435 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –16.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-03 10MHz) Limit-3 ABS1 Start Level...
  • Page 436 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 300 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 437 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –18.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-03 15MHz) Limit-3 ABS1 Start Level...
  • Page 438 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 300 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 439 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –19.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-03 20MHz) Limit-3 ABS1 Start Level...
  • Page 440 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 441 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –8.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-04 1.4MHz) Limit-3 ABS1 Start Level...
  • Page 442 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 443 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –11.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-04 3MHz) Limit-3 ABS1 Start Level...
  • Page 444 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 445 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-04 5MHz) Limit-3 ABS1 Start Level...
  • Page 446 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 447 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –16.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-04 10MHz) Limit-3 ABS1 Start Level...
  • Page 448 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 300 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 449 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –18.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-04 15MHz) Limit-3 ABS1 Start Level...
  • Page 450 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 300 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 451 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –19.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-04 20MHz) Limit-3 ABS1 Start Level...
  • Page 452 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 453 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Uplink...
  • Page 454 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 455 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Uplink...
  • Page 456 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 457 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Uplink...
  • Page 458 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 459 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Uplink...
  • Page 460 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 461 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off...
  • Page 462 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 463 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off...
  • Page 464 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 300 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 465 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off...
  • Page 466 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 300 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 467 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off...

  • Page 468: Td-Scdma

    Appendix C Standard Parameter List TD-SCDMA Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 469 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 470 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 471 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 472 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 473 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 474 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 475 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point Offset-2 Trace Point...
  • Page 476 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 477 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point Offset-2 Trace Point...
  • Page 478 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 479 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 480 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 481 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 482 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 483 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 484 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 485 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point 1001...
  • Page 486 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 487 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point 1001...
  • Page 488 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 489 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 490 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 491 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 492 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 493 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 494 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 495 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point 1001...
  • Page 496 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 497 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point 1001...

  • Page 498: Xg-Phs

    Appendix C Standard Parameter List XG-PHS Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 50 MHz 30 kHz Reference Mode Channel Reference Channel Bandwidth 10 MHz Reference Sweep Time Switch Auto Reference Auto Sweep Time Normal Select Reference Detection...
  • Page 499 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 50 MHz 30 kHz Reference Mode Channel Reference Channel Bandwidth 10 MHz Reference Sweep Time Switch Auto Reference Auto Sweep Time Normal Select Reference Detection...
  • Page 500 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-2 Fail Logic ABS1 Offset-2 Detection Positive Offset-3 On/Off Offset-3 Start Freq-1 20 MHz Offset-3 Stop Freq-1 25 MHz Offset-3 RBW Value 1 MHz XG-PHS Offset-3 Sweep Time Switch...

  • Page 501: Cdma2000

    Appendix C Standard Parameter List CDMA2000 Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 502 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 503 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –46.0 dBm Limit-4 ABS1 Start Level –36.0 dBm Limit-5 ABS1 Start Level –36.0 dBm...
  • Page 504 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 505 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 506 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –27.0 dBm Limit-3 ABS1 Start Level –46.0 dBm Limit-4 ABS1 Start Level –36.0 dBm Limit-5 ABS1 Start Level –36.0 dBm...
  • Page 507 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 508 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 509 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –46.0 dBm Limit-4 ABS1 Start Level –36.0 dBm Limit-5 ABS1 Start Level –36.0 dBm...
  • Page 510 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 511 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal...
  • Page 512 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –9.0 dBm...
  • Page 513 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –50.0 dB Limit-4 REL Start Level –45.0 dB Limit-5 REL Start Level –45.0 dB...
  • Page 514 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 515 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal...
  • Page 516 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –22.0 dBm...
  • Page 517 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –50.0 dB Limit-4 REL Start Level –45.0 dB Limit-5 REL Start Level –45.0 dB...
  • Page 518 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 519 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal...
  • Page 520 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –9.0 dBm...
  • Page 521 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –55.0 dB Limit-4 REL Start Level –45.0 dB Limit-5 REL Start Level –45.0 dB...
  • Page 522 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 523 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal...
  • Page 524 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm...
  • Page 525 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –55.0 dB Limit-4 REL Start Level –50.0 dB Limit-5 REL Start Level –45.0 dB...
  • Page 526 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 527 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal...
  • Page 528 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm...
  • Page 529 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –55.0 dB Limit-4 REL Start Level –50.0 dB Limit-5 REL Start Level –45.0 dB...
  • Page 530 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 531 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal...
  • Page 532 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm...
  • Page 533 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –55.0 dB Limit-4 REL Start Level –55.0 dB Limit-5 REL Start Level –45.0 dB...
  • Page 534 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 535 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 536 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –9.0 dBm Limit-4 ABS1 Start Level –13.0 dBm Limit-5 ABS1 Start Level –36.0 dBm...

  • Page 537: Ev-Do

    Appendix C Standard Parameter List EV-DO Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time 20 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 538 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 539 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –46.0 dBm Limit-4 ABS1 Start Level –36.0 dBm Limit-5 ABS1 Start Level –36.0 dBm...
  • Page 540 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time 20 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 541 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 542 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –13.0 dBm Limit-4 ABS1 Start Level –13.0 dBm Limit-5 ABS1 Start Level –9.0 dBm...
  • Page 543 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time 20 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 544 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 545 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm Limit-4 ABS1 Start Level –13.0 dBm Limit-5 ABS1 Start Level –13.0 dBm...
  • Page 546 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time 20 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 547 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time 20 ms Offset-2 Sweep Time 20 ms Offset-3 Sweep Time 20 ms Offset-4 Sweep Time 20 ms Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto...
  • Page 548 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –9.0 dBm...
  • Page 549 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –60.0 dB Limit-3 REL Start Level –65.0 dB Limit-4 REL Start Level –75.0 dB Limit-5 REL Start Level –55.0 dB...

  • Page 550: Isdb-Tmm

    Appendix C Standard Parameter List ISDB-Tmm Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 14.2 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 551 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time...
  • Page 552 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower * Noise Cancel Reference Mode Channel Channel BW 14.2 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 553 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-5 SweepTime Auto Offset-1 Auto Sweep Time Select Fast Offset-2 Auto Sweep Time Select Fast Offset-3 Auto Sweep Time Select Fast...
  • Page 554 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 Fail Logic Off * Limit-2 Fail Logic Off * Limit-3 Fail Logic Off * ISDB-Tmm 14.2MHz BW Limit-4 Fail Logic Off * (ABS) Limit-5 Fail Logic ABS1 and REL...
  • Page 555 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5.6 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...

  • Page 556: Isdb-T

    Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time...
  • Page 557 Appendix C Standard Parameter List ISDB-T Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5.6 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 558 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time...

  • Page 559: Isdb-Tsb

    Appendix C Standard Parameter List ISDB-T Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3.9 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 560 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time...
  • Page 561 Appendix C Standard Parameter List Value when antenna power exceeds 5 W. The value for each antenna power can be calculated using the following formula (source: ARIB STD-B46 2.0). Antenna power P in Watts. Antenna Power [W] Setting [dB] P > 5 –75.9 5 ≥...

  • Page 562: Sem 802.11A

    Appendix C Standard Parameter List SEM 802.11a Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 563 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...

  • Page 564: Sem 802.11B

    Appendix C Standard Parameter List SEM 802.11b Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 22 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 565 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off SEM 802.11b Offset-5 On/Off DSSS/CCK Offset-6 On/Off (WLAN) Limit-1 REL Start Level –30.0 dB (IEEE Limit-2 REL Start Level –50.0 dB...

  • Page 566: Sem 802.11G

    Appendix C Standard Parameter List SEM 802.11g Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 567 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 568 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 22 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 569 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off SEM 802.11g Offset-5 On/Off DSSS/CCK Offset-6 On/Off (WLAN) Limit-1 REL Start Level –30.0 dB (IEEE Limit-2 REL Start Level –50.0 dB...
  • Page 570 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 571 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...

  • Page 572: Sem 802.11J

    Appendix C Standard Parameter List SEM 802.11j Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 9 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 573 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...

  • Page 574: Sem 802.11P

    Appendix C Standard Parameter List SEM 802.11p Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 9 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 575 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...

  • Page 576: Sem 802.11N

    Appendix C Standard Parameter List SEM 802.11n Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 577 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto...
  • Page 578 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 579 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto...
  • Page 580 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 38 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 581 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto...
  • Page 582 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 38 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 583 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto...

  • Page 584: Sem 802.11Ac

    Appendix C Standard Parameter List SEM 802.11ac Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 585 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto...
  • Page 586 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 38 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 587 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto...
  • Page 588 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 78 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 589 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto...
  • Page 590 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 158 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 591 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto...

  • Page 592: Etsi En 301 893

    Appendix C Standard Parameter List ETSI EN 301 893 Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 5 MHz 1 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast...
  • Page 593 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 30 kHz Offset-2 VBW 30 kHz Offset-3 VBW 30 kHz Offset-4 VBW 30 kHz Offset-5 VBW 30 kHz Offset-6 VBW 30 kHz Offset-1 Sweep Time Auto...
  • Page 594 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-5 Integrate BW Auto Offset-6 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off...
  • Page 595 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 10 MHz 1 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 596 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 30 kHz Offset-2 VBW 30 kHz Offset-3 VBW 30 kHz Offset-4 VBW 30 kHz Offset-5 VBW 30 kHz Offset-6 VBW 30 kHz Offset-1 Sweep Time Auto...
  • Page 597 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-5 Integrate BW Auto Offset-6 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off...
  • Page 598 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 20 MHz 1 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 599 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 30 kHz Offset-2 VBW 30 kHz Offset-3 VBW 30 kHz Offset-4 VBW 30 kHz Offset-5 VBW 30 kHz Offset-6 VBW 30 kHz Offset-1 Sweep Time Auto...
  • Page 600 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-5 Integrate BW Auto Offset-6 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off...
  • Page 601 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 20 MHz 1 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 602 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 30 kHz Offset-2 VBW 30 kHz Offset-3 VBW 30 kHz Offset-4 VBW 30 kHz Offset-5 VBW 30 kHz Offset-6 VBW 30 kHz Offset-1 Sweep Time Auto...
  • Page 603 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-5 Integrate BW Auto Offset-6 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off...

  • Page 604: O-Qpsk

    Appendix C Standard Parameter List O-QPSK Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...

  • Page 605: Bpsk

    Appendix C Standard Parameter List BPSK Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...

  • Page 606: Gfsk

    Appendix C Standard Parameter List GFSK Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 607 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 608 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 609 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 610 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 611 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...

  • Page 612: Apco P25

    Appendix C Standard Parameter List APCO P25 Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 11.25 kHz 30 kHz Sweep Time 5.7 s Auto Sweep Time Select Normal Detection Positive...
  • Page 613 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off APCO P25 Offset-6 On/Off FCC 12.5kHz...
  • Page 614 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 11.25 kHz 30 kHz Sweep Time 5.7 s Auto Sweep Time Select Normal Detection Positive...
  • Page 615 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off APCO P25 Offset-6 On/Off NTIA 12.5kHz...

  • Page 616: Microlink Etsi Cs: 7Mhz

    Appendix C Standard Parameter List Microlink ETSI CS: 7MHz Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select...
  • Page 617 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time...
  • Page 618 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Stop Level 1.0 dB Limit-2 REL Stop Level –23.0 dB Limit-3 REL Stop Level –23.0 dB Limit-4 REL Stop Level –45.0 dB Limit-5 REL Stop Level –45.0 dB...
  • Page 619 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 620 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 621 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 622 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 623 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 624 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 625 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 626 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 627 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 628 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 629 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 630 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 631 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 632 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 633 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 1.0 dB Limit-2 REL Start Level 1.0 dB Limit-3 REL Start Level –10.0 dB...

  • Page 634: Microlink Etsi Cs: 14Mhz

    Appendix C Standard Parameter List Microlink ETSI CS: 14MHz Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select...
  • Page 635 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time...
  • Page 636 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 Fail Logic Limit-2 Fail Logic Microlink ETSI CS:14MHz Limit-3 Fail Logic Class:2 Limit-4 Fail Logic Limit-5 Fail Logic C-424...
  • Page 637 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 638 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Positive Offset-2 Detection Positive Offset-3 Detection Positive Offset-4 Detection Positive Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001...
  • Page 639 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 640 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Positive Offset-2 Detection Positive Offset-3 Detection Positive Offset-4 Detection Positive Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001...
  • Page 641 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 642 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 643 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 644 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 645 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 646 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 647 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 648 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 649 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 650 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 651 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 1.0 dB Limit-2 REL Start Level 1.0 dB Limit-3 REL Start Level –10.0 dB...

  • Page 652: Microlink Etsi Cs: 28Mhz

    Appendix C Standard Parameter List Microlink ETSI CS: 28MHz Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select...
  • Page 653 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time...
  • Page 654 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –23.0 dB Limit-4 REL Start Level...
  • Page 655 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 656 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 657 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 658 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 659 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 660 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 661 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 662 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 663 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...
  • Page 664 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 665 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 666 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...
  • Page 667 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 668 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 669 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...
  • Page 670 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 671 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 672 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 673 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 674 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 675 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 676 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 677 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 678 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...
  • Page 679 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 680 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 681 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 682 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 683 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 684 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 685 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 686 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 687 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...

  • Page 688: Microlink Etsi Cs: 56Mhz

    Appendix C Standard Parameter List Microlink ETSI CS: 56MHz Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select...
  • Page 689 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 690 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 691 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 692 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 693 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 694 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 695 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 696 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 697 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 698 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 699 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 700 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 701 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 702 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...
  • Page 703 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 704 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 705 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 706 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 707 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 708 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 709 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 710 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 711 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...

  • Page 712: Telec-T403

    Appendix C Standard Parameter List TELEC-T403 Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001...
  • Page 713 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 714 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 715 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 716 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 717 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 718 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 719 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 720 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 721 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 722 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 723 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 724 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 40 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 725 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 40 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 726 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 727 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 40 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 728 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-5 Auto Sweep Time...
  • Page 729 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –3.01 dB Limit-2 ABS1 Start Level –13.01 dB Limit-3 ABS1 Start Level –21.02 dB Limit-4 ABS1 Start Level –26.02 dB Limit-5 ABS1 Start Level –26.02 dB...
  • Page 730 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 40 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 731 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 732 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 733 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 734 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 735 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 736 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 737 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 160 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 738 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 160 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 739 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 740 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 741 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off TELEC-T403 Limit-1 ABS1 Start Level –9.03 dB 5210MHz 80+80 Upper (WLAN)
  • Page 742 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 743 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 744 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 745 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off TELEC-T403 Limit-1 ABS1 Start Level –9.03 dB 5290MHz 80+80 Lower (WLAN)
  • Page 746 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 747 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 748 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...

  • Page 749: Nxdn

    Appendix C Standard Parameter List NXDN Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Reference Mode Peak Channel BW 6 kHz 30 kHz 30 kHz VBW Mode Power Sweep Time Manual Sweep Time Value 3 sec Auto Sweep Time Select Normal...
  • Page 750 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Switch Manual Offset-1 Sweep Time Value 2.9 sec Offset-2 Sweep Time Switch Manual Offset-2 Sweep Time Value 3.5 sec Offset-3 Sweep Time Switch Manual Offset-3 Sweep Time Value...
  • Page 751 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Reference Mode Peak Channel BW 11.25 kHz 30 kHz 30 kHz VBW Mode Power Sweep Time Manual Sweep Time Value 5.7 sec Auto Sweep Time Select Normal...
  • Page 752 Appendix C Standard Parameter List Table C-5 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Switch Manual Offset-1 Sweep Time Value 2.9 sec Offset-2 Sweep Time Switch Manual Offset-2 Sweep Time Value 3.5 sec Offset-3 Sweep Time Switch Manual Offset-3 Sweep Time Value...

  • Page 753: Spurious Emission

    Appendix C Standard Parameter List C-6 Spurious Emission TELEC-T401 Table C-6 Standard parameters for Spurious Emission Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Spurious Segment Switch6 Spurious Segment Switch7 Spurious Segment Switch8...

  • Page 754: Telec-T401

    Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Start Freq 2.4965 GHz Segment-4 Stop Freq 12.5 GHz or Max Frequency Segment-4 RBW 1 MHz Segment-4 VBW 1 MHz Segment-4 Sweep Time Switch Auto Segment-4 Detection Positive Segment-4 Limit Start Level...
  • Page 755 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-8 Start Freq 2.4965 GHz Segment-8 Stop Freq 2.5095 GHz Segment-8 RBW 1 MHz TELEC-T401 Segment-8 VBW 1 MHz (WLAN) Segment-8 Sweep Time Switch Auto Segment-8 Detection Positive Segment-8 Limit Start Level...

  • Page 756: Telec-T402

    Appendix C Standard Parameter List TELEC-T402 Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Spurious Segment Switch6 Spurious Segment Switch7 Spurious Segment Switch8...
  • Page 757 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 RBW 1 MHz Segment-4 VBW 1 MHz Segment-4 Sweep Time Switch Auto Segment-4 Detection Positive Segment-4 Limit Start Level –26 dB Segment-4 Limit Stop Level –26 dB Segment-5 Start Freq 2.450 GHz...
  • Page 758 Appendix C Standard Parameter List TELEC-T403 Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.14 GHz Segment-1 RBW 1 MHz...

  • Page 759: Telec-T403

    Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.14 GHz Segment-1 RBW 1 MHz...
  • Page 760 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.46 GHz Segment-1 RBW 1 MHz...
  • Page 761 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.135 GHz Segment-1 RBW 1 MHz...
  • Page 762 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.135 GHz Segment-1 RBW 1 MHz...
  • Page 763 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.455 GHz Segment-1 RBW 1 MHz...
  • Page 764 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.1 GHz Segment-1 RBW 1 MHz...
  • Page 765 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.1 GHz Segment-1 RBW 1 MHz...
  • Page 766 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.42 GHz Segment-1 RBW 1 MHz...
  • Page 767 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.020 GHz Segment-1 RBW 1 MHz...
  • Page 768 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.020 GHz Segment-1 RBW 1 MHz...
  • Page 769 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.340 GHz Segment-1 RBW 1 MHz...
  • Page 770 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.916 GHz Segment-1 RBW 1 MHz...
  • Page 771 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.42 GHz Segment-1 RBW 1 MHz...
  • Page 772 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 5.455 GHz Segment-1 Stop Freq 5.460 GHz...
  • Page 773 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Segment-1 Start Freq 5.420 GHz Segment-1 Stop Freq 5.460 GHz Segment-1 RBW...
  • Page 774 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 5.340 GHz Segment-1 Stop Freq 5.460 GHz...
  • Page 775 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Segment-1 Start Freq 5.2360 GHz Segment-1 Stop Freq 5.4196 GHz Segment-1 RBW...

  • Page 776: Telec-T405

    Appendix C Standard Parameter List TELEC-T405 Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq...
  • Page 777 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 Segment-5 RBW...
  • Page 778 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.99 GHz...
  • Page 779 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 Segment-5 RBW...
  • Page 780 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.87 GHz...
  • Page 781 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 10MHz 4.9GHz...
  • Page 782 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.99 GHz...
  • Page 783 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 10MHz 5.0GHz...
  • Page 784 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.87 GHz...
  • Page 785 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 20MHz 4.9GHz...
  • Page 786 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.87 GHz...
  • Page 787 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max TELEC-T405 Frequency 20MHz 4.9GHz...
  • Page 788 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.99 GHz...
  • Page 789 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 20MHz 5.0GHz...
  • Page 790 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.99 GHz...
  • Page 791 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max TELEC-T405 Frequency 20MHz 5.0GHz...
  • Page 792 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.840 GHz Segment-1 RBW...
  • Page 793 Appendix C Standard Parameter List FCC 15 407 Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq...
  • Page 794 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.15 GHz...

  • Page 795: Fcc 15 407

    Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.15 GHz...
  • Page 796 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.47 GHz...

  • Page 797: Etsi En 301 893

    Appendix C Standard Parameter List ETSI EN 301 893 Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Spurious Segment Switch6 Spurious Segment Switch7...
  • Page 798 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-3 Start Freq 74 MHz Segment-3 Stop Freq 87.5 MHz Segment-3 RBW 100 kHz Segment-3 VBW 100 kHz Segment-3 Sweep Time Switch Auto Segment-3 Detection Positive Segment-3 Limit Start Level...
  • Page 799 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-7 Start Freq 2300 MHz Segment-7 Stop Freq 4700 MHz Segment-7 RBW 100 kHz Segment-7 VBW 100 kHz Segment-7 Sweep Time Switch Auto Segment-7 Detection Positive Segment-7 Limit Start Level...
  • Page 800 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-11 Start Freq 5.35 GHz Segment-11 Stop Freq 5.47 GHz Segment-11 RBW 1 MHz Segment-11 VBW 1 MHz Segment-11 Sweep Time Auto Switch Segment-11 Detection Positive Segment-11 Limit Start Level...

  • Page 801: Etsi 300 328

    Appendix C Standard Parameter List ETSI 300 328 Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Spurious Segment Switch6 Spurious Segment Switch7 Spurious Segment Switch8...
  • Page 802 Appendix C Standard Parameter List Table C-6 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-3 Start Freq 1.8 GHz Segment-3 Stop Freq 1.9 GHz Segment-3 RBW 100 kHz Segment-3 VBW 30 kHz Segment-3 Sweep Time Switch Auto Segment-3 Detection Positive Segment-3 Limit Start Level...

  • Page 803: Index

    Index References are to section numbers. Extension of Preselector Lower Limit to 3 GHz 2.3.6 External 5.1.1, 5.2.1 External trigger 5.1.1, 5.2.1 7.1, 7.2 ACP Reference Add Point 3.2.4 Accessory 2.1, 6.1, 8.1 Filter 7.2, 7.4 Active Trace 3.1, 3.1.2, 3.1.3 Filter Type Adjacent Channel Leakage Power Freq.
  • Page 804 Index Log scale 2.4.3 Recall Limit x 3.2.3 Ref. Ext Ref. Ext Ref. Ext Unlock Margin 3.2.3 Reference Frequency Signal Margin Value 3.2.3 Ref. Int Ref. Int Unlock Marker 2.1, 4.1, 4.3 Reference Clock 8.1, 8.5 Marker tracking 4.1, 4.2.9 Reference Clock Preset Marker to Center Freq.
  • Page 805 Index Stop Time Storage Count Zero Span Storage Mode Zone Center Frequency 4.1.3 Sweep Time 2.1, 3.3, 3.3.1 Zone Width 4.1, Appendix B Sweep type spectrum analyzers Test Trace 3.2.3 Threshold Threshold Level Time domain mode 2.3.2 Time/Sweep 2.1, 3.2 Title Trace 2.1, 3.1...
  • Page 806 Index Index-4.

This manual is also suitable for:

Ms2691aMs2692a

Table of Contents
