Using Navios Software
Analysis Menu

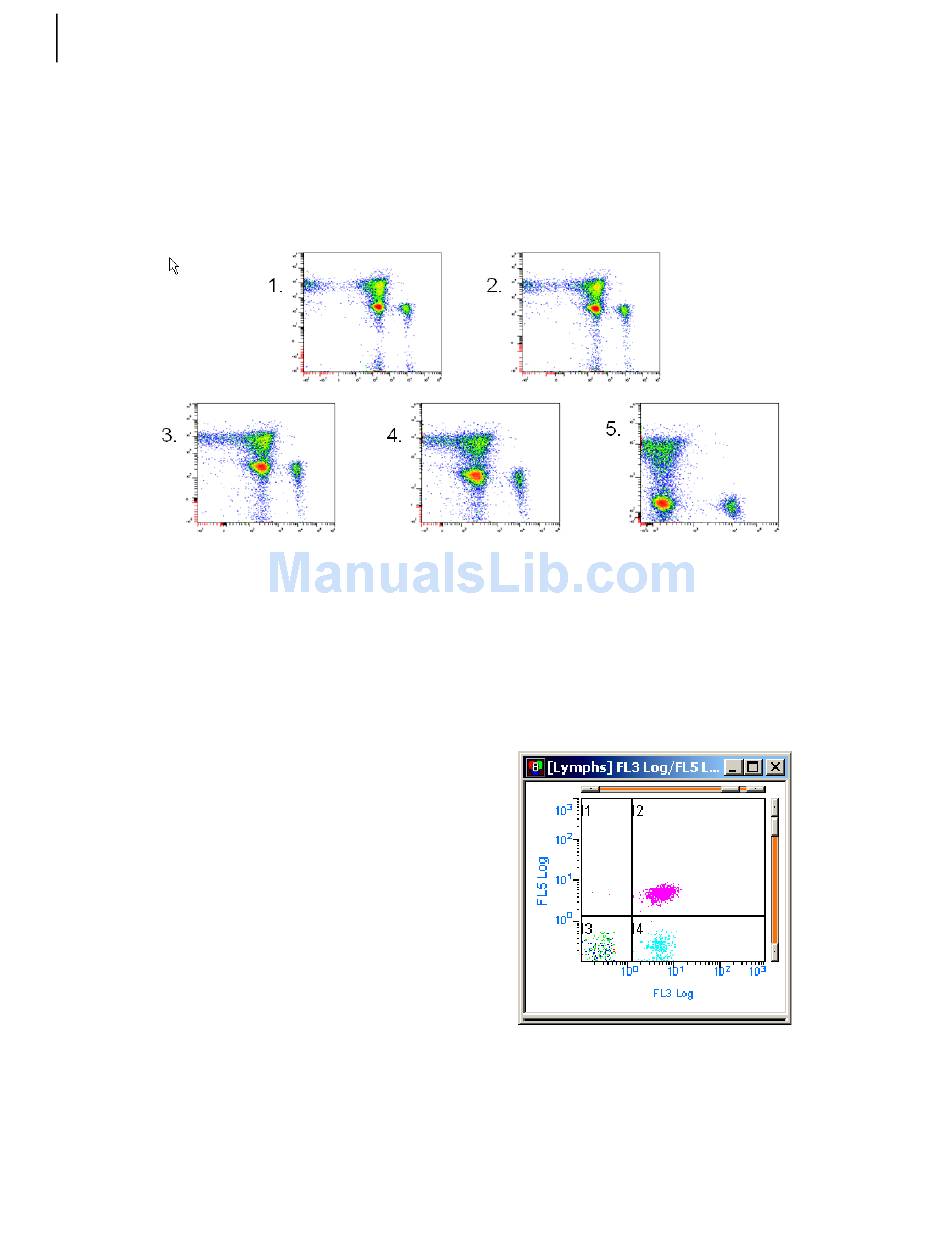

Set 1 - 5 radio buttons

This group of radio buttons selects the required TrueView Transform. Only one Set can be selected
at any one time. Set 1 - 5 affects the location of the Lin/Log threshold and the compression of the
linear data range. An example of each set is as follows:

Negative Decades slider

This slider allows you to select the number of Negative Decades to be displayed on compensated
parameter plots. The slider allows between 0 and 2 decades to be selected, in 0.5 decade increments.

LMD QuickCOMP

Enabling LMD QuickCOMP displays orange
slider bars on all dual fluorescence plots.
These sliders are used to intuitively adjust the
compensation coefficients and update the
compensation values applied to the listmode
file.
Clicking the arrows adjusts the settings by
±0.1%, clicking either side of the slider adjusts
by ±1.0% or drag the slider to place the cells in
the required position. You can view the new
settings in the LMD QuickCOMP Matrix
