TrueView Setup

TrueView is a patented tool which provides the ability to optimally view compensated data. Using
TrueView, you can display all 1,048,576 channels of data acquisition as well as graphically display
negative values in order to facilitate compensation.
Data is transformed via a mathematical function that you can configure. The compensated data is
transformed seamlessly in a manner resembling a logarithm but permitting the display of values
less than 0. The full range of data is displayed with a default scaling of 6-decades. You can select one
of five TrueView Transform settings and the number of Negative Decades to be displayed on the log
scaled plots.
NOTE
The following conditions apply when using TrueView,
•
When toggling between the TrueView settings, stats and region counts will differ slighly as each of
the TrueView settings represents a different mathematical transformation.
•
TrueView should not be enabled while running the AutoSetup Wizard.
•
Quadrant Regions are lost on axis if TrueView is turned off and region was set in negative decades
area.
•
When toggling between TrueView and the standard logarithm transformation, when creating regions,
any portion of a region created in the negative space will be lost.
•
With TrueView, when a region is drawn below the minimum permissible logarithm value, disabling
Trueview and subsequently re-enabling will result in the drawn region defaulting all coordinates to
the minimum log value.

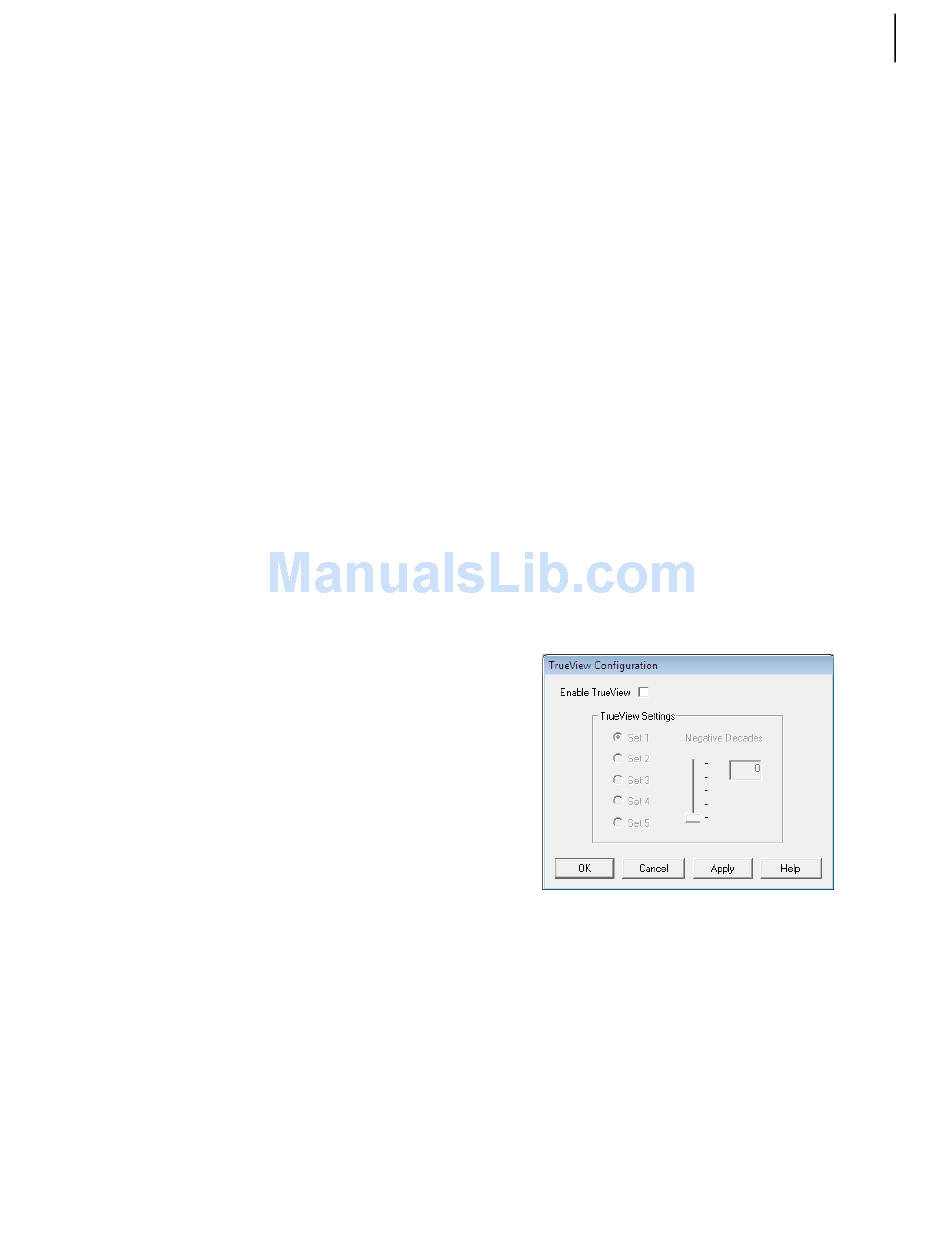

Enable TrueView checkbox

Set 1 - 5 radio buttons
Negative Decades slider
Enable TrueView checkbox
The Enable TrueView checkbox toggles the TrueView Display mode on and off.
