Page 1: Operating Instructions

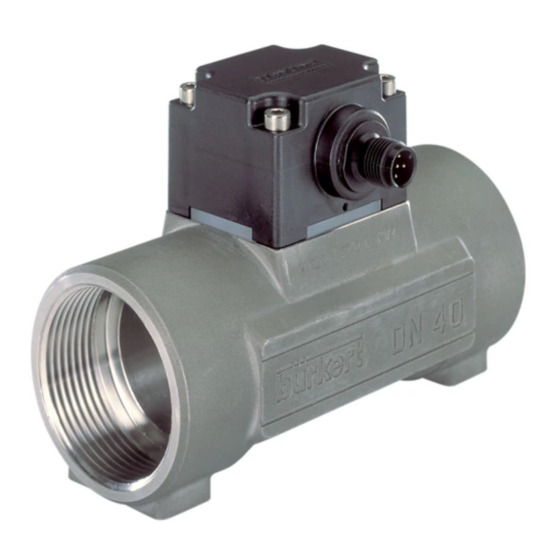

Type 8011 Flowmeter with paddle-wheel Durchfluss-Messgerät mit Flügelrad Débitmètre à ailette Operating Instructions Bedienungsanleitung Manuel d‘utilisation... - Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert SAS, 2012 - 2016 Operating Instructions 1604/1_EU-ML 00563878 / Original FR...
-
Page 3: Table Of Contents
4. GenerAl informAtion ................8 7.1. safety instructions................16 4.1. manufacturer's address and international contacts ..8 7.2. installation onto the pipe ............. 17 4.2. Warranty conditions ................8 7.2.1. Recommendations for installing the 8011 on 4.3. information on the internet ............8 the pipe ..................17 7.2.2. Installing a device with welding ends ......19 5. Description ....................8 7.2.3. - Page 4 Type 8011 9. mAintenAnce AnD troubleshootinG ........24 9.1. safety instructions................24 9.2. cleaning ....................25 9.3. problem solving ................25 9.4. replacing the seal ................25 10. spAre pArts AnD Accessories ..........26 11. pAcKAGinG, trAnsport, storAGe .......... 27 12. DisposAl of the proDuct ............27 English...
-
Page 5: About This Manual
Type 8011 Aboutthismanual AbouT This mAnuAl Warns against a potentially dangerous situation. ▶ Failure to observe this warning can result in serious injury or This manual describes the entire life cycle of the device. Please keep even death. this manual in a safe place, accessible to all users and any new owners. -
Page 6: Intended Use
• the local safety regulations that the operator must ensure the staff The 8011 flowmeter is intended exclusively to measure flow rate in charge of installation and maintenance observe. in liquids. ▶ Use this device in compliance with the characteristics and commissioning and use conditions specified in the contractual documents and in the user manual. - Page 7 Type 8011 Basicsafetyinformation nOTe elements / components sensitive to electrostatic discharges Various dangerous situations ▶ This device contains electronic components sensitive to electro- To avoid injury take care: static discharges. They may be damaged if they are touched by ▶ not to make any modifications to the device.
-
Page 8: General Information
5.1. Area of application international contacts The 8011 flowmeter is intended to measure the flow rate of neutral or slightly aggressive liquids free of solid particles. To contact the manufacturer of the device use following address: Bürkert SAS 5.2. -
Page 9: Description Of The Name Plate Of The 8011
Type 8011 Description To obtain a flow rate Q, this frequency must be divided by a propor- Conformity logo tionality factor K according to the following formula: Manufacturing code Q = f/K Material of the seal exposed to the fluid... -
Page 10: Order Codes For The Basic Versions Of The Se11 Module
Type 8011 Description 5.5. order codes for the basic versions of the se11 module The fitting S012 is not available as a separate part. Two versions of the S012 in DN15 and DN20 exist, having different K factors. Only version 2, identified by the "v2" marking, is available from March 2012. The "v2" marking can be found: •... -
Page 11: Technical Data
Type 8011 Technicaldata TechnicAl DATA type of fluid conditions Fluid group 1, par. 1.3.a DN ≤ 25 only 6.1. conditions of use DN ≤ 32 Fluid group 2 par. 1.3.a or DN > 32 and PNxDN ≤ 1000 Ambient temperature -15 to +60 °C PNxDN ≤... -
Page 12: Dimensions Of Device
Dimensions of device measurement deviation → • Teach-In • ± 1% of the measured value* please refer to the technical data sheets regarding the type 8011 • Standard K factor • ± 2.5% of the measured value* available at: www.burkert.com linearity ±... -
Page 13: Electrical Connections
Type 8011 Technicaldata 6.8. K factors pulse output transistor • Version with 1 pulse • open collector, 20 mA max., NPN The K factors have all been determined in the following reference output output: 0,2-24 V DC, frequency up to conditions: 300 Hz (frequency = K factor x flow medium = water, water and ambient temperatures 20 °C, min. - Page 14 Type 8011 Technicaldata The names of the following norms have changed in the Operating Instructions: • for the welding ends, norm BS 4825 is renamed BS 4825-1 • for the clamp connections: - norm BS 4825 is renamed BS 4825-3 - norm ISO (for pipes acc.
- Page 15 Type 8011 Technicaldata K factor [pulse/litre] material type of connections and standard Dn15 Dn15 v2 Dn20 Dn20 v2 Dn25 Dn32 Dn40 Dn50 Dn65 Stainless clamp acc. to steel • SMS 3017 / ISO 2852 97,0 73,4 61,5 47,5 29.5 18.9 10.5 • BS 4825-3 / ASME BPE 97,0 73,4 61,5 47,5 29.5...
-
Page 16: Installation And Wiring
Type 8011 Installationandwiring insTAllATion AnD WirinG Warning risk of injury due to non-conforming installation. 7.1. safety instructions ▶ The electrical and fluid installation can only be carried out by qualified and skilled staff with the appropriate tools. Danger ▶ Install appropriate safety devices (correctly rated fuse and/or Danger due to high pressure in the installation. -
Page 17: Installation Onto The Pipe
PP (PN10) 7.2.1. recommendations for installing the +100 +120 8011 on the pipe T ( ° C) Fluid temperature Check that the DN of the fitting is dimensioned to the A : range of use for the complete device process according to the graphs in chap. - Page 18 Type 8011 Installationandwiring → On an horizontal pipe, mount the device in such a way that the paddle-wheel is downwards (Fig. 3). → Prevent the formation of air bubbles in the pipe in the section around the device (Fig. 4).
-
Page 19: Installing A Device With Welding Ends
Type 8011 Installationandwiring 7.2.3. installing a device with clamp Correct Incorrect connections → Follow the installation recommendations in chap. 7.2.1. • Check that the seals are in good condition. • Place the seals, that have been chosen depending on the process temperature and fluid, into the grooves of the Fig. 5: ... -
Page 20: Graphs
Type 8011 Installationandwiring 7.3. Graphs These graphs are used to determine the DN of the pipe and the fitting appropriate to the application, according to the fluid velocity and the flow rate. Flow rate English... -
Page 21: Electrical Wiring
Type 8011 Installationandwiring 7.4. electrical wiring make sure the installation is equipotential (power supply - 8011): Danger • Connect the different earth connections of the installation to one another in order to remove any differences in potential risk of injury due to electrical discharge which may arise between two earth connections. ▶ Shut down and isolate the electrical power source before carry- •... -
Page 22: Assembling The M12 Female Connector
Type 8011 Installationandwiring 7.4.1. Assembling the m12 female connector pin of the m12 female cable available as colour of the accessory equipment (order code 438680) wire → Completely unscrew the brown nut [1] white → blue Remove the rear section of black the connector [2]. grey → Wire the device (see Power supply, 4,5-24 V DC or chap. -
Page 23: Wiring A Version With Cable Gland
Type 8011 Installationandwiring Power supply, 4,5-24 V DC or 6-36 V DC Power supply 6-36 V DC brown white blue green grey YE GY BN WH GN brown white grey Load Load Fig. 10: NPN wiring of the pulse output of a version with cable Fig. 9: PNP wiring of the pulse output of a version with M12 fixed gland connector (*) Functional earth; If a direct earth connection is not possible, fit a 100 nF / 50 V... -
Page 24: Commissioning
Type 8011 Commissioning commissioninG mAinTenAnce AnD TroubleshooTinG 8.1. safety instructions 9.1. safety instructions Warning Danger Danger due to nonconforming commissioning. Non conforming commissioning may lead to injuries and damage risk of injury due to high pressure in the installation. the device and its surroundings. ▶ Stop the circulation of fluid, cut off the pressure and drain the ▶... -
Page 25: Cleaning
Type 8011 Maintenanceandtroubleshooting 9.4. replacing the seal Warning risk of injury due to non-conforming maintenance. ▶ Maintenance must only be carried out by qualified and skilled staff with the appropriate tools. ▶ Ensure that the restart of the installation is controlled after any interventions. O-ring for plastic fitting O-ring for metal fitting 9.2. -
Page 26: Spare Parts And Accessories
Type 8011 Sparepartsandaccessories spAre pArTs AnD spare part order code Accessories EPDM - DN8 448 680 aTTenTiOn 431 561 EPDM - DN15 EPDM - DN20 431 562 risk of injury and/or damage caused by the use of unsuitable EPDM - DN25 431 563 parts. EPDM - DN32 431 564 Incorrect accessories and unsuitable spare parts may cause injuries and damage the device and the surrounding area. -
Page 27: Packaging, Transport, Storage
Type 8011 Packaging,transport,storage pAcKAGinG, TrAnsporT, sTorAGe aTTenTiOn Damage due to transport Transport may damage an insufficiently protected device. ▶ Transport the device in shock-resistant packaging and away from humidity and dirt. Fig. 13: Seal for metal fitting ▶ Do not expose the device to temperatures that may exceed the admissible storage temperature range. - Page 28 www.burkert.com...
