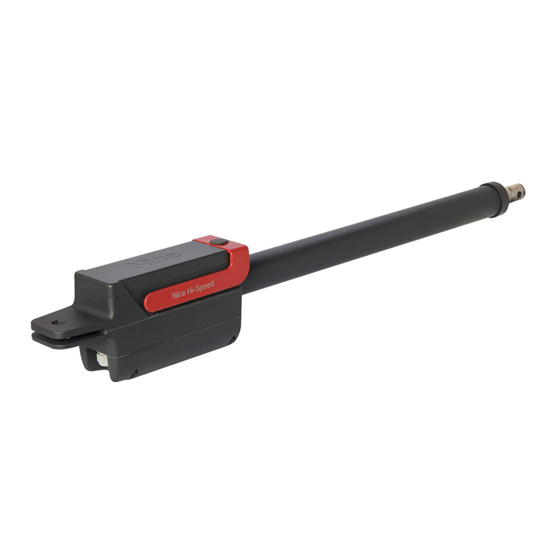

Swing gate opener

Advertisement

Quick Links

Nice
TTN3724HS
TTN3724RHS
TTN6024HS
TTN6024RHS
Swing gate opener
EN - Instructions and warnings for installation and use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTN3724HS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nice TTN3724HS

  • Page 1 Nice TTN3724HS TTN3724RHS TTN6024HS TTN6024RHS Swing gate opener EN - Instructions and warnings for installation and use...
  • Page 3: Table Of Contents

    CONTENTS GENERAL WARNINGS: SAFETY - INSTALLATION - USE 1 - PRODUCT DESCRIPTION AND INTENDED USE 2 - OPERATING LIMITS 3 - INSTALLATION 3.1 - Manually releasing the gearmotor 3.2 - Manually locking the gearmotor 4 - ELECTRICAL CONNECTIONS 5 - AUTOMATION TESTING 5.1 - Testing 5.2 - Commissioning 6 - OPTIONAL ACCESSORIES...
  • Page 4: General Warnings: Safety - Installation - Use

    GENERAL WARNINGS: SAFETY - INSTALLATION - USE (original instructions in Italian) ATTENTION Important safety instructions. Follow all instructions as improper installation may cause serious damage ATTENTION Important safety instructions. It is important for you to comply with these instructions for your own and other people’s safety.
  • Page 5: Product Description And Intended Use

    TTN3724HS, only the control unit model MC824H can be used! In case of power outage, the gate can be operated manually by disengaging the gearmotor (for gearmotor models TTN3724HS and TTN3724RHS the gate leaf can be moved manually without disengaging the gearmotor).
  • Page 6: Installation

    B - vertical electric lock C - photocell pair D - mechanical limit switch pair (opening) E - photocell pillars F - flasher G - keyswitch/digital keypad H - control unit model TTN3724RHS - TTN6024RHS: MC824HR model TTN3724HS - TTN6024HS: MC824H 4 – English...
  • Page 7 WARNINGS • Incorrect installation may cause serious physical injury to those working on or using the system. Identify the front and rear bracket mounting positions Secure the rear bracket with reference to its specified installation positions and check that it lies level Mount the gearmotor to the rear bracket English –...
  • Page 8 Manually release the gearmotor (manual manoeuvre) Pull the rod completely out Provisionally locate the front bracket onto the gate Check that the gearmotor is level, then fit and secure the rod to the front bracket 6 – English...
  • Page 9 Check manually that: - when the gate is fully open, it halts against its mechanical stops - the gate swings freely and without resistance Correct any defects a - Unhook the rod from the front bracket b - Mount the latter to the gate permanently c - Permanently mount the rod to the front bracket English –...
  • Page 10: Manually Releasing The Gearmotor

    Lock the gearmotor Follow this procedure for both gearmotors. 3.1 - Manually releasing the gearmotor (manual manoeuvre) Raise the rubber cap Fit the provided wrench and rotate it CW by 90° Follow this procedure for both gearmotors. 3.2 - Manually locking the gearmotor (manual manoeuvre) Move the gate to the halfway open position by hand Raise the rubber cap Fit the provided wrench and rotate it CCW by 90°...
  • Page 11: Electrical Connections

    ELECTRICAL CONNECTIONS CAUTION! – Incorrect connections can cause faults or hazards; therefore ensure that the specified connections are strictly observed. – Hook up the unit with the electrical power shut off. Remove the gearmotor’s cover (a) Loosen the cable clamp (b) and run the cable through it (c) Hook up the cables and connect the earth cable to its eyebolt ENCODER ENCODER...
  • Page 12: Automation Testing

    Tighten down the cable clamp and put the cover back on AUTOMATION TESTING These are the most important stages in the automation’s construction in order to ensure maximum safety. Testing can also be adopted as a method for periodically checking that all the various devices in the system are functioning correctly. Testing of the entire system must be performed by qualified and experienced personnel who must establish which tests to conduct on the basis of the risks involved, and verify the compliance of the system with applicable regulations, legislation and standards, in particular with all the provisions of EN12445 which establishes the test methods for automation systems for gates.
  • Page 13: Optional Accessories

    “partly completed machinery” Revision: 0 - Language: EN - Name of manufacturer: NICE S.p.A. - Address: Via Pezza Alta N°13, 31046 Rustignè di Oderzo (TV) Italy - Person authorised to draw up the technical documentation: NICE S.p.A. - Type of product: Electromechanical gearmotor...
  • Page 14: Disposal Of The Product

    TECHNICAL SPECIFICATIONS All technical specifications stated in this section refer to an ambient temperature of 20°C (± 5°C). • Nice S.p.A. reserves the right to apply modifications to products at any time when deemed necessary, while maintaining the same intended use and functionality.
  • Page 15: Operation Manual (To Be Given To The Final User)

    USER MANUAL (to be delivered to the end user) This user guide should be stored and handed to all users of the automation. WARNINGS • Keep at a safe distance from the moving gate until it is completely open or closed; do not transit through the gate until it is completely open and has come to a standstill.
